MYRIAD ADJ ROUND WHITE 3000K PHDIM WHITE BEZ
Item No:
2056208
This product is no longer available
.png)

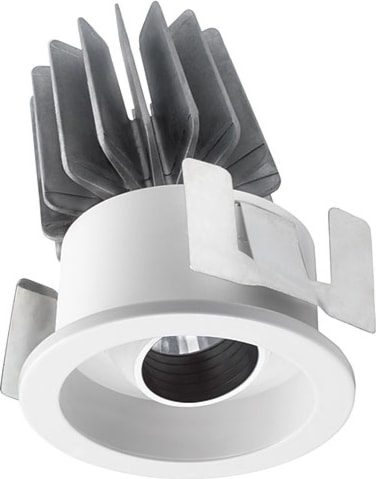

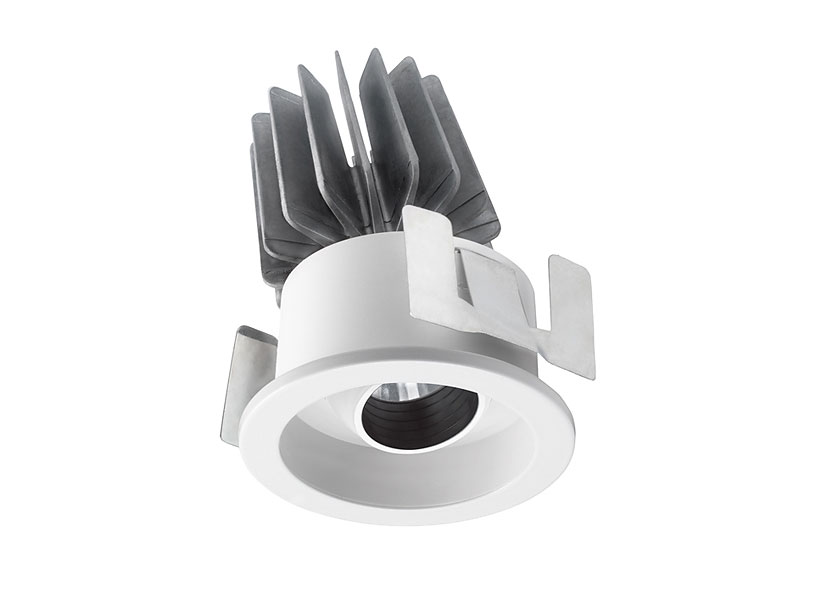

The Myriad Adjustable Round recessed spotlight is a high efficient accent downlight, fixture color RAL 9016 - Traffic white / Bezel, correlated colour temperature of 3000K, color rendering index Ra85, fixture lumen 702lm, total power consumption 10W, luminaire efficacy 70 lm/W, nominal light beam angle 24°, mains voltage 230-240V~ AC, control technology type: leading edge/trailing edge phase dim, product lenght 76mm, width 76mm, height 115mm, cut-out dimension 76mm, IP rating IP20, 5 years warranty.
Downloads
Technical Assets
Dimensions (mm)

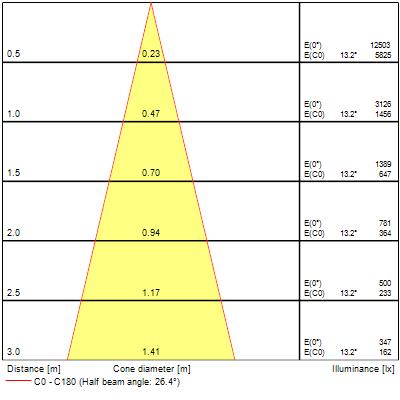

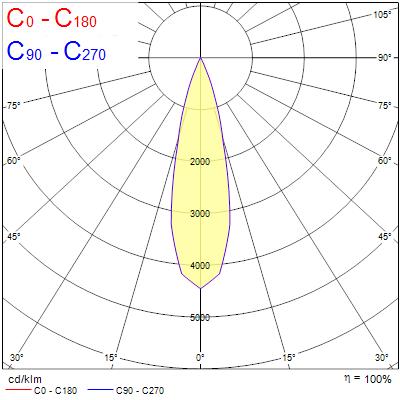

Photometrics
Product name
MYRIAD ADJ ROUND WHITE 3000K PHDIM WHITE BEZ
Technology
LED
Cap/Base
N/A
Housing
PC Polycarbonate
Mount
Ceiling recessed mounting
Environment
Indoor
General application
Hospitality, Office, Residential & Consumer, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4278800
Warranty
5 years
Fixture luminous flux (lm)
702
Luminaire efficacy (lm/W)
70
LOR (%)
100
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Beam Angle (°)
24
Distribution type
Symmetric
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
344
Total power consumption (W)
10
Primary Supply/Product voltage - min (V)
230
Primary Supply/Product voltage - max (V)
240
Electrical protection
Class II
Control gear type
LED driver constant current
Control gear mounting
Integral
Drive current (mA)
250
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B10
68500
Housing colour
White
IP rating
IP20
IK rating
IK02
Diffuser material
Glass
Nominal Product Width (mm)
76
Nominal Product Height (mm)
115
Max. Lamp Diameter (mm) - D
90
Weight (kg)
0.38
Recessed Depth (mm)
115
Product EAN number
5025768562084
Packaging single length / height (cm)
17.5
Packaging single width (cm)
15.0
Packaging single depth (cm)
17.5
DUN14 (inner)
05025768562084
Units per outer package
1
Packaging outer length / height (cm)
17.5
Packaging outer width (cm)
15.0
Packaging outer depth (cm)
17.5
