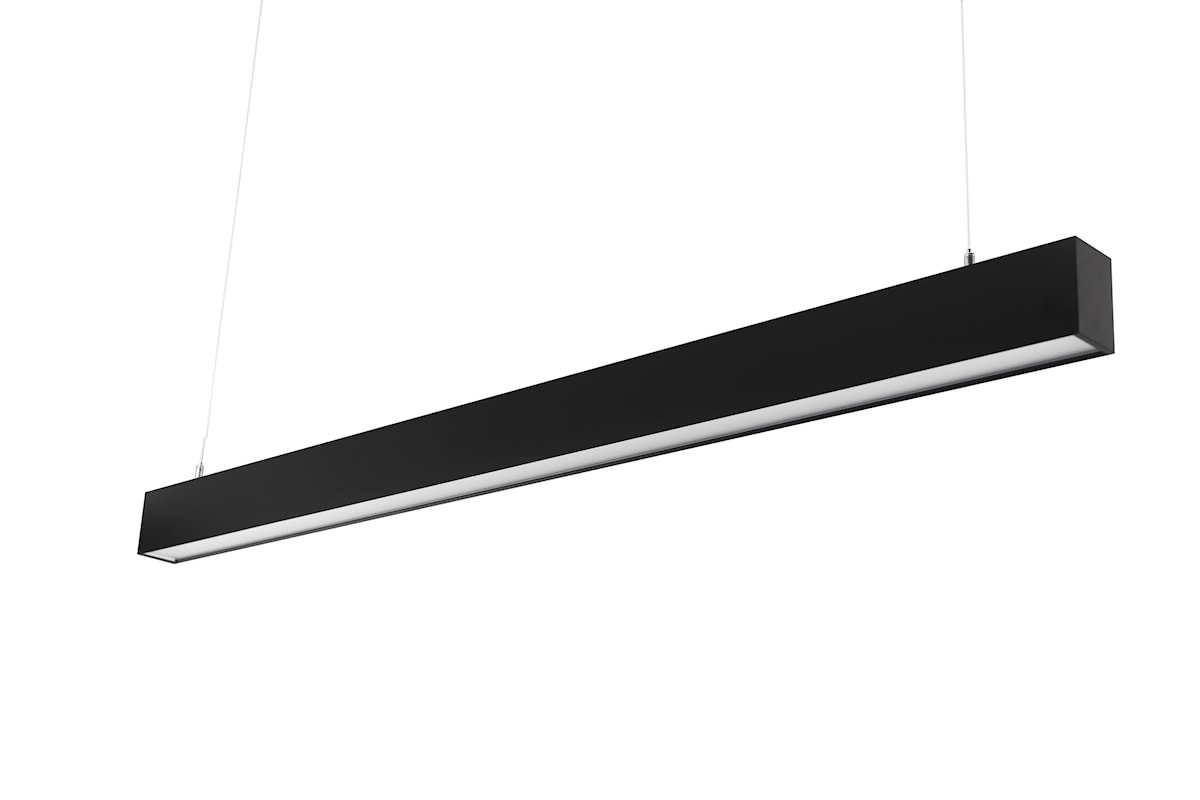

OTAO LINEAR 1.5 PRIS 830/840 DALI BK

Artikelnummer 0040833

Linear LED Luminaire, RAL9011 (black) finishing, direct distribution, standard surface mounted version complete with end caps and surface brackets, additional mounting options with accessories, 50mm wide extruded aluminium profile, lenses with prismatic diffuser, ideal for offices, meeting rooms, corridors, education facilities, museums and libraries, power and CCT switch options at the back of the luminaire, colour temperature: 3000K/4000K CCT options, CRi (Ra) >80 typical, LED chromacity: 3 step MacAdam ellipse (SDCM3), DALI driver, 2-steps combined dip-switch for direct and D/I light distribution: 27W system power in direct mode with 3900lm output and 144lm/W efficacy @ 4000K CCT, 39W system power in D/I combination with 5300lm and 136lm/W efficacy @ 4000K CCT, electrical protection: Class I, IP20 ingress protection, IK03 impact resistance level, suitable for indoor environment only, lifespan: 100,000 hours L80B50, operating voltage: 220-240V / 50-60Hz, nominal size: 1147x50x73mm, shiped with through wiring.

Downloads

Otao Linear Verkaufsflyer.pdf

Video

Anwendungsbilder

OTAO LINEAR 1.5 PRIS 830/840 DALI BK

Technische Werte

Größe (mm)

Photometrie

Zubehör
