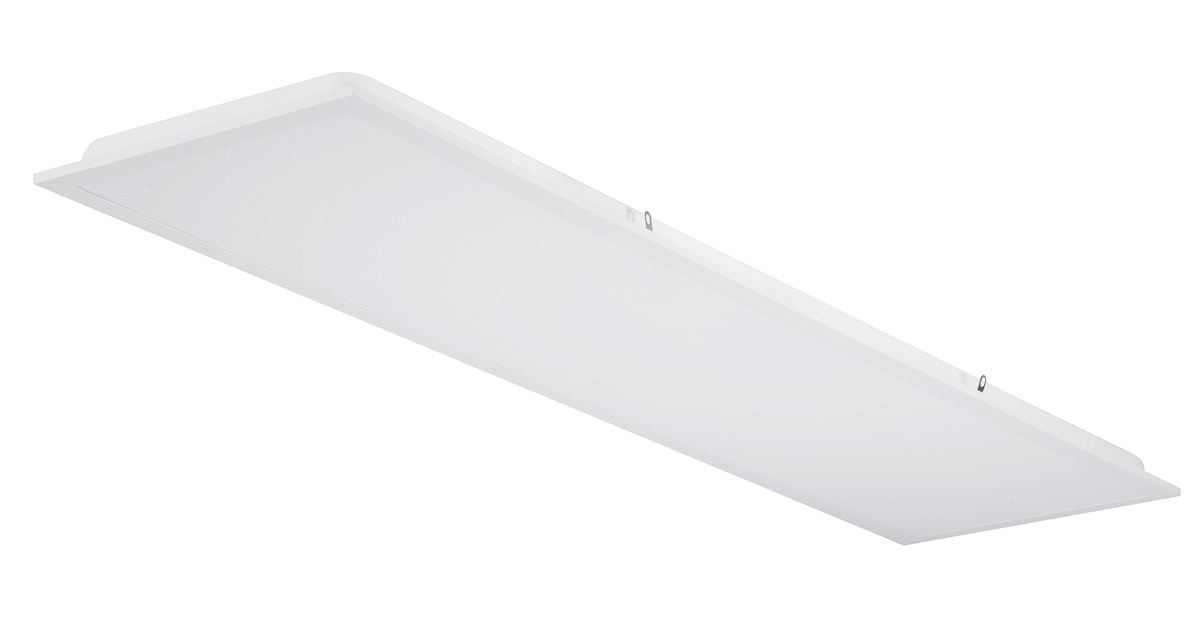

START Panel UGR19 1200x300 2900-4600lm 830/840 MP

Artikelnummer 0048098

START Panel is a range of recessed integrated LED panels for general indoor lighting applications such as breakout areas, offices and meeting rooms. With the help of DIP Switch multiple lumen outputs can be set up in 4 steps and with the CCT switch the customer is enabled to switch between 3000K and 4000K colour temperatures (3000K: 21W 2900lm, 25W 3400lm, 29W 3900lm, 33W 4300lm; 4000K: 21W 3100lm, 25W 3650lm, 29W 4150lm, 33W 4600lm). Max. drive current: 850mA; Lifespan: 100.000Hrs L80:B50; CRI 80; Efficacy up to: 148Lm/W; Glare control <19; IK03; IP40 (from the front); Class II; Tp(b) rated diffuser that may not burn at a speed of more than 50mm per minute.

Downloads

START Panel Verkaufsflyer.pdf
