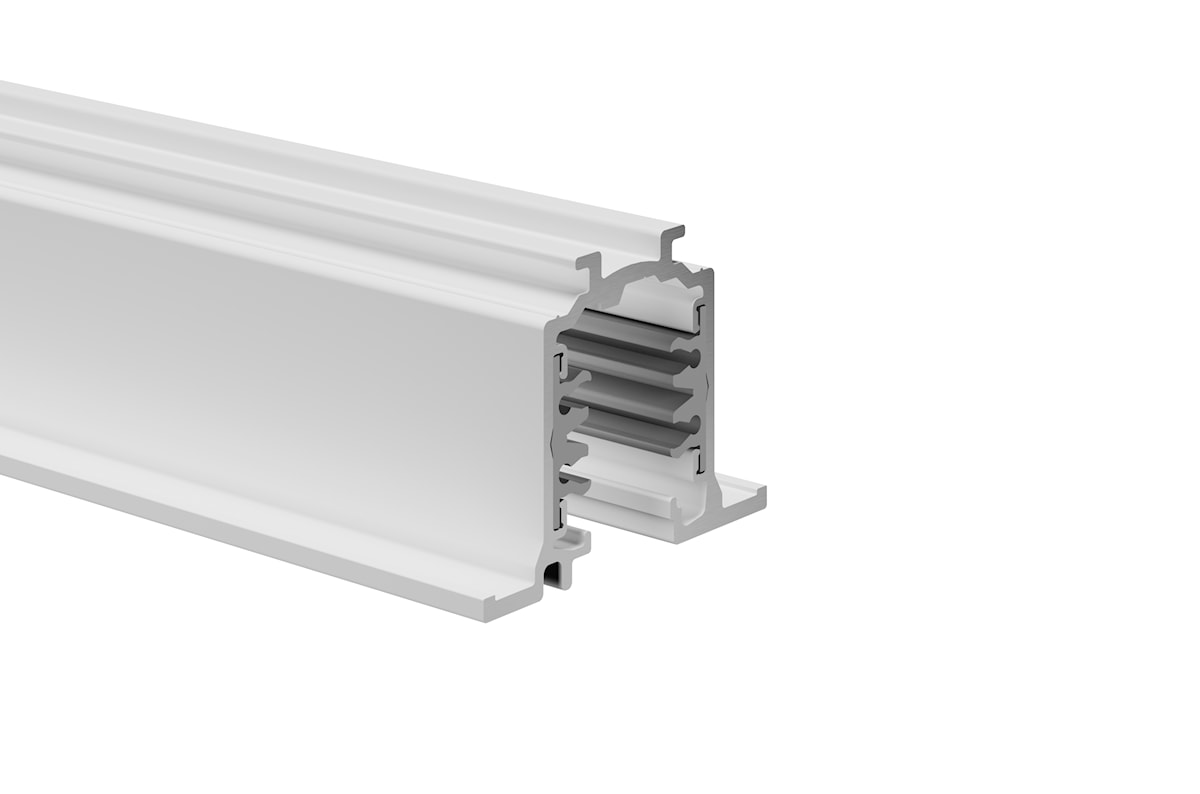

OneTrack Recess 1m White Carton Tube 9000-1/w-r
Artikelnummer
9200601
OneTrack Recessed - 3 circuit track + 2 circuit control L1/L2/L3/Neutral/ground 16A/440V + D+/D- 2x1A/50V FELV AC, DALI, DMX, 1-10V etc. compatible, circuits can be controlled individually, aluminum body, suitable for recessed mounting, 1000 x 30.7 x 37.8 mm (L x W x H), white (RAL 9010). Singular carton tube packaging.
Downloads
Technische Werte
Größe (mm)
Photometrie
Produktname
OneTrack Recess 1m White Carton Tube 9000-1/w-r
Technologie
Non - Electrical Device
Art des Zubehörs
Electrical
Type of accessory
Track
Gehäuse
Aluminium
Montage
Ceiling recessed mounting, Wall recessed
Allgemeine Anwendungsbereiche
Museums & Galleries, Office
ETIM Klasse
EC000101
Garantie
5 Jahre
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Elektrische Schutzklasse
Class I
Gehäusefarbe
White
Länge (mm)
1000
Breite (mm)
52
Nominale Produkthöhe (mm)
37.8
Gewicht (kg)
1.14
EAN Code
4012289006013
Einzelverpackung Länge (cm)
106.0
Einzelverpackung Breite (cm)
6.2
Einzelverpackung Tiefe (cm)
6.2
Anzahl an Einheiten je Außenverpackung
1
Außenverpackung Länge (cm)
106.0
Außenverpackung Breite (cm)
5.4
Außenverpackung Tiefe (cm)
5.4
Zubehör
-
OneTrack 3m Suspension Kit0 90-k50-3Artikelnummer 9200823
-
OneTrack T-Feed Connector In-Right White 9016/wArtikelnummer 9200737
-
OneTrack Recess Cover End Feed White s-9001-r/6-wArtikelnummer 9200741
-
OneTrack Recessed Cover T-Feed White s-9013-r/6-wArtikelnummer 9200747
-
OneTrack Recessed Cover X-Feed White s-9017-r/6-wArtikelnummer 9200749
-
OneTrack Medium M13 Bracket White s-9000/322-M13wArtikelnummer 9200800
-
OneTrack L-Feed Connector Out White 9012/wArtikelnummer 9200729
-
OneTrack L-Feed Connector In White 9011/wArtikelnummer 9200727
-
OneTrack Live End Feed Right White 9001/wArtikelnummer 9200709
-
OneTrack Recessed Trim End Cap White 9004-r/wArtikelnummer 9200703
-
OneTrack 5m Suspension Kit0 90-k50-5Artikelnummer 9200824
-
OneTrack Recess Cover Mid Feed White s-9010-r/6-wArtikelnummer 9200743
-
OneTrack T-Feed Connector In-Left White 9015/wArtikelnummer 9200735
-
OneTrack Middle Feed Connector White 9010/wArtikelnummer 9200713
-
OneTrack T-Feed Connector Out-Left White 9013/wArtikelnummer 9200731
-
OneTrack M6 Medium Pen Bracket White s-9000/322-M6wArtikelnummer 9200806
-
OneTrack X-Feed Connector White 9017/wArtikelnummer 9200739
-
OneTrack Straight Connector White 9003/wArtikelnummer 9200719
.jpg?h=290&w=290)
-
OneTrack Live End Feed Left White 9002/wArtikelnummer 9200711
-
OneTrack 1,5m Suspension Kit8 Alu 9000-kit8-1,5Artikelnummer 9200855
-
OneTrack 1,5m Suspension Kit1 9000-kit1-1,5Artikelnummer 9200825
-
OneTrack Clamp+M6 Gripper Alu s-9000-p2/117Artikelnummer 9200769
-
OneTrack Fixing Clamp+Gripper White s-9000/114-t-wArtikelnummer 9200762
-
OneTrack Fast Fixing Clamp White s-9000/115-wArtikelnummer 9200764
-
OneTrack T-Feed Connector Out-Right White 9014/wArtikelnummer 9200733
-
OneTrack 1,5m Suspension Kit0 90-k50-1,5Artikelnummer 9200822
-
OneTrack 1,5m Suspension Kit2 Wht 9000-kit2-1,5-wArtikelnummer 9200828
-
OneTrack M13 S SuspensionBracket s-9000/312-M13-wArtikelnummer 9200808
-
OneTrack M6 Fixing Clamp+Gripper Wht s-9000/118wArtikelnummer 9200802
-
OneTrack Med Spher Sus Bracket Wht s-9000/322-sv-wArtikelnummer 9200786
-
OneTrack 1,5m Suspension Kit5 Wht 9000-kit5-1,5-wArtikelnummer 9200843
-
OneTrack SP Suspension Bracket Wht s-9000/312-sv-wArtikelnummer 9200760
-
OneTrack Clamp+Automatic Gripper Alu s-9000/116Artikelnummer 9200766
-
OneTrack Cutting Tool For Track Conductor s-9000/tArtikelnummer 9200894
-
OneTrack 1m Protection Cover White s-9000/gp-wArtikelnummer 9200889
-
OneTrack Recessed Cover L-Feed White s-9011-r/6-wArtikelnummer 9200745
