Tucana IP44 900LM 3CCT DALI WHT
Item No:
0005214
.png)

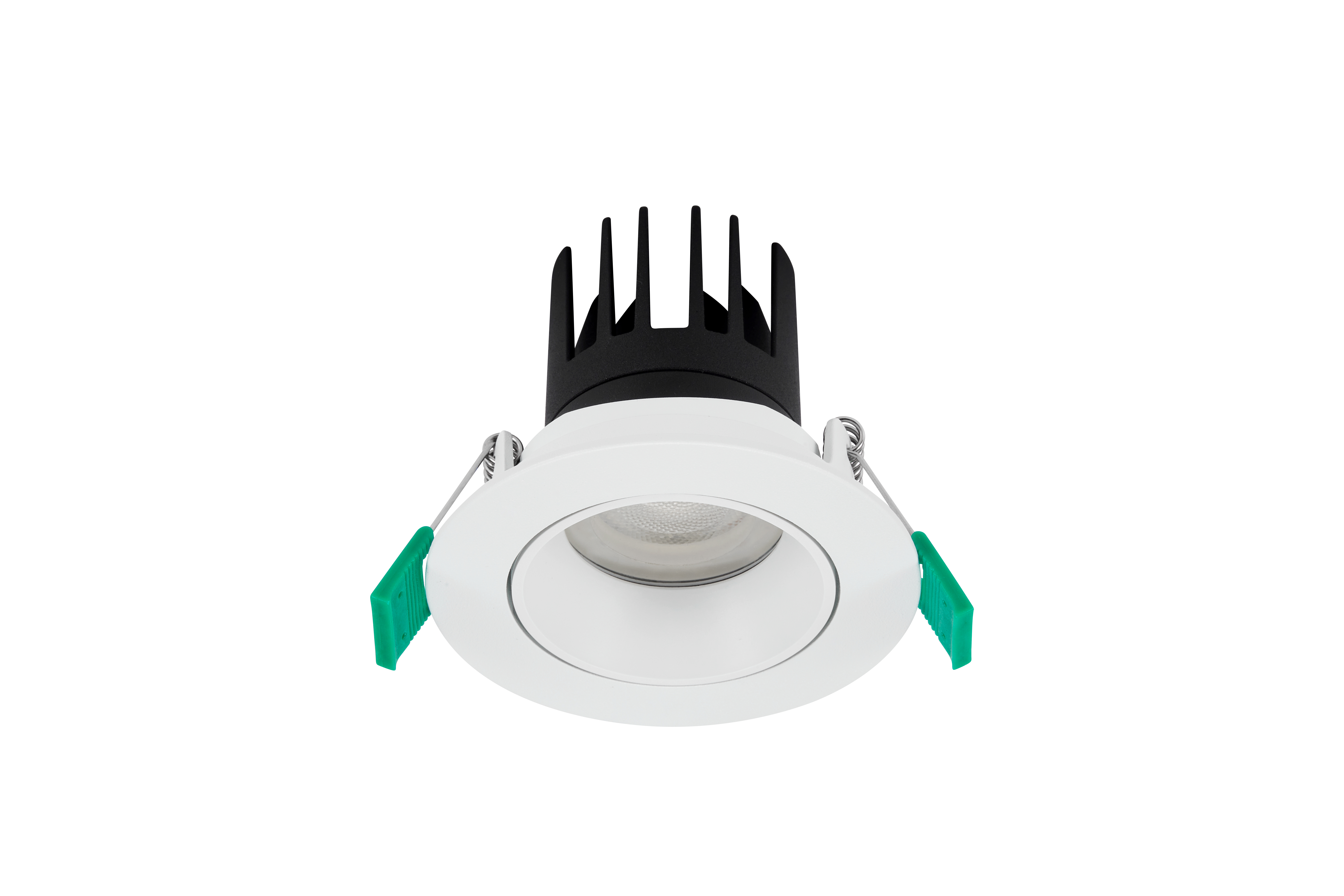

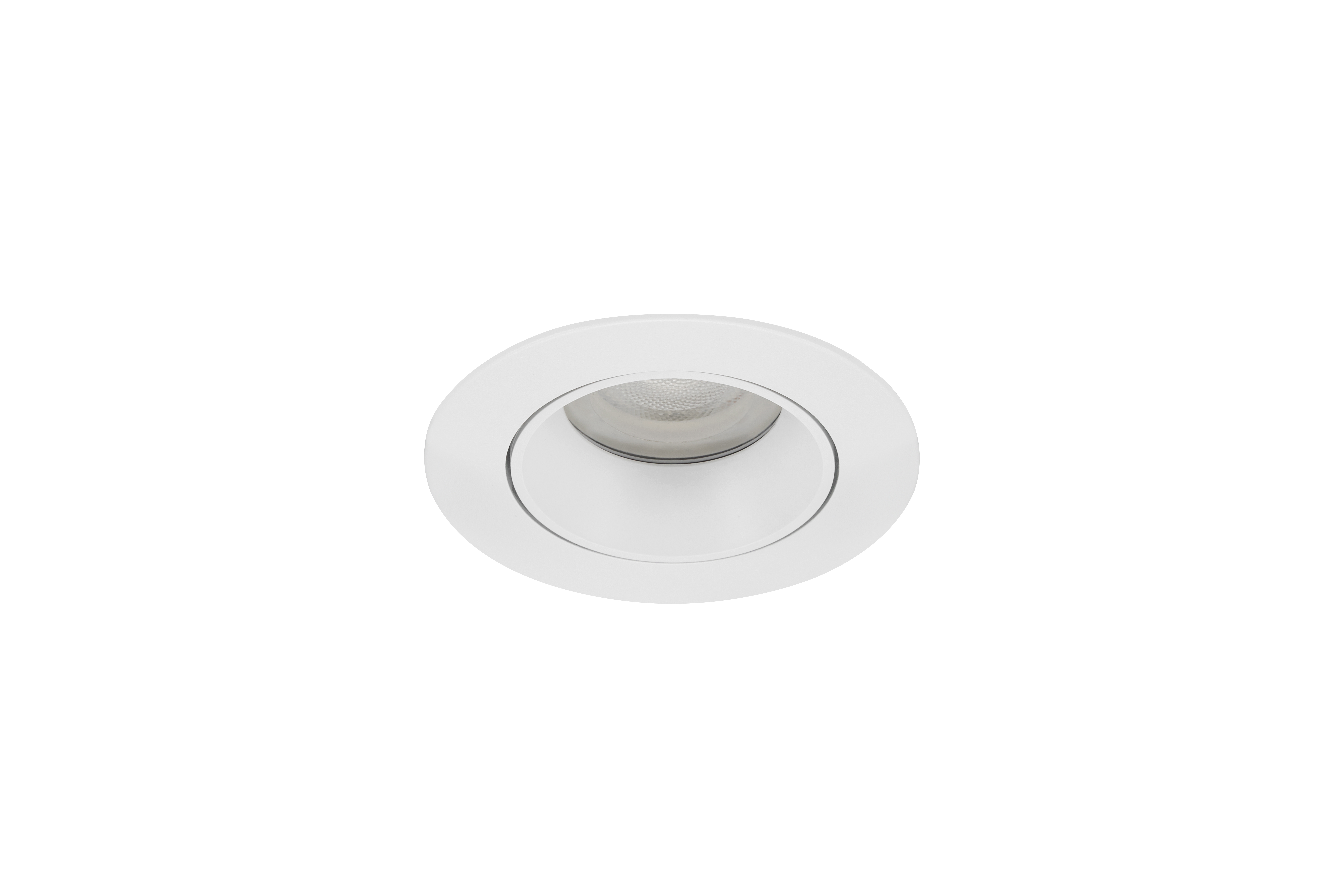

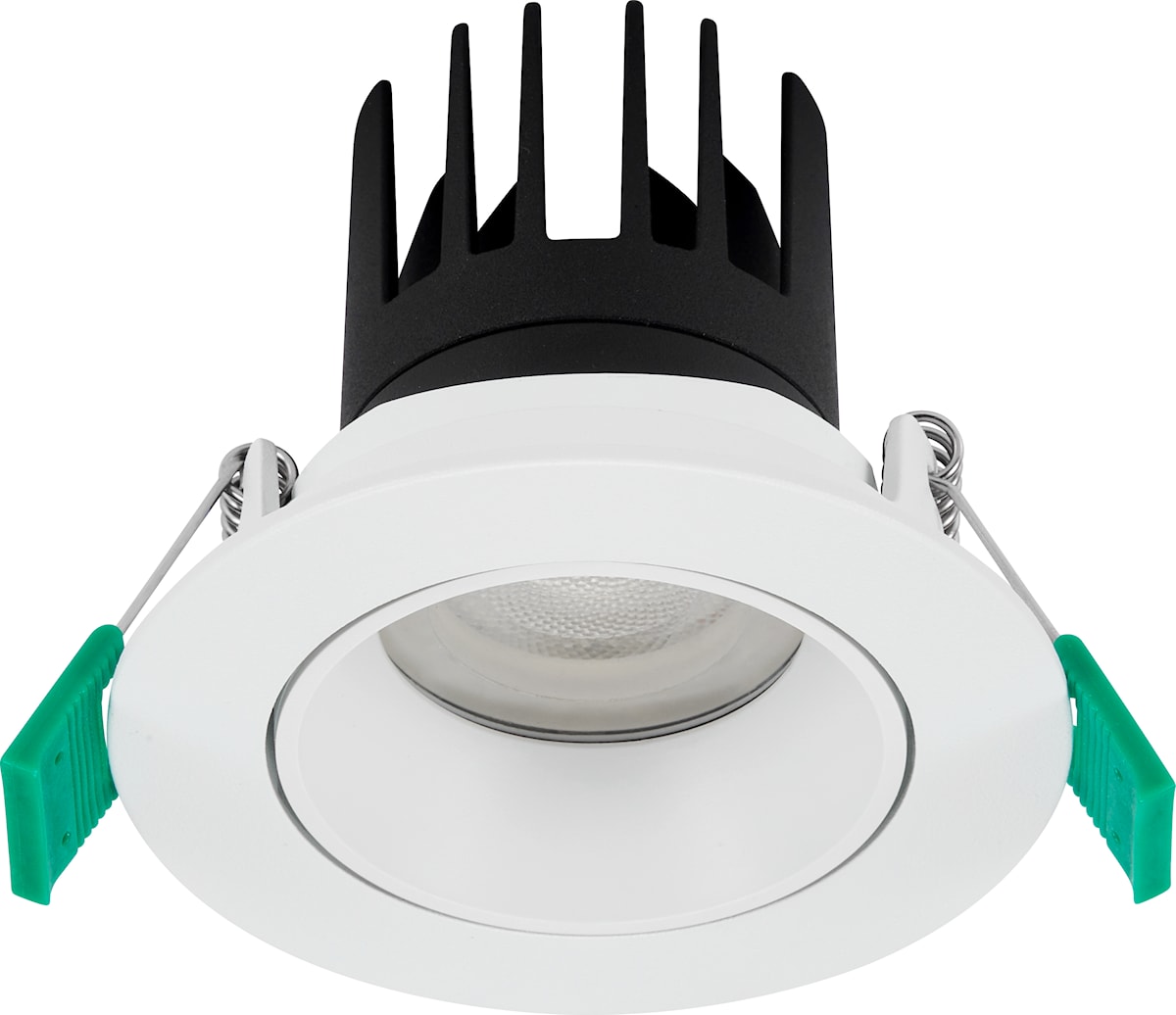

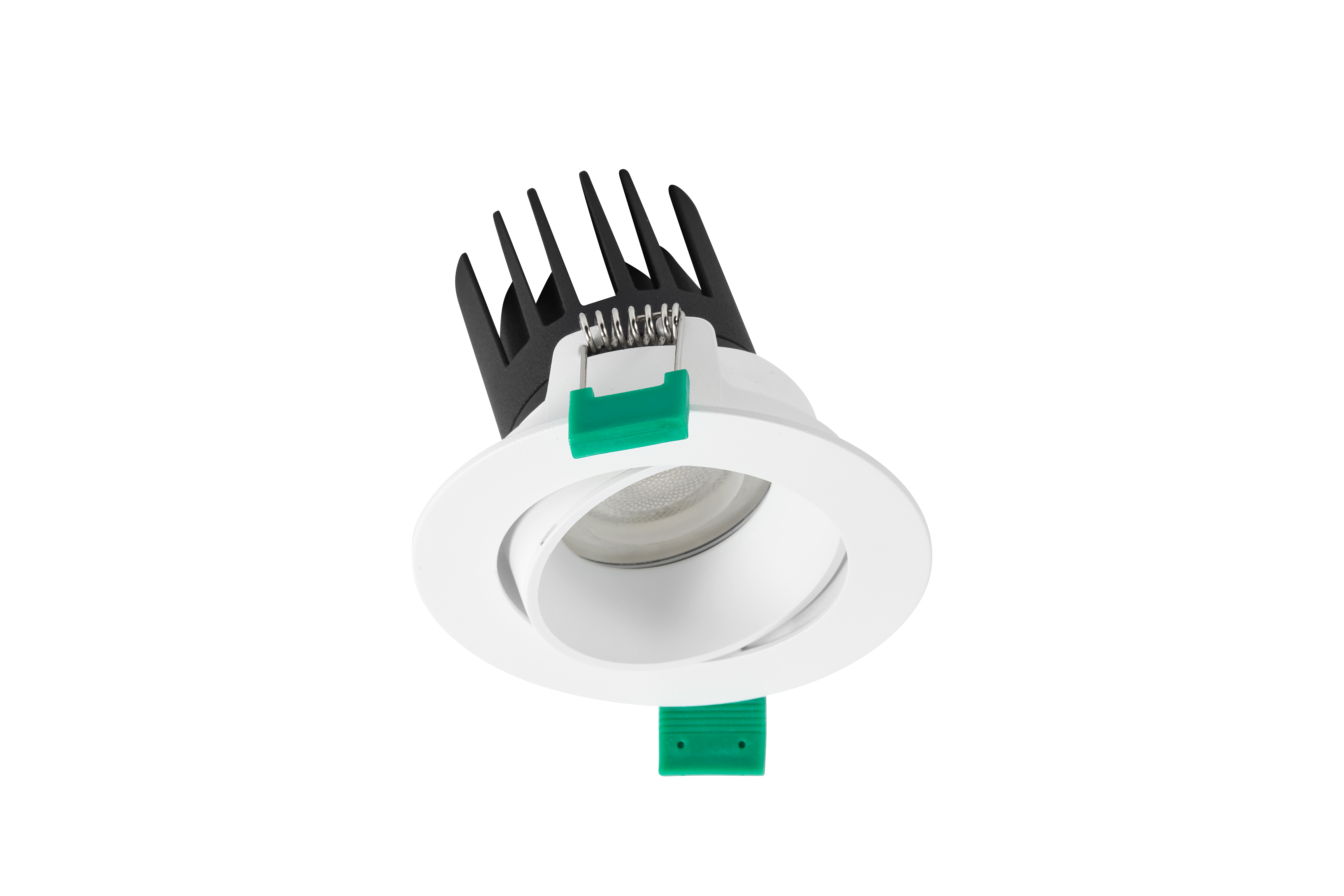

TUCANA IP44 900LM 3CCT DALI WHT is a universal spotlight offering three adjustable colour temperature options (3 CCT 2700K / 3000K / 4000K) for easy customization to suit the need of the user. White bezel finish, ajdustable, DALI driver with switch dim option, 40° degree beam angle, IP44 from the front, loop-in/loop-out terminals for fast wiring, 68mm cutout, coverable by insulation material.
Technical Assets

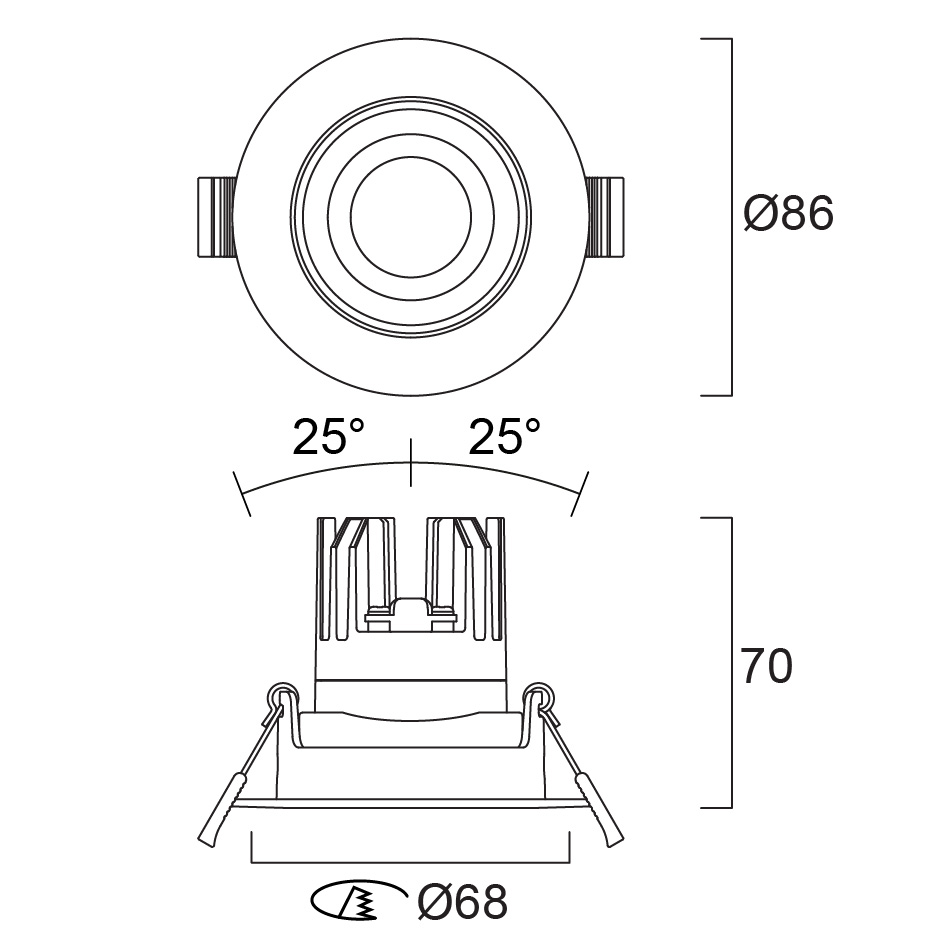

Dimensions (mm)

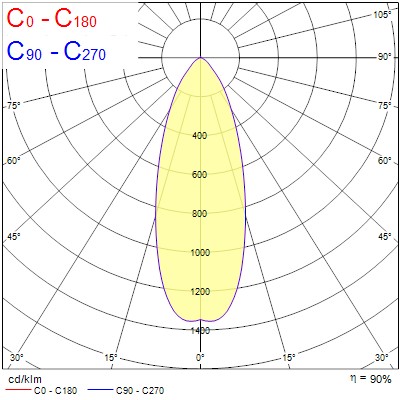

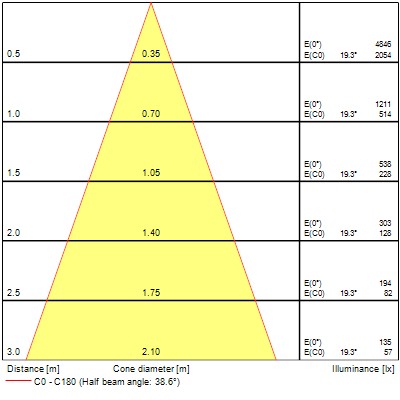

Photometrics
Product name
Tucana IP44 900LM 3CCT DALI WHT
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Built in presence detector
NONE
General application

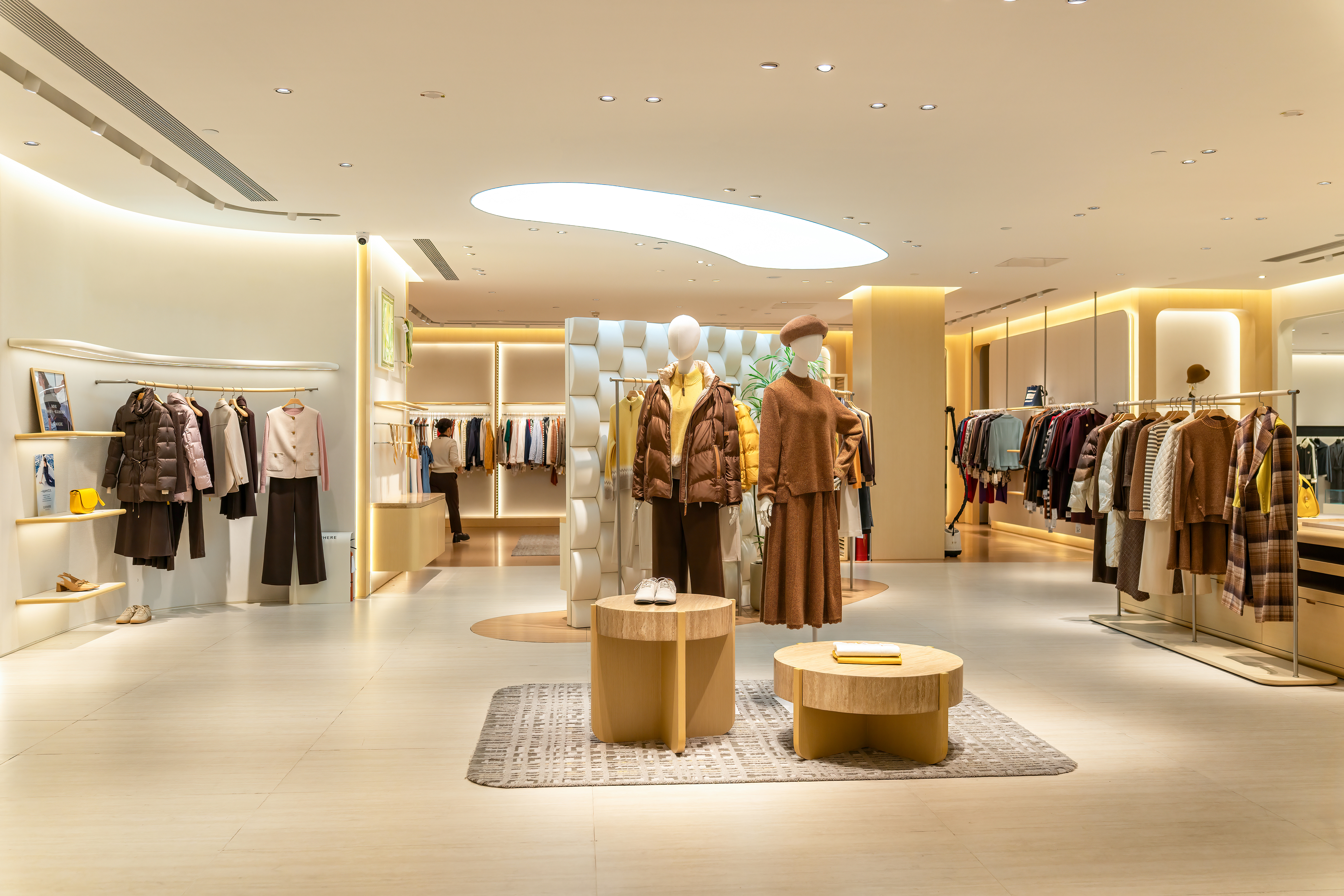

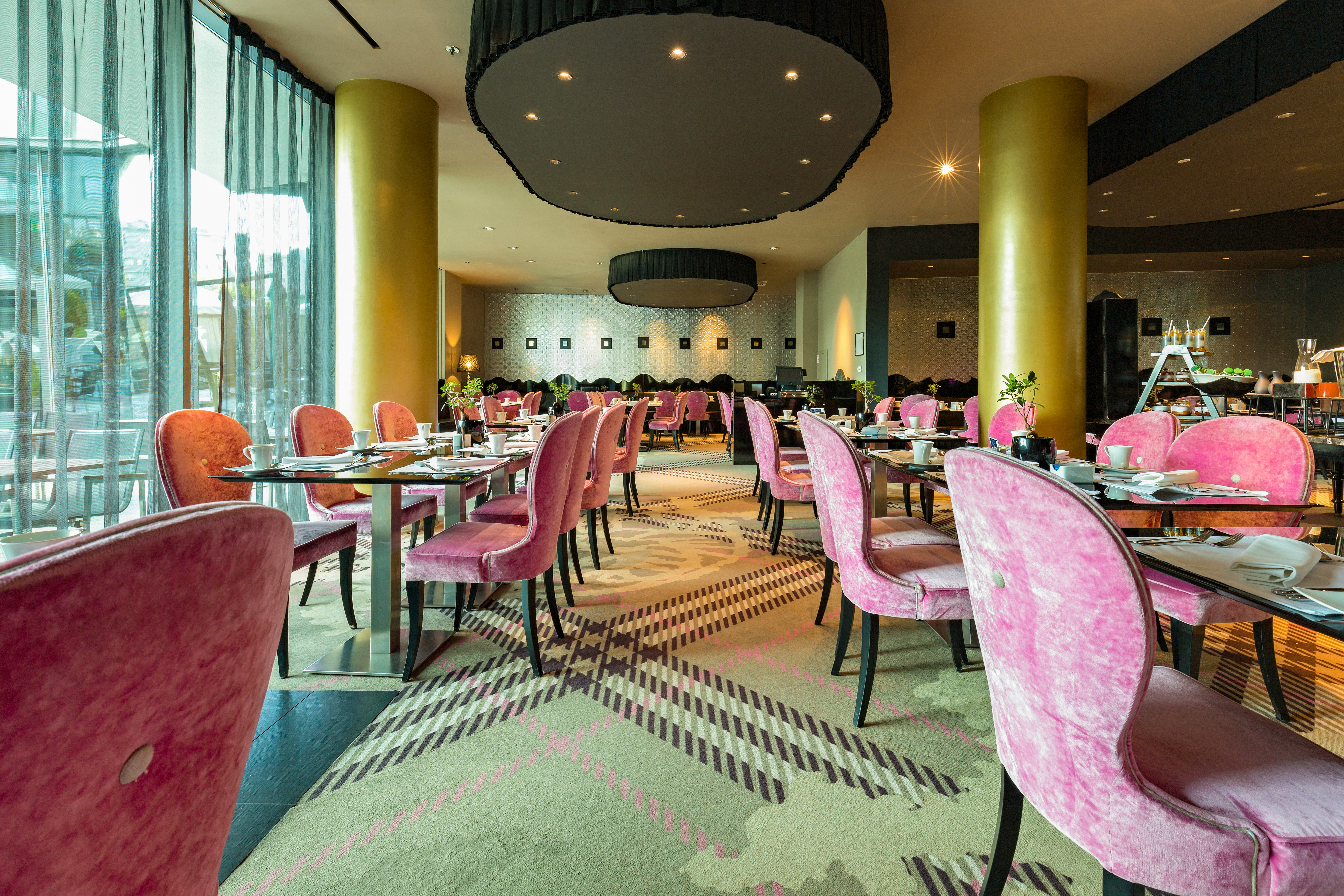

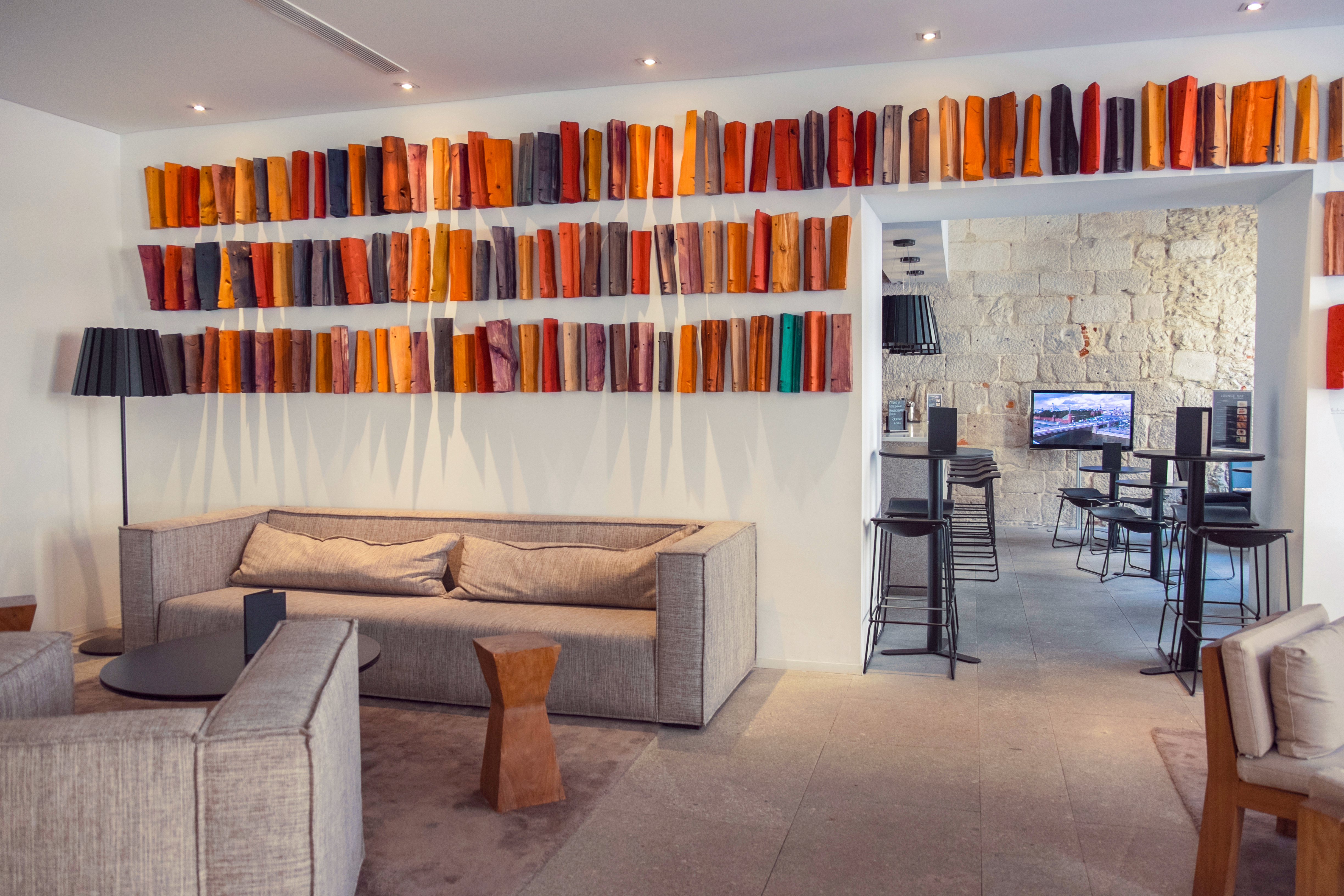

Hospitality, Retail
Operating temperature range (°C)
0°C...+35°C
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4170750
Warranty
5 years
Fixture luminous flux (lm)
900
Luminaire efficacy (lm/W)
105
Light colour
Warm White or Neutral White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
40
Distribution type
Symmetric
Photobiological Risk Group
RG1
Emergency type
Total power consumption (W)
8.5
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.85
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
10
Electrical protection
Class II
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
DALI
Drive current (mA)
200
Inrush Current (A)
8
Inrush Duration (µs)
36
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
131
Max. products per 13A C Breaker
170
Max. products per 16A C Breaker
210
Max. products per 20A C Breaker
262
Max. products per 10A B Breaker
131
Max. products per 13A B Breaker
170
Max. products per 16A B Breaker
210
Max. products per 20A B Breaker
262
Connectable conductor cross section - Min (mm²)
0.75
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
155000
Lifespan L80 B50
98000
Lifespan L80 B20
84000
Lifespan L90 B50
48000
Housing colour
RAL 9016 - Traffic white / Bezel
IP rating
IP44/20
IK rating
IK03
Diffuser finish
Transparent
Diffuser material
Other, PC Polycarbonate
Reflector finish
Not Applicable
Nominal Product Height (mm)
70
Nominal Product Diameter (mm)
86
Weight (kg)
0.3
Product EAN number
5410288052144
Packaging single length / height (cm)
15.5
Packaging single width (cm)
13.1
Packaging single depth (cm)
10.0
DUN14 (inner)
15410288052141
Units per outer package
18
Packaging outer length / height (cm)
32.6
Packaging outer width (cm)
41.1
Packaging outer depth (cm)
31.8
Glow Wire Test (°C)
650
Optimal operating condition (°C)
0 °C-35
