OBICO IP65 740LM 2CCT DIM ADJ WHT
Item No:
0005350
This product is no longer available
.png)

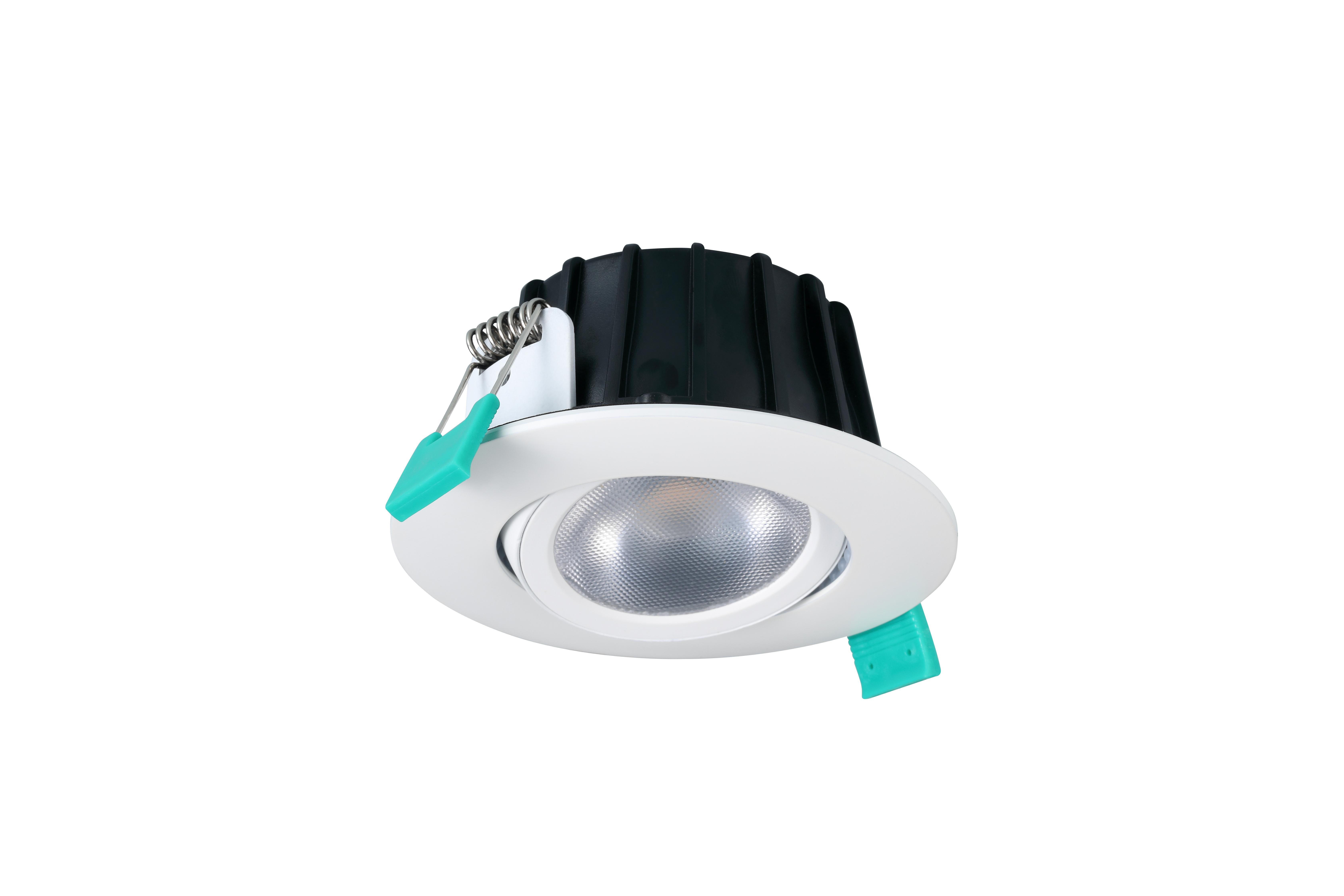

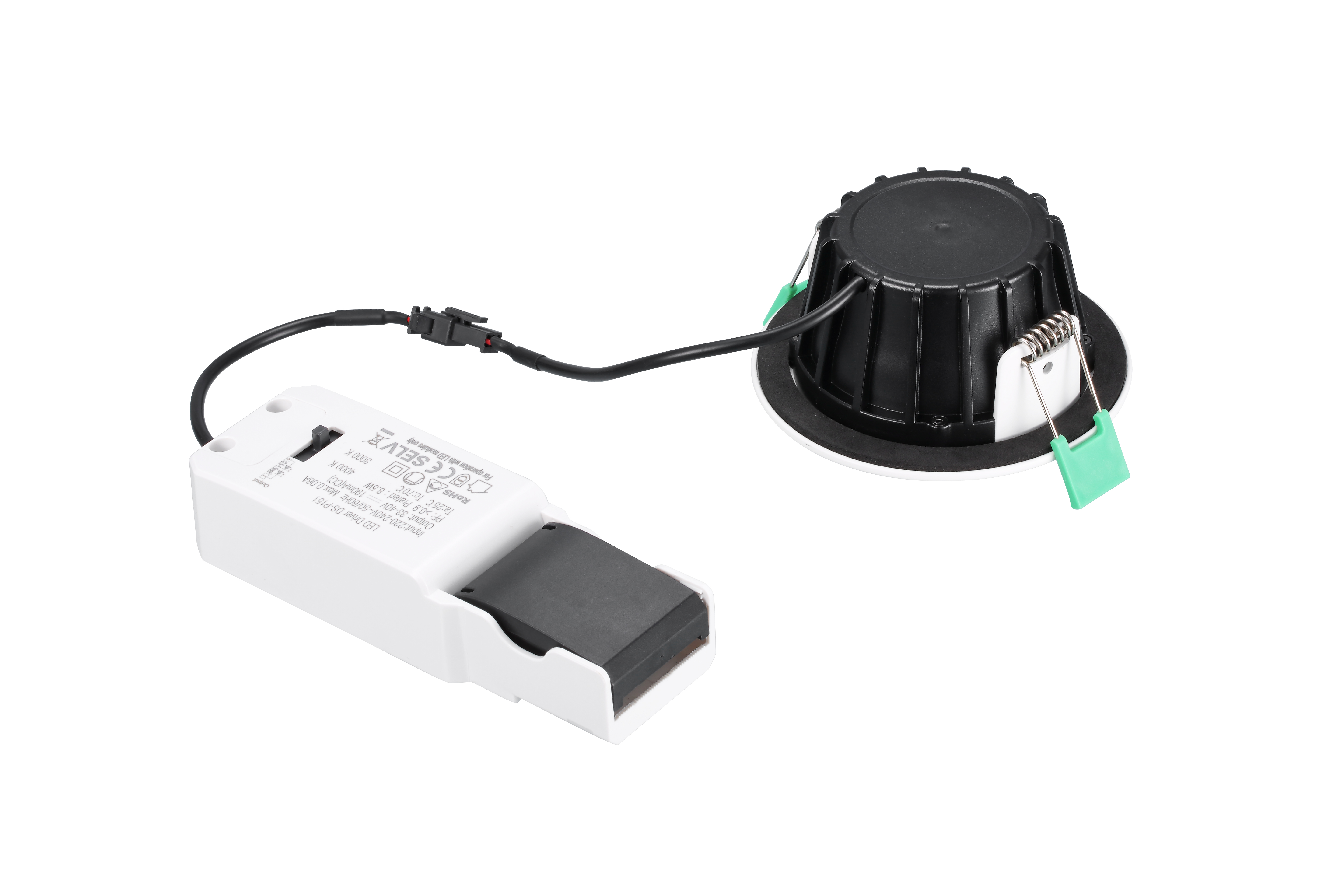

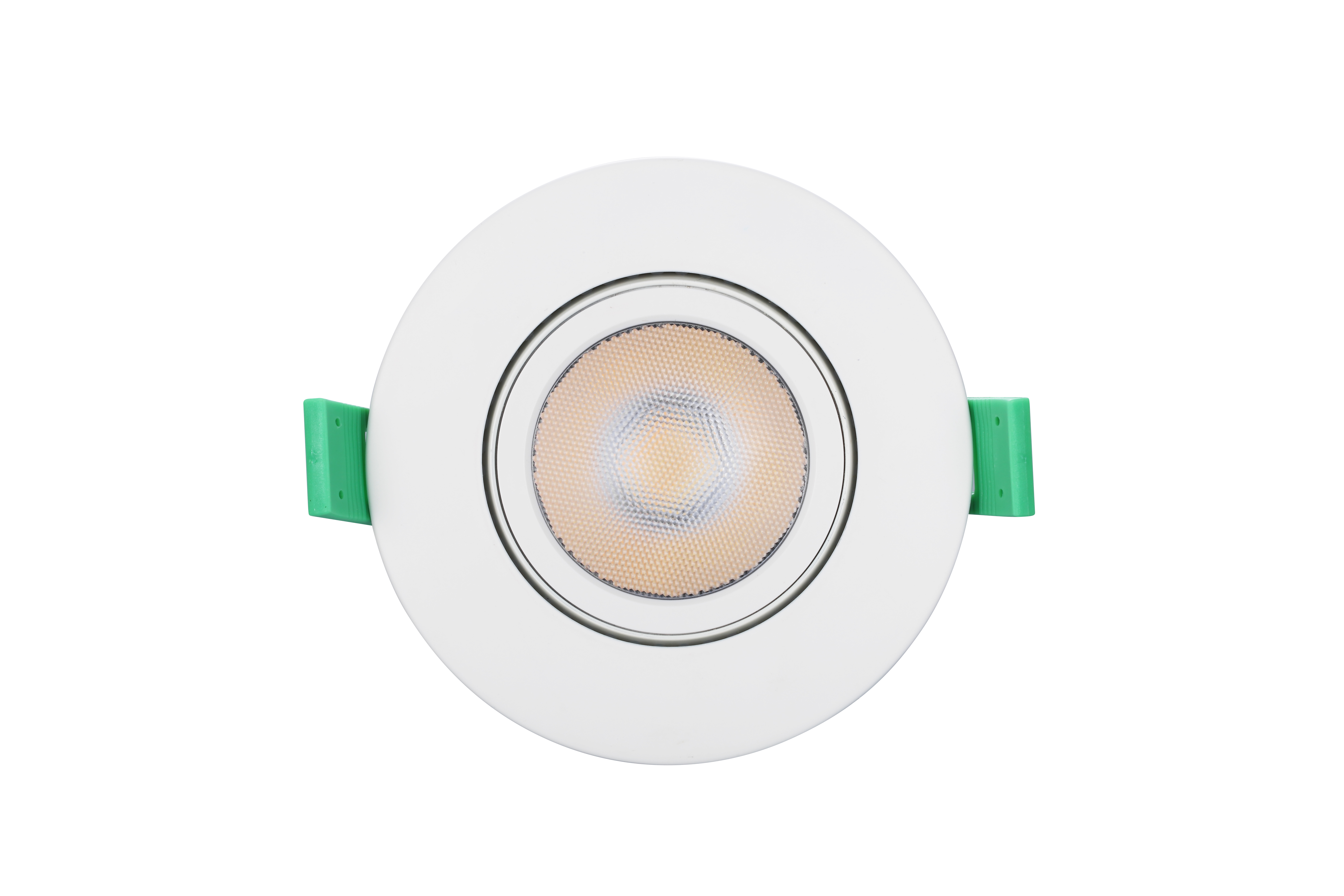

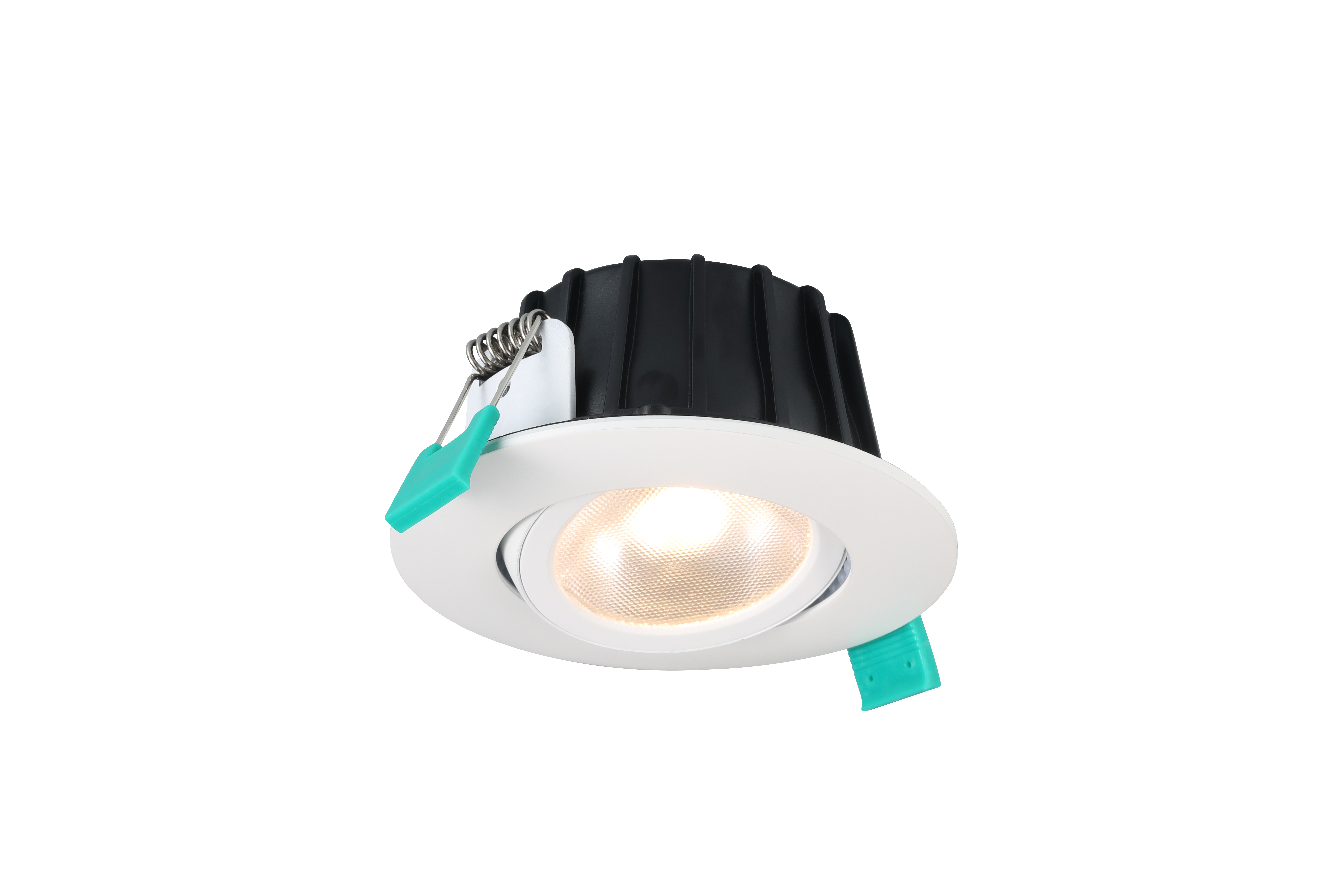

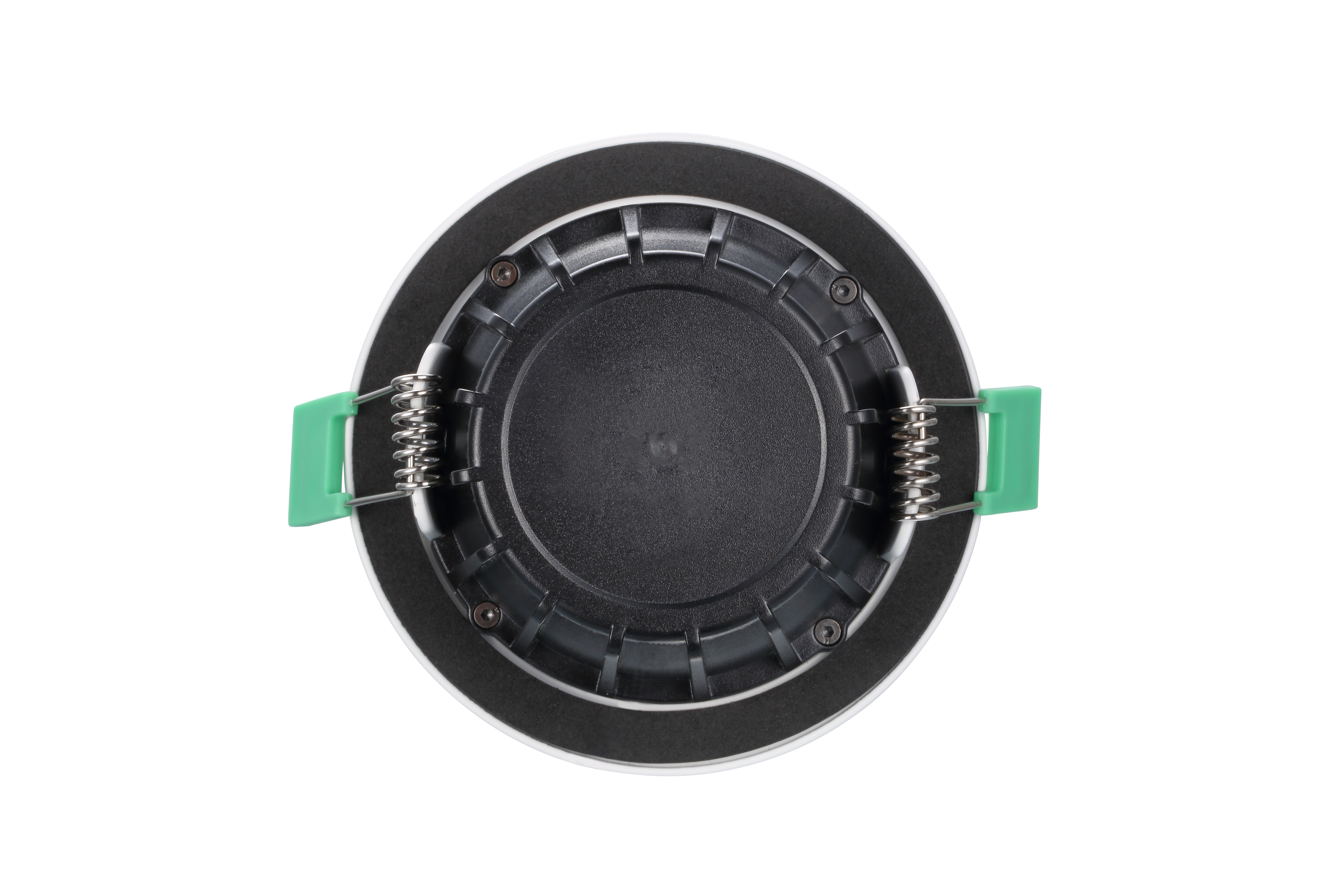

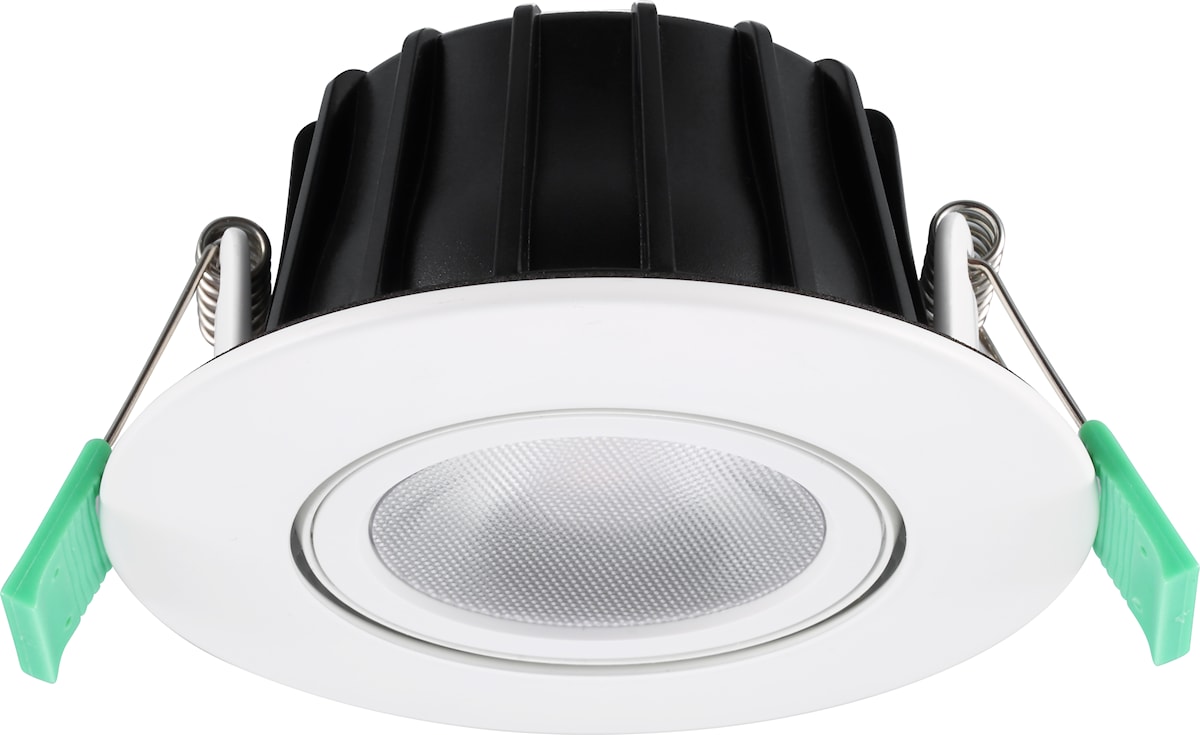

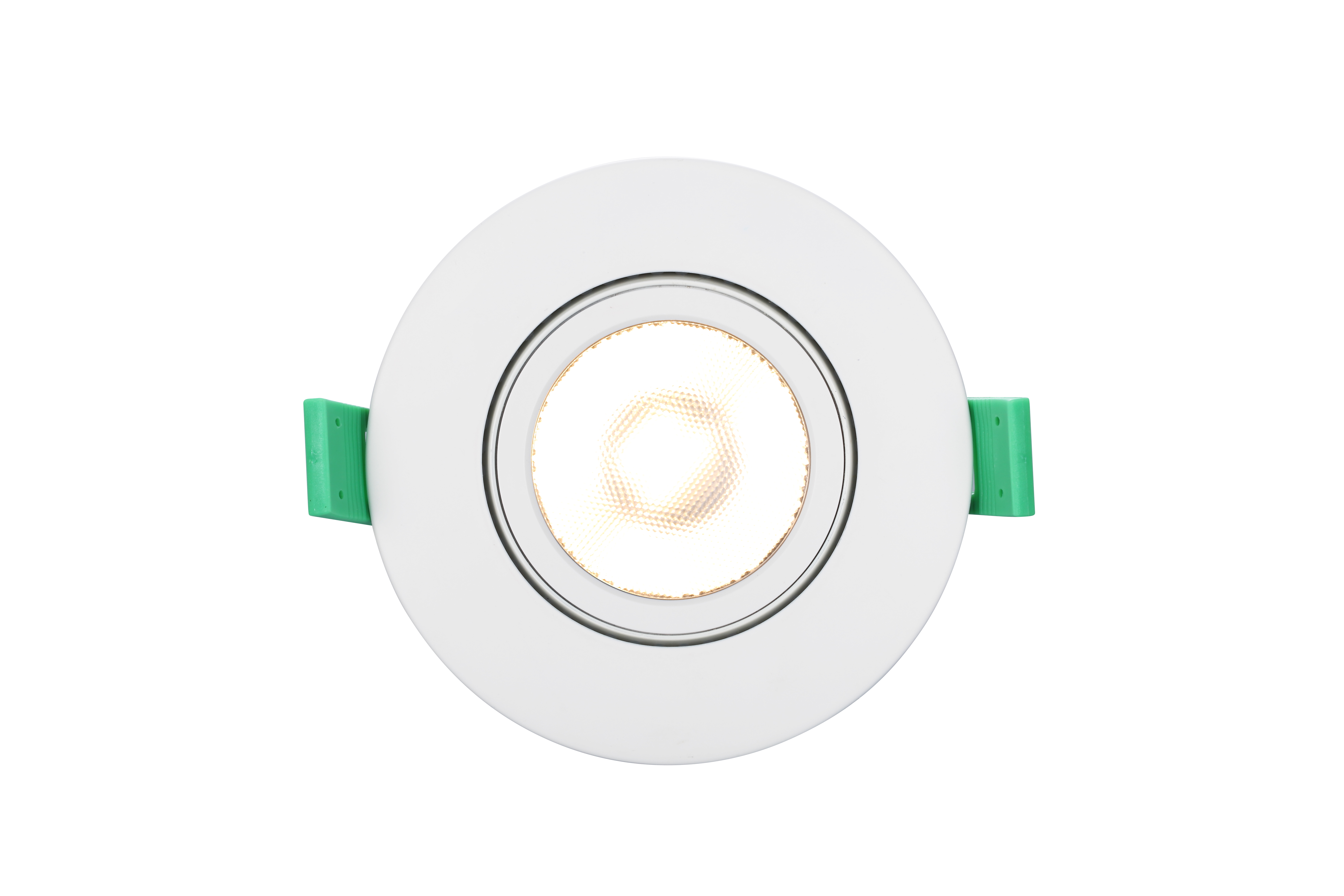

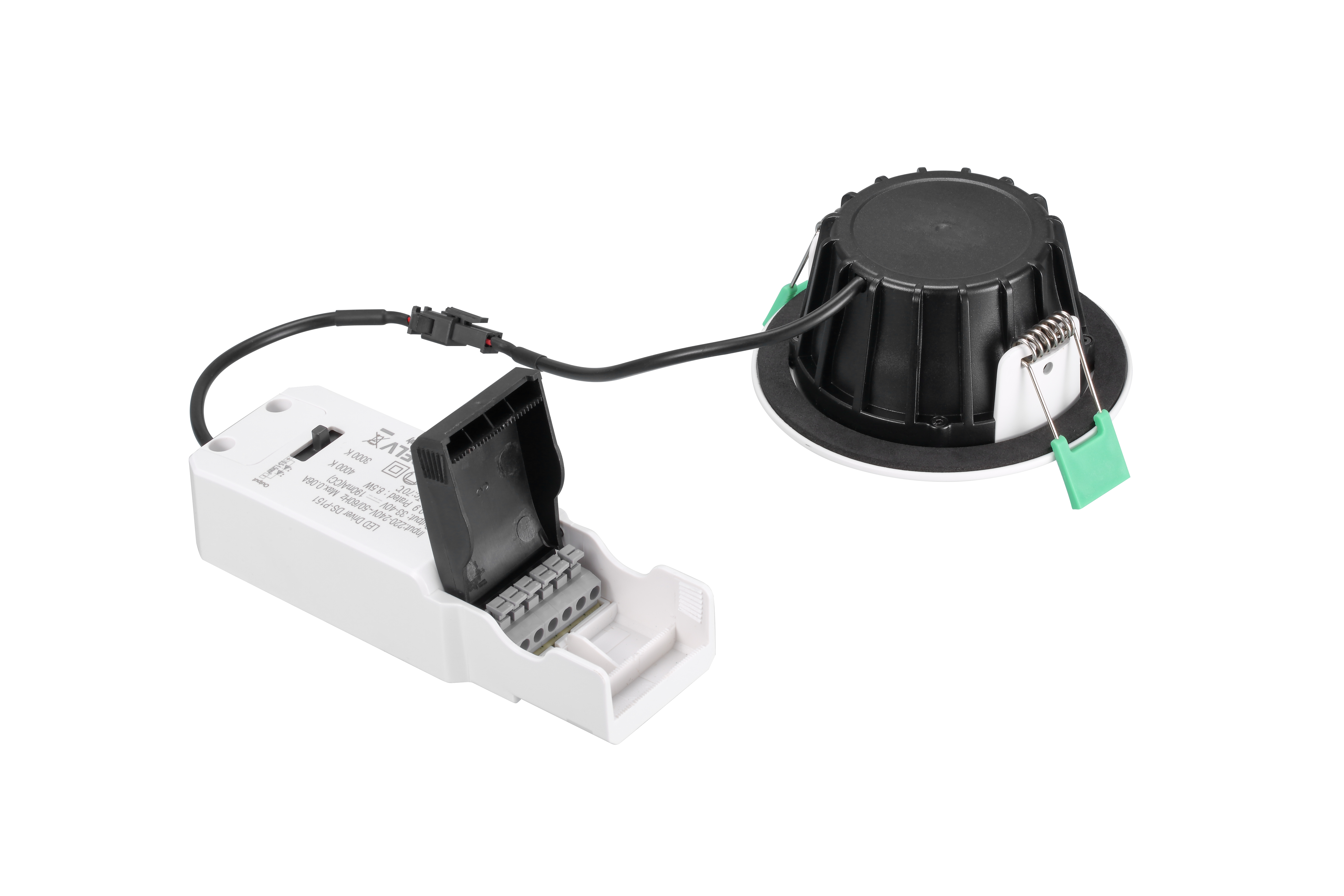

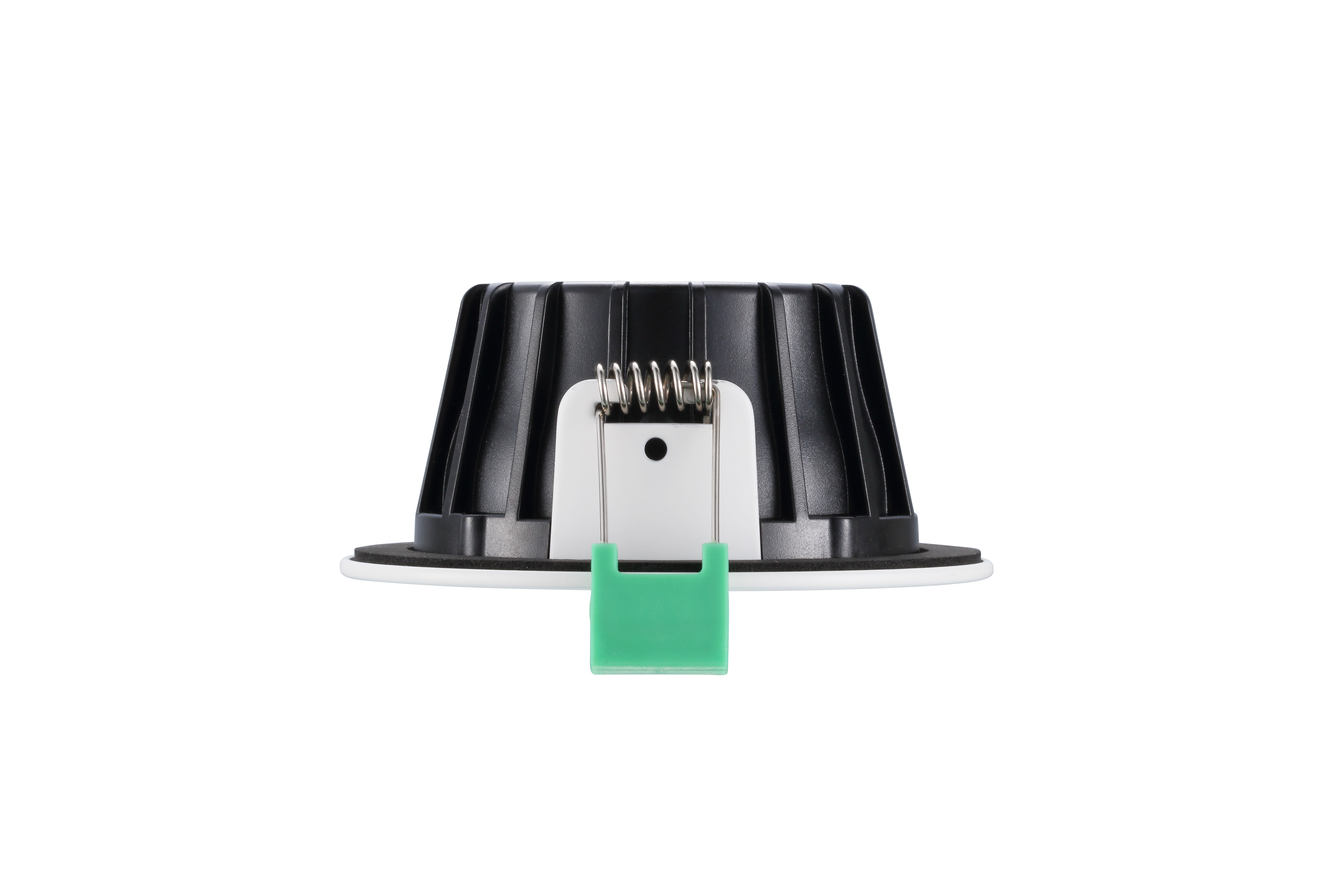

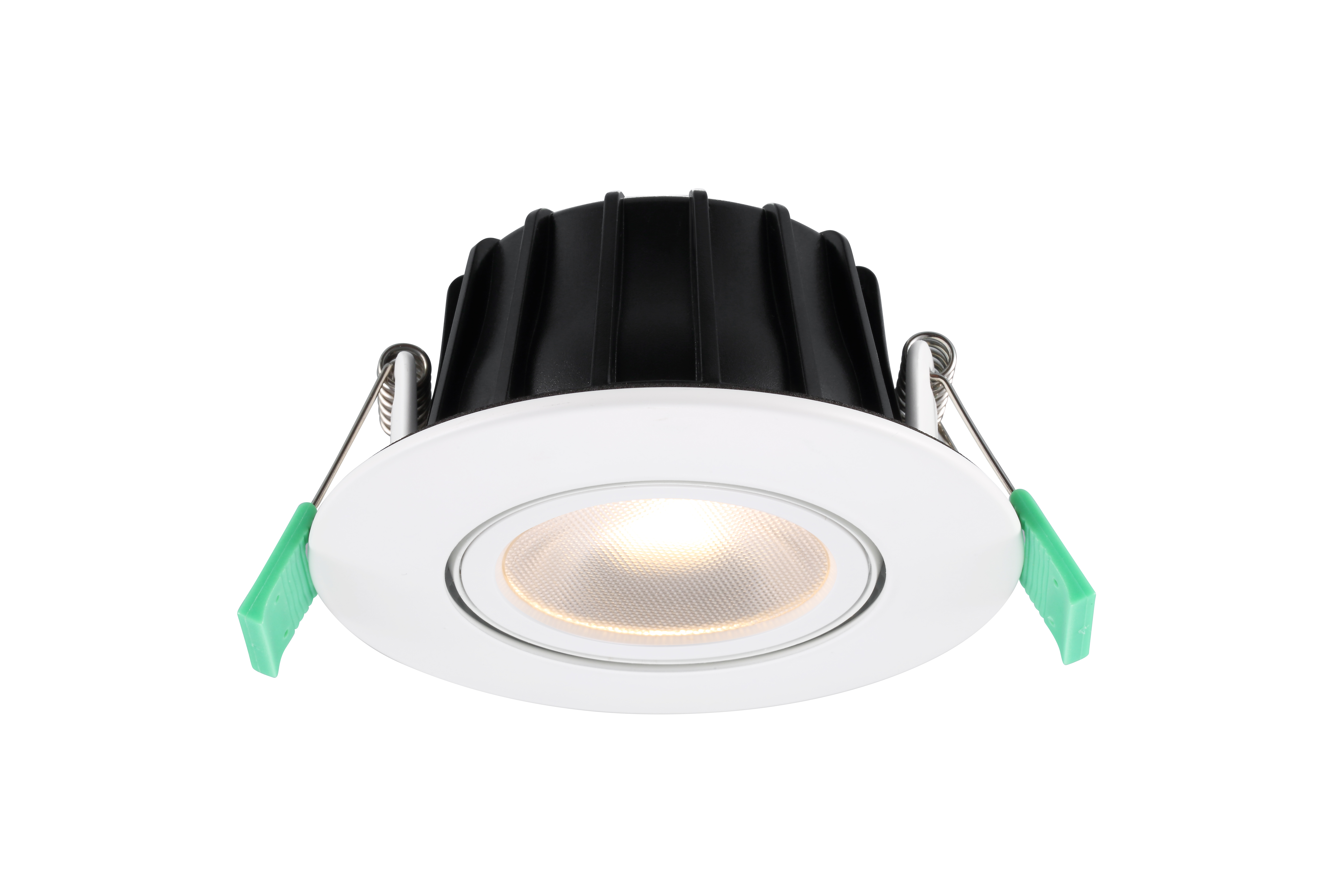

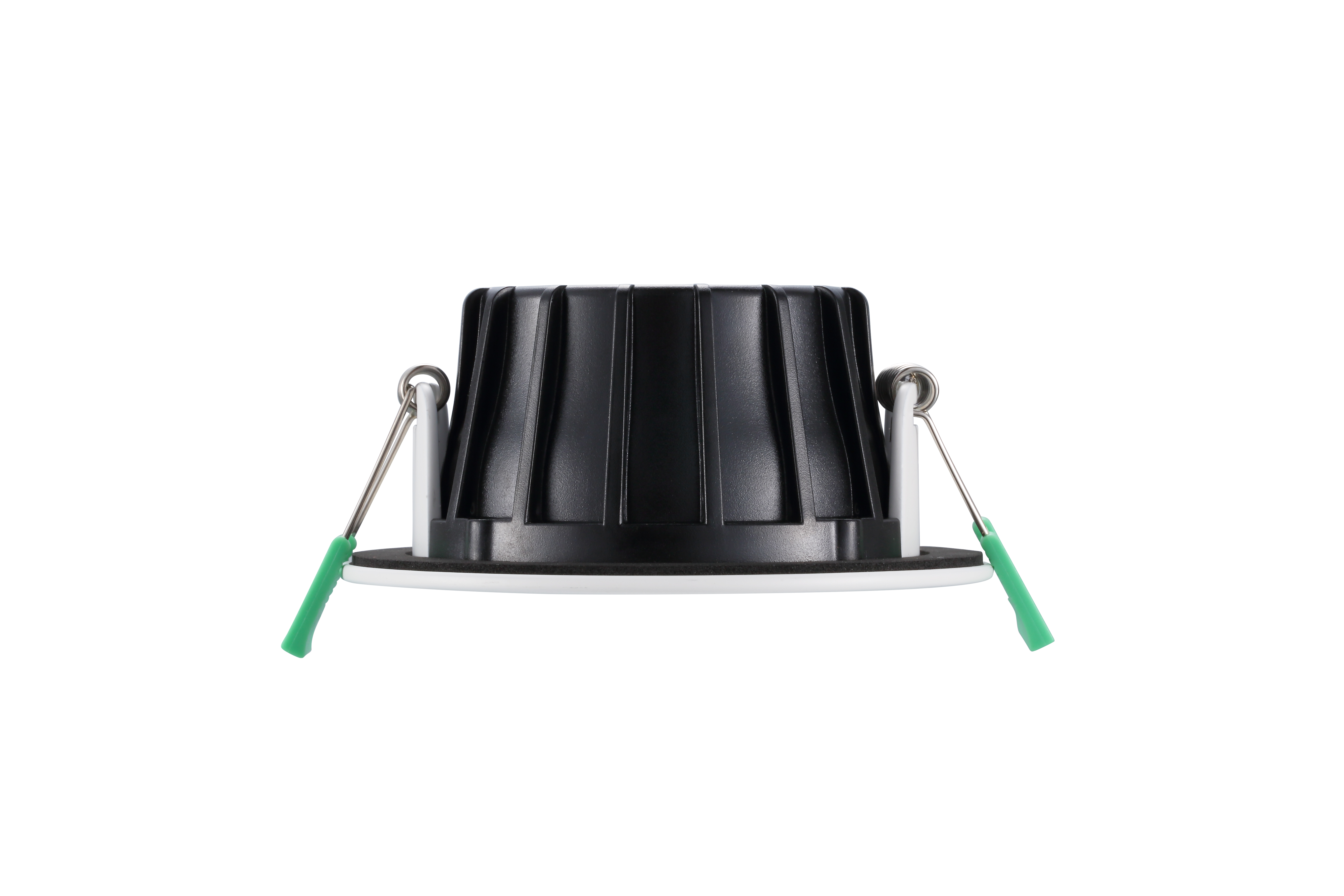

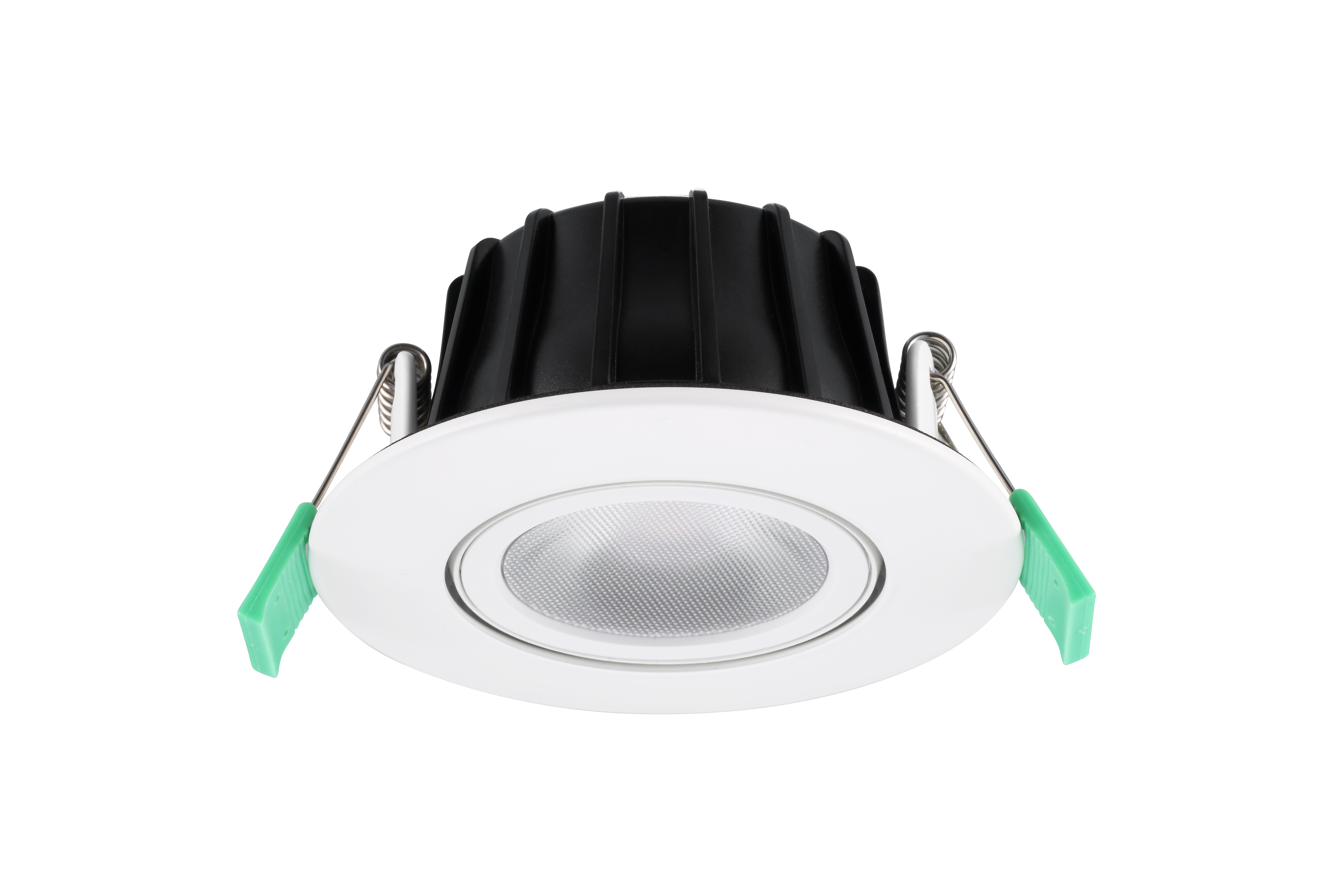

Integrated LED recessed spotlight, 2-axis adjustable (horizontal rotation 360°, vertical tilt 30°) RAL9016 white bezel colour, two temperature light colors selectable: 3000K, 4000K. Lumen output 740lm (4000K), 8.5W, dimmable trailing/leading edge, 38° degree beam angle, aluminium and steel body, low profile 40mm recessed depth, IP65 frontal degree, IK07, loop-in/loop-out terminals for fast wiring, 96mm bezel diameter, 80mm cutout, clear lens.
Downloads
Technical Assets
Dimensions (mm)

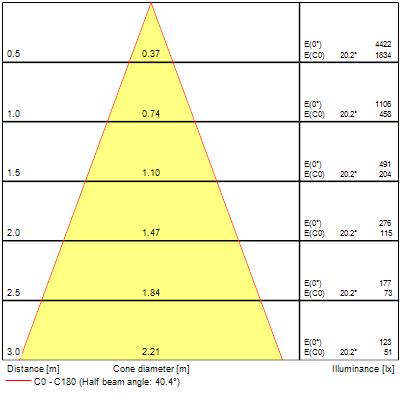

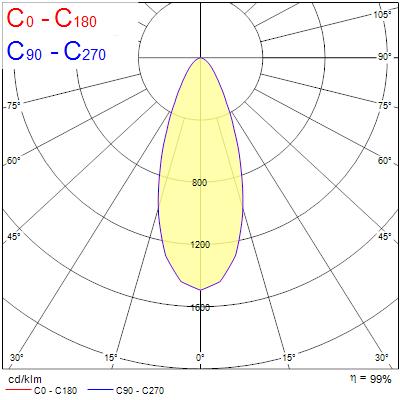

Photometrics
Product name
OBICO IP65 740LM 2CCT DIM ADJ WHT
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Built in presence detector
NONE
General application
Hospitality
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4278283
Warranty
5 years
Fixture luminous flux (lm)
740
Luminaire efficacy (lm/W)
87
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Beam Angle (°)
38
Distribution type
Symmetric
Photobiological Risk Group
RG1
Total power consumption (W)
8.5
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
25
Electrical protection
Class II
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
Mains: leading / trailing edge
Drive current (mA)
185
Inrush Current (A)
2
Inrush Duration (µs)
20
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
90
Max. products per 13A C Breaker
118
Max. products per 16A C Breaker
145
Max. products per 20A C Breaker
181
Max. products per 10A B Breaker
90
Max. products per 13A B Breaker
118
Max. products per 16A B Breaker
145
Max. products per 20A B Breaker
181
Connectable conductor cross section - Min (mm²)
0.75
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
88000
Lifespan L80 B20
52000
Lifespan L90 B10
24000
Housing colour
White
IP rating
IP65/20
IK rating
IK07
Diffuser finish
Other
Diffuser material
None
Reflector finish
Not Applicable
Nominal Product Height (mm)
40
Nominal Product Diameter (mm)
96
Weight (kg)
0.248
Product EAN number
5410288053509
Packaging single length / height (cm)
13.1
Packaging single width (cm)
8.0
Packaging single depth (cm)
14.4
DUN14 (inner)
15410288053506
Units per inner package
4
Packaging inner length / height (cm)
30.1
Packaging inner width (cm)
17.2
Packaging inner depth (cm)
14.6
DUN14 (outer)
25410288053503
Units per outer package
24
Packaging outer length / height (cm)
36.5
Packaging outer width (cm)
32.5
Packaging outer depth (cm)
46.6
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
