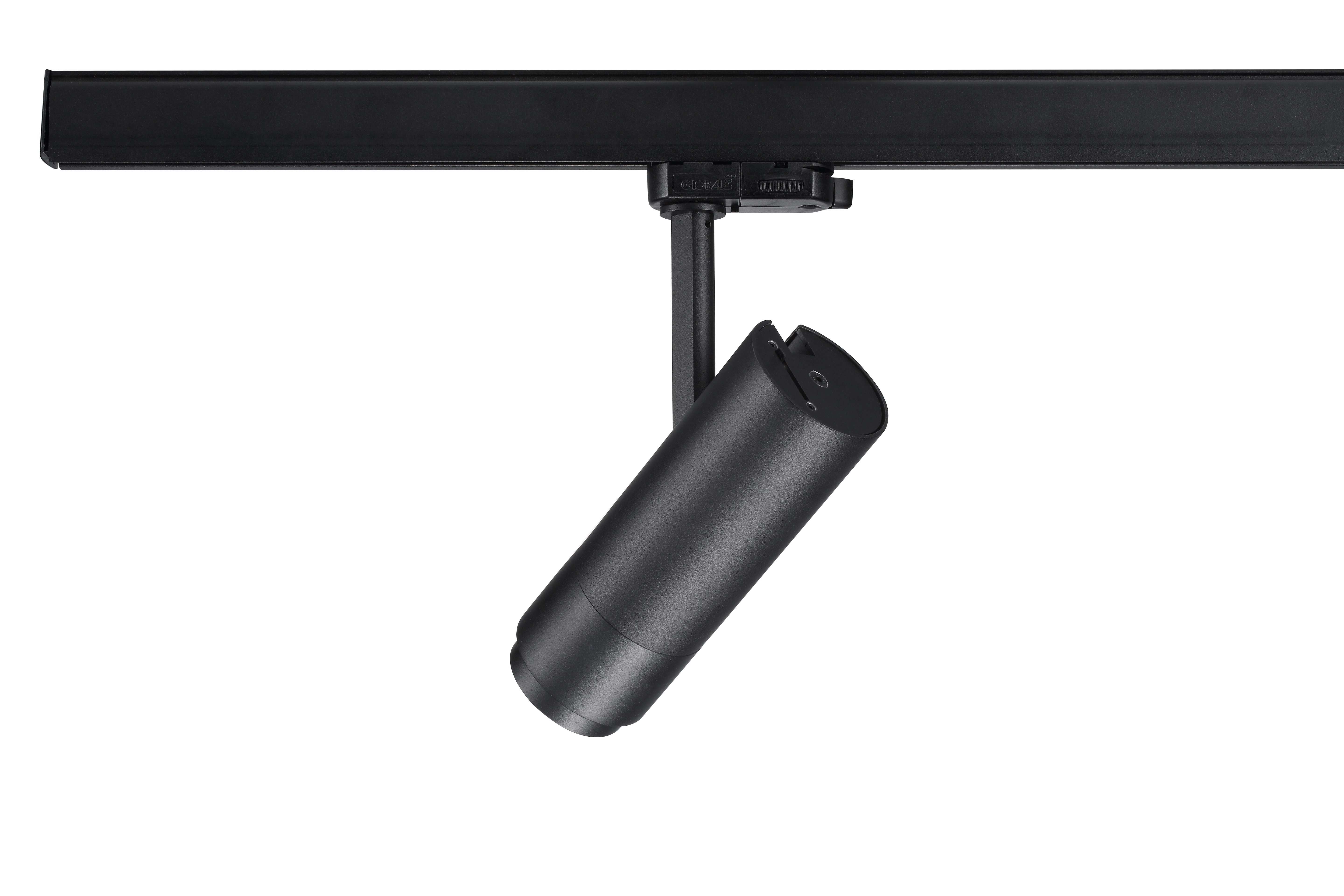

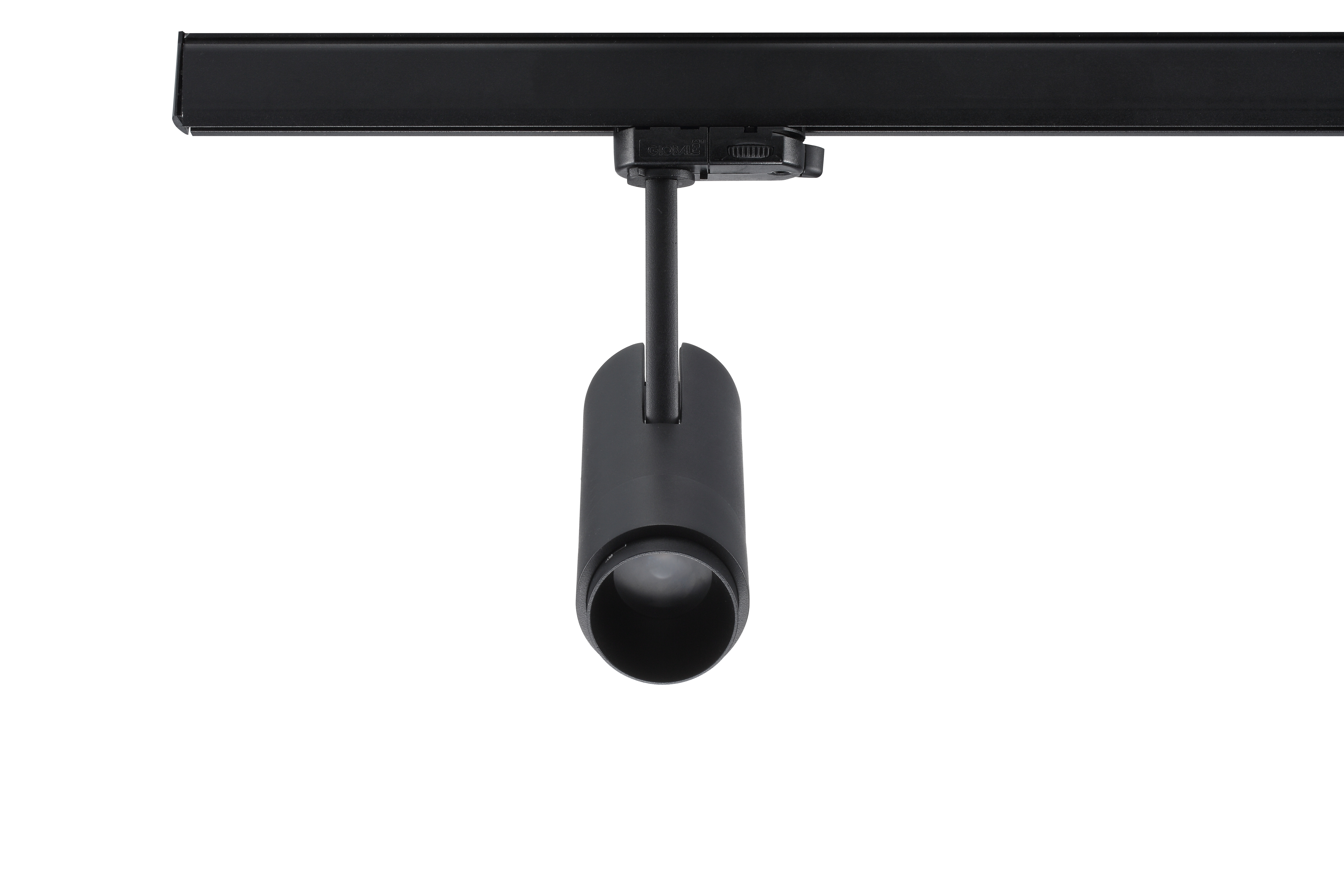

LENZO S 15W 500LM 940 GLB O/B BLACK
Item No:
0005525
This product is no longer available
.png)

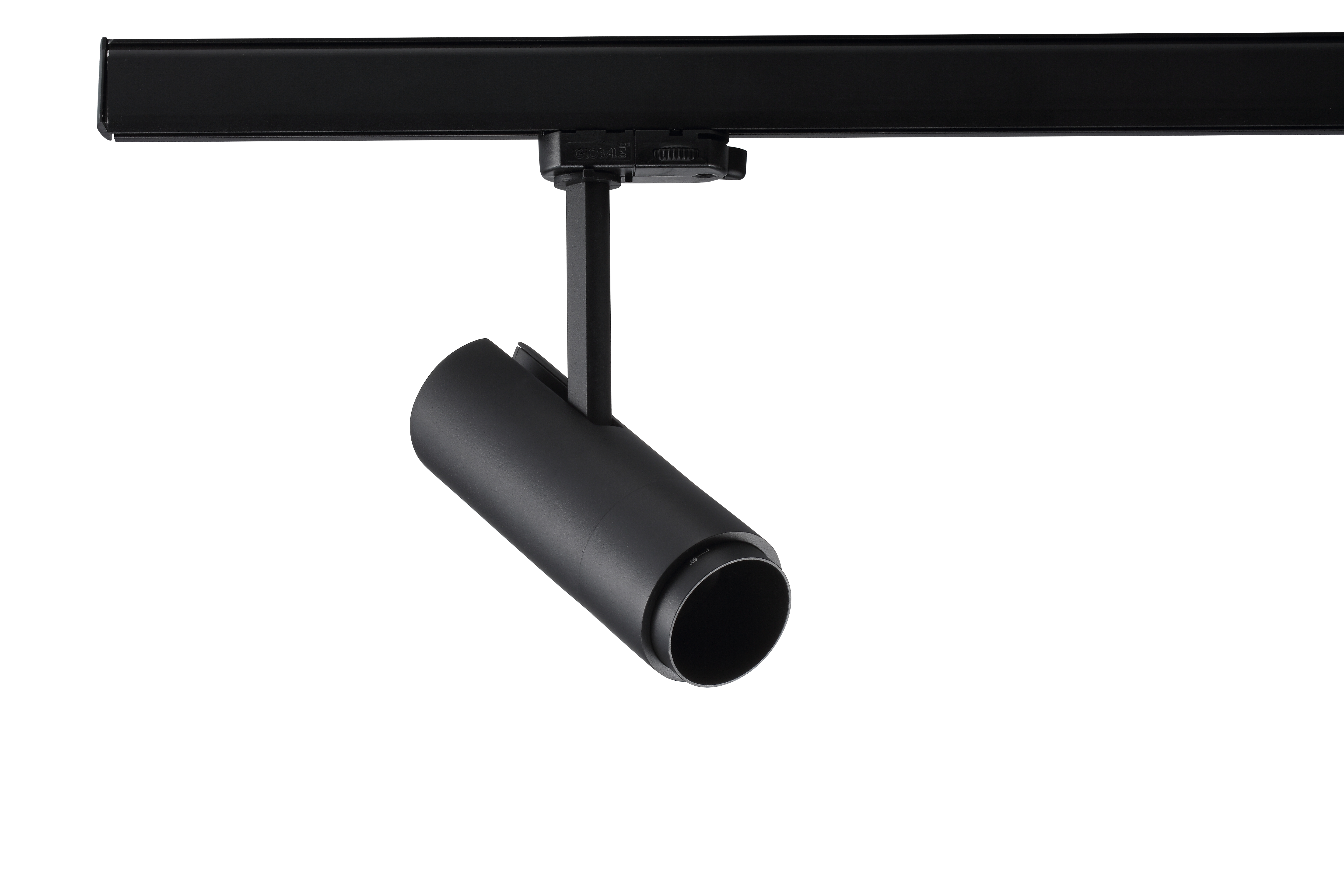

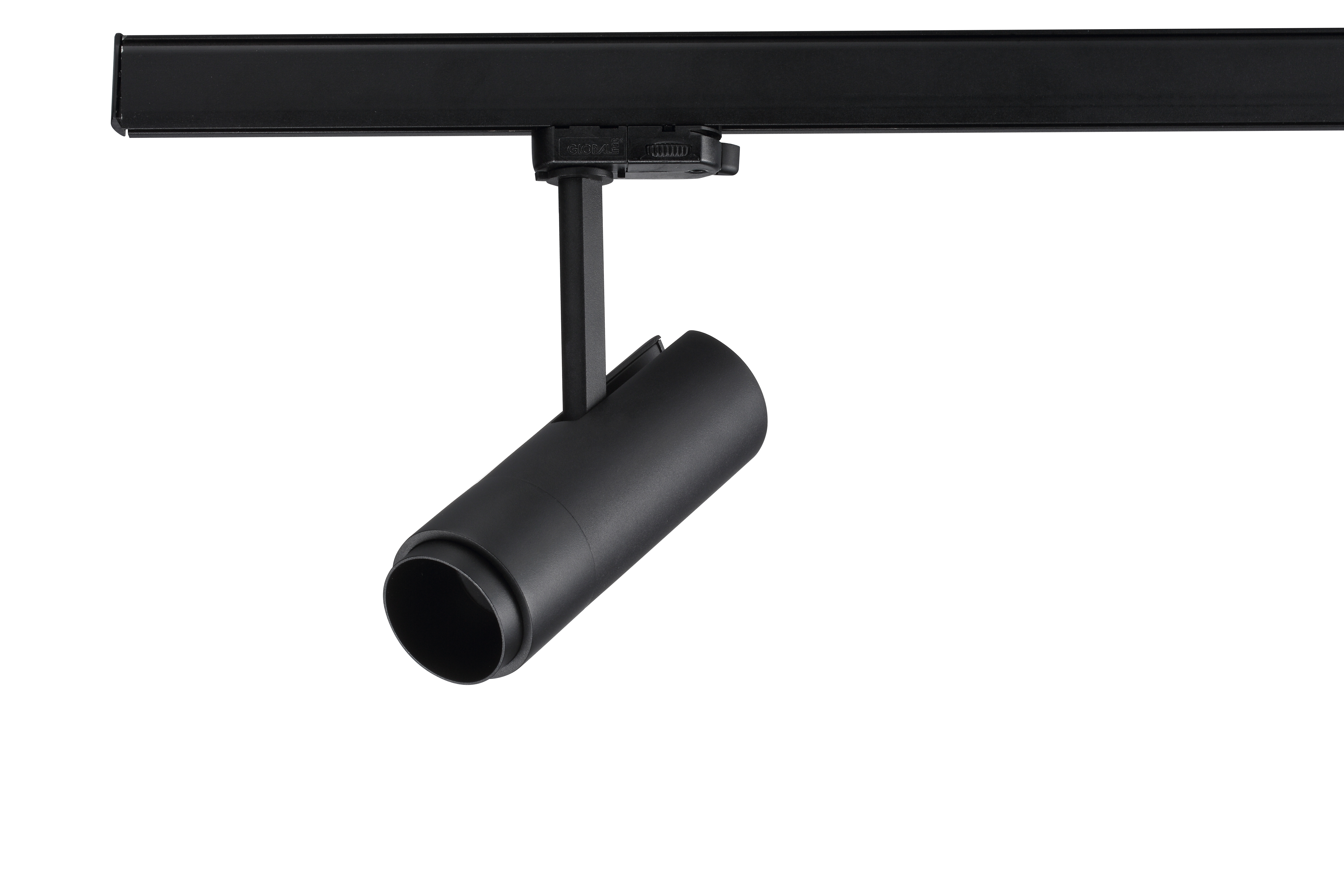

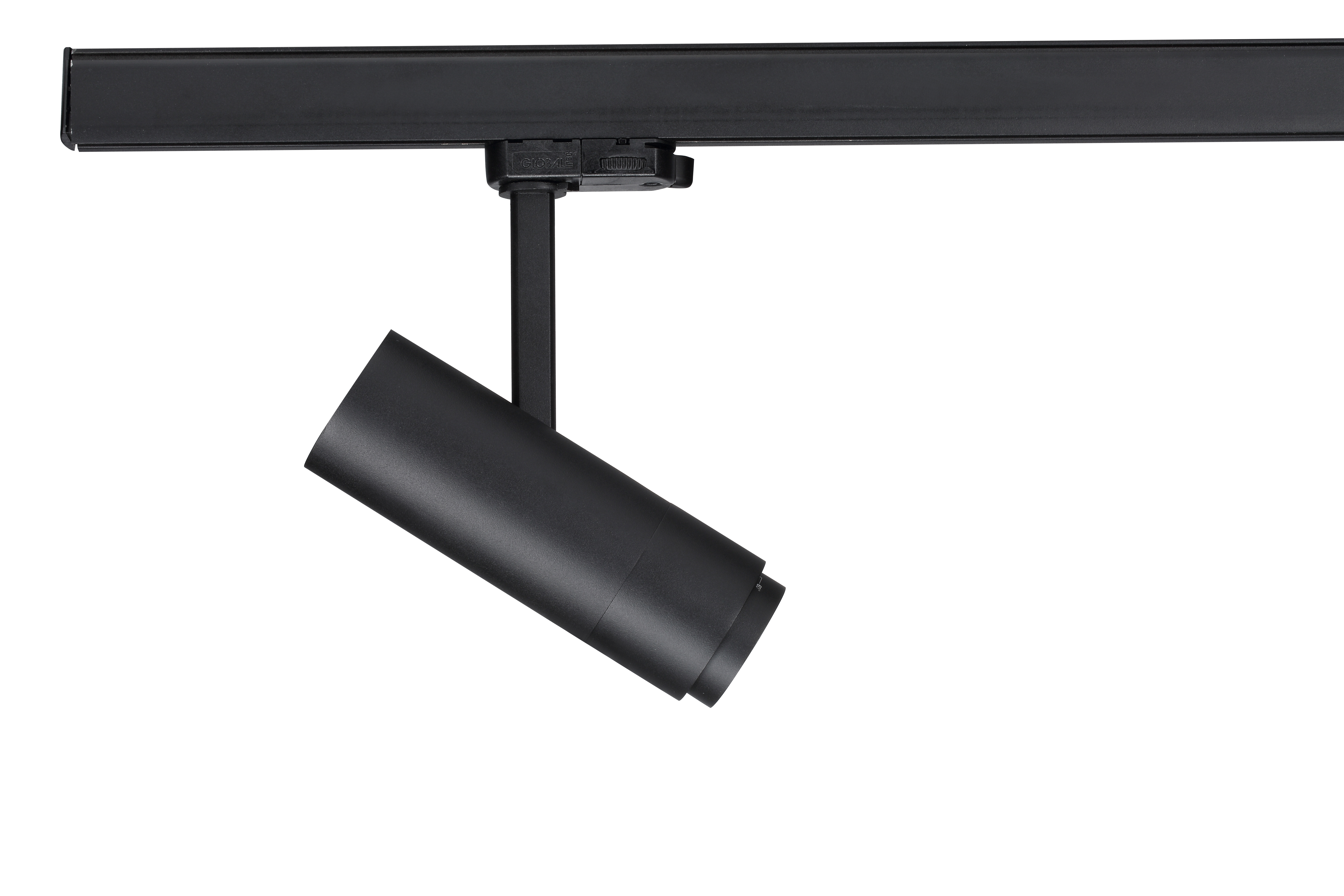

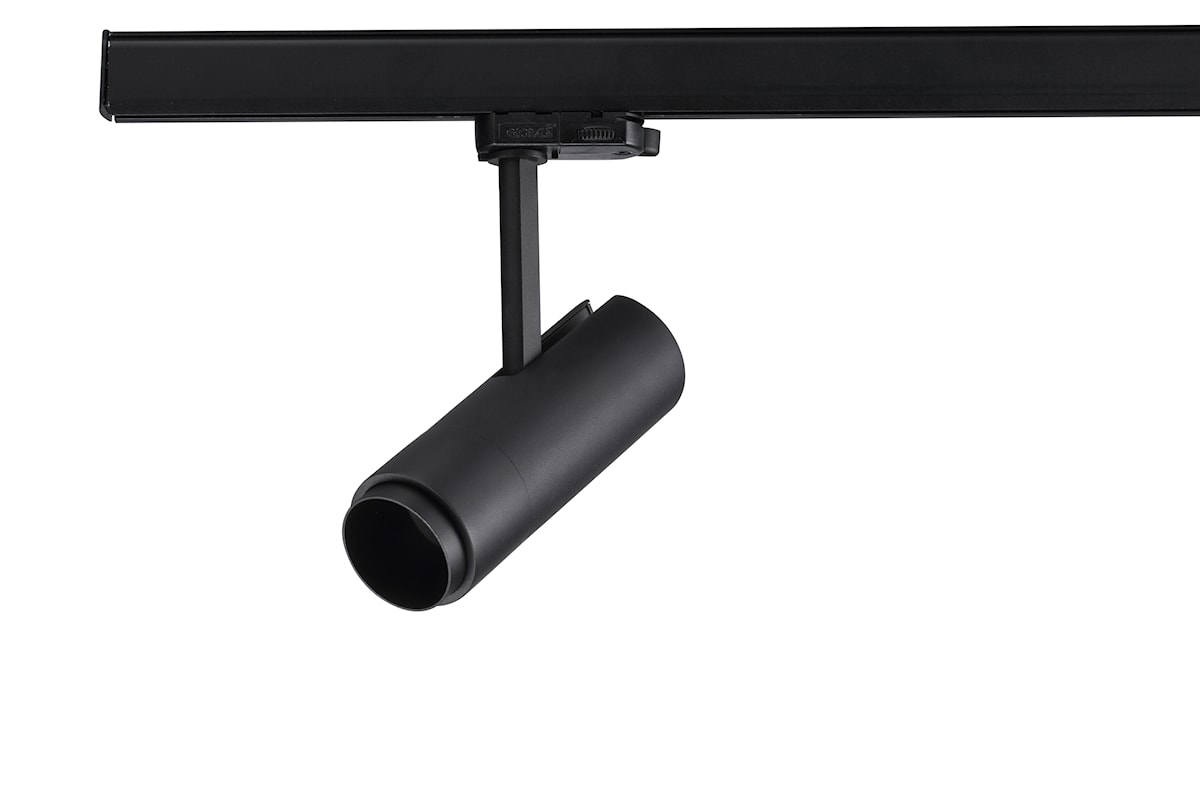

LENZO S 15W 500LM 940 GLB O/B BLACK
Technical Assets

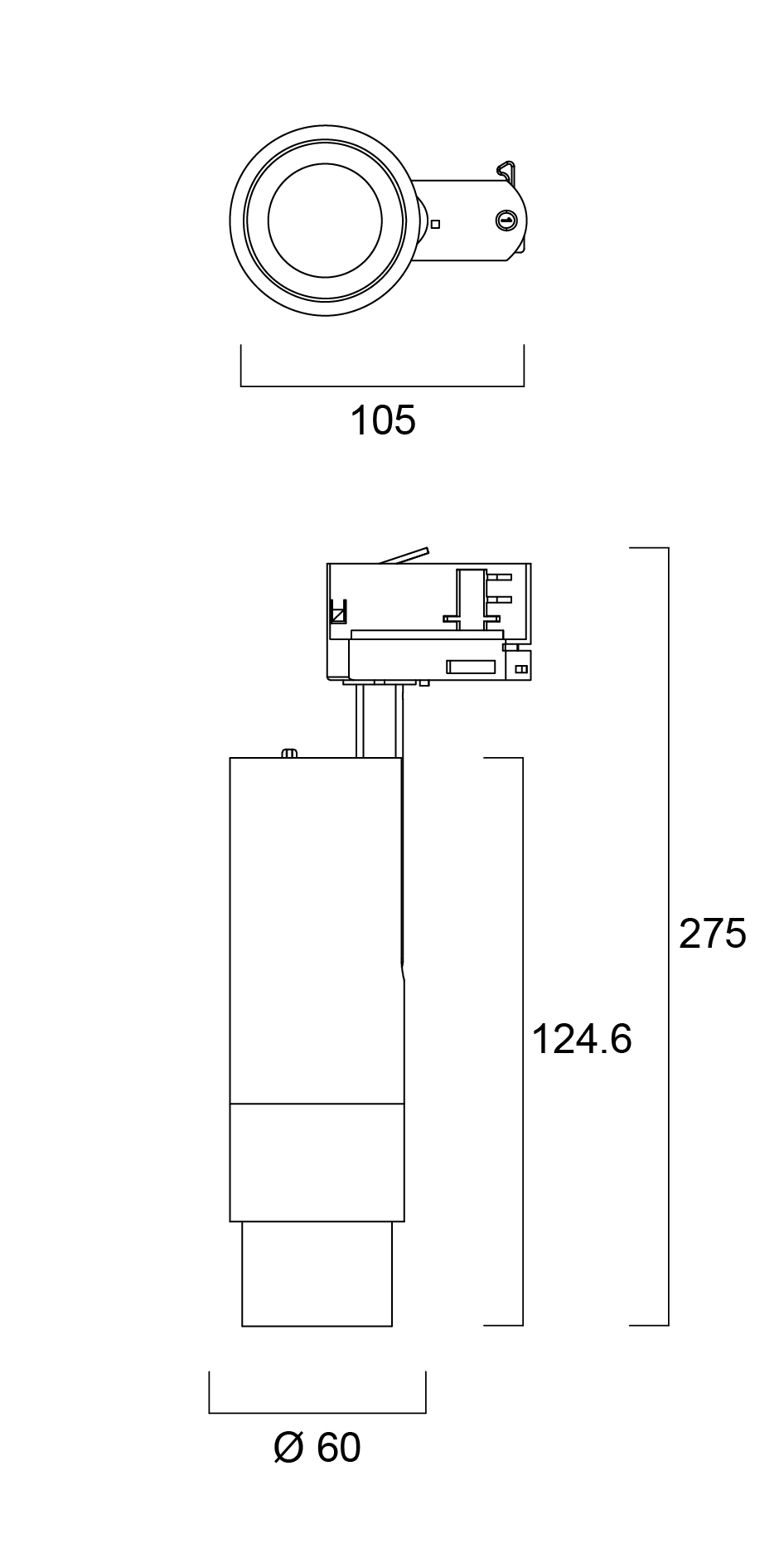

Dimensions (mm)

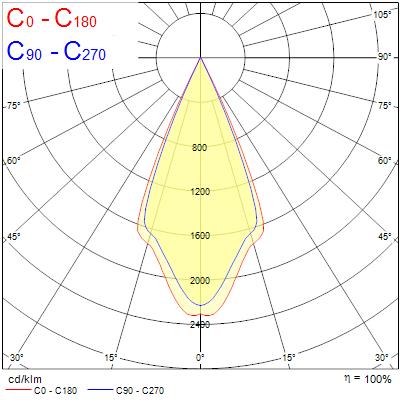

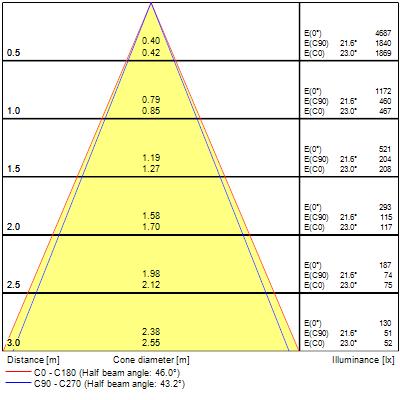

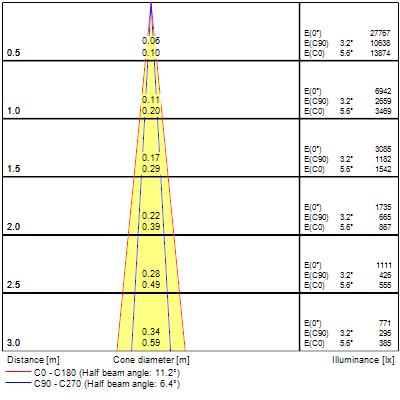

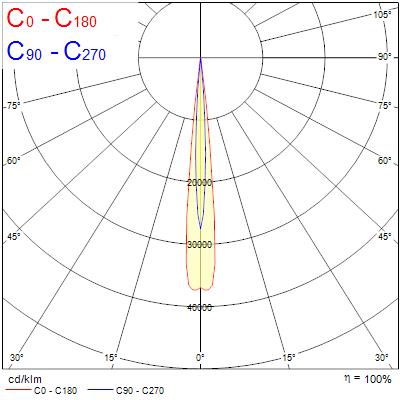

Photometrics
Product name
LENZO S 15W 500LM 940 GLB O/B BLACK
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Track mounting
Built in presence detector
NONE
General application
Museums & Galleries, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4278123
Warranty
5 years
Fixture luminous flux (lm)
200/500
Luminaire efficacy (lm/W)
33
Correlated colour temperature (k)
4000
Colour Code
940
Light colour
Neutral White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Distribution type
Symmetric
Photobiological Risk Group
RG1
Total power consumption (W)
15
Lamp power factor
0.9
Electrical protection
Class I
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
1-10V (Analogue)
Minimum dimming level (%)
10
Drive current (mA)
350
Inrush Current (A)
15
Inrush Duration (µs)
150
Energy Efficiency Class (A->G) of contained light source
F
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
50
Max. products per 13A C Breaker
65
Max. products per 16A C Breaker
80
Max. products per 20A C Breaker
100
Lifespan L70 B50
67000
Lifespan L80 B20
37000
Housing colour
RAL 9005 - Jet black
IP rating
IP20
IK rating
IK03
Diffuser finish
Diffuse
Diffuser material
PC Polycarbonate
Reflector finish
Not Applicable
Nominal Product Length (mm)
60
Nominal Product Width (mm)
60
Nominal Product Height (mm)
261
Weight (kg)
0.57
Product EAN number
5410288055251
Packaging single length / height (cm)
29.0
Packaging single width (cm)
13.5
Packaging single depth (cm)
6.5
DUN14 (inner)
15410288055258
Units per outer package
4
Packaging outer length / height (cm)
28.5
Packaging outer width (cm)
14.5
Packaging outer depth (cm)
30.5
Glow Wire Test (°C)
650
