Consumer Professional

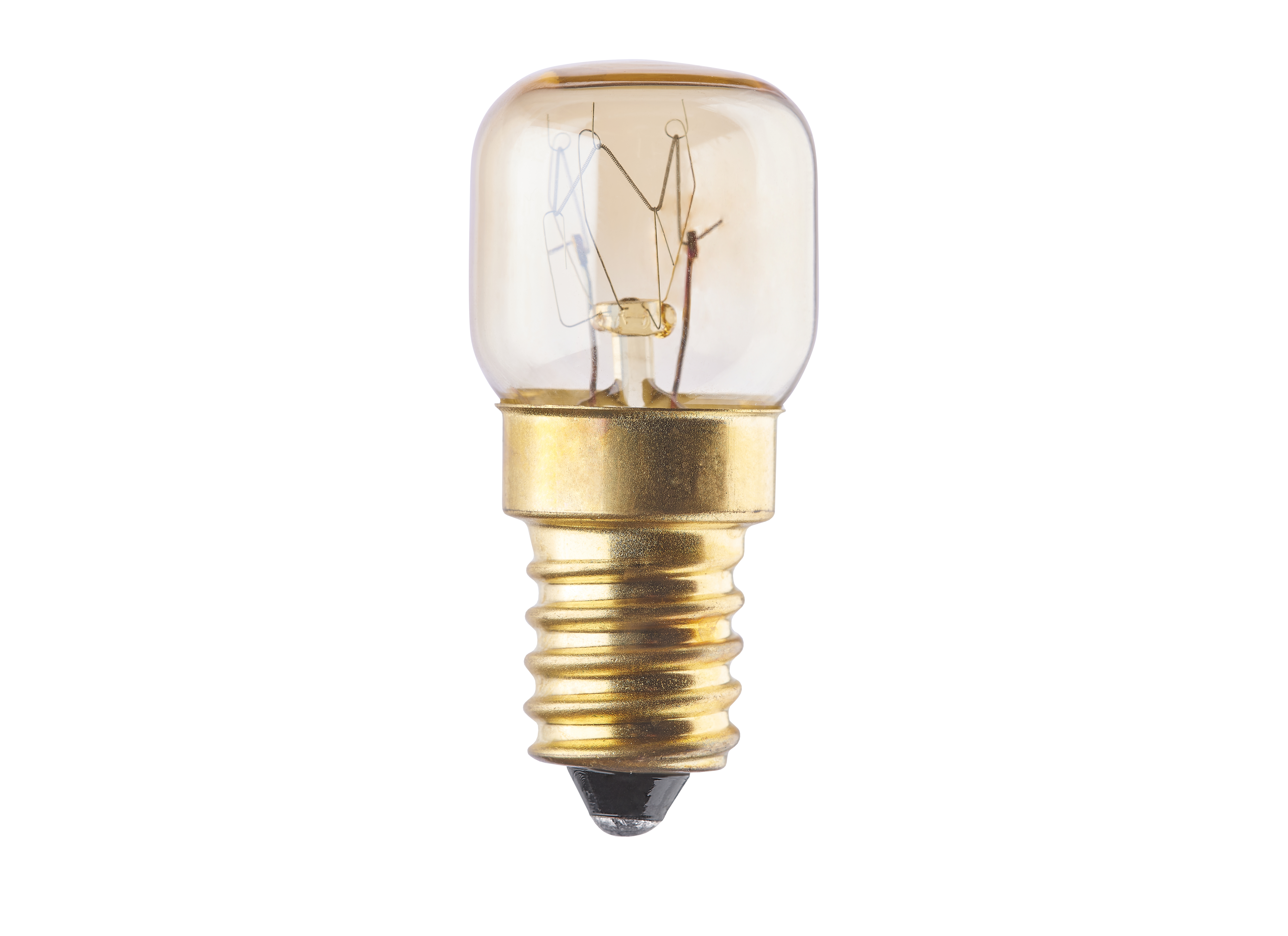

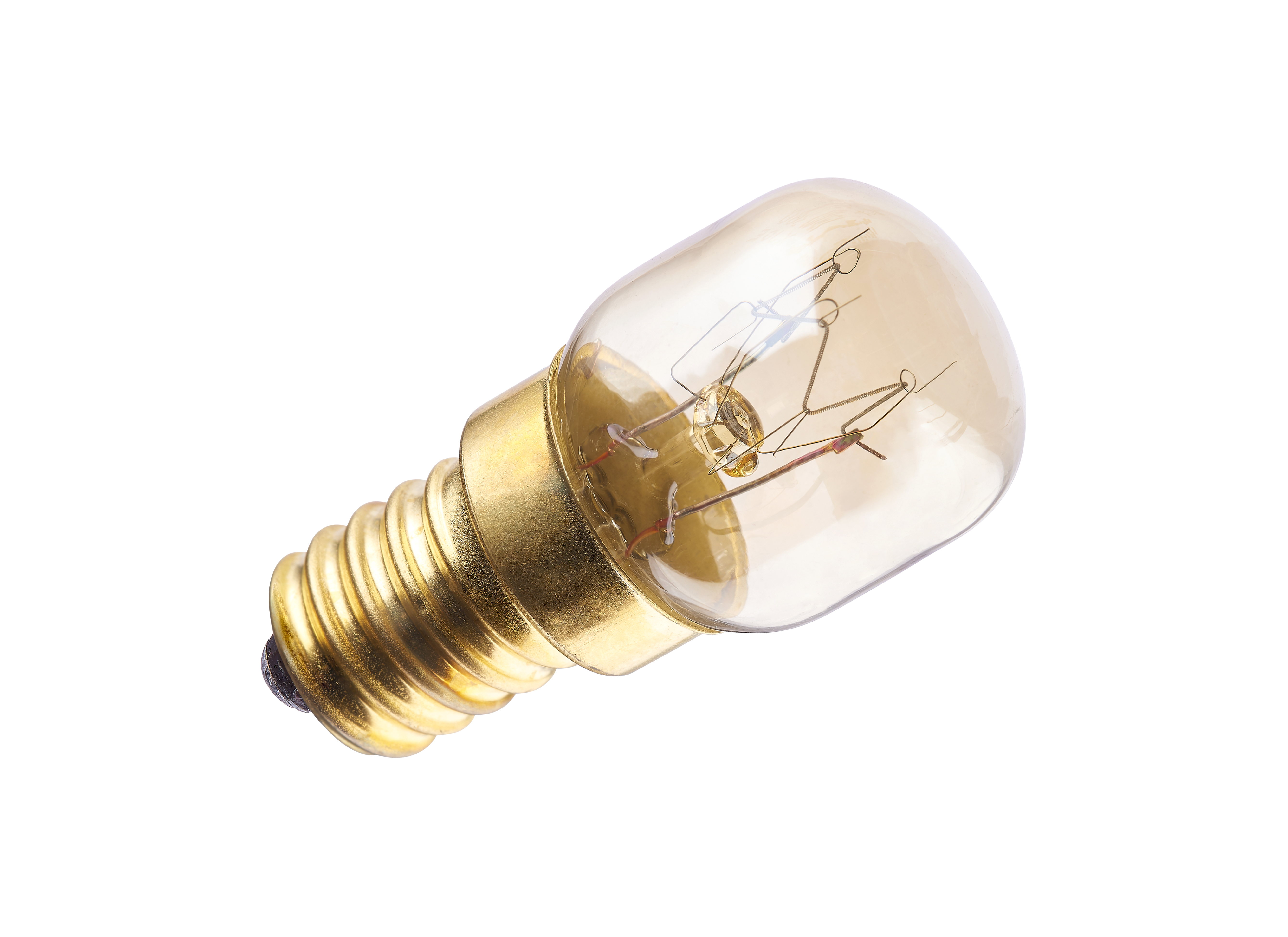

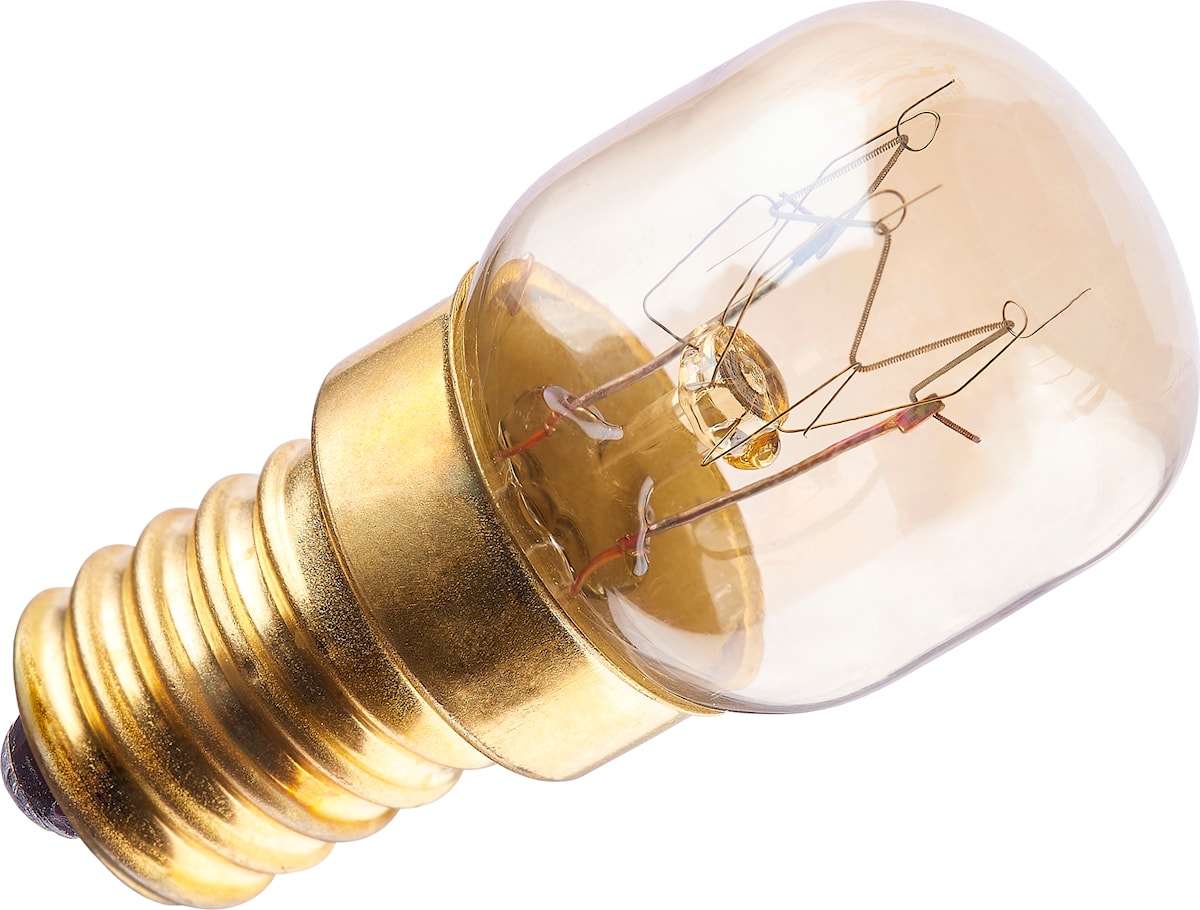

Pigmy Oven lamp 15w 22mm 230-240V SLV

Item No: 0008074

.

Technical Assets

Dimensions (mm)

Photometrics

Product name
Pigmy Oven lamp 15w 22mm 230-240V SLV
Technology
Incandescent
Watt (Rated) (W)
15
Lamp shape
Other
Cap/Base
E14
Lamp finish
Clear
Fixture rating
Open
General application
Hospitality, Residential & Consumer, Retail
ETIM Class
EC000014
E-number FI
4741158
Warranty
2 years
Useful luminous flux (Φuse)
90
Luminous flux (Rated) (lm)
90
Correlated colour temperature (k)
2500
Light colour
Homelight
CRI (Ra)
100
Colour Variation Initial (SDCM)
N/A
Adjustable chromaticity
N
Photobiological Risk Group
Not applicable
Power consumption (W)
15
Wattage (W)
15
Starting time (max) (s)
0.01
Warm-up time to 60% of full light (max) (s)
Instant full light
Primary Supply/Product voltage - min (V)
230
Primary Supply/Product voltage - max (V)
240
Lamp power factor
1
Control gear required
No
No. Of switching cycles before premature failures
>4000
Dimmable
Yes
Dimming method
Mains: leading / trailing edge
Lamp Energy Label (class)
G
kWh per 1000 hours burning time
15
Average life (Nominal) (h)
1000
Average life (Rated) (h)
1000
Nominal Product Length (mm)
48
Nominal Product Diameter (mm)
22
Max. Lamp Length (mm) - C/L
49
Max. Lamp Diameter (mm) - D
23
Weight (kg)
0.009
Product EAN number
5410288080741
Packaging single length / height (cm)
9.0
Packaging single width (cm)
5.0
Packaging single depth (cm)
2.5
DUN14 (inner)
15410288080748
Units per outer package
12
Packaging outer length / height (cm)
12.8
Packaging outer width (cm)
19.0
Packaging outer depth (cm)
10.0
Breakage cleaning instructions
Not applicable
Recommendation for disposal at end of life
Not Applicable
Special purpose lamp
Yes
Suitable for household illumination
No
Safety message
Not suitable for household
Certificate of Conformity EU
Certificate of Conformity UK
Datasheet
Energy Label
Photometry Other
Technical Drawing
