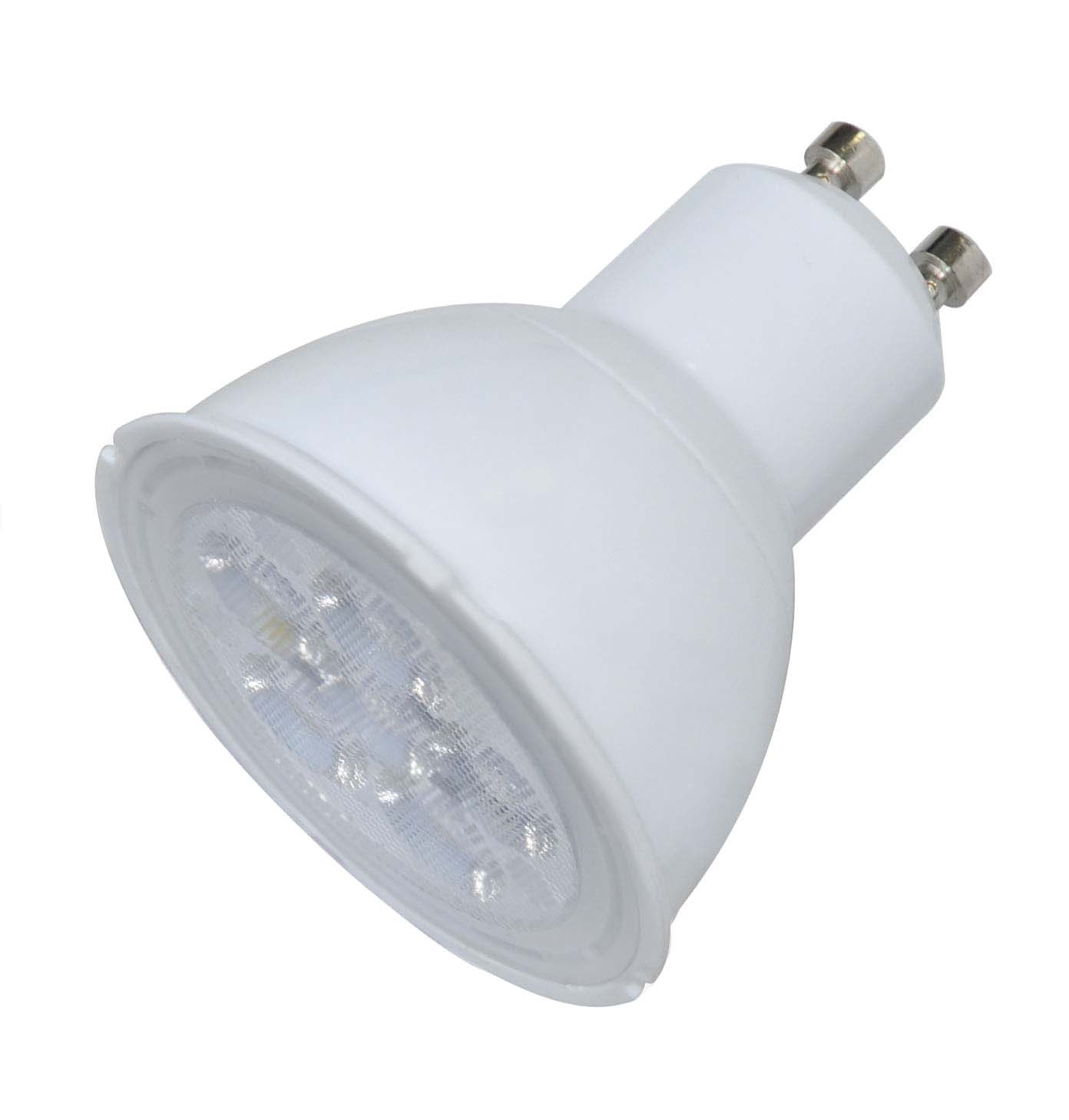

RefLED ES50 V2 5W 345LM 830 36° SL

Item No: 0026579
This product is no longer available

Good every day quality from a brand you can trust. RefLED ES50 V2 delivers a cost effective solution to replacing halogen GU10 with LED offering 345lm of light equivalent to a 50W halogen lamp while extending lamp life to 15,000 hours. GU10 cap. 36 degree beam angle in warm white 3000K. Backed by a 3 year warranty.

Technical Assets

Dimensions (mm)

Photometrics

Product name
RefLED ES50 V2 5W 345LM 830 36° SL
Technology
LED
Watt (Rated) (W)
5
Lamp shape
Reflector
Cap/Base
GU10
General application
Hospitality, Museums & Galleries, Retail, Residential & Consumer
E-number FI
4740252
E-number SE
8290932
Luminous flux (lm)
345
Correlated colour temperature (k)
3000
Light colour
Warm White
Colour Code
War
CRI (Ra)
80
Colour Consistency (SDCM)
6
Adjustable chromaticity
N
Luminous Intensity (cd)
950
Beam Angle (°)
36
Lumen maintenance at end of nominal life (%)
85
Power consumption (W)
5
Wattage (W)
5
Equivalent watt (W)
50
Starting time (max) (s)
<0.5
Warm-up time to 60% of full light (max) (s)
< 1s => 60%
Supply current (A)
0.025
Lamp power factor
0.8
Control gear required
Yes
No. Of switching cycles before premature failures
>20000
Dimming method
N/A
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Max. Lamp Diameter (mm) - D
50
Weight (kg)
0.042
Product EAN number
5410288265797
Packaging single length / height (cm)
6.7
Packaging single width (cm)
5.1
Packaging single depth (cm)
5.1
DUN14 (inner)
15410288265794
Units per inner package
6
Packaging inner length / height (cm)
16.7
Packaging inner width (cm)
11.3
Packaging inner depth (cm)
9.7
DUN14 (outer)
25410288265791
Units per outer package
60
Packaging outer length / height (cm)
60.8
Packaging outer width (cm)
18.1
Packaging outer depth (cm)
23.0
Breakage cleaning instructions
Not applicable
Recommendation for disposal at end of life
Not applicable
Special purpose lamp
No
Suitable for household illumination
Yes
Suitable for accent lighting
Yes
