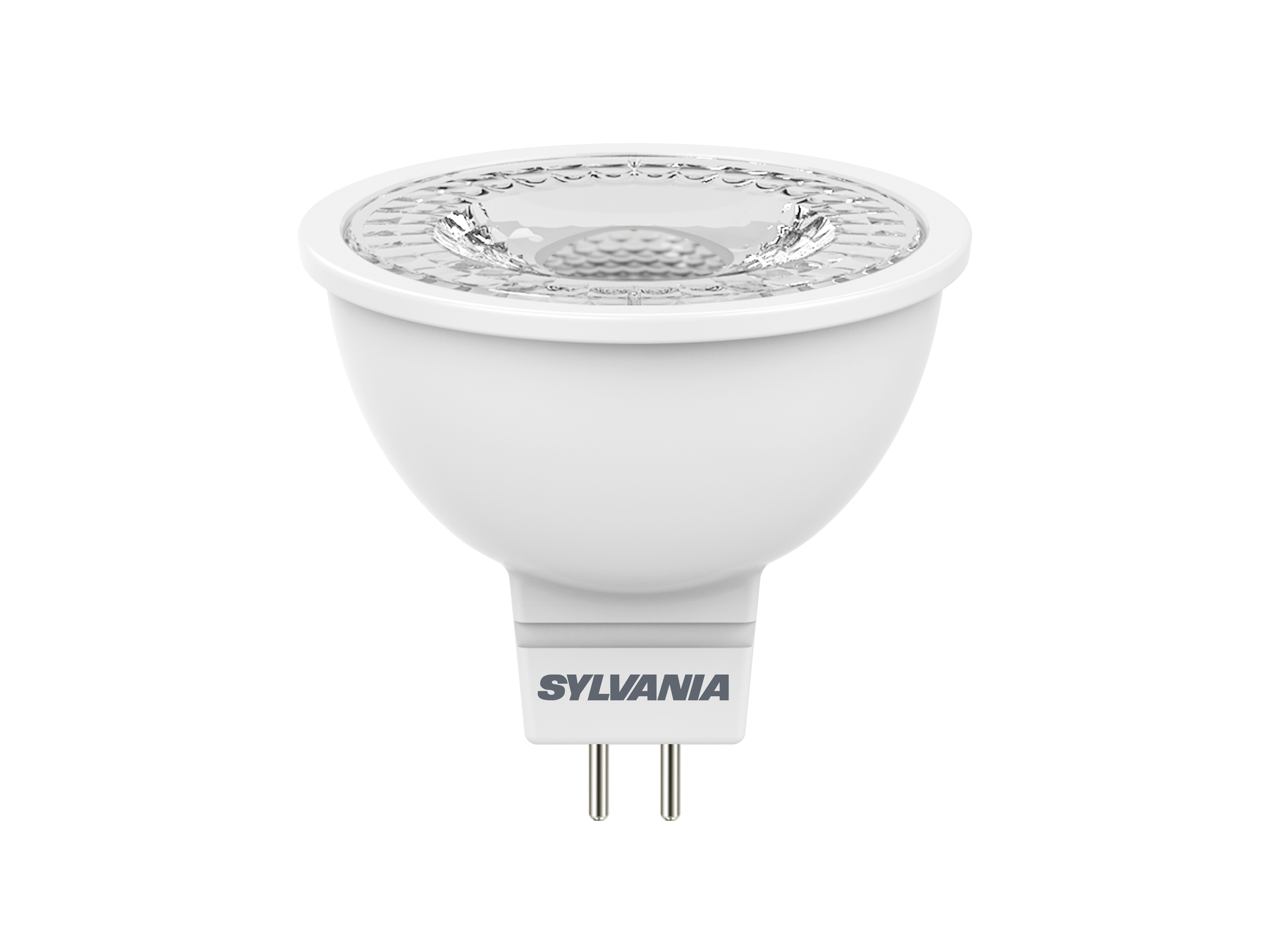

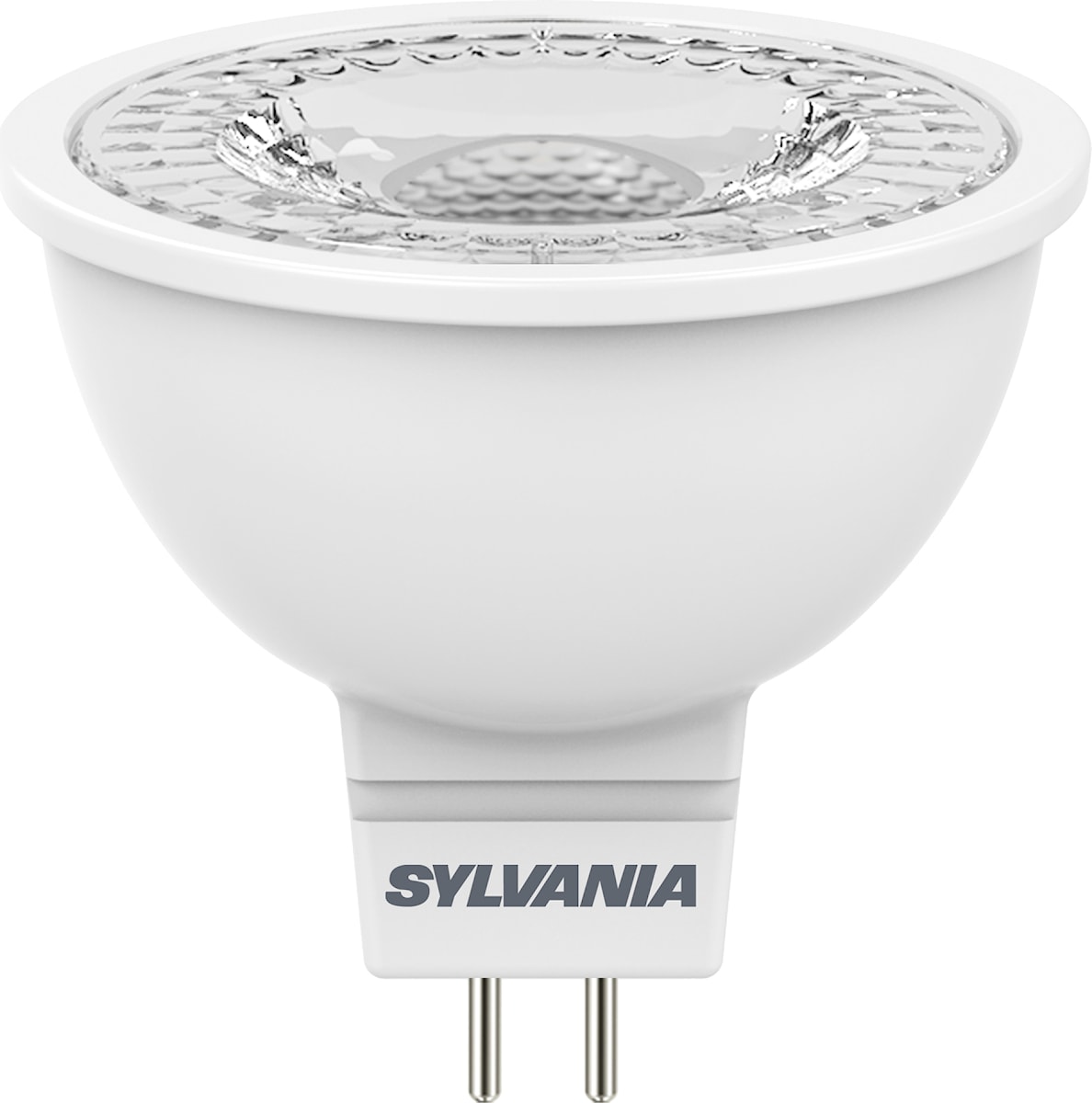

RefLED MR16 V5 345lm 827 36° SL
Item No:
0026611
This product is no longer available
• Compact, energy efficient and exceptional value for money product. • Same shape and size as halogen MR16 lamp • Compact Cluster SMD technology enabling high efficiency with halogen look • Reduced visible heat sink from the front • Available in 36 degree • High lumen efficacy • 12V AC/DC • 15,000 hours average rated life • 3 years warranty
Technical Assets

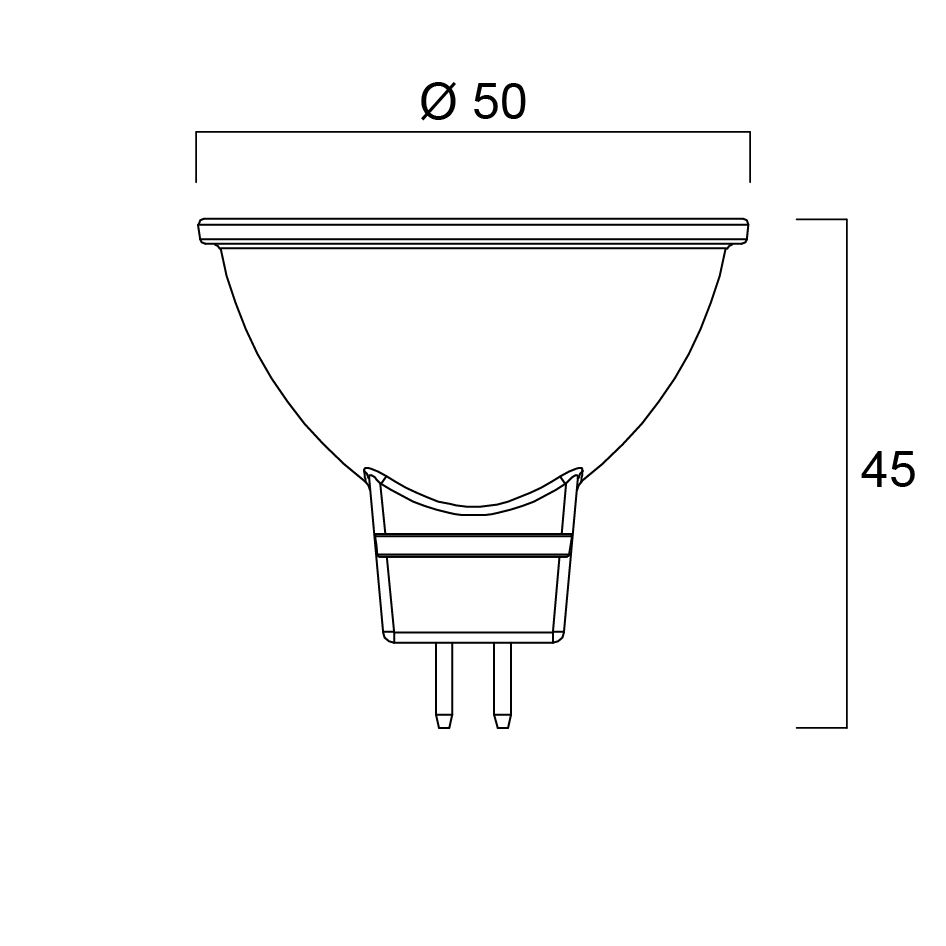

Dimensions (mm)
Photometrics
Product name
RefLED MR16 V5 345lm 827 36° SL
Technology
LED
Watt (Rated) (W)
4.50
Cap/Base
GU5.3
Fixture rating
Open
General application
Hospitality, Education, Residential & Consumer
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740454
Warranty
3 years
Useful luminous flux (Φuse)
345
Correlated colour temperature (k)
2700
Light colour
Homelight
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Colour Consistency (SDCM)
6
Luminous Intensity (cd)
800
Beam Angle (°)
36
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
4.5
Wattage (W)
4.50
Starting time (max) (s)
＜0.5
Warm-up time to 60% of full light (max) (s)
＜1.0
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Inrush Current (A)
2.70
Max. products per 10A C Breaker
8
Max. products per 16A C Breaker
12
Max. products per 20A C Breaker
16
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
45
Nominal Product Diameter (mm)
50
Weight (kg)
0.026
Product EAN number
5410288266114
Packaging single length / height (cm)
5.5
Packaging single width (cm)
5.2
Packaging single depth (cm)
5.2
DUN14 (inner)
15410288266111
Units per inner package
6
Packaging inner length / height (cm)
16.7
Packaging inner width (cm)
11.5
Packaging inner depth (cm)
6.5
DUN14 (outer)
25410288266118
Units per outer package
60
Packaging outer length / height (cm)
59.0
Packaging outer width (cm)
18.2
Packaging outer depth (cm)
15.5
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
