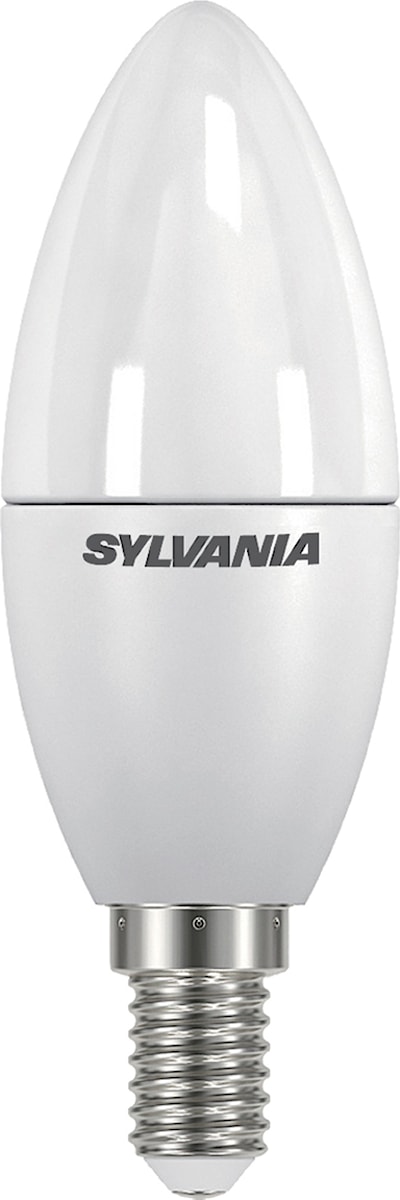

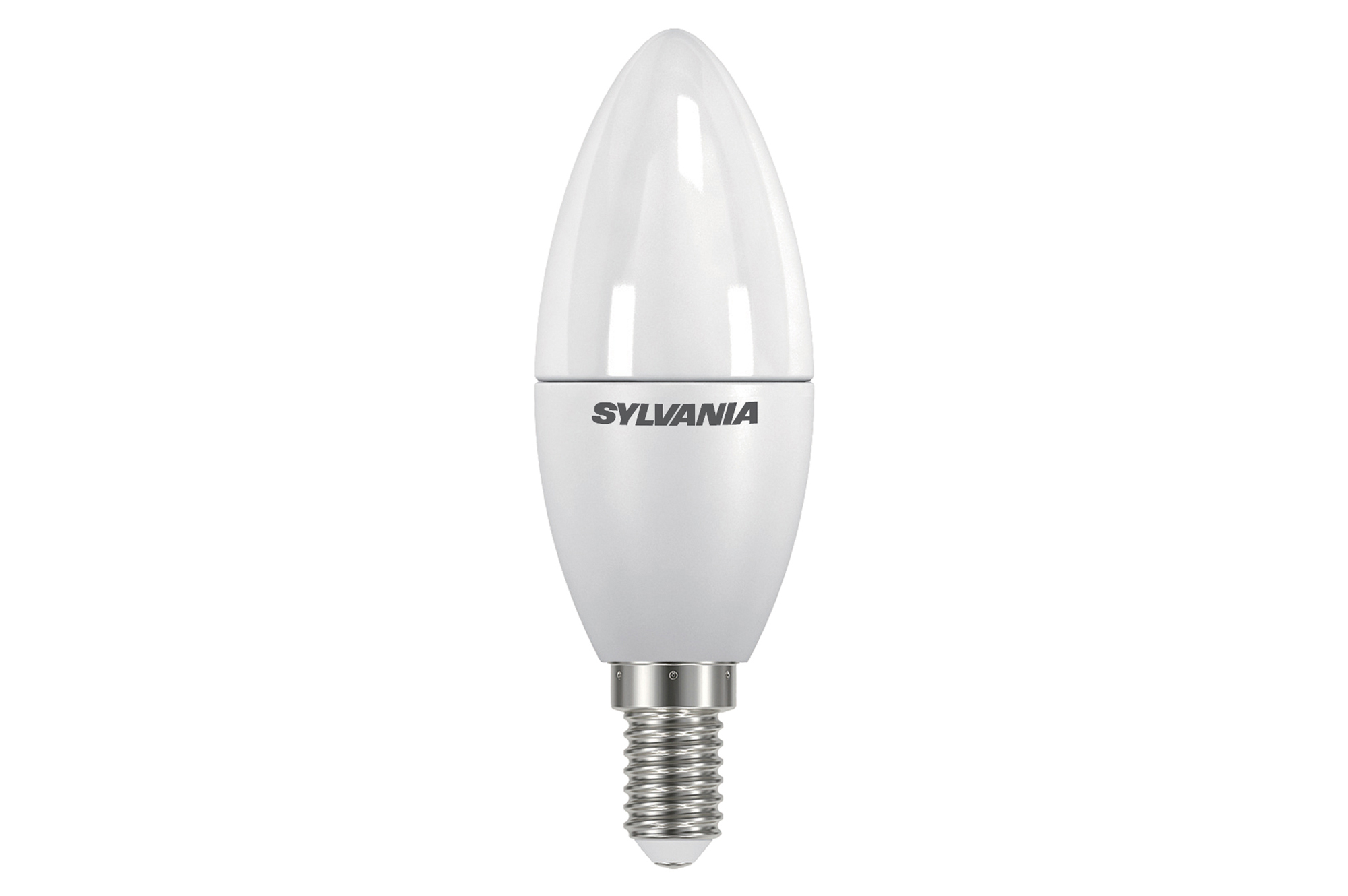

ToLEDo CANDLE V4 DIM FR 470LM 865 E14 SL


Item No: 0026971
This product is no longer available

• Compact and elegant design • Suitable replacement for halogen, incandescent and compact fluorescent candle lamps • Instant light at the flick of a switch • Uniform light distribution • Good colour rendering (CRI 80) • Dimmable with approved dimmers • Perfect for hotels, restaurants, lobbies, corridors, stairwells, reception areas • Lower maintenance costs • A+ energy rating

Technical Assets


Dimensions (mm)

Photometrics

Product name
ToLEDo CANDLE V4 DIM FR 470LM 865 E14 SL
Technology
LED
Watt (Rated) (W)
5.6
Cap/Base
E14
Fixture rating
Open
General application
Hospitality, Education, Residential & Consumer
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740507
Warranty
3 years
Useful luminous flux (Φuse)
470
Luminous flux (Rated) (lm)
470
Correlated colour temperature (k)
6500
Light colour
Daylight
CRI (Ra)
80
Beam Angle (°)
280
Power consumption (W)
5.6
Wattage (W)
5.6
Starting time (max) (s)
<0.5
Warm-up time to 60% of full light (max) (s)
<1.0
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Dimmable
Yes
Nominal Frequency (Hz)
50/60Hz
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
110
Nominal Product Diameter (mm)
38
Weight (kg)
0.041
Product EAN number
5410288269719
Packaging single length / height (cm)
12.6
Packaging single width (cm)
4.8
Packaging single depth (cm)
4.8
DUN14 (inner)
15410288269716
Units per inner package
6
Packaging inner length / height (cm)
15.5
Packaging inner width (cm)
10.5
Packaging inner depth (cm)
13.6
Units per outer package
60
Packaging outer length / height (cm)
55.0
Packaging outer width (cm)
32.6
Packaging outer depth (cm)
15.6
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
