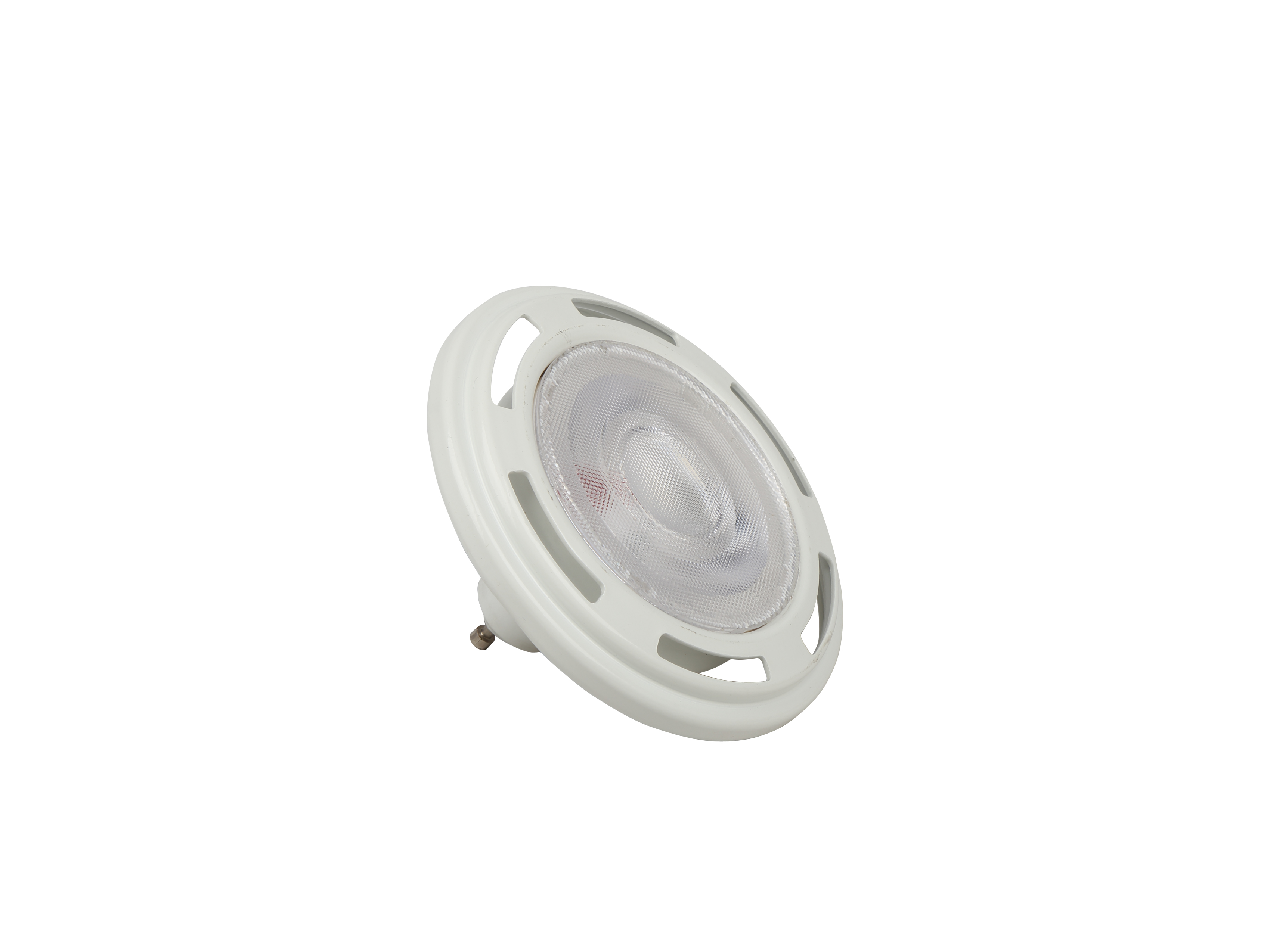

RefLED ES111 1000LM DIM 830 25°SL
Item No:
0027636
• Energy saving replacement for halogen ES111 GU10 lamps • High lumen output - 1000lm • Compact design, same diameter as the halogen lamp • Stippled lens to help reduce glare and recreate the halogen light effect • 25° beam angle • High lumen intensity – 4500 cd • 90% energy saving – A+ EEI rating • 11.5 W equivalent to 122W • Dimmable • 25,000 H average rated life, last 12.5 times longer than halogen alternatives • 0.90 power factor • > 50,000X switching cycle • High lumen efficacy –87 lm/W • CRI 80
Technical Assets
Photometrics
Product name
RefLED ES111 1000LM DIM 830 25°SL
Technology
LED
Watt (Rated) (W)
11.5
Lamp shape
Reflector
Cap/Base
GU10
Fixture rating
Open
General application
Hospitality, Retail, Residential & Consumer, Museums & Galleries
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number SE
8292815
Warranty
3 years
Useful luminous flux (Φuse)
1000
Correlated colour temperature (k)
3000
Light colour
Warm White
Colour Code
830
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Colour Consistency (SDCM)
6
Adjustable chromaticity
N
Luminous Intensity (cd)
4500
Beam Angle (°)
25
Power consumption (W)
11.5
Wattage (W)
11.5
Starting time (max) (s)
0.5
Warm-up time to 60% of full light (max) (s)
2
Supply current (A)
55
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.9
No. Of switching cycles before premature failures
>50000
Dimmable
Yes
Nominal Frequency (Hz)
50/60Hz
Average life (Nominal) (h)
25000
Average life (Rated) (h)
25000
Nominal Product Length (mm)
65
Nominal Product Diameter (mm)
111
Weight (kg)
0.155
Product EAN number
5410288276366
Packaging single length / height (cm)
11.5
Packaging single width (cm)
11.5
Packaging single depth (cm)
7.8
DUN14 (inner)
15410288276363
Units per inner package
6
Packaging inner length / height (cm)
36.5
Packaging inner width (cm)
12.5
Packaging inner depth (cm)
17.0
DUN14 (outer)
25410288276360
Units per outer package
24
Packaging outer length / height (cm)
38.3
Packaging outer width (cm)
27.0
Packaging outer depth (cm)
36.5
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
