TOLEDO PERFORMER T130 13000LM 840 E40 SL


Item No: 0028376
This product is no longer available

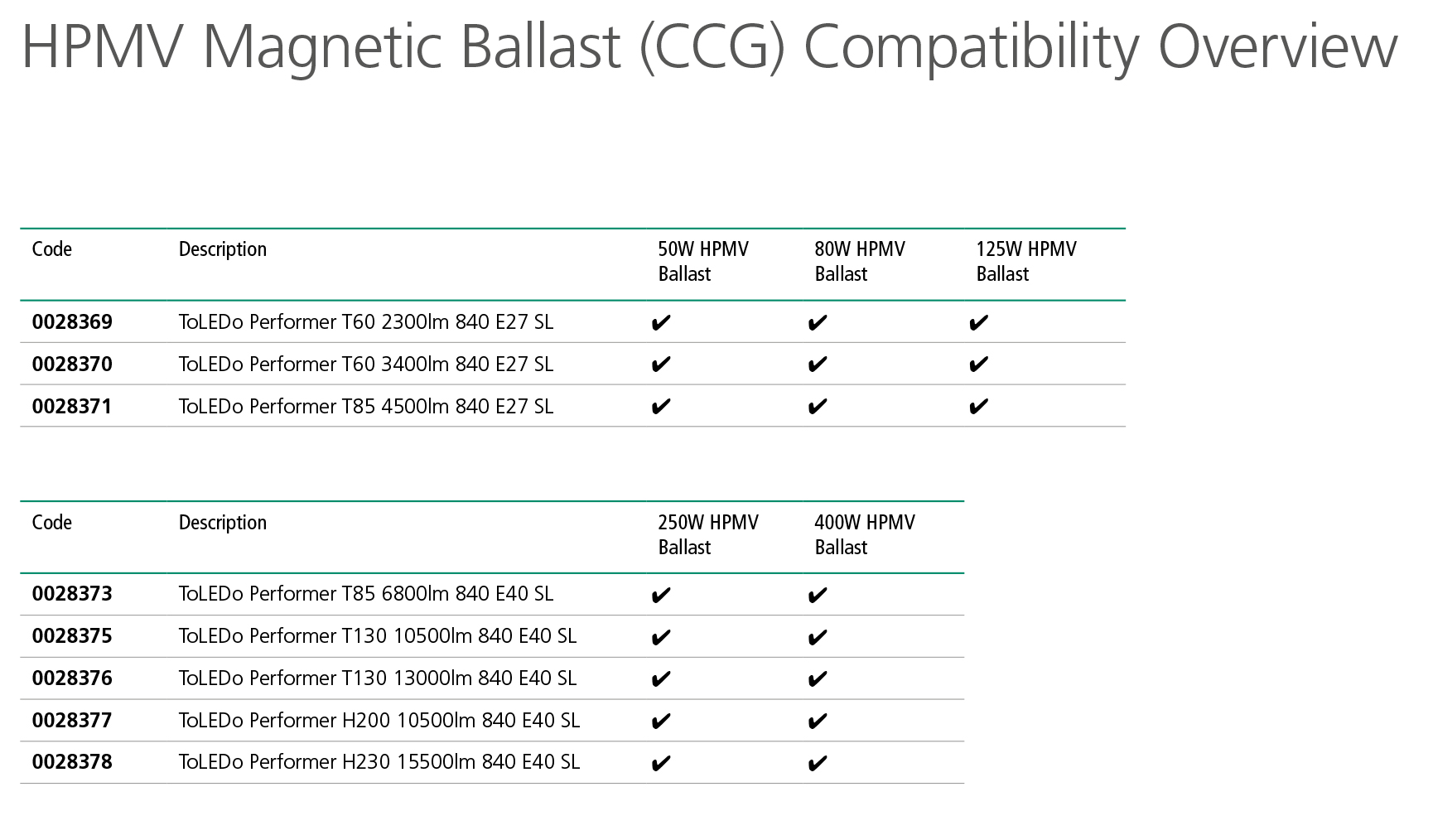

• Direct retrofit replacement for high-pressure mercury vapor lamps (HPMV) • 50,000 hours average rated lifetime • Up to 78% energy saving compared to the standard high-pressure mercury vapor lamps • Mercury-free solution • Lower maintenance cost • High lumen efficacy • Dual operating mode – compatible with HPMV magnetic ballast and also, suitable for AC direct mains 120-240V operation • High surge voltage protection: 4kV • Suitable for both open and enclosed luminaires • Wide light distribution • High switching cycles – 200,000X • High colour rendering – CRI80 • Minimum and maximum operating temperature: -30°C to 50°C

Technical Assets

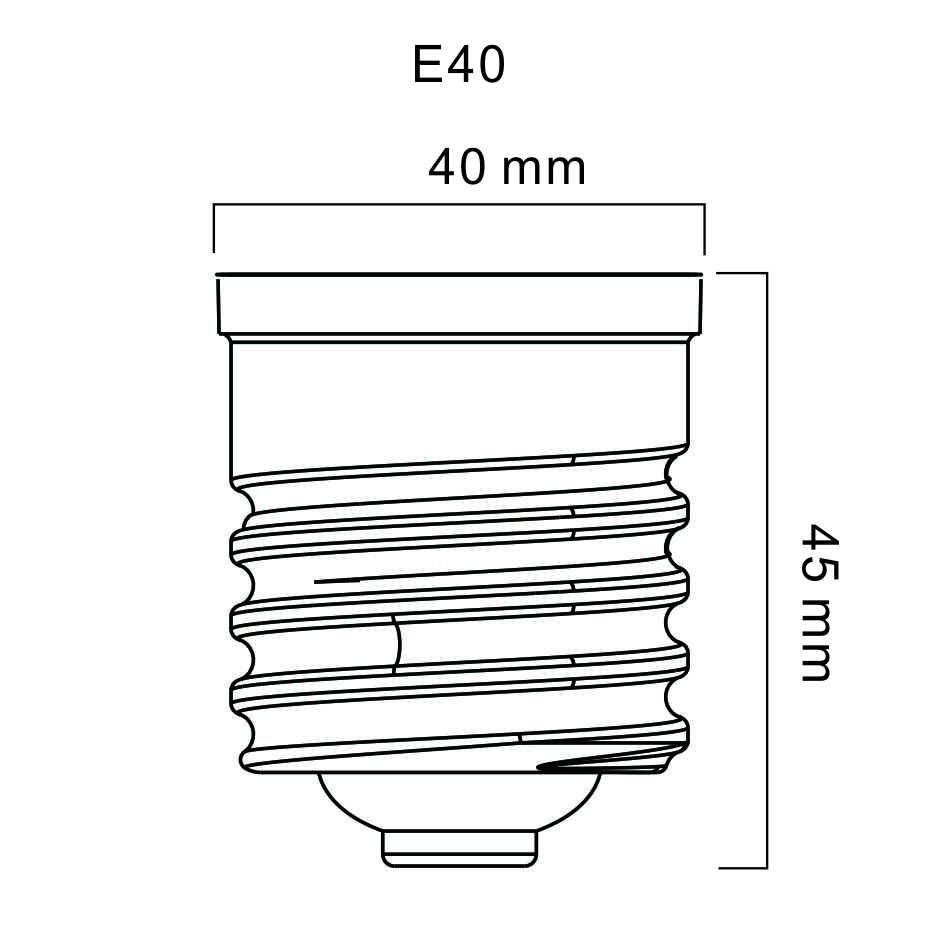

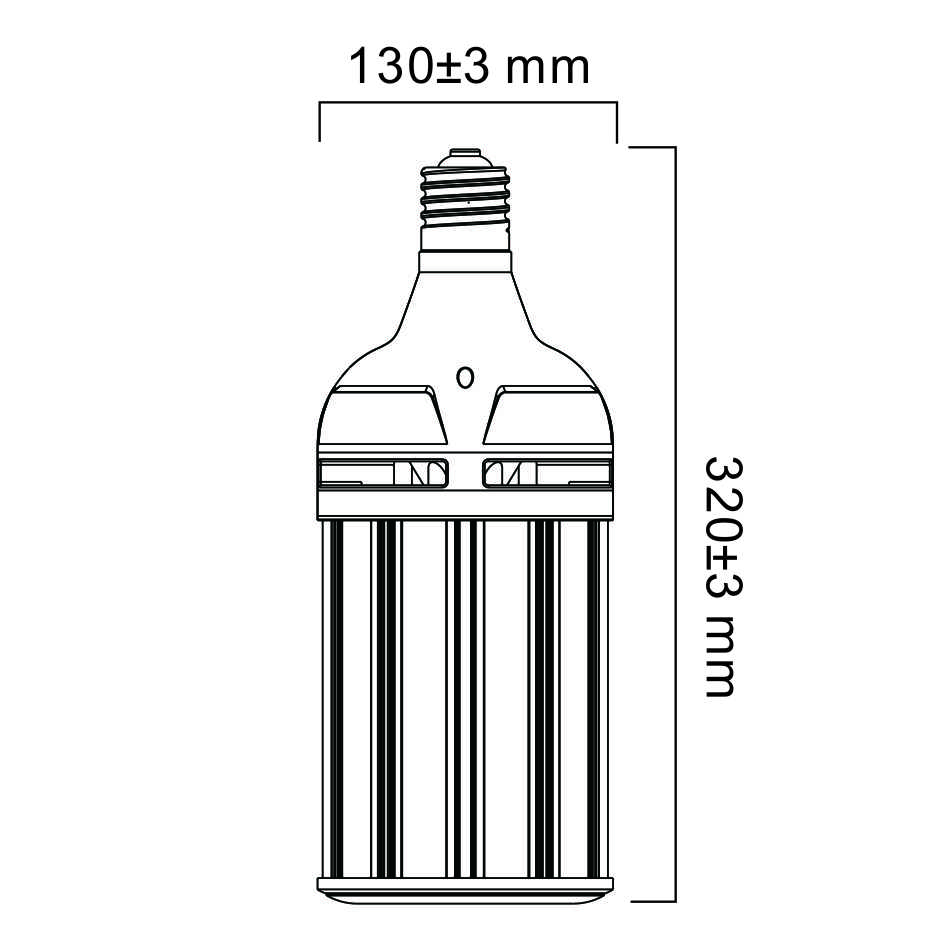

Dimensions (mm)

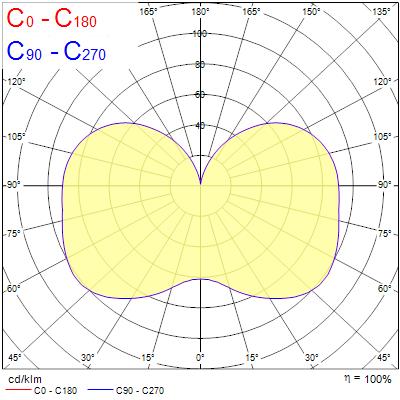

Photometrics

Product name
TOLEDO PERFORMER T130 13000LM 840 E40 SL
Technology
LED
Watt (Rated) (W)
110
Cap/Base
E40
Fixture rating
Open
General application
Logistics & Industry
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740743
Warranty
5 years
Useful luminous flux (Φuse)
13000
Luminous flux (Rated) (lm)
13000
Correlated colour temperature (k)
4000
Light colour
Cool White
CRI (Ra)
80
Beam Angle (°)
360
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
110
Wattage (W)
110
Starting time (max) (s)
0.5
Warm-up time to 60% of full light (max) (s)
0.5
Lamp power factor
0.95
No. Of switching cycles before premature failures
>200000
Inrush Current (A)
142
Nominal Frequency (Hz)
50/60Hz
Average life (Nominal) (h)
50000
Average life (Rated) (h)
50000
Nominal Product Length (mm)
320
Nominal Product Diameter (mm)
130
Weight (kg)
1.85
Product EAN number
5410288283760
Packaging single length / height (cm)
17.3
Packaging single width (cm)
35.6
Packaging single depth (cm)
16.1
DUN14 (inner)
15410288283767
Units per outer package
4
Packaging outer length / height (cm)
36.1
Packaging outer width (cm)
34.0
Packaging outer depth (cm)
36.5
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
