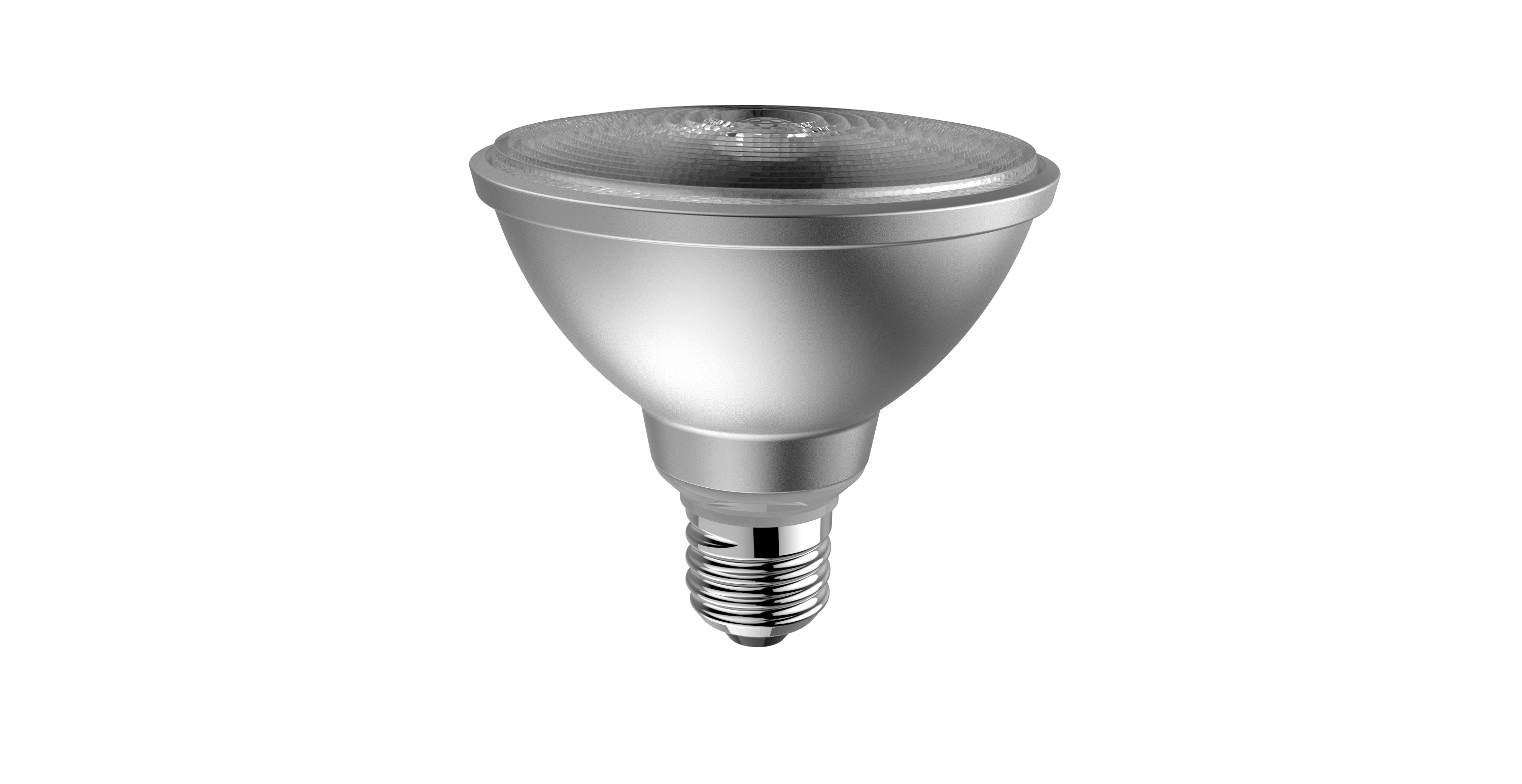

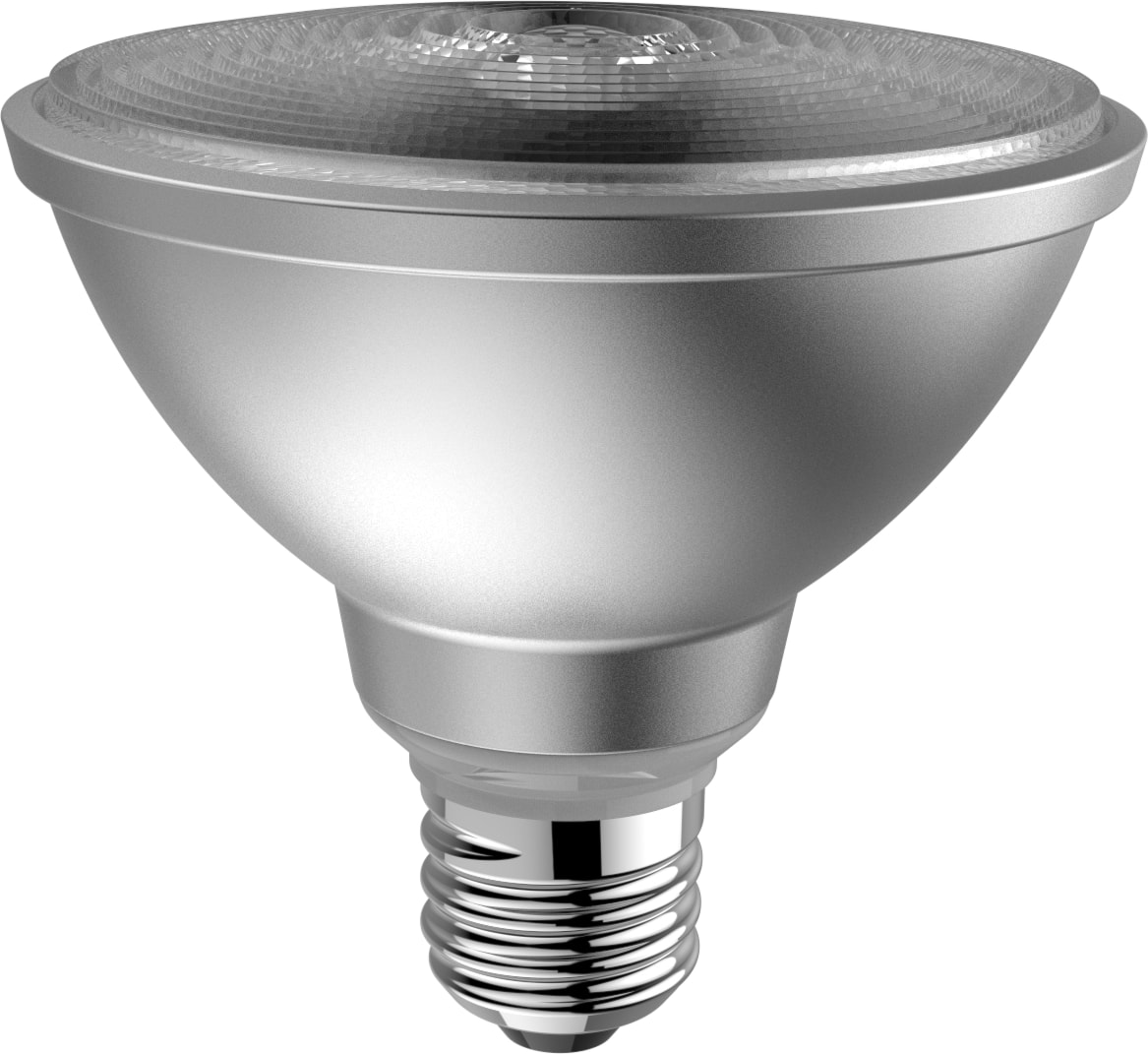

REFLED RETRO PAR30 DIM 820LM 840 36° SL
Item No:
0028525
This product is no longer available
• High performance LED PAR lamps with the same look and feel of traditional PAR lamps• Glass construction - means no colours clashing between the lamp and fixture• Reduced visible heatsink from the front• Mercury-free solution• Lower maintenance cost• Lifetime: up to 25,000 hours• High lumen efficacy• Dimmable on approved dimmers*• 3 year warranty• Suitable for general lighting and accent lighting for hotels, restaurants, bars, lobbies, corridors and halls
Technical Assets
Photometrics
Product name
REFLED RETRO PAR30 DIM 820LM 840 36° SL
Technology
LED
Watt (Rated) (W)
11
Cap/Base
E27
Fixture rating
Open
General application
Hospitality, Museums & Galleries, Residential & Consumer, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740846
Warranty
3 years
Useful luminous flux (Φuse)
820
Correlated colour temperature (k)
4000
Light colour
Cool White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Colour Consistency (SDCM)
6
Luminous Intensity (cd)
1900
Beam Angle (°)
36
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
11
Wattage (W)
11
Starting time (max) (s)
<0.5
Warm-up time to 60% of full light (max) (s)
<0.5
Lamp power factor
1
No. Of switching cycles before premature failures
>50000
Dimmable
Yes
Inrush Current (A)
6
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
50
Max. products per 16A C Breaker
80
Max. products per 20A C Breaker
100
Average life (Nominal) (h)
25000
Average life (Rated) (h)
25000
Nominal Product Length (mm)
94
Nominal Product Diameter (mm)
95
Weight (kg)
0.225
Product EAN number
5410288285252
Packaging single length / height (cm)
11.1
Packaging single width (cm)
10.2
Packaging single depth (cm)
10.2
DUN14 (inner)
15410288285259
Units per outer package
6
Packaging outer length / height (cm)
34.8
Packaging outer width (cm)
23.7
Packaging outer depth (cm)
14.8
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Dimmable with approved dimmers
