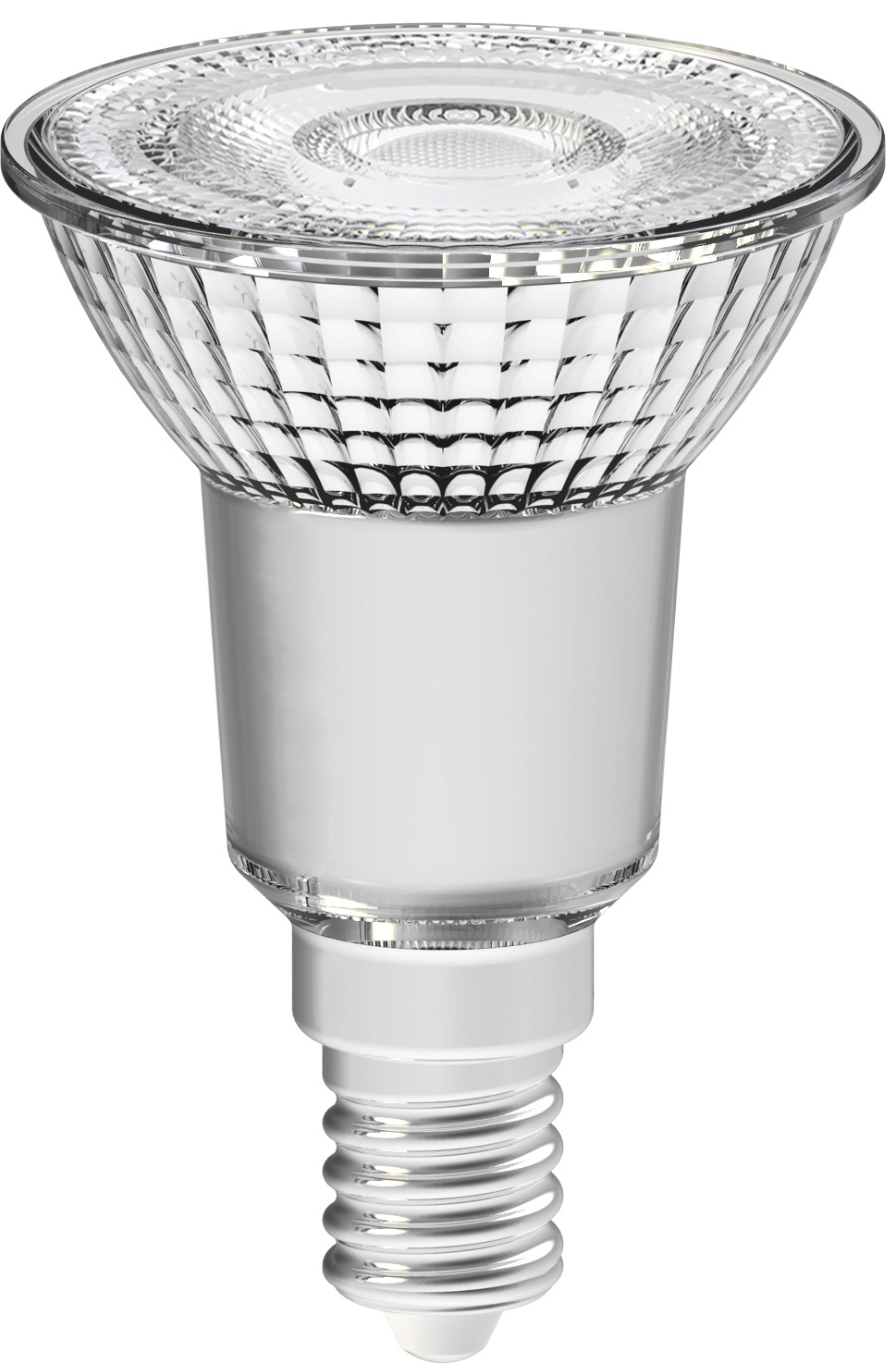

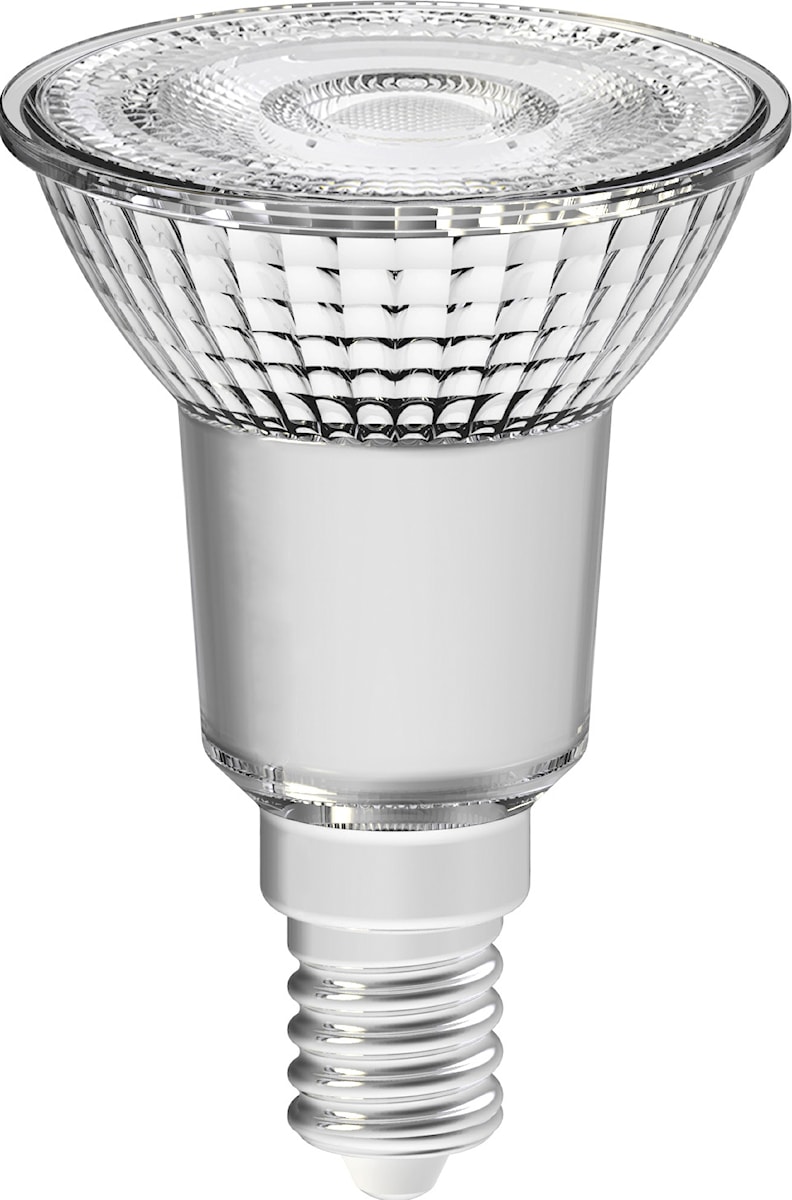

REFLED RT PAR16 345LM 865 E14 36° SL
Item No:
0028546
This product is no longer available
• High performance LED PAR lamps with the same look and feel of traditional PAR lamps • Glass construction - means no colours clashing between the lamp and fixture • Reduced visible heatsink from the front • Mercury-free solution • Lower maintenance cost • Lifetime: 15,000 hours • High lumen efficacy • Non-dimmable • 3 year warranty • Suitable for general lighting and accent lighting for hotels, restaurants, bars, lobbies, corridors and halls
Technical Assets
Photometrics
Product name
REFLED RT PAR16 345LM 865 E14 36° SL
Technology
LED
Watt (Rated) (W)
4.5
Cap/Base
E14
Fixture rating
Open
General application
Hospitality, Museums & Galleries, Residential & Consumer, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740844
Warranty
3 years
Useful luminous flux (Φuse)
350
Correlated colour temperature (k)
6500
Light colour
Daylight
CRI (Ra)
80
Colour Consistency (SDCM)
6
Colour Variation Initial (SDCM)
SDCM6
Luminous Intensity (cd)
700
Beam Angle (°)
36
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
4.5
Wattage (W)
4.5
Starting time (max) (s)
<0.5
Warm-up time to 60% of full light (max) (s)
<1
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Inrush Current (A)
5.20
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
67
Max. products per 16A C Breaker
107
Max. products per 20A C Breaker
148
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
73
Nominal Product Diameter (mm)
50
Weight (kg)
0.048
Product EAN number
5410288285467
Packaging single length / height (cm)
5.0
Packaging single width (cm)
5.0
Packaging single depth (cm)
8.7
DUN14 (inner)
15410288285464
Units per inner package
1
DUN14 (outer)
25410288285461
Units per outer package
6
Packaging outer length / height (cm)
16.3
Packaging outer width (cm)
11.0
Packaging outer depth (cm)
9.6
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
