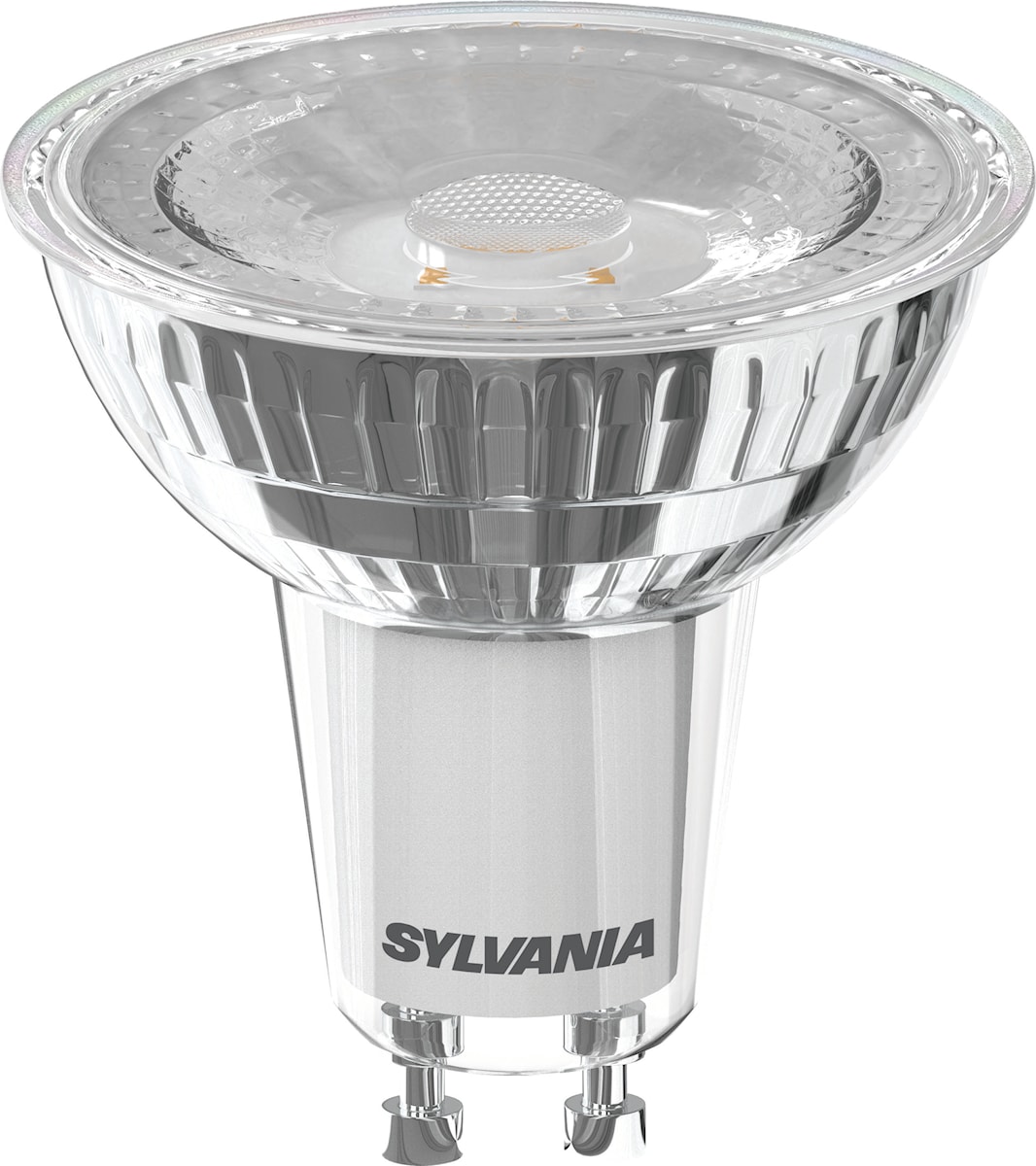

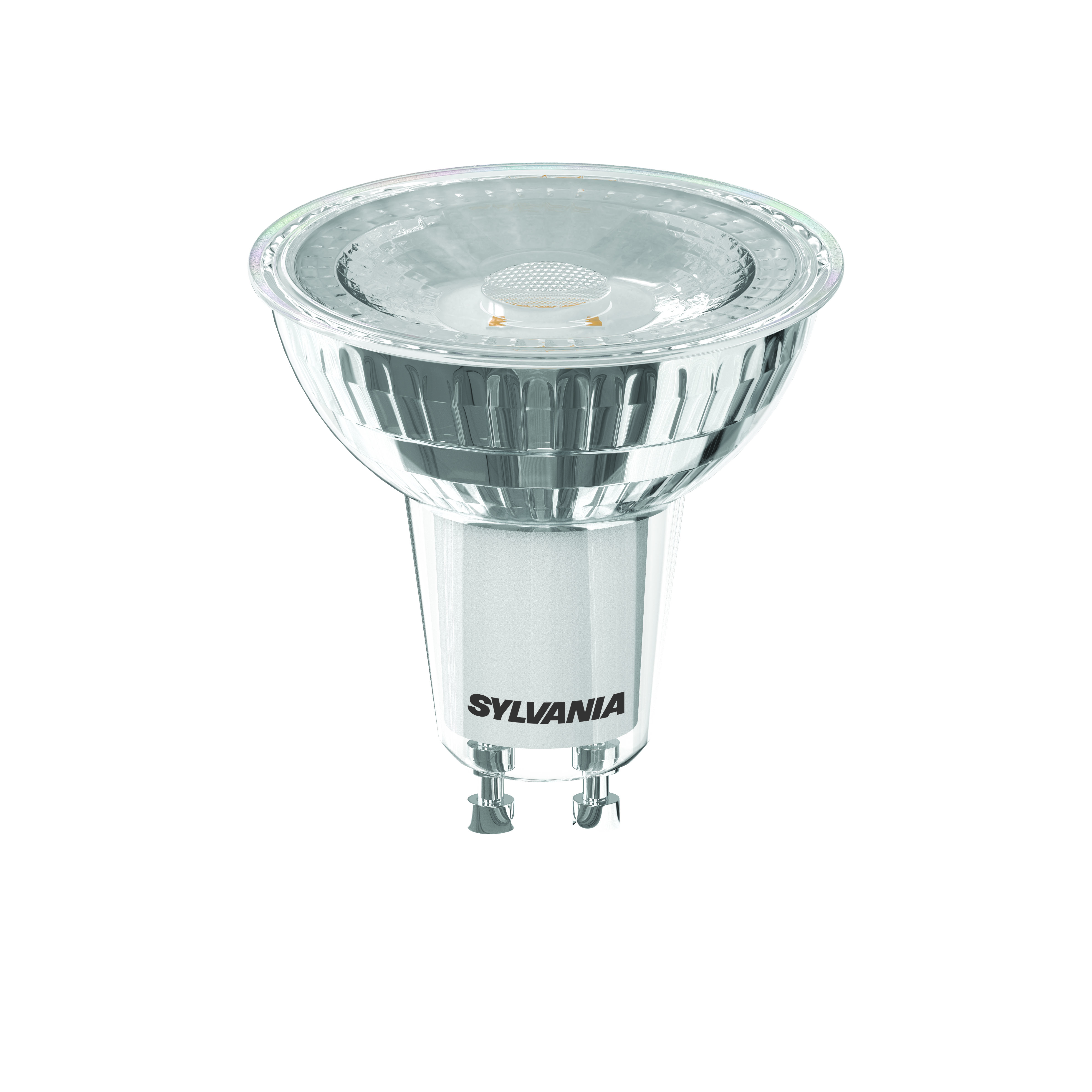

RefLED Sup RT ES50 V2 550 DIM 830 36d SL
Item No:
0028565
This product is no longer available
• Premium performance professional LED GU10 range with the same look and feel of traditional halogen GU10 lamp• Recreates backlight effect similar to halogen dichroic lamps• Full glass design - means no colours clashing between lamp and fixture• Very long lifetime of up to 25,000 hours• COOLFIT functionality – ensures overheat and over temperature protection• High switching cycles: >100,000• High colour rendering: CRI80• Dimmable on approved dimmers.• Warranty: 5 Years
Technical Assets

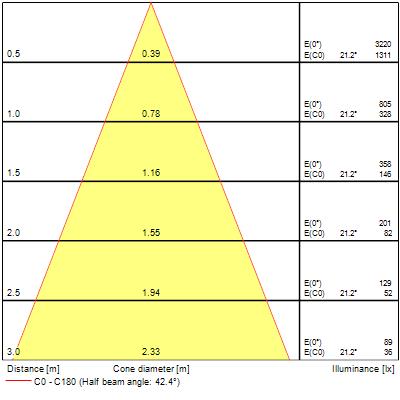

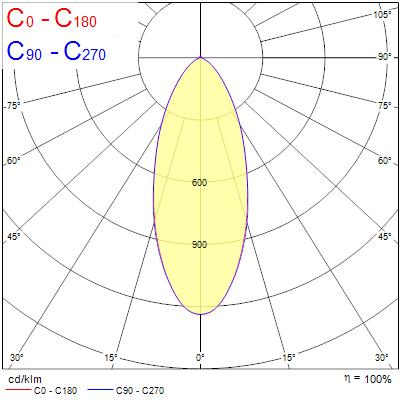

Photometrics
Product name
RefLED Sup RT ES50 V2 550 DIM 830 36d SL
Technology
LED
Watt (Rated) (W)
6
Cap/Base
GU10
Fixture rating
Open
General application
Education, Hospitality, Museums & Galleries, Office, Residential & Consumer, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740857
Warranty
5 years
Useful luminous flux (Φuse)
550
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Consistency (SDCM)
6
Colour Variation Initial (SDCM)
SDCM6
Luminous Intensity (cd)
1000
Beam Angle (°)
36
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
6
Wattage (W)
6
Starting time (max) (s)
<0.5
Warm-up time to 60% of full light (max) (s)
<1
Lamp power factor
0.7
No. Of switching cycles before premature failures
>100000
Inrush Current (A)
0.51
Nominal Frequency (Hz)
50Hz
Max. products per 10A C Breaker
78
Max. products per 16A C Breaker
125
Max. products per 20A C Breaker
157
Average life (Nominal) (h)
25000
Average life (Rated) (h)
25000
Nominal Product Length (mm)
54
Nominal Product Diameter (mm)
50
Weight (kg)
0.048
Product EAN number
5410288285658
Packaging single length / height (cm)
5.1
Packaging single width (cm)
5.1
Packaging single depth (cm)
6.7
DUN14 (inner)
15410288285655
Units per inner package
6
Packaging inner length / height (cm)
11.0
Packaging inner width (cm)
16.4
Packaging inner depth (cm)
8.1
DUN14 (outer)
25410288285652
Units per outer package
60
Packaging outer length / height (cm)
58.6
Packaging outer width (cm)
18.6
Packaging outer depth (cm)
18.7
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Dimmable with approved dimmers
