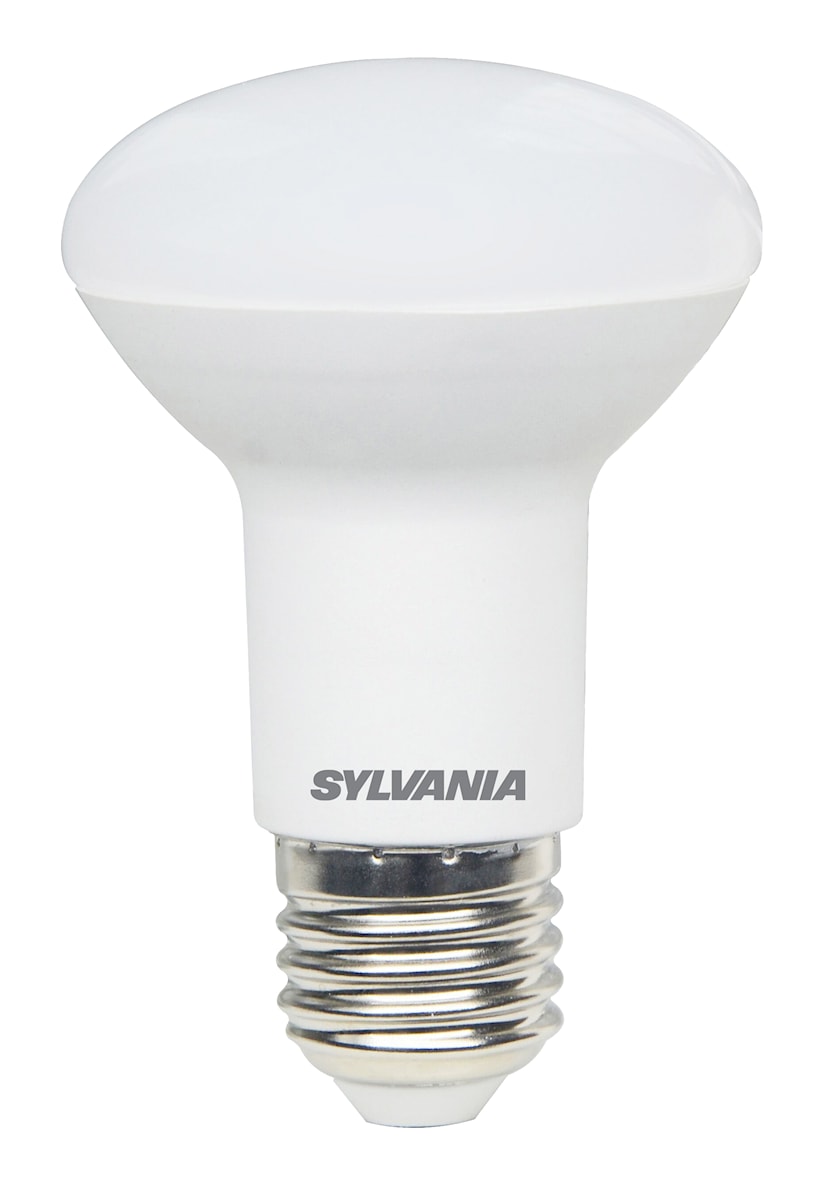

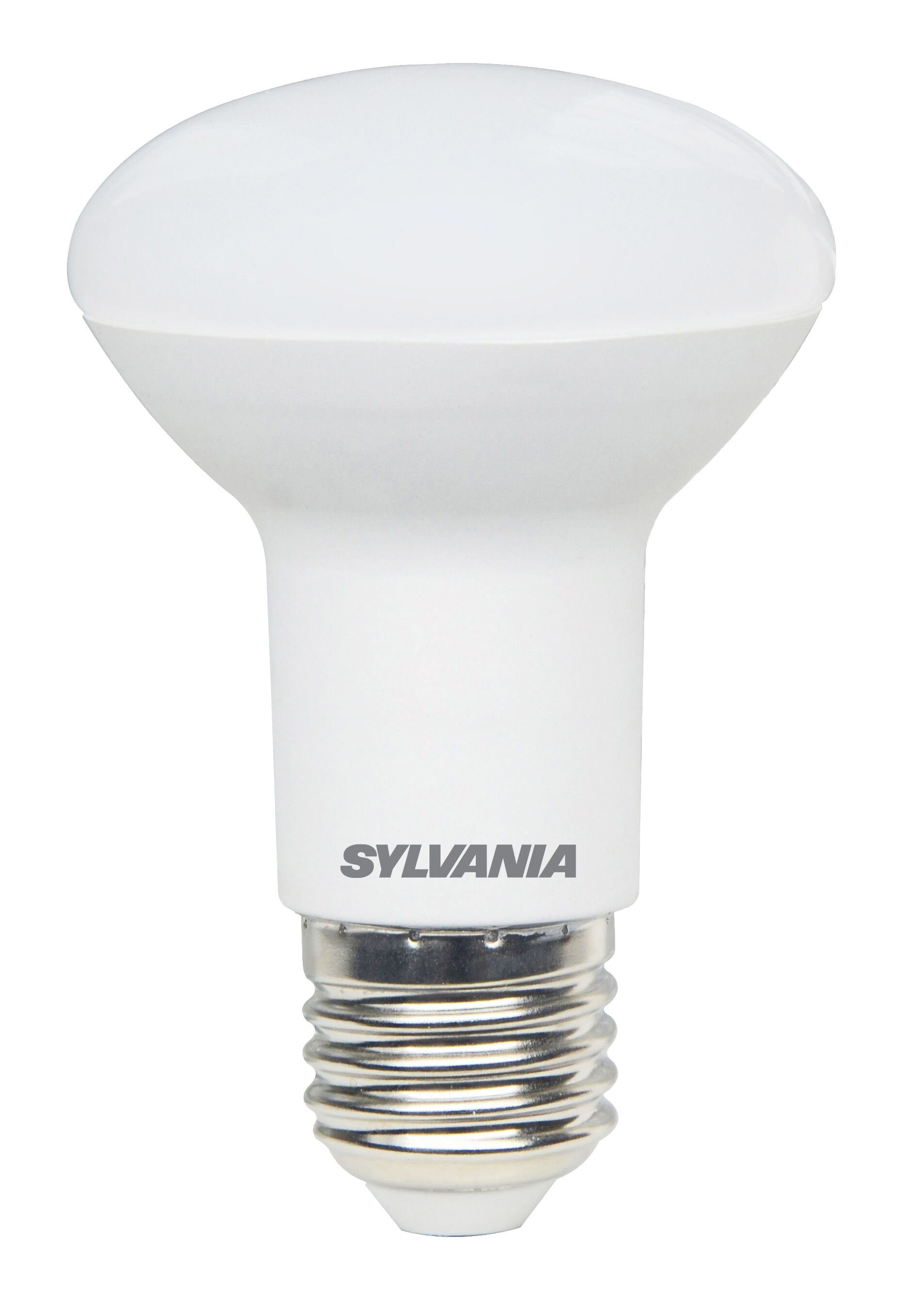

RefLED R63 V4 630LM 865 E27 SL
Item No:
0029210
This product is no longer available
Energy efficient LED alternative for traditional incandescent and halogen blown reflector lamp Modern construction and attractive design Mercury free solution Long average rated lifetime: 15,000 hours Lower maintenance cost compared to traditional lamps Non-dimmable 3 years warranty Perfect for general lighting applications: residential lighting, down lights, hotels, hotels, restaurants, bars, lobbies, corridors, halls, etc
Technical Assets
Dimensions (mm)
Photometrics
Product name
RefLED R63 V4 630LM 865 E27 SL
Technology
LED
Watt (Rated) (W)
7
Cap/Base
E27
Fixture rating
Open
General application
Hospitality, Residential & Consumer
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4741090
Warranty
3 years
Useful luminous flux (Φuse)
630
Correlated colour temperature (k)
6500
Light colour
Daylight
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Colour Consistency (SDCM)
6
Beam Angle (°)
120
Photobiological Risk Group
RG1
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
7
Wattage (W)
7
Equivalent watt (W)
50
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Control gear required
No
No. Of switching cycles before premature failures
>50000
Dimmable
No
Inrush Current (A)
2
Inrush Duration (µs)
240
Lamp Energy Label (class)
F
Nominal Frequency (Hz)
50/60Hz
Max. products per 16A C Breaker
80
Max. products per 16A B Breaker
40
Lifespan L70 B50
15000
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
97
Nominal Product Diameter (mm)
63
Weight (kg)
0.04
Product EAN number
5410288292106
Packaging single length / height (cm)
6.3
Packaging single width (cm)
6.4
Packaging single depth (cm)
10.0
DUN14 (inner)
15410288292103
Units per outer package
6
Packaging outer length / height (cm)
19.7
Packaging outer width (cm)
13.3
Packaging outer depth (cm)
10.7
Optimal operating condition (°C)
-20-40
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
