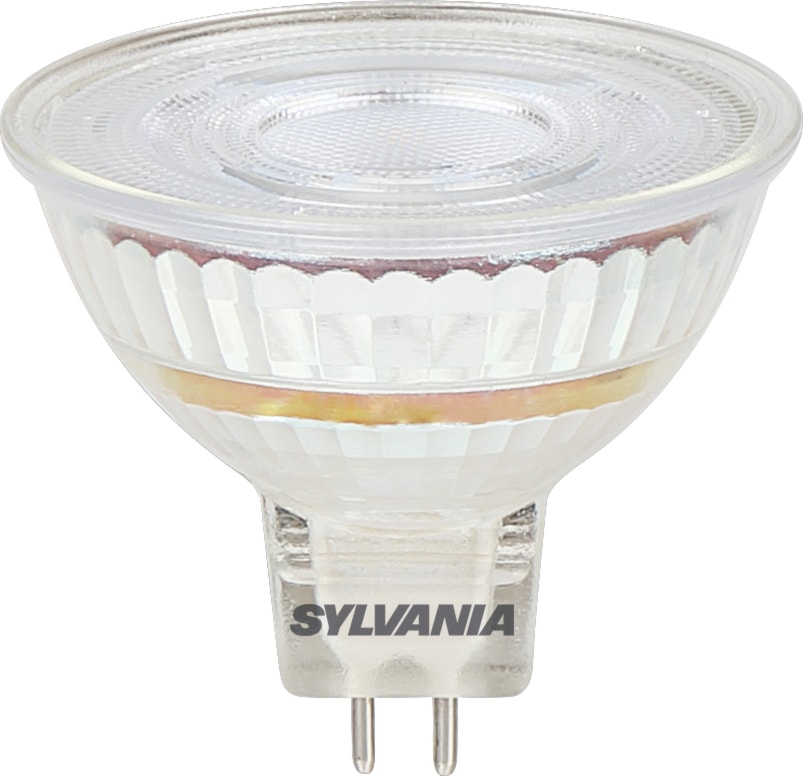

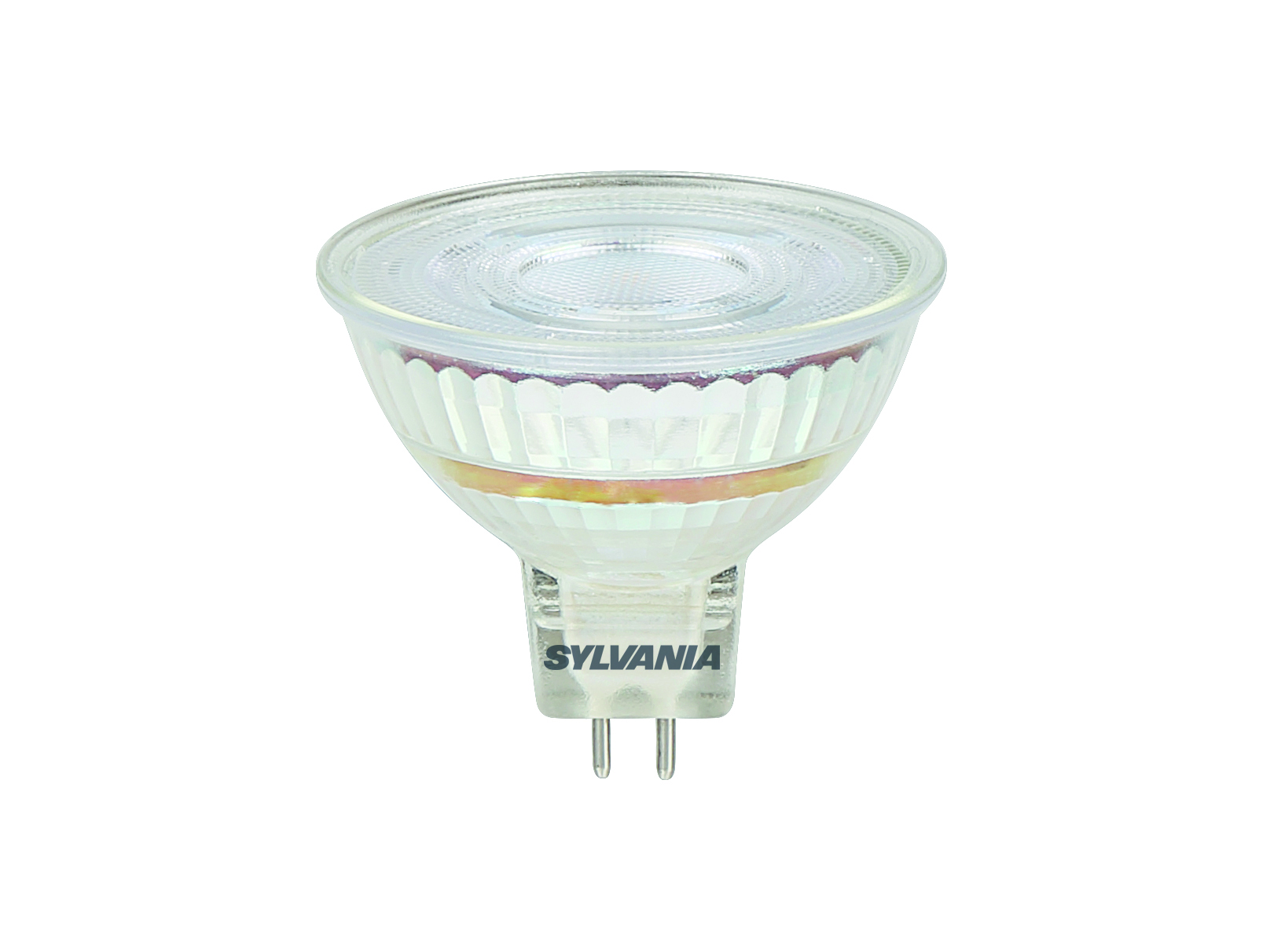

REFLED SUPERIA RETRO MR16 621LM DIM 830 36° SL
Item No:
0029424
This product is no longer available
• Premium performance professional LED MR16 range with the same look and feel of traditional halogen MR16 lamp • Recreates backlight effect similar to halogen dichroic lamps. • Full glass design - means no colours clashing between lamp and fixture • Very long lifetime of up to 25,000 hours • Switching cycles: >100,000 • Colour rendering: CRI80 • Lamp voltage: 12V AC/DC • Dimmable on approved dimmers • Works with magnetic and compatible electronic transformers. • Warranty: 5 Years
Technical Assets
Photometrics
Product name
REFLED SUPERIA RETRO MR16 621LM DIM 830 36° SL
Technology
LED
Watt (Rated) (W)
7
Cap/Base
G5.3
Fixture rating
Open
General application
Office, Hospitality, Retail, Education, Residential & Consumer, Museums & Galleries
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740712
Warranty
5 years
Useful luminous flux (Φuse)
621
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Colour Consistency (SDCM)
6
Luminous Intensity (cd)
1000
Beam Angle (°)
36
Power consumption (W)
7
Wattage (W)
7
Starting time (max) (s)
0.5
Warm-up time to 60% of full light (max) (s)
2
Lamp power factor
0.9
No. Of switching cycles before premature failures
>100000
Dimmable
Yes
Average life (Nominal) (h)
25000
Average life (Rated) (h)
25000
Nominal Product Length (mm)
44
Nominal Product Diameter (mm)
50
Weight (kg)
0.044
Product EAN number
5410288294247
Packaging single length / height (cm)
5.0
Packaging single width (cm)
5.0
Packaging single depth (cm)
5.5
DUN14 (inner)
15410288294244
Units per inner package
6
Packaging inner length / height (cm)
12.0
Packaging inner width (cm)
16.0
Packaging inner depth (cm)
6.0
DUN14 (outer)
25410288294241
Units per outer package
60
Packaging outer length / height (cm)
34.2
Packaging outer width (cm)
26.5
Packaging outer depth (cm)
19.5
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Suitable for approved transf./dimmers
