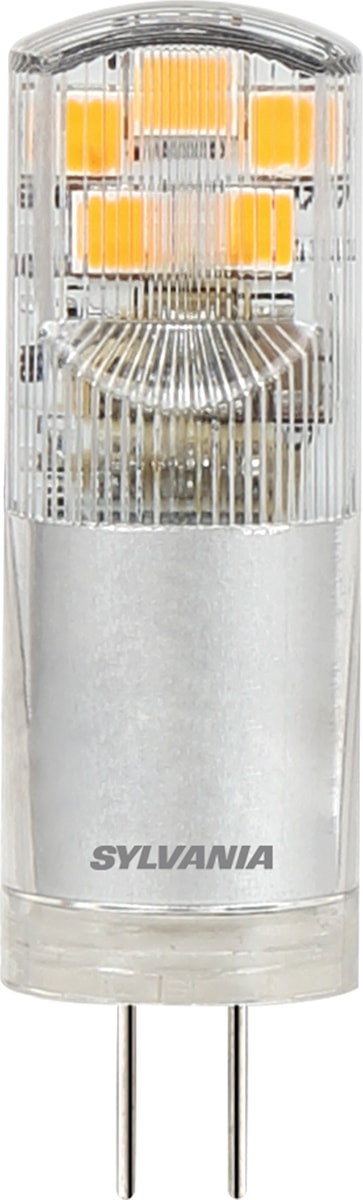

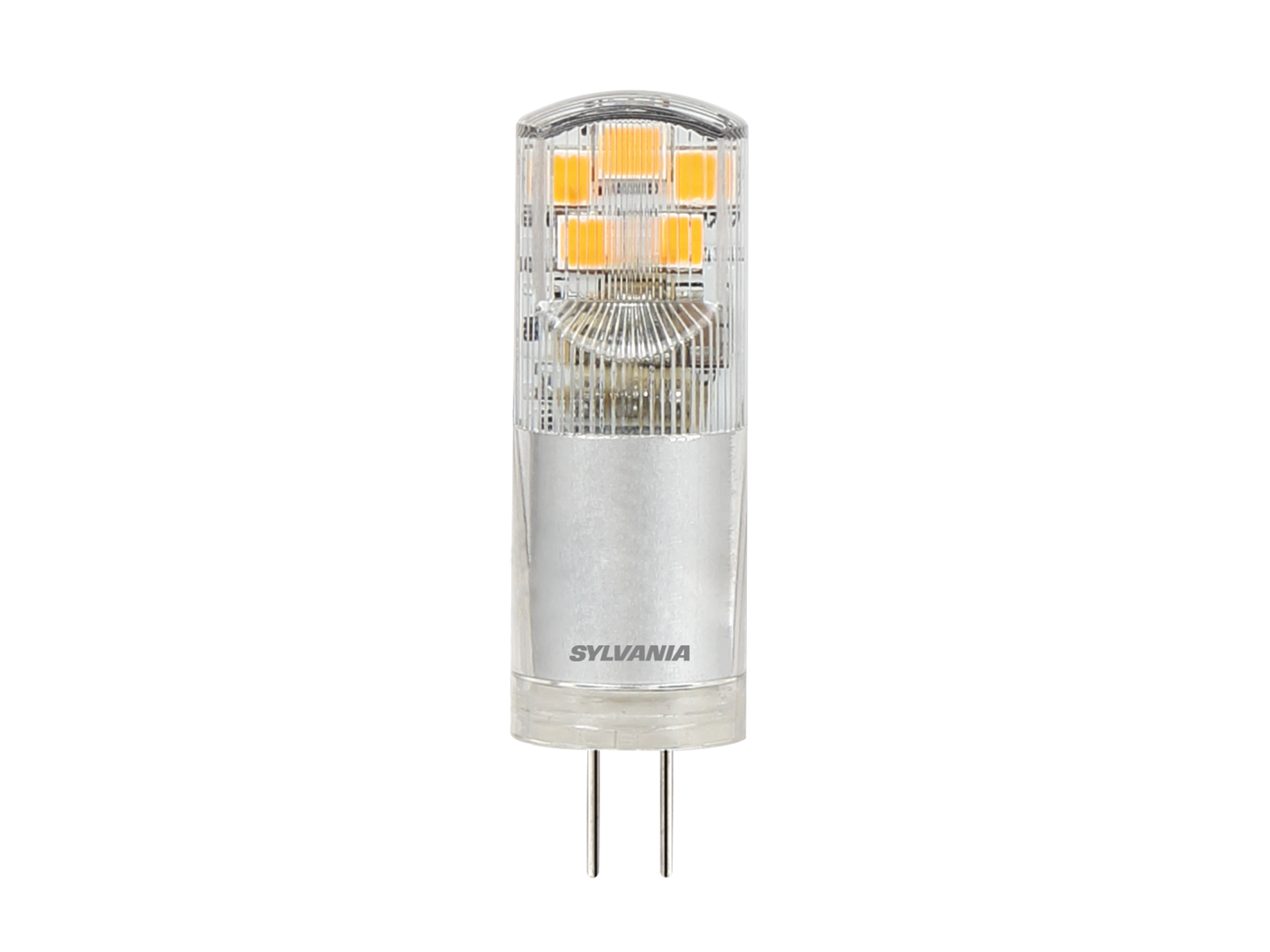

ToLEDo G4 300LM 827 SL
Item No:
0029658
This product is no longer available
LED retrofit replacement for halogen G4 low voltage capsulesCompact designOmni-directional light distribution12V AC/DC200lm = 25W halogen G4 lampHigh lumen efficacy: 125lm/W90% energy savingNon-dimmableSuitable for chandeliers, interior display, shop windows, decorative and general lighting applications
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
ToLEDo G4 300LM 827 SL
Technology
LED
Watt (Rated) (W)
2.4
Cap/Base
G4
Fixture rating
Open
General application
Hospitality, Museums & Galleries, Residential & Consumer, Retail
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4741129
Warranty
3 years
Useful luminous flux (Φuse)
300
Luminous flux (Rated) (lm)
300
Correlated colour temperature (k)
2700
Light colour
Homelight
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Photobiological Risk Group
RG1
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
2.4
Wattage (W)
2.4
Equivalent watt (W)
25
Primary Supply/Product voltage - min (V)
12
Primary Supply/Product voltage - max (V)
12
Control gear required
Yes
No. Of switching cycles before premature failures
>100000
Dimmable
No
Inrush Current (A)
8
Inrush Duration (µs)
500
Lamp Energy Label (class)
E
Max. products per 16A C Breaker
42
Max. products per 16A B Breaker
26
Lifespan L70 B50
15000
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
44
Nominal Product Diameter (mm)
13
Weight (kg)
0.027
Product EAN number
5410288296586
Packaging single length / height (cm)
6.1
Packaging single width (cm)
5.1
Packaging single depth (cm)
8.2
DUN14 (inner)
15410288296583
Units per inner package
6
Packaging inner length / height (cm)
16.4
Packaging inner width (cm)
13.2
Packaging inner depth (cm)
9.3
DUN14 (outer)
25410288296580
Units per outer package
48
Packaging outer length / height (cm)
34.6
Packaging outer width (cm)
28.2
Packaging outer depth (cm)
20.8
Optimal operating condition (°C)
-20-40
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Suitable for approved transf./dimmers
