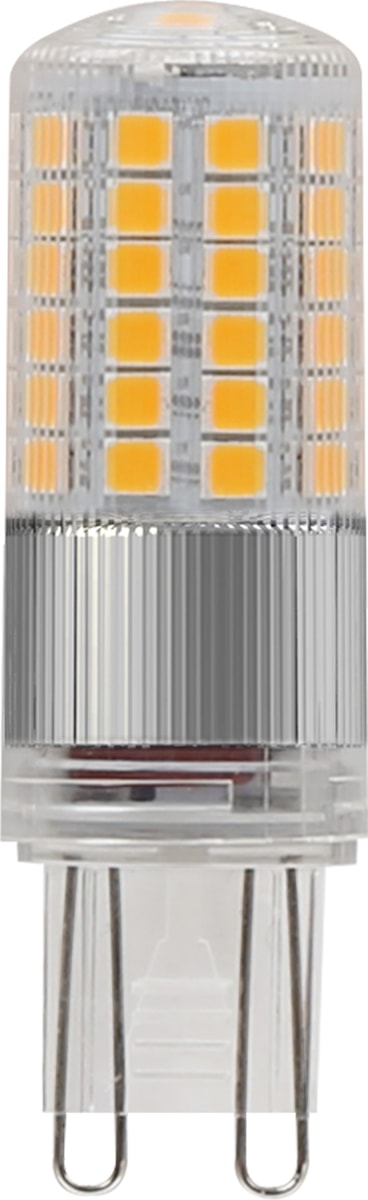

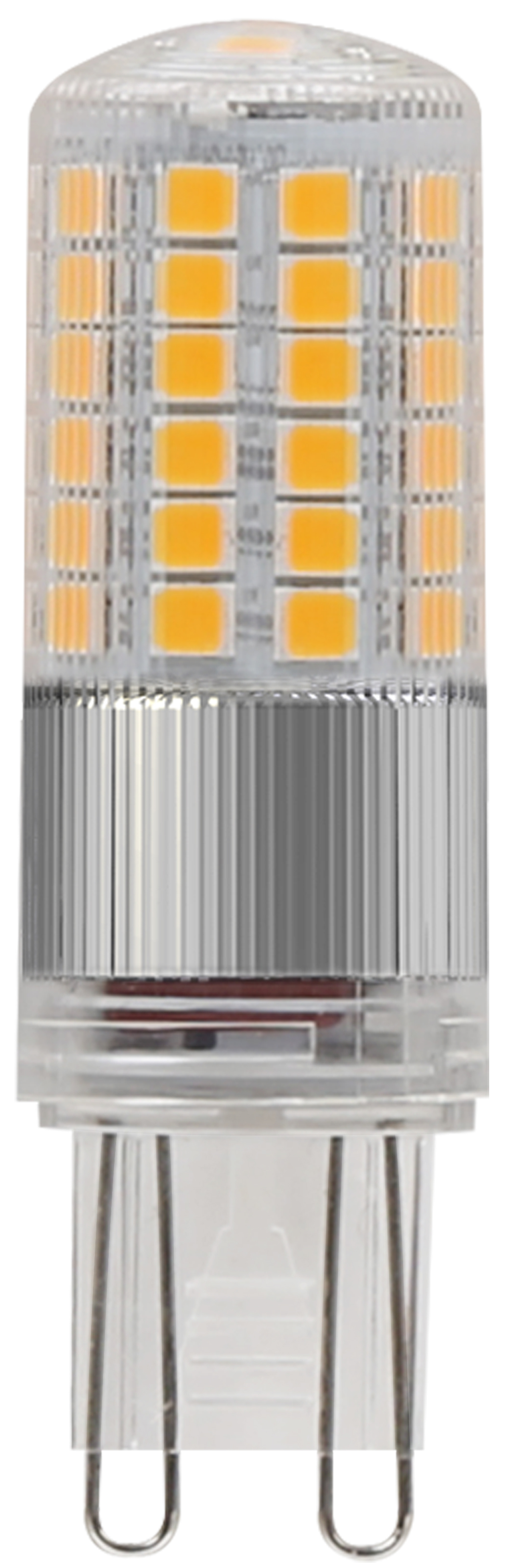

ToLEDo G9 600LM 827 SL
Item No:
0029673
This product is no longer available
LED retrofit replacement for halogen G9 mains voltage capsules High lumen output - 600lm Omni-directional light distribution 600lm = 45W halogen G9 lamp 89% energy saving Non-dimmable Suitable for chandeliers, interior display, shop windows, decorative and general lighting applications
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
ToLEDo G9 600LM 827 SL
Technology
LED
Watt (Rated) (W)
4.8
Cap/Base
G9
Fixture rating
Open
General application
Hospitality, Residential & Consumer
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4741145
Warranty
3 years
Useful luminous flux (Φuse)
600
Luminous flux (Rated) (lm)
600
Correlated colour temperature (k)
2700
Light colour
Homelight
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Photobiological Risk Group
RG1
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
4.8
Wattage (W)
4.8
Equivalent watt (W)
45
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Control gear required
No
No. Of switching cycles before premature failures
>50000
Dimmable
No
Inrush Current (A)
5.4
Inrush Duration (µs)
244
Lamp Energy Label (class)
E
Nominal Frequency (Hz)
50/60Hz
Max. products per 16A C Breaker
28
Max. products per 16A B Breaker
17
Lifespan L70 B50
15000
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
59
Nominal Product Diameter (mm)
18
Weight (kg)
0.04
Product EAN number
5410288296739
Packaging single length / height (cm)
6.1
Packaging single width (cm)
5.1
Packaging single depth (cm)
8.2
DUN14 (inner)
15410288296736
Units per inner package
6
Packaging inner length / height (cm)
16.4
Packaging inner width (cm)
13.2
Packaging inner depth (cm)
9.3
DUN14 (outer)
25410288296733
Units per outer package
48
Packaging outer length / height (cm)
34.6
Packaging outer width (cm)
28.2
Packaging outer depth (cm)
20.8
Optimal operating condition (°C)
-20-40
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
