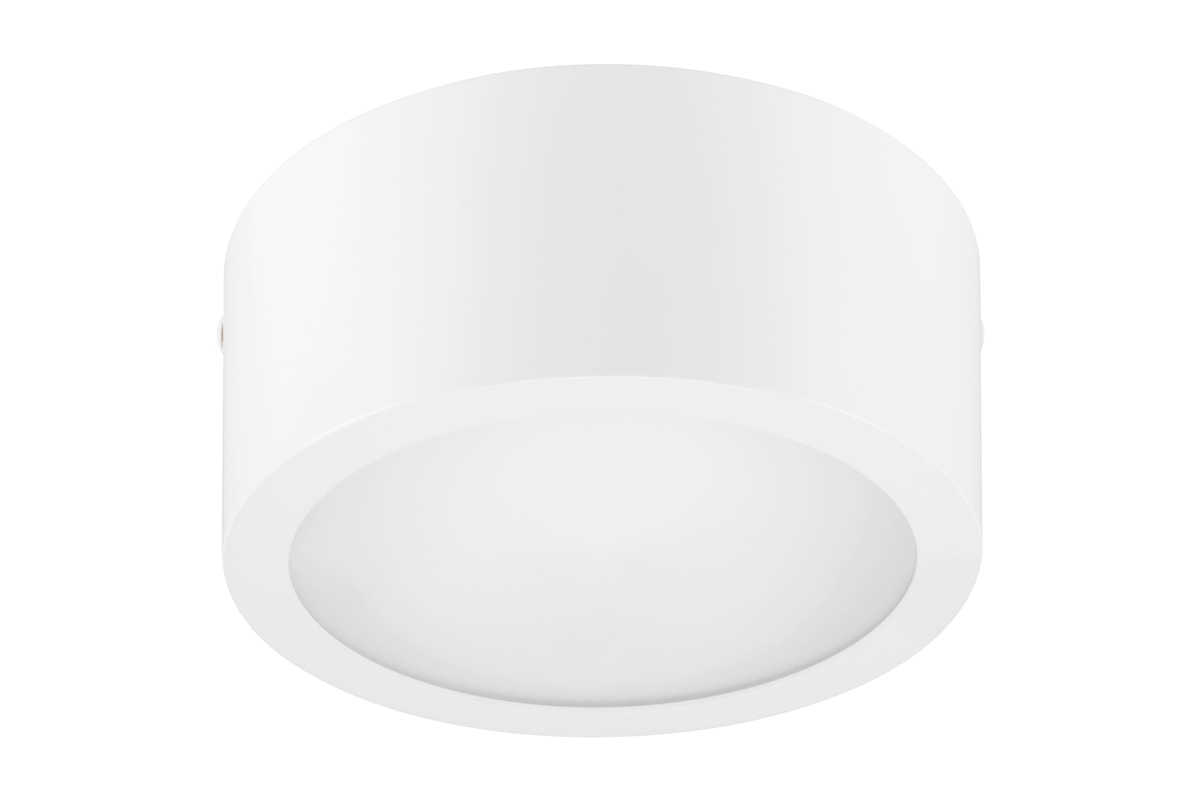

START Downlight 220 2150lm 840 Surface
Item No:
0030447
.png)
Surface mounted LED downlight with diameter size of 220mm. Ideal replacement for 1x42W CFL downlights. The polycarbonate diffuser allows for a wider light distribution and increased spacings between luminiares. Loop in loop out connector allows for quick installation. Die-cast aluminium body, 4000K, Driver Current: 600mA, CRI80, Non-dimmable LED driver, IP20, IK07, (HxW) 94x220mm, Class 2, 220-240V. Meets TP(a) requirements.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
START Downlight 220 2150lm 840 Surface
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling surface mounting
Built in presence detector
NONE
General application
Hospitality, Logistics & Industry, Office
Operating temperature range (°C)
-10°C...+25°C
Performance ambient temperature Tq (°C)
25
Virtual assistant compatibility
ETIM Class
EC001744
E-number FI
4279539
Warranty
5 years
Fixture luminous flux (lm)
2150
Luminaire efficacy (lm/W)
102
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
74
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG0
Total power consumption (W)
21
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class II
Control gear required
No
Control gear type
LED driver constant current
No. Of switching cycles before premature failures
>100000
Dimmable
No
Dimming method
N/A
Drive current (mA)
600
Inrush Current (A)
17.2
Inrush Duration (µs)
200
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
38
Max. products per 13A C Breaker
47
Max. products per 16A C Breaker
57
Max. products per 20A C Breaker
66
Max. products per 10A B Breaker
30
Max. products per 13A B Breaker
38
Max. products per 16A B Breaker
45
Max. products per 20A B Breaker
53
Connectable conductor cross section - Min (mm²)
0.5
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
100000
Lifespan L80 B20
74000
Lifespan L90 B10
34000
Housing colour
RAL 9003 - Signal white
IP rating
IP20
IK rating
IK07
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Reflector finish
High-gloss
Nominal Product Height (mm)
95
Nominal Product Diameter (mm)
220
Weight (kg)
0.802
Product EAN number
5410288304472
Packaging single length / height (cm)
22.0
Packaging single width (cm)
22.0
Packaging single depth (cm)
10.3
DUN14 (inner)
15410288304479
Units per outer package
8
Packaging outer length / height (cm)
45.5
Packaging outer width (cm)
23.5
Packaging outer depth (cm)
43.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-10-25
