Insaver Slim U19 IP54 205 Multipower 650-2000lm840
Item No:
0030453
This product is no longer available
.png)

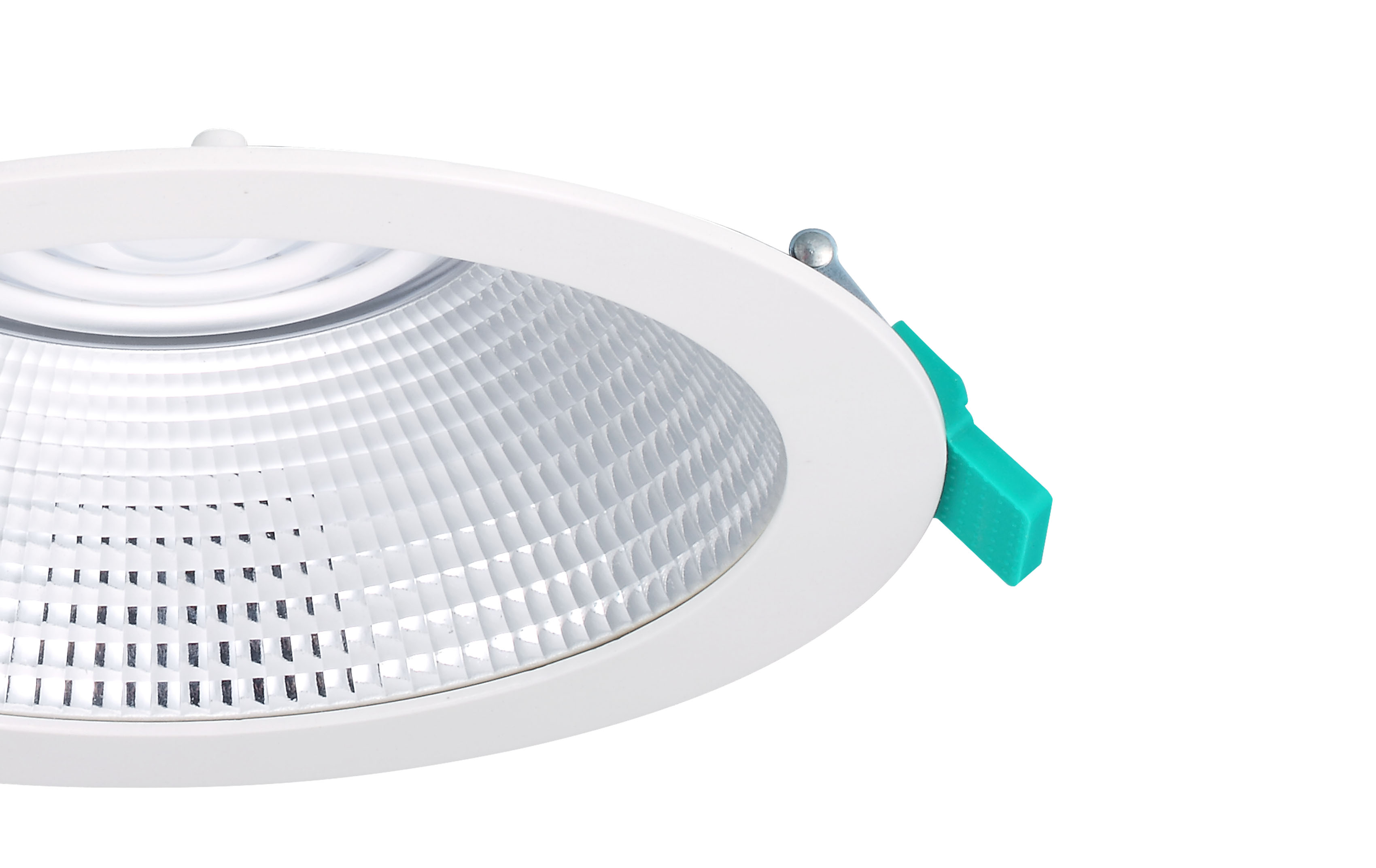

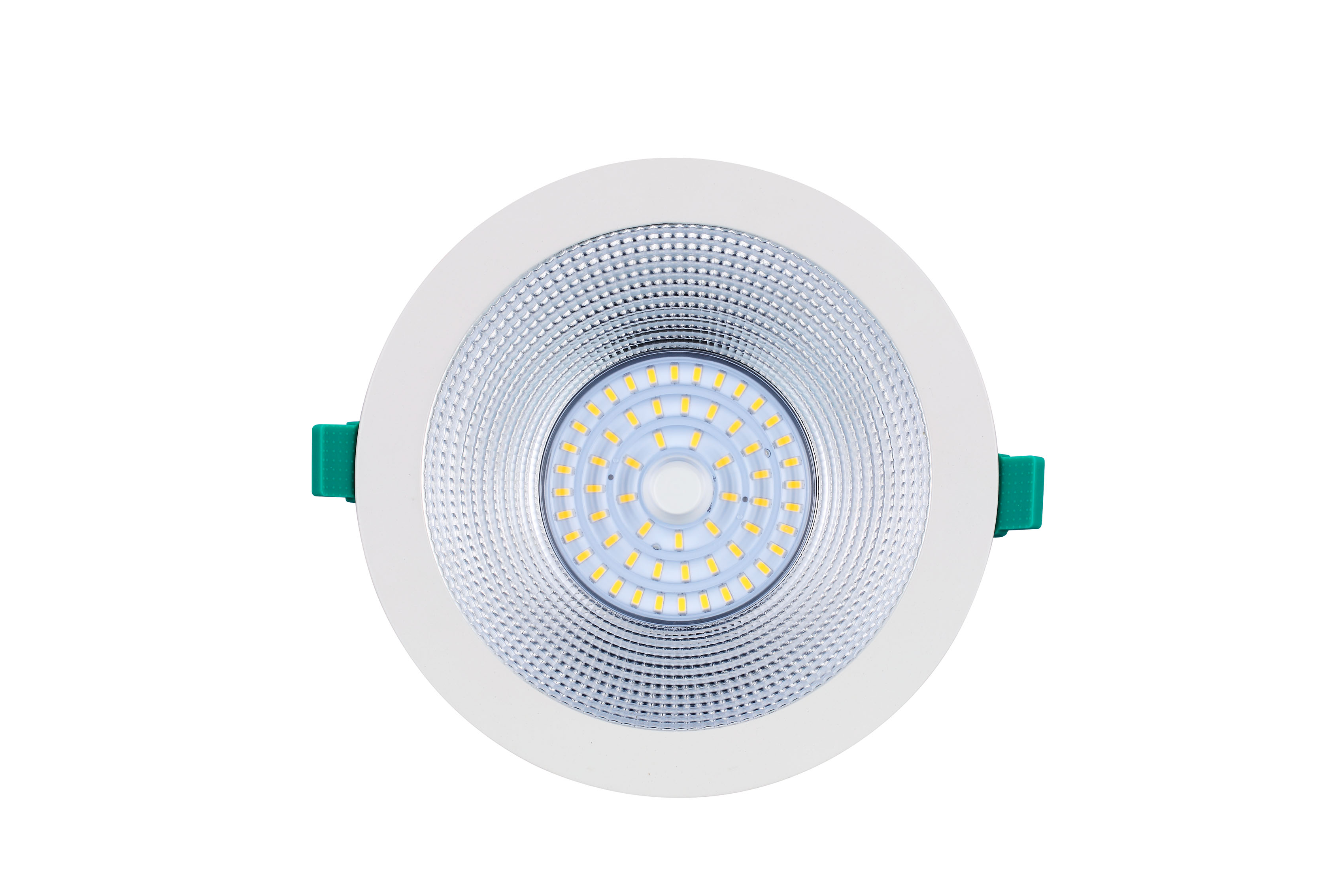

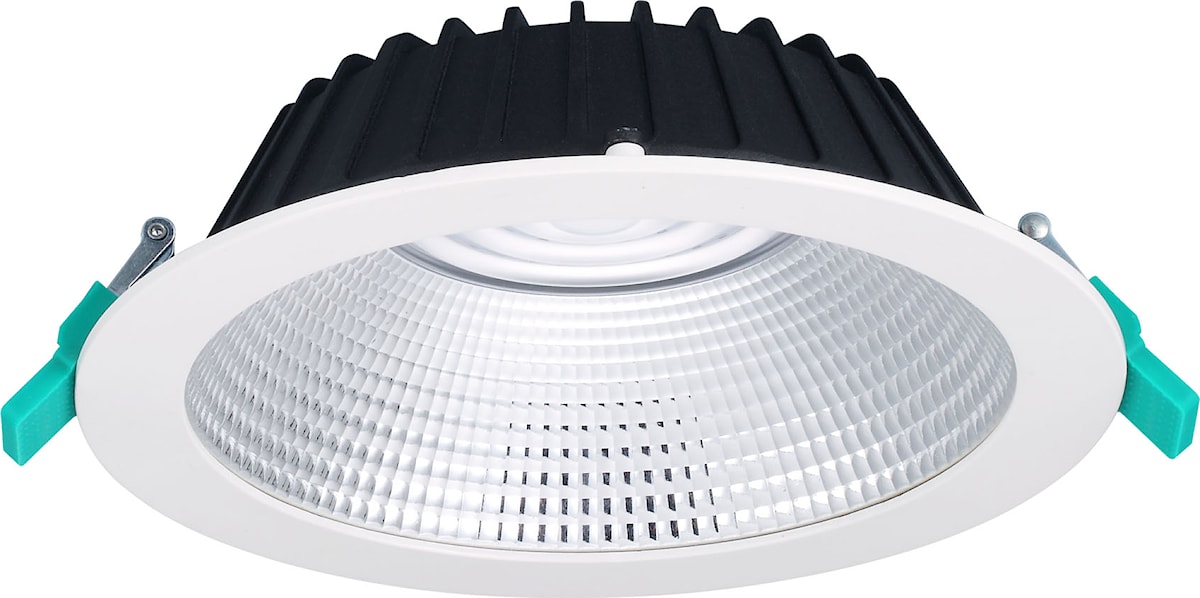

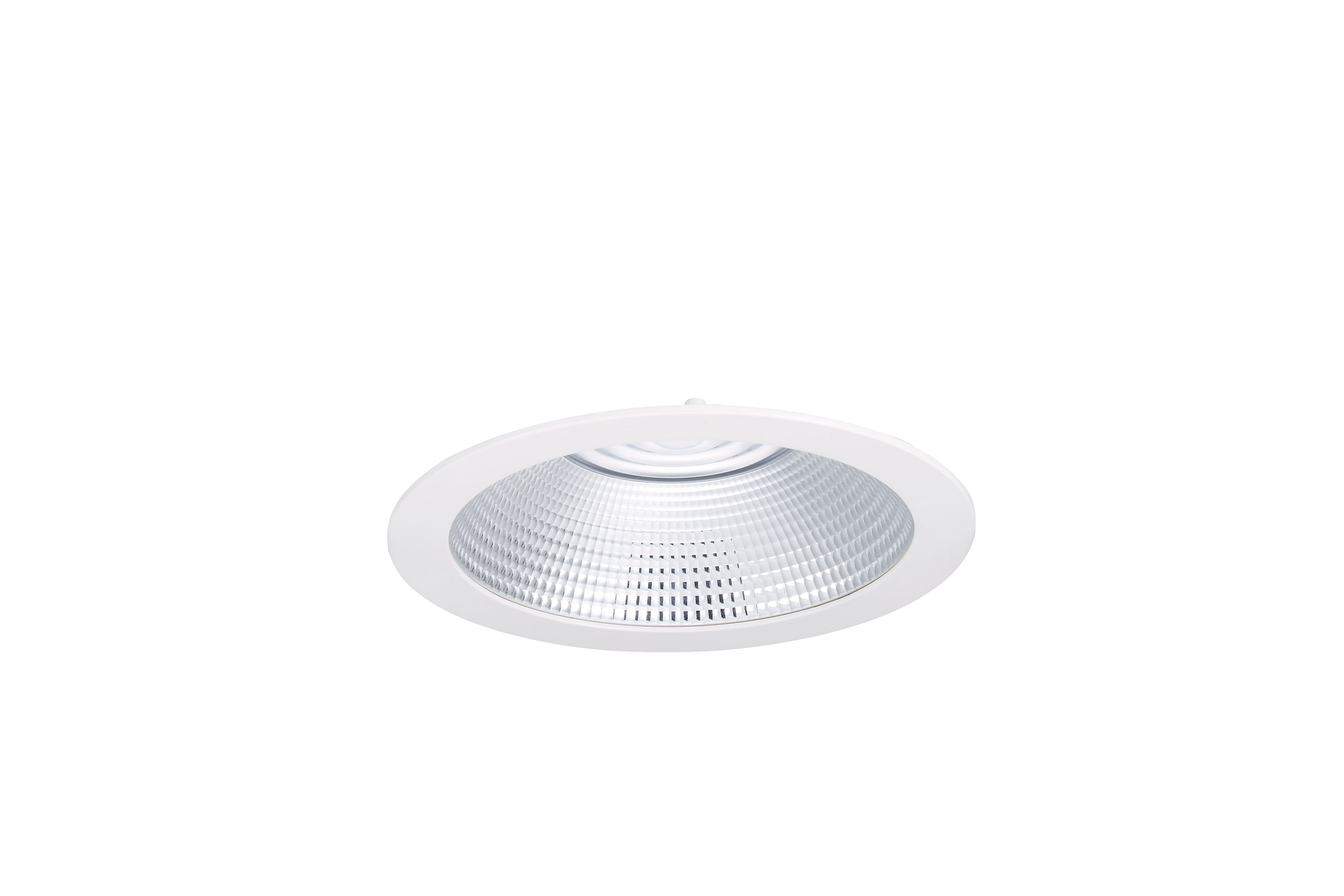

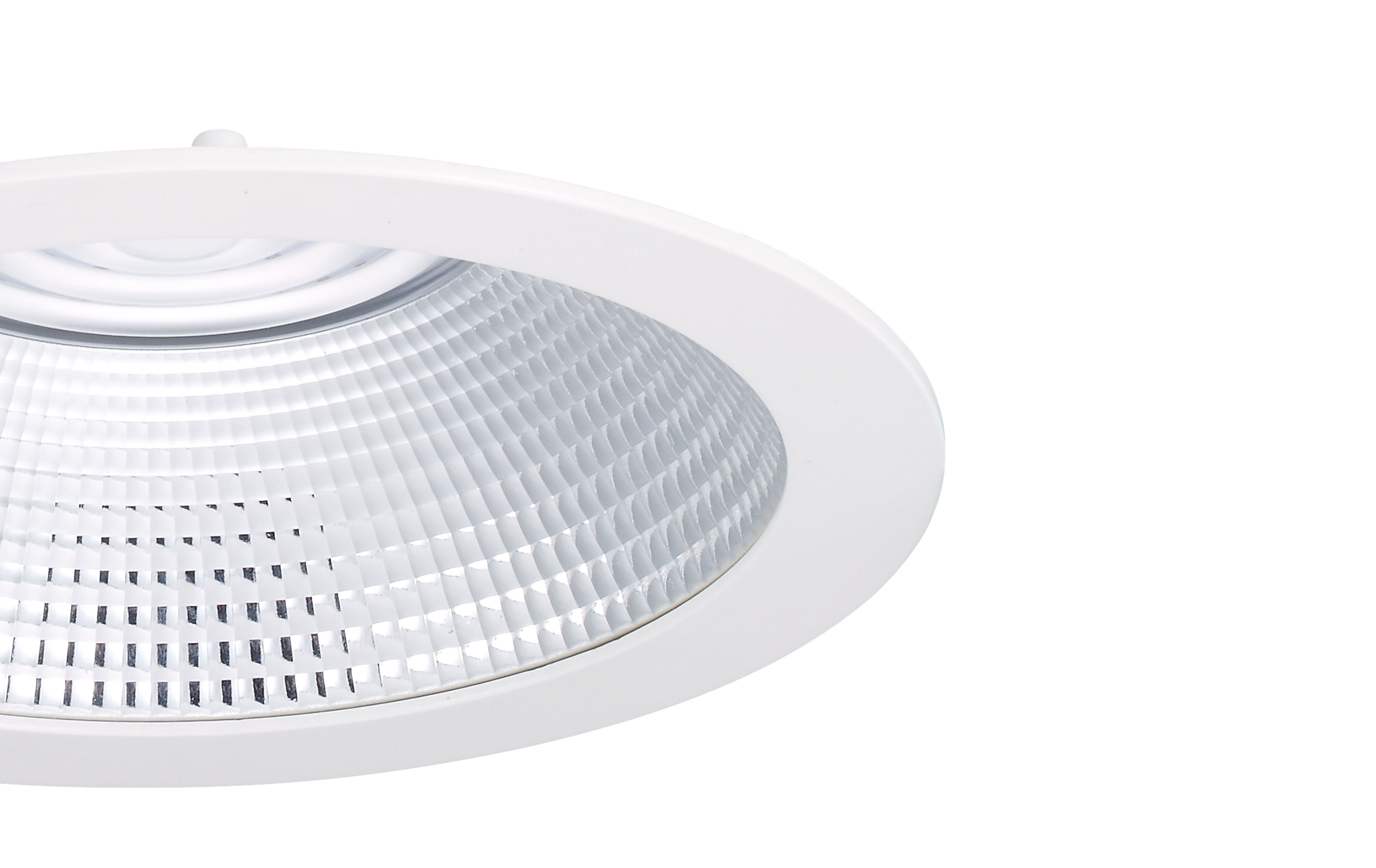

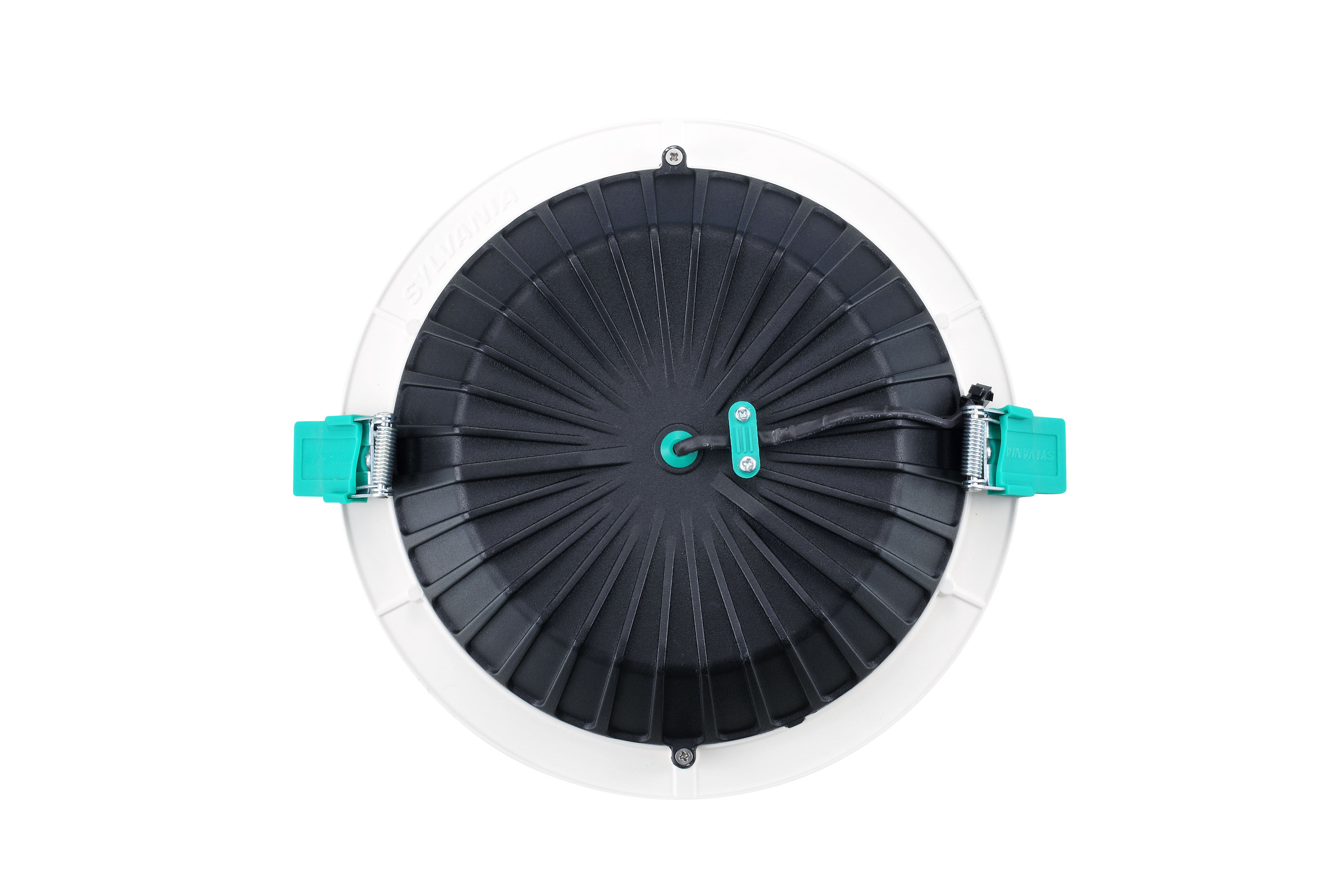

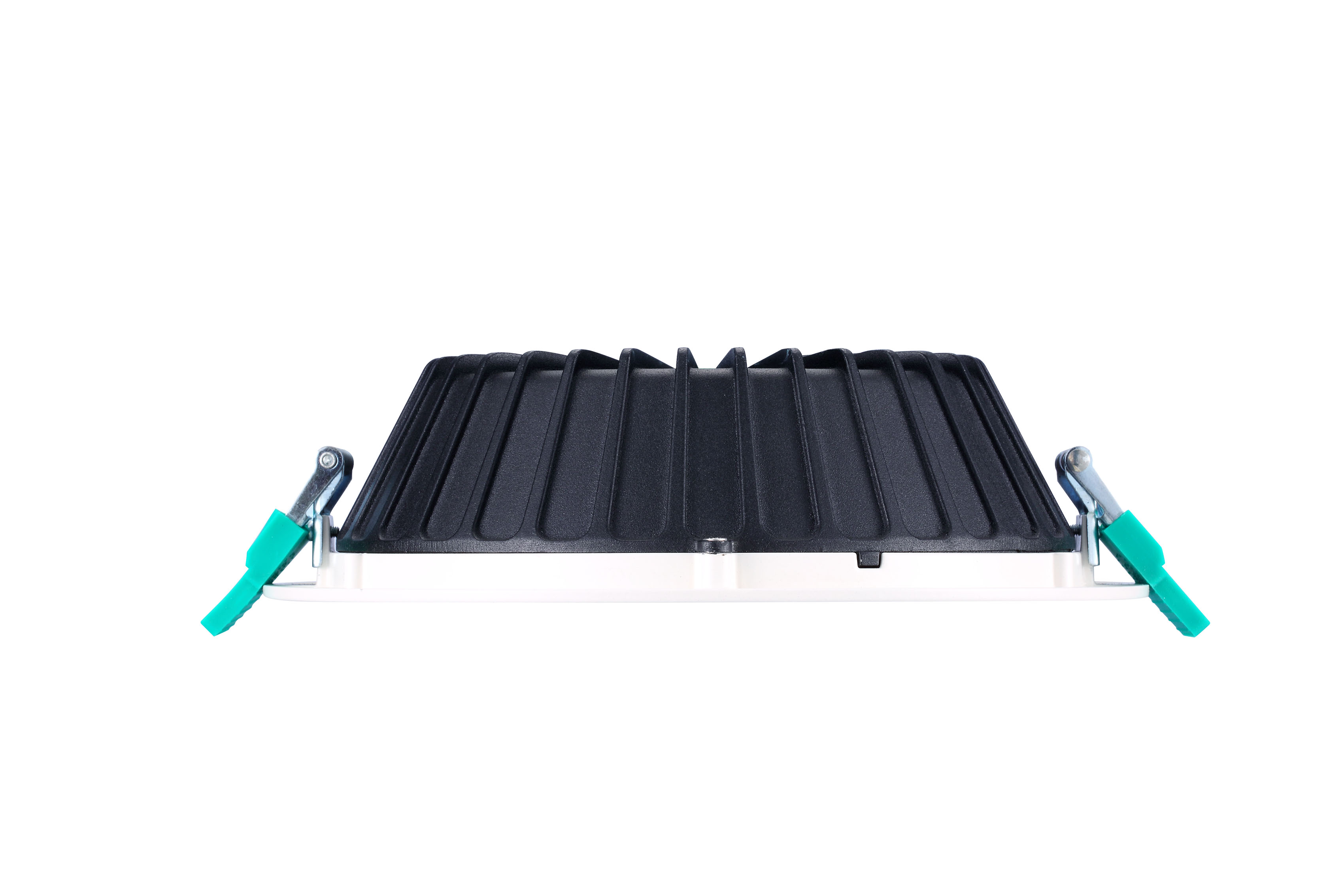

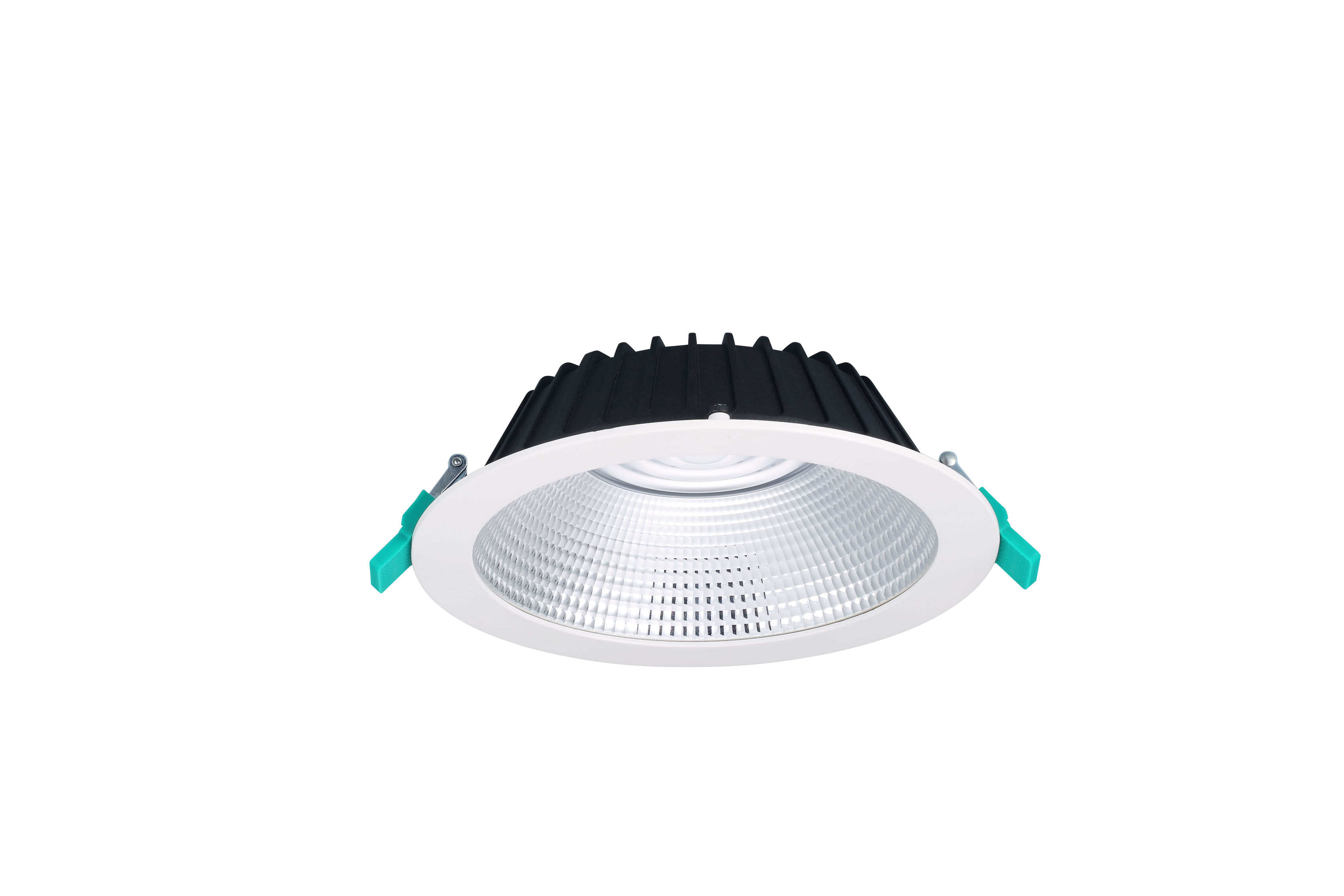

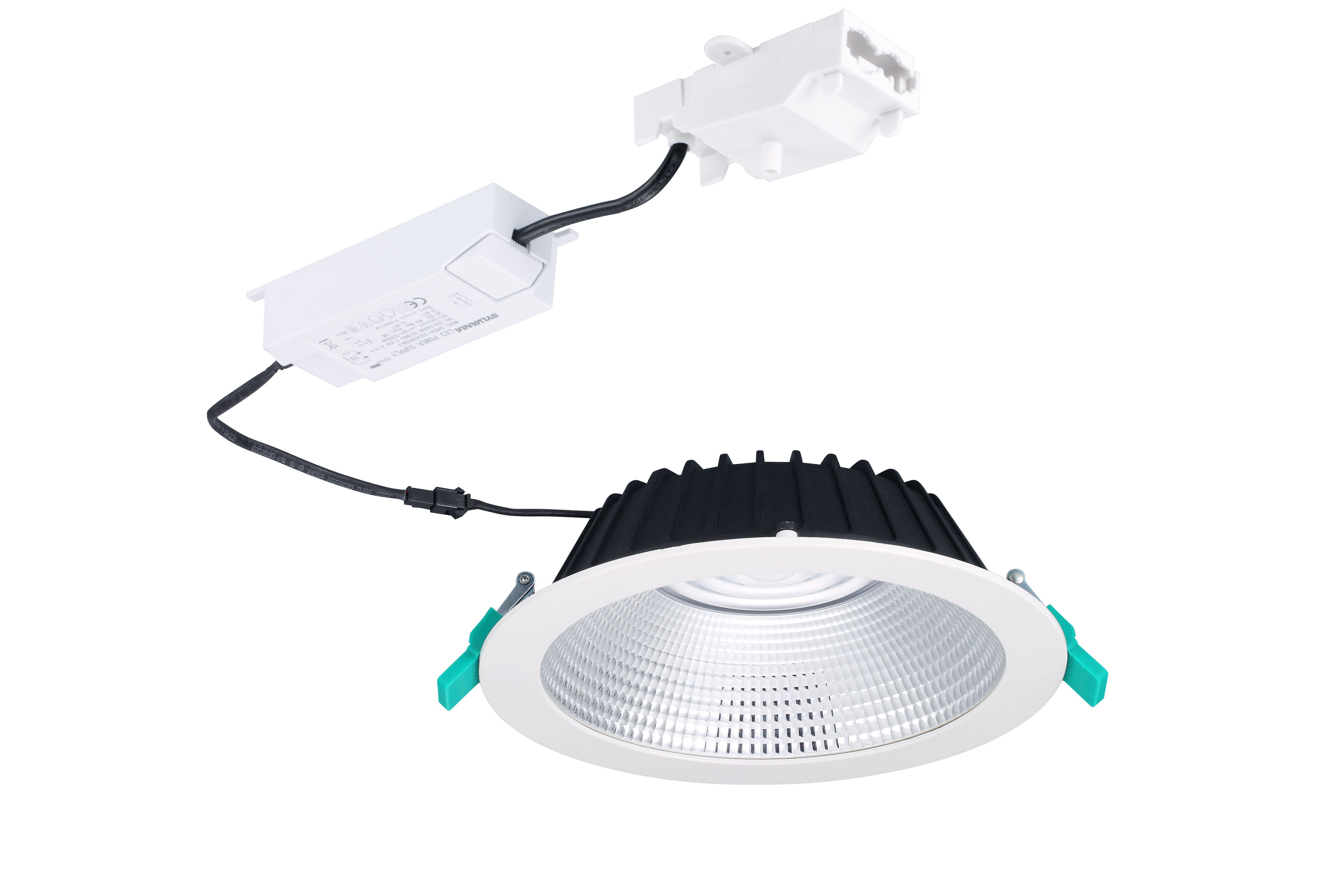

Insaver Slim is a ceiling recessed LED downlight (IP54 from the front),Die-cast aluminium body, loop in loop out connector for quick installation, Non dimmable LED driver, 4000K; UGR <19 with shallow product depth 60mm. The range features a multipower functionality where the luminous flux of the luminaire can be tailored to local needs by only setting a quick selector switch on the driver. 8 steps available with adjustable lumen output of 650 – 2000lm at 4000K. Meets TP(a) requirements.
Downloads
Technical Assets
Dimensions (mm)

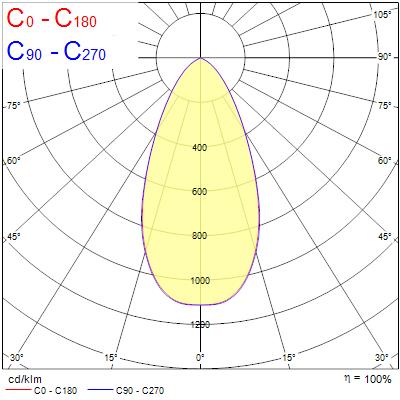

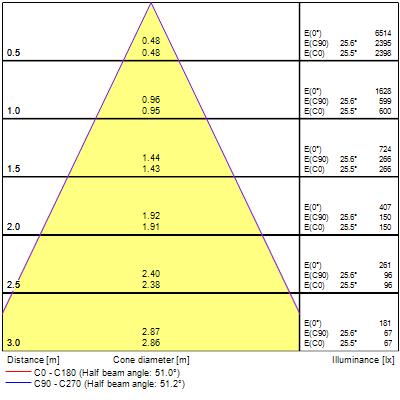

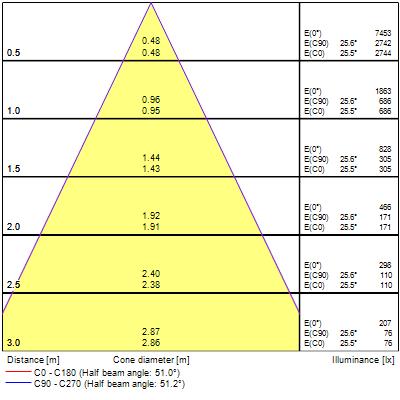

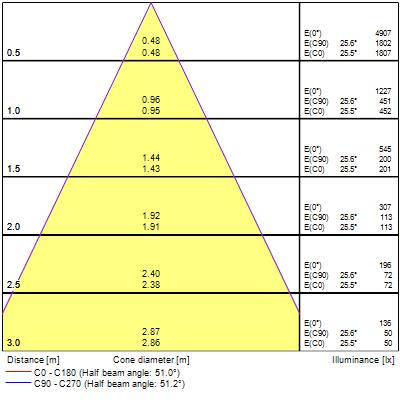

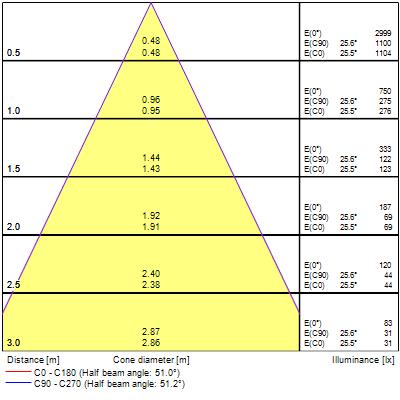

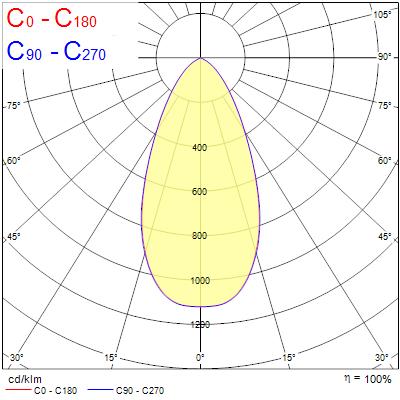

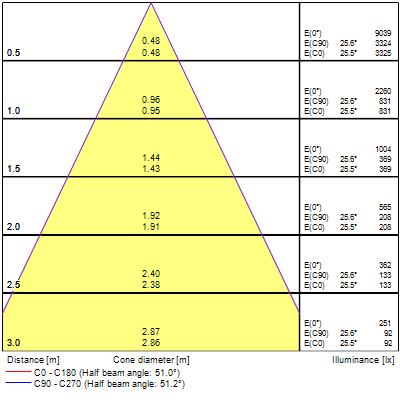

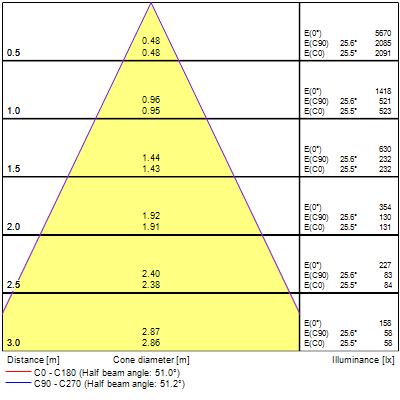

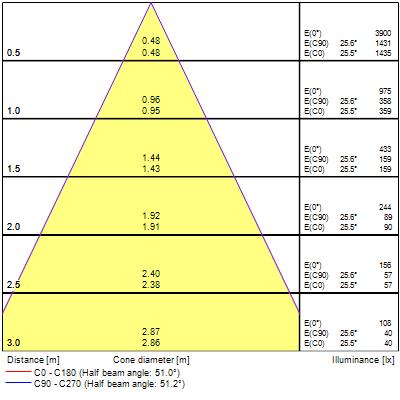

Photometrics
Product name
Insaver Slim U19 IP54 205 Multipower 650-2000lm840
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Built in presence detector
NONE
General application
Hospitality, Office, Retail
Operating temperature range (°C)
-10°C...+40°C
Performance ambient temperature Tq (°C)
40
Virtual assistant compatibility
N/A
ETIM Class
EC001744
E-number FI
4278487
Warranty
5 years
Fixture luminous flux (lm)
2000
Luminaire efficacy (lm/W)
121
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
60
Distribution type
Symmetric
Glare control
< 19
Photobiological Risk Group
RG1
Total power consumption (W)
16.5
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
15.0
Electrical protection
Class II
Control gear required
No
Control gear type
LED driver constant current
No. Of switching cycles before premature failures
>100000
Dimmable
No
Dimming method
N/A
Drive current (mA)
500
Inrush Current (A)
10
Inrush Duration (µs)
100
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
38
Max. products per 13A C Breaker
47
Max. products per 16A C Breaker
57
Max. products per 20A C Breaker
66
Connectable conductor cross section - Min (mm²)
0.54
Connectable conductor cross section - Max (mm²)
1.54
Lifespan L70 B50
90000
Lifespan L80 B20
90000
Lifespan L90 B10
39000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK07
Diffuser finish
Other
Diffuser material
None
Reflector finish
Not Applicable
Nominal Product Height (mm)
60
Nominal Product Diameter (mm)
220
Weight (kg)
0.73
Product EAN number
5410288304533
Packaging single length / height (cm)
23.2
Packaging single width (cm)
23.2
Packaging single depth (cm)
8.0
DUN14 (inner)
15410288304530
Units per outer package
12
Packaging outer length / height (cm)
48.0
Packaging outer width (cm)
48.0
Packaging outer depth (cm)
26.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-10-40
