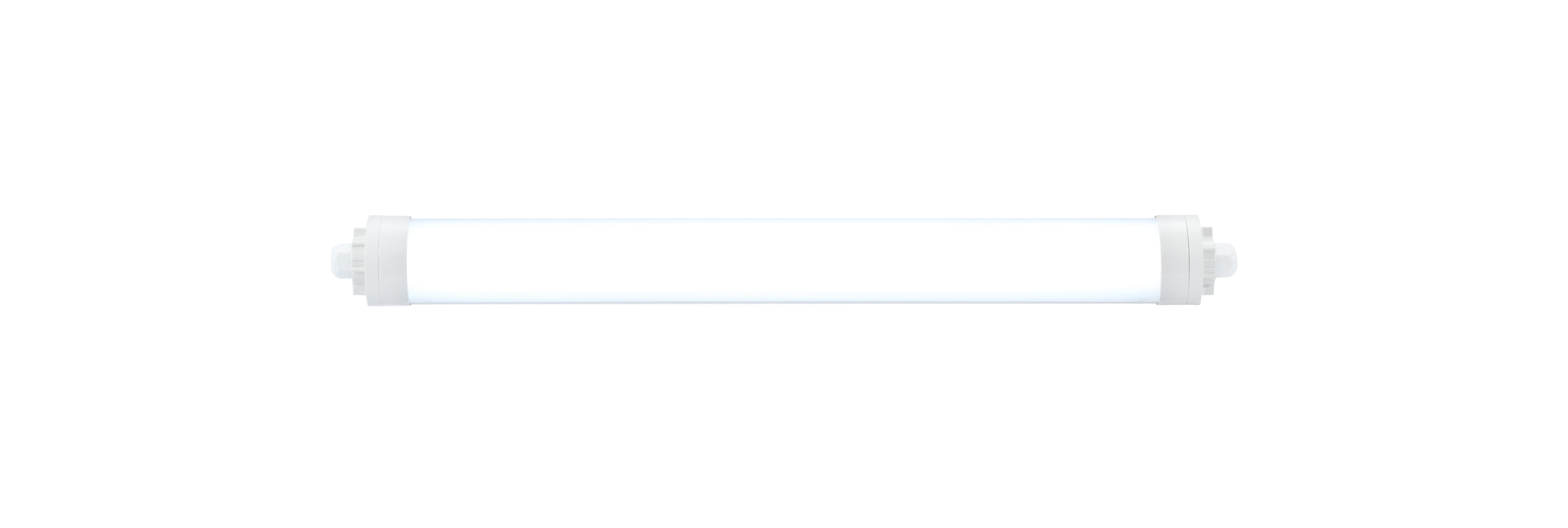

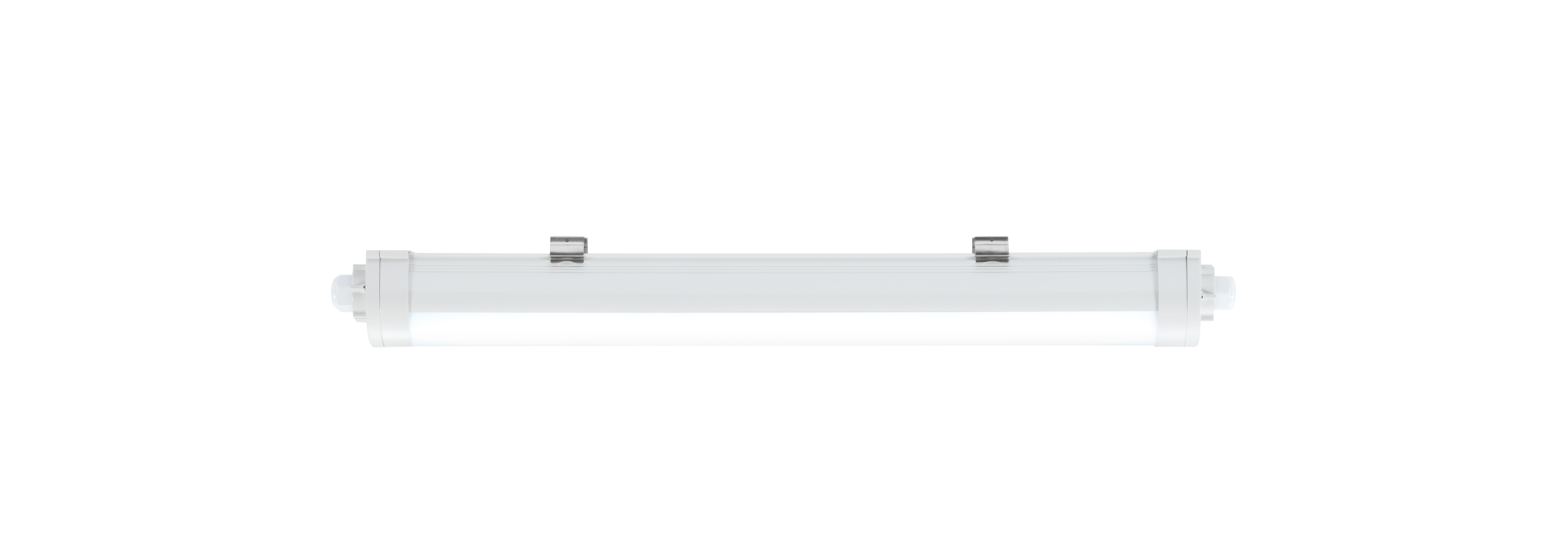

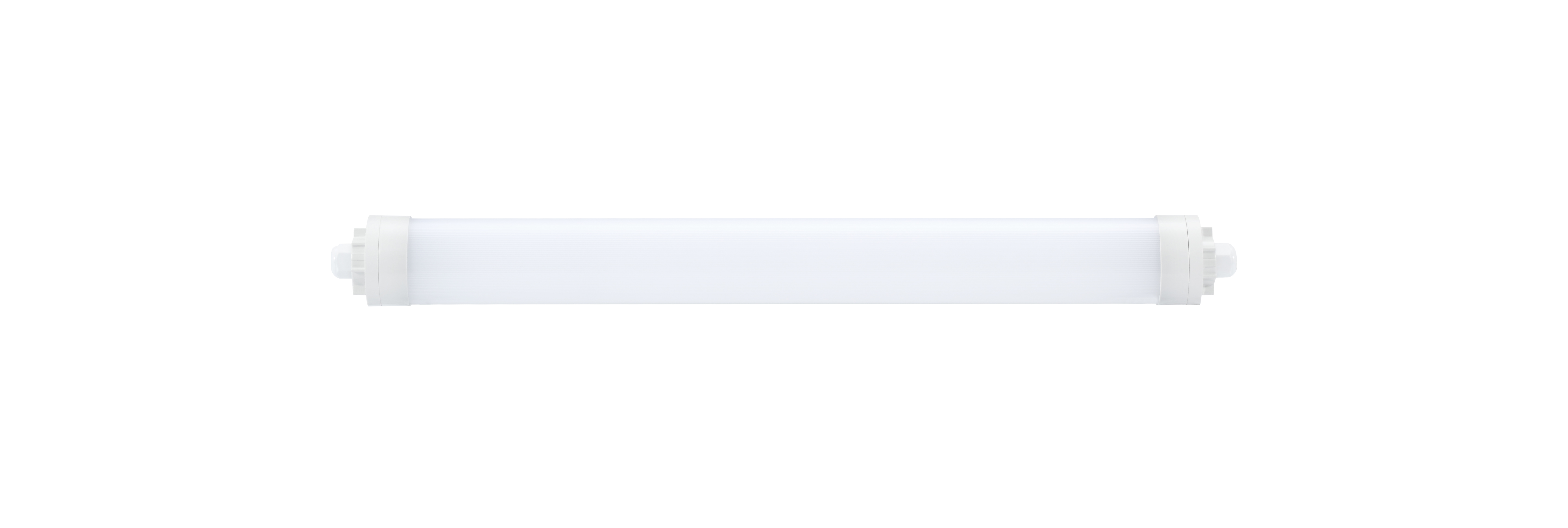

START Waterproof Slim 600 IP65 2500lm 840
Item No:
0046368
This product is no longer available
.png)

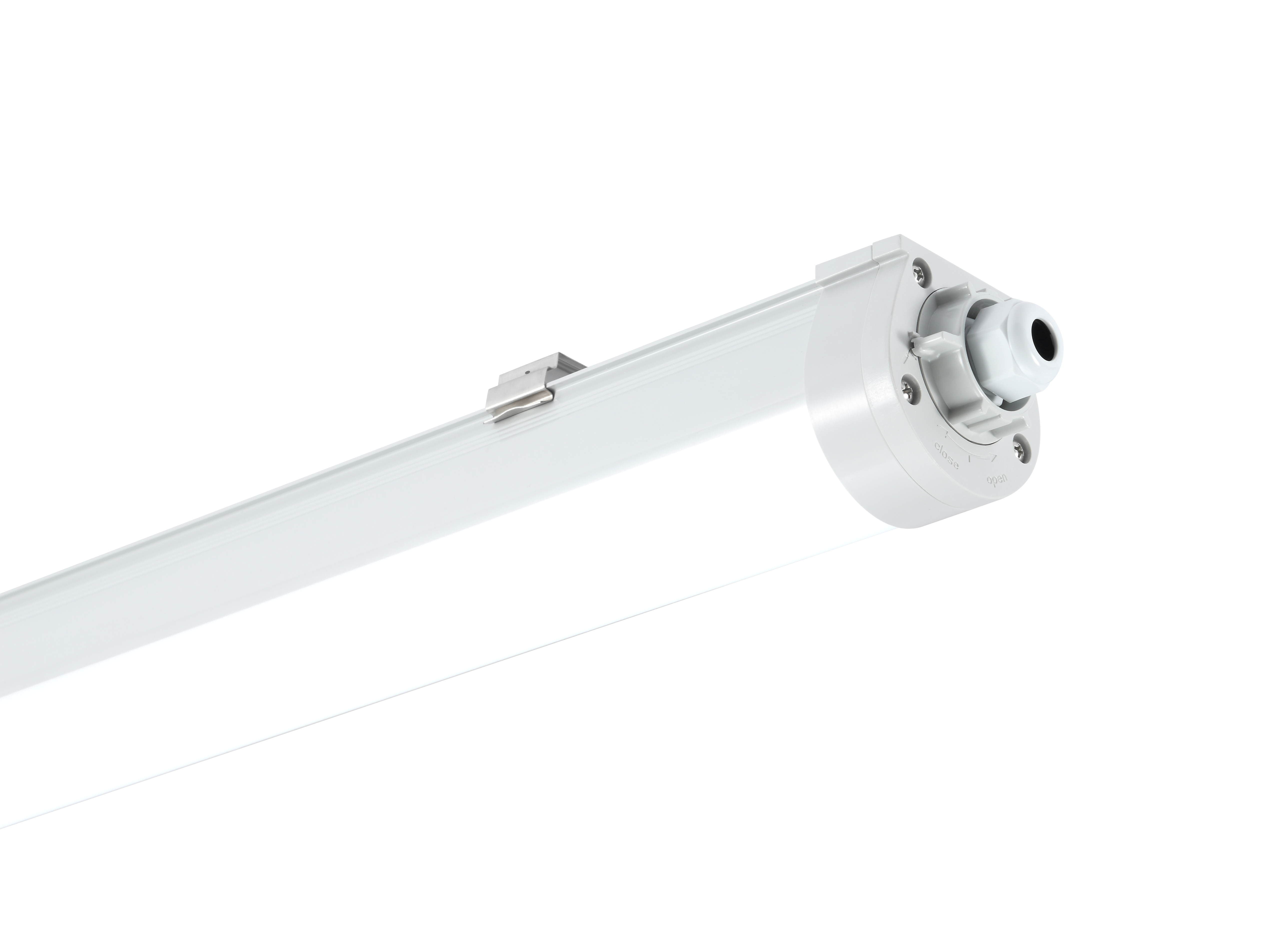

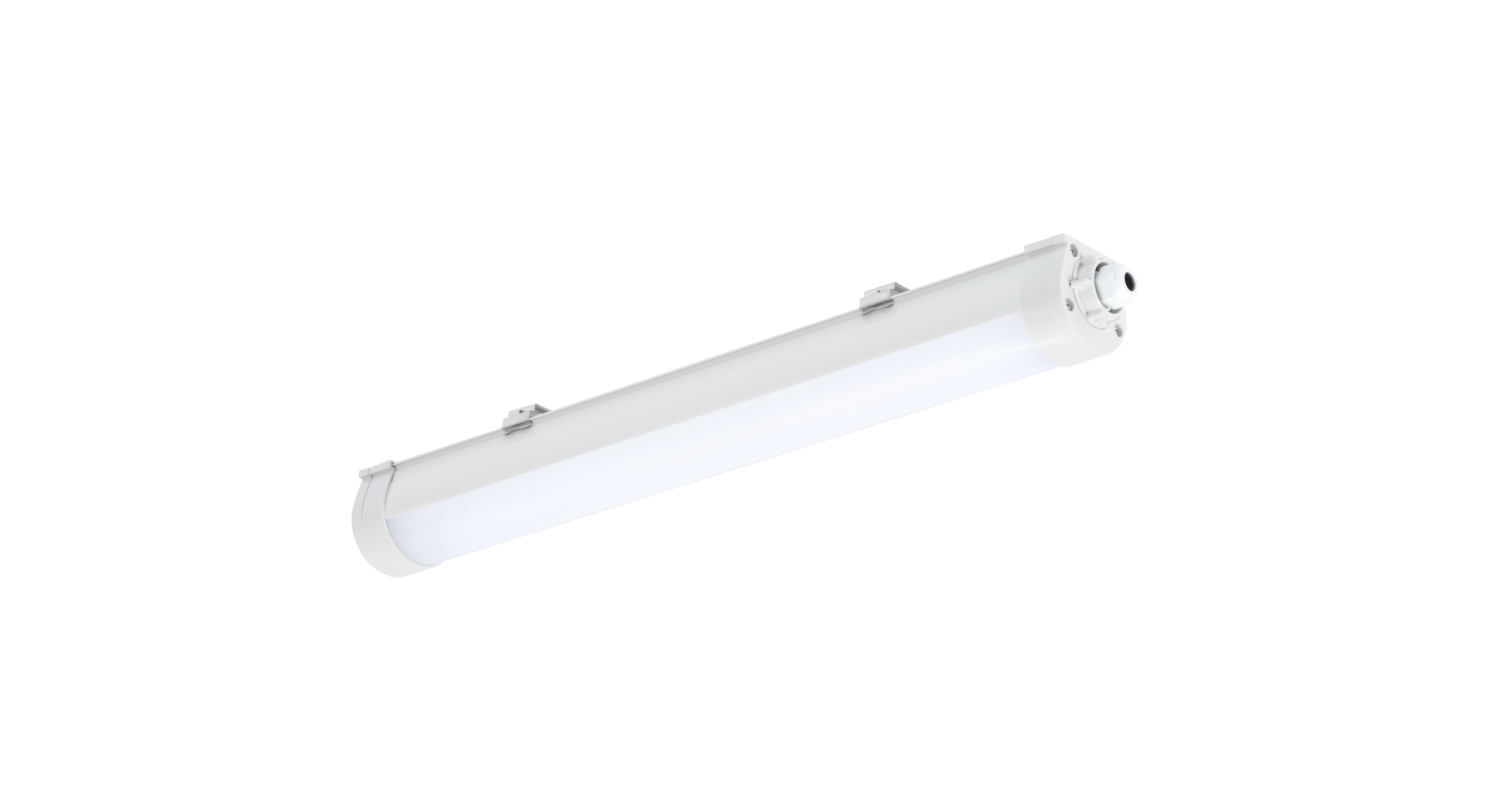

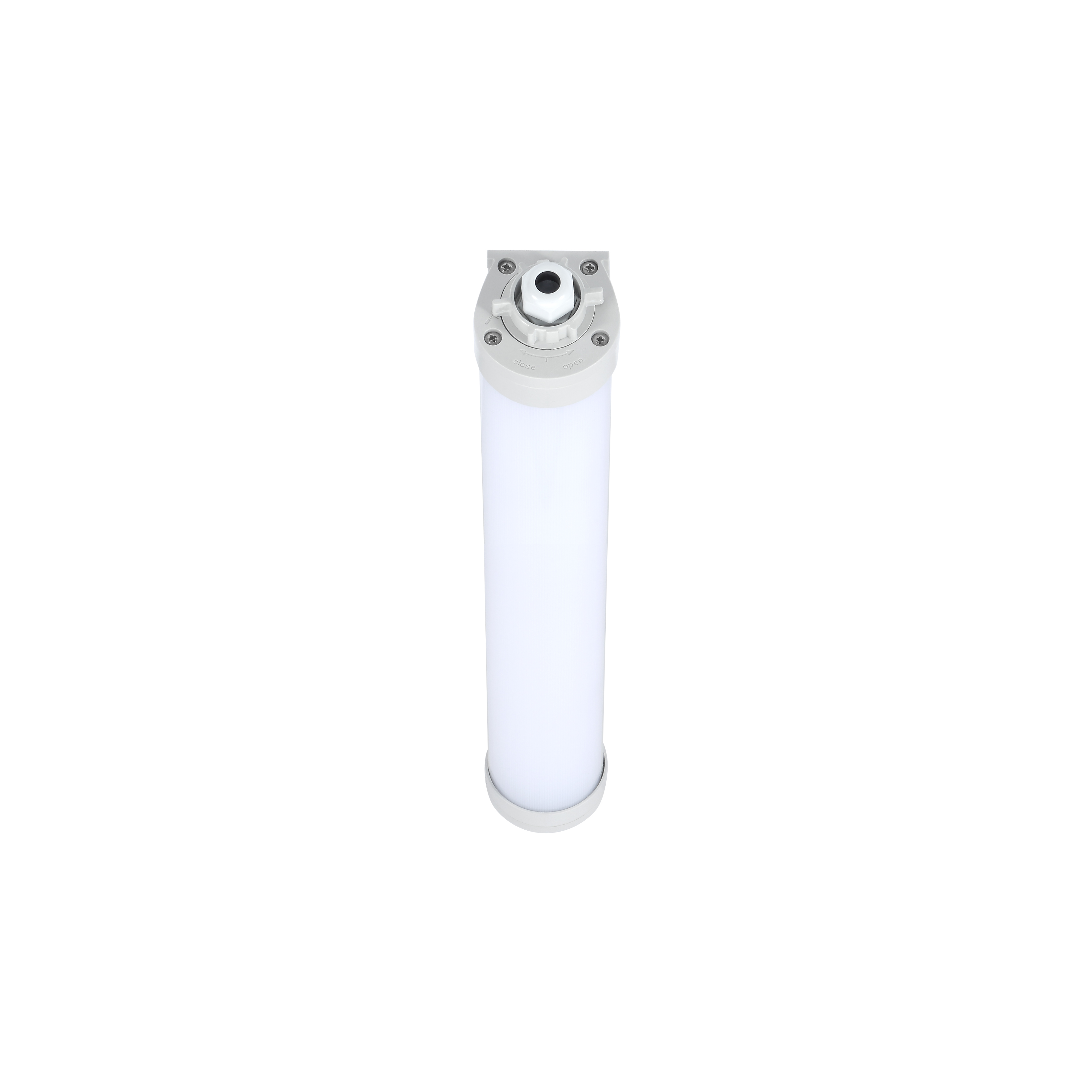

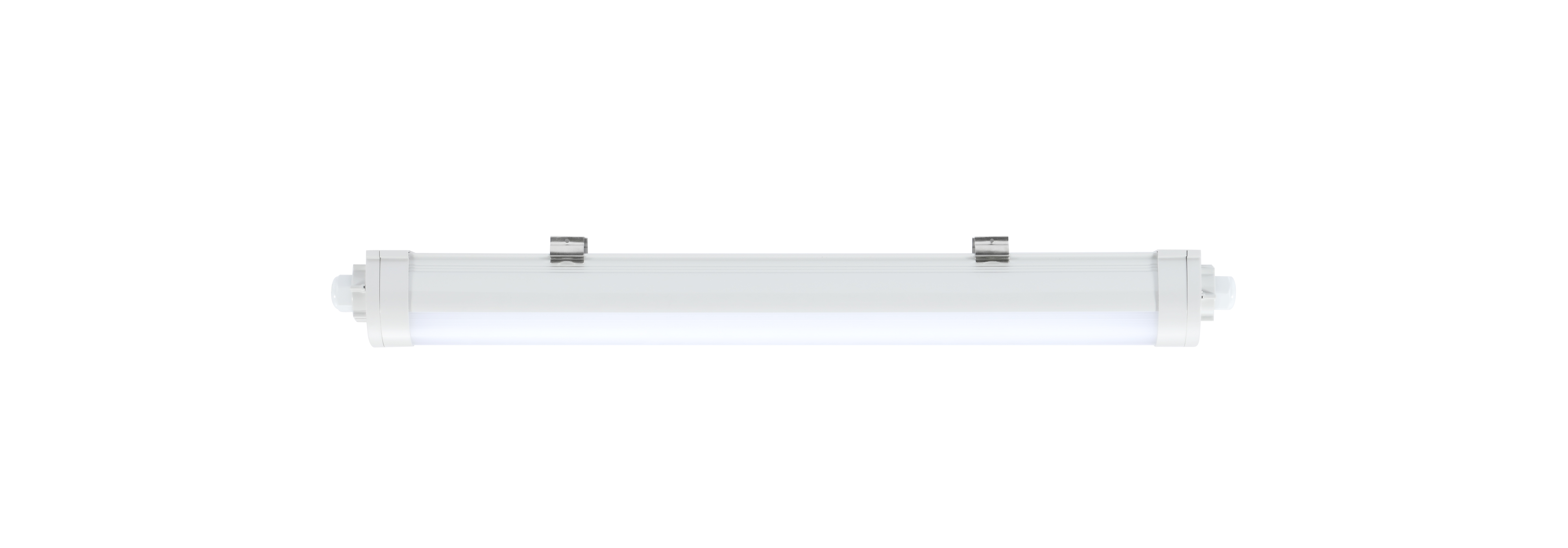

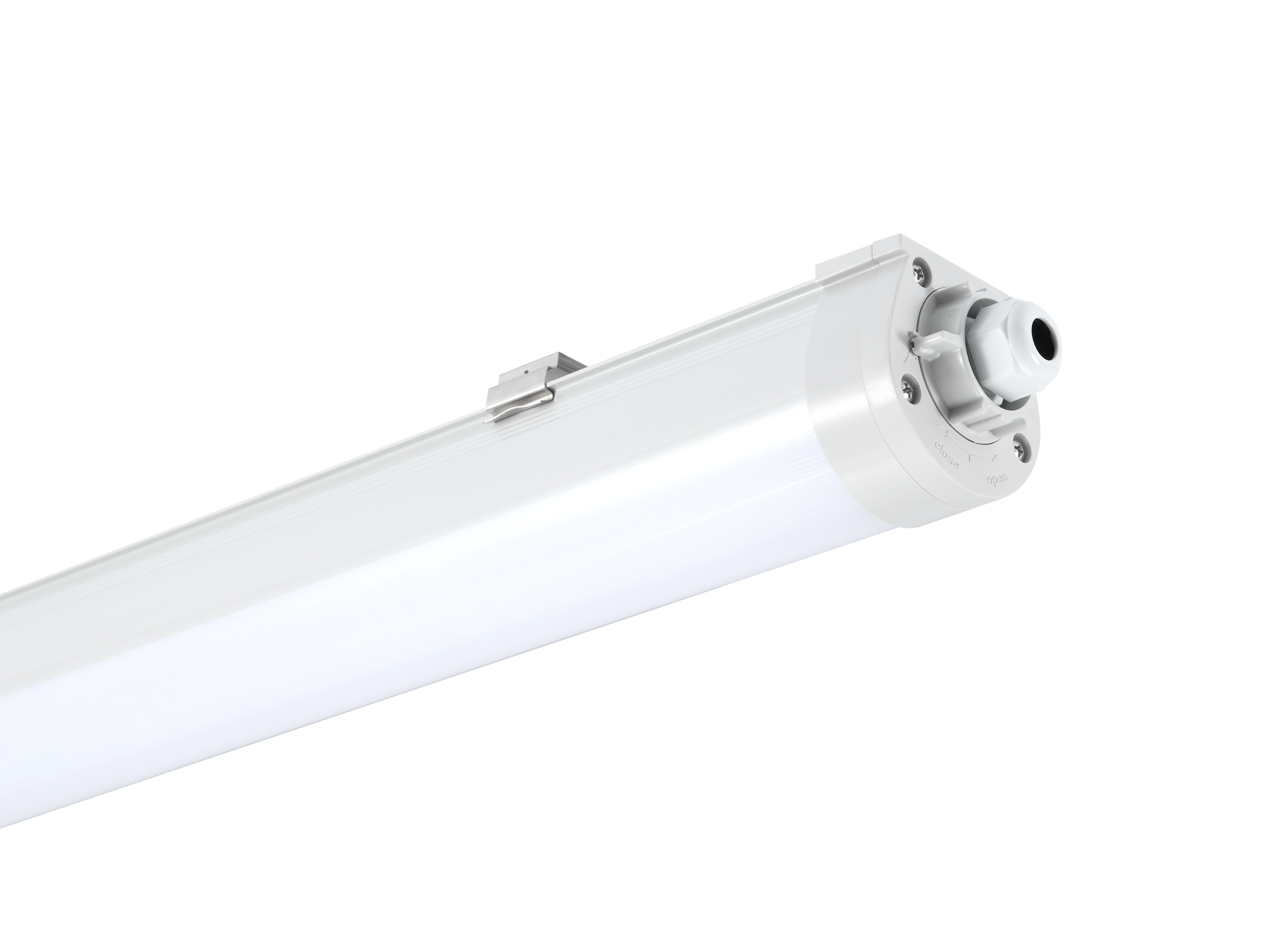

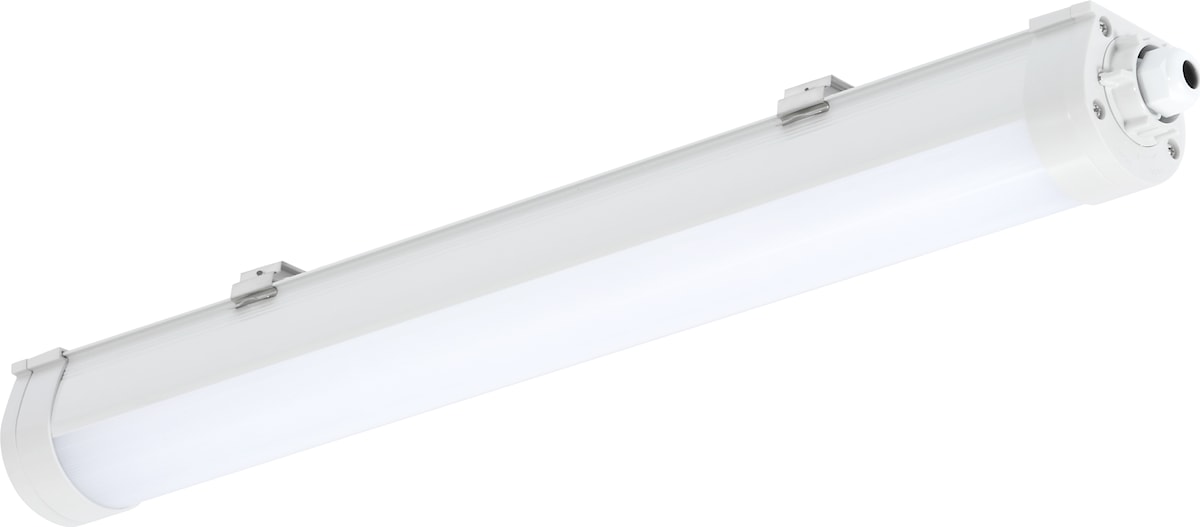

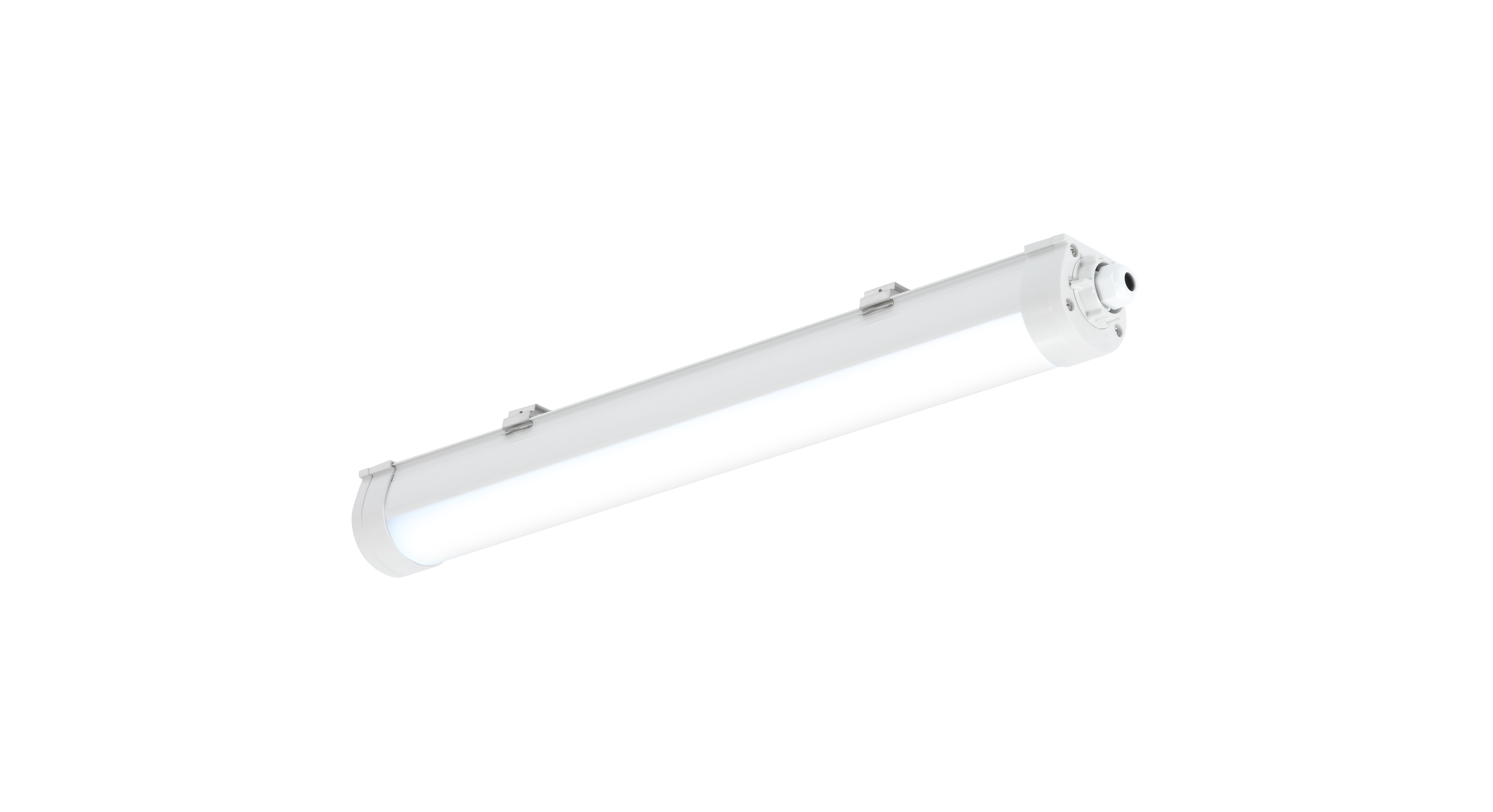

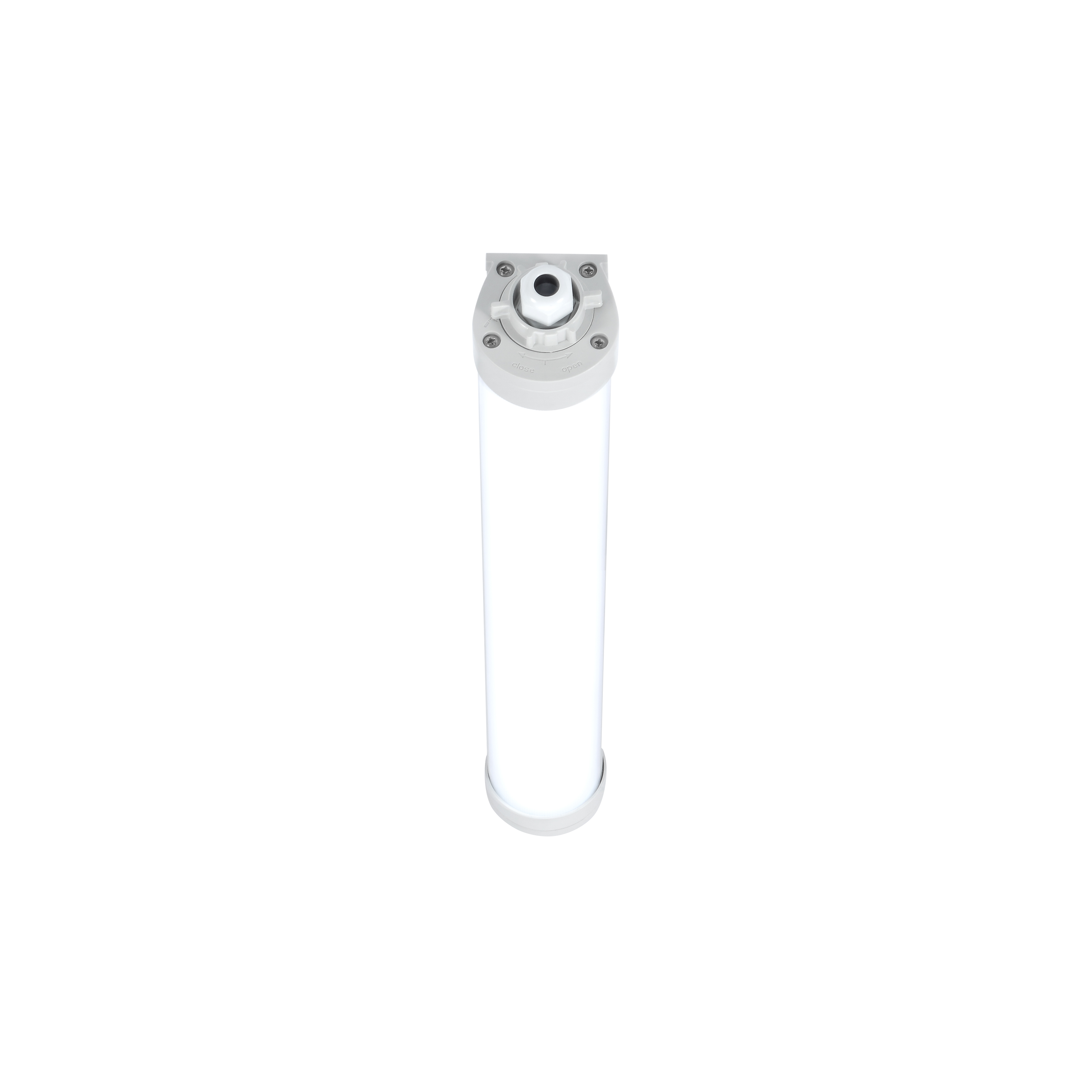

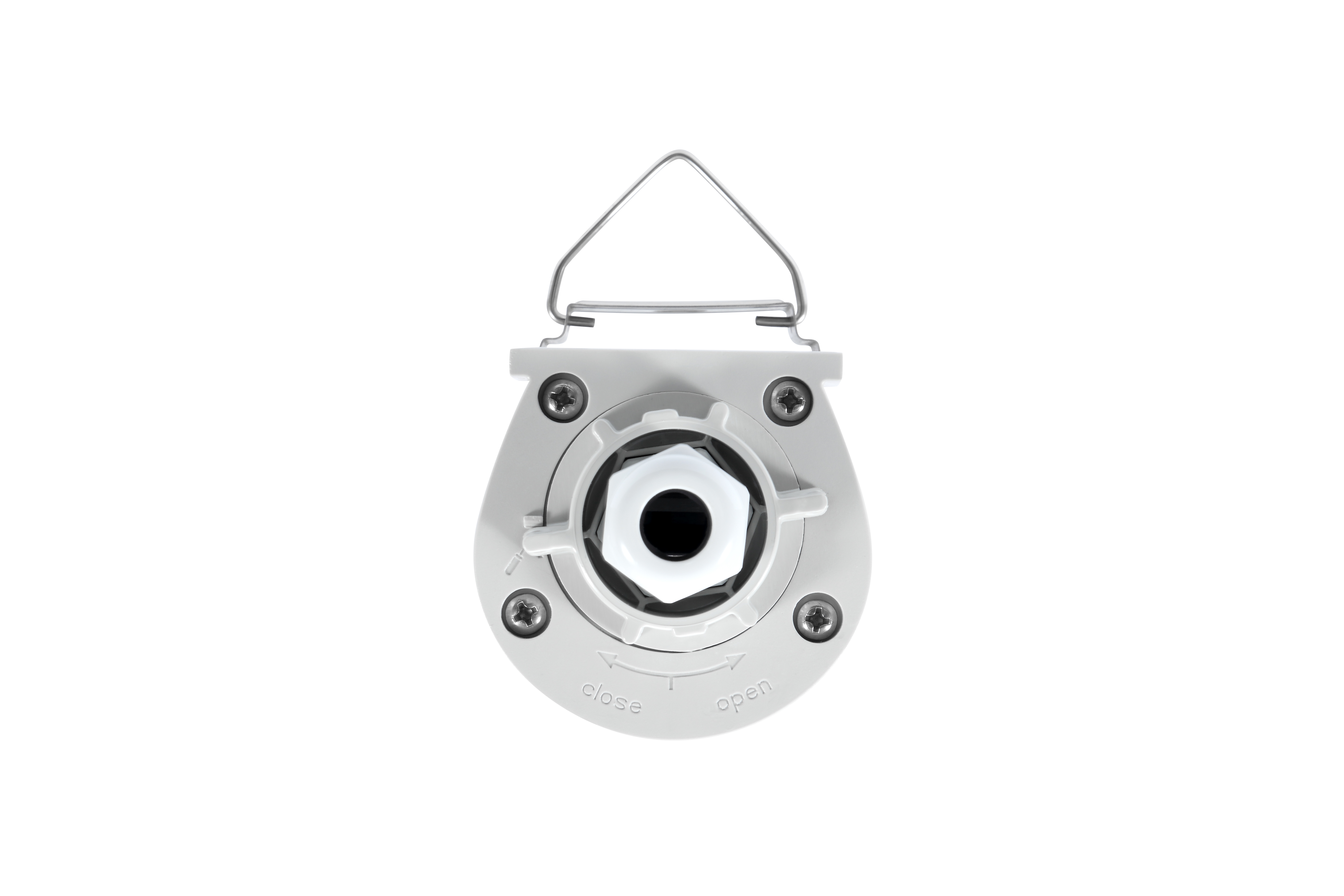

START Waterproof Slim is a LED integrated polycarbonate housing luminaire with easy to access electrical terminal through bayonet lock end caps and tool-free electrical connection due to push-in terminal. Flexible installation as mounting brackets can be positioned freely on the luminaire. 19W; 2500lm; High efficiency with 132lm/W and 100,000 hours lifespan L70B50. SDCM < 5; IP65; IK08; Class I; 646mm x 70mm x 69mm.
Downloads
Technical Assets

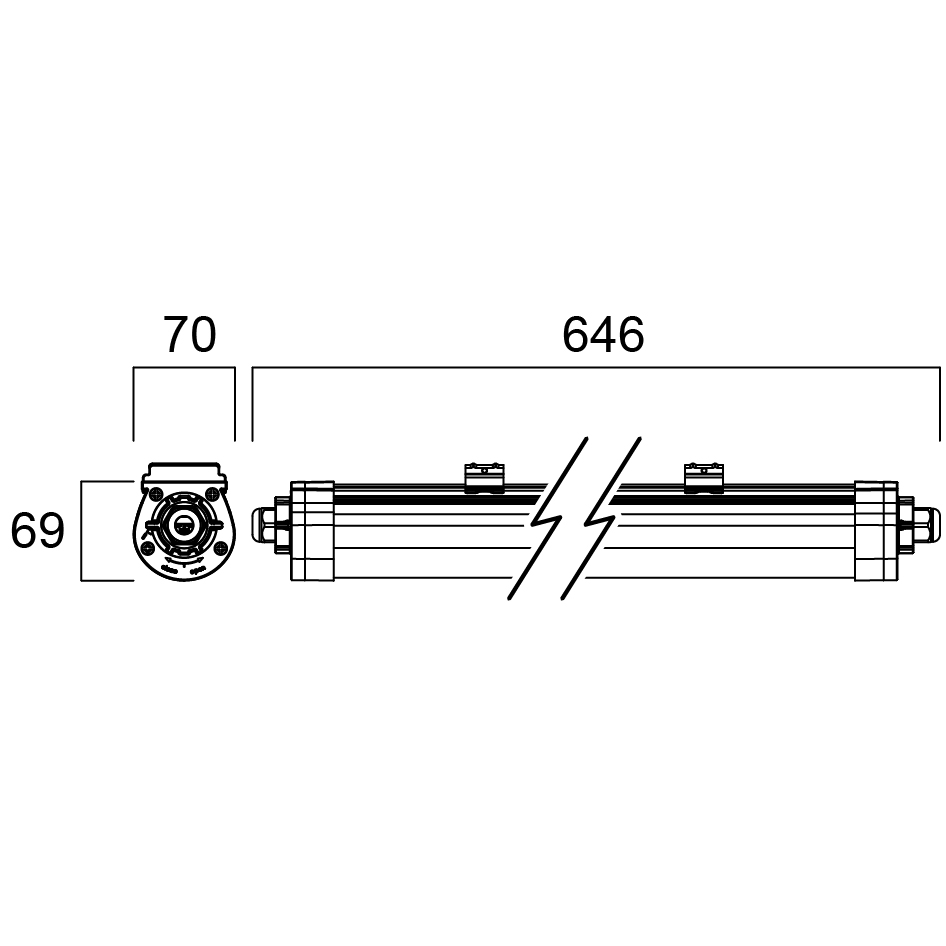

Dimensions (mm)
Photometrics
Product name
START Waterproof Slim 600 IP65 2500lm 840
Technology
LED
Cap/Base
N/A
Housing
PC Polycarbonate
Mount
Ceiling surface mounting
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
-25°C...+50°C
Performance ambient temperature Tq (°C)
25
Virtual assistant compatibility
N/A
ETIM Class
EC002892
E-number FI
4357074
Warranty
5 years
Fixture luminous flux (lm)
2500
Luminaire efficacy (lm/W)
132
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
120
Distribution type
Diffuse
Photobiological Risk Group
RG0
Total power consumption (W)
19
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
1
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
25
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
No. Of switching cycles before premature failures
>50000
Dimmable
No
Dimming method
N/A
Drive current (mA)
290
Inrush Current (A)
10
Inrush Duration (µs)
24
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
48
Max. products per 13A C Breaker
60
Max. products per 16A C Breaker
72
Max. products per 20A C Breaker
90
Max. products per 10A B Breaker
30
Max. products per 13A B Breaker
39
Max. products per 16A B Breaker
48
Max. products per 20A B Breaker
60
Lifespan L70 B50
100000
Housing colour
Grey
IP rating
IP65
IK rating
IK08
Diffuser finish
Frosted
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
648
Nominal Product Width (mm)
70
Nominal Product Height (mm)
69
Weight (kg)
0.86
Product EAN number
5410288463681
Packaging single length / height (cm)
64.6
Packaging single width (cm)
7.3
Packaging single depth (cm)
7.4
DUN14 (inner)
15410288463688
Units per outer package
12
Packaging outer length / height (cm)
69.1
Packaging outer width (cm)
31.0
Packaging outer depth (cm)
24.4
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-25-50
