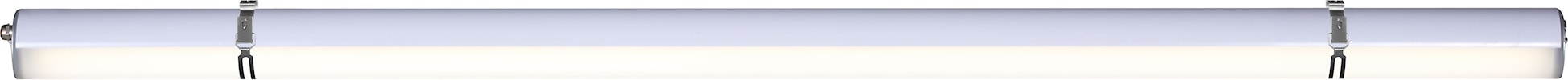

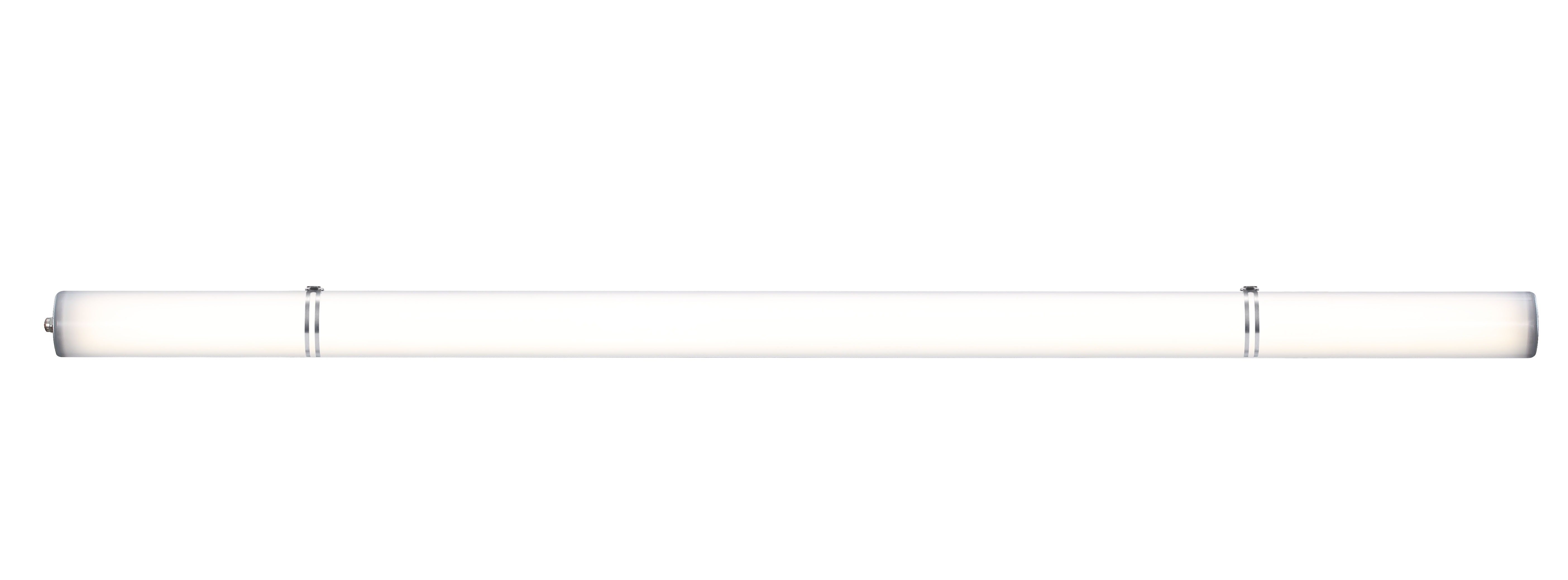

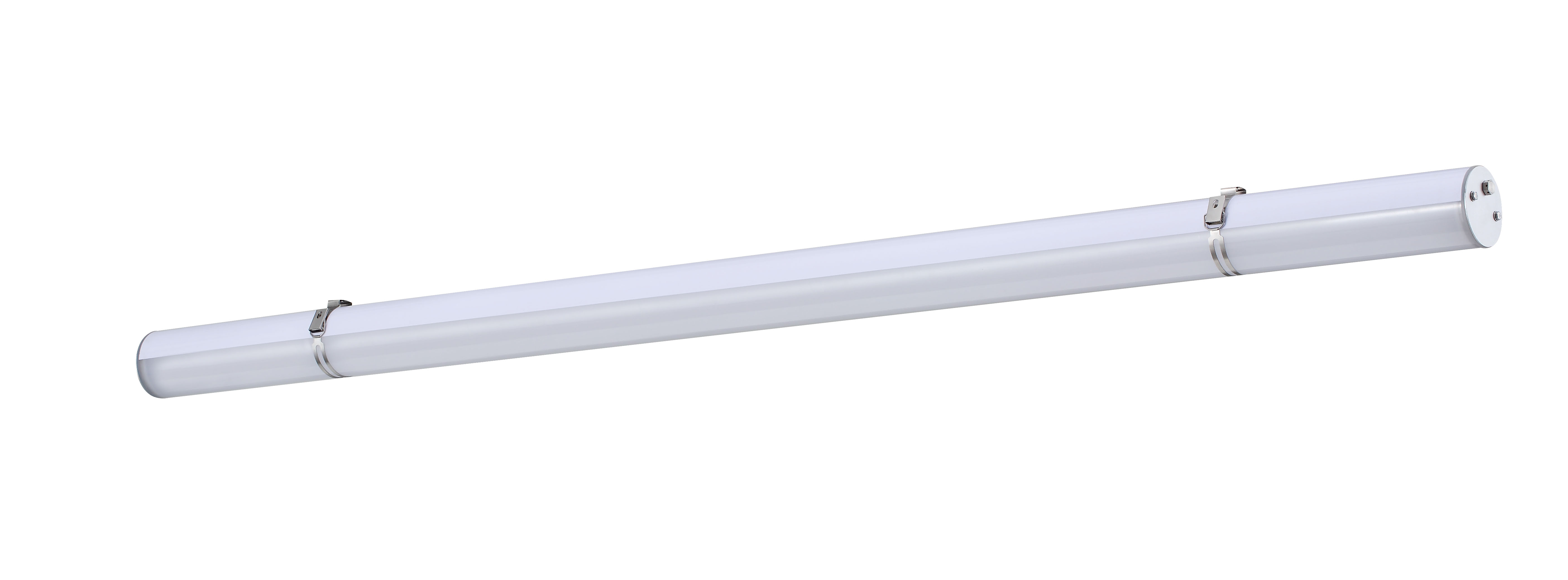

START Waterproof Tubular 1500 IP66 7400lm 840 PC
Item No:
0047181
This product is no longer available
.png)

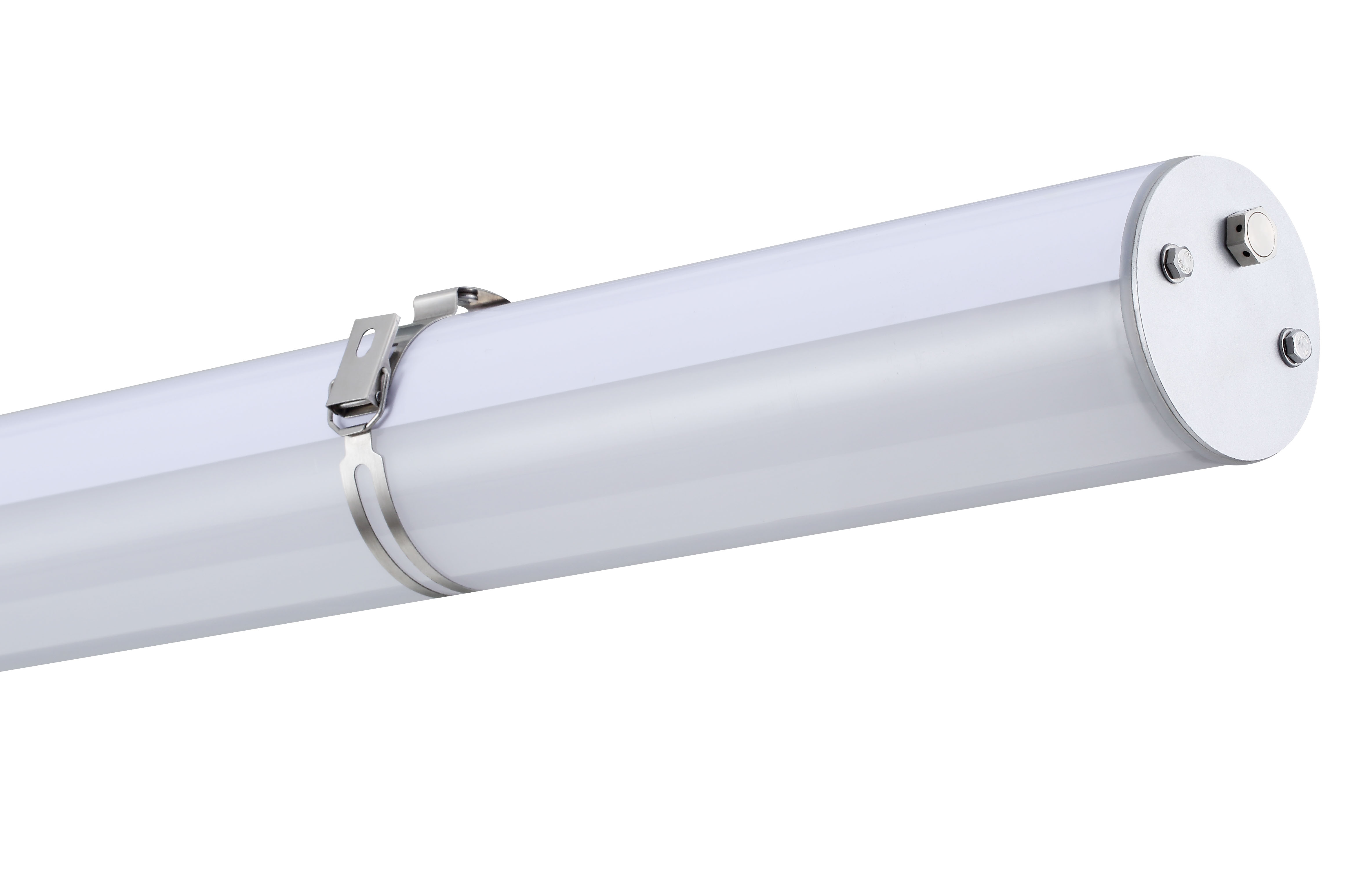

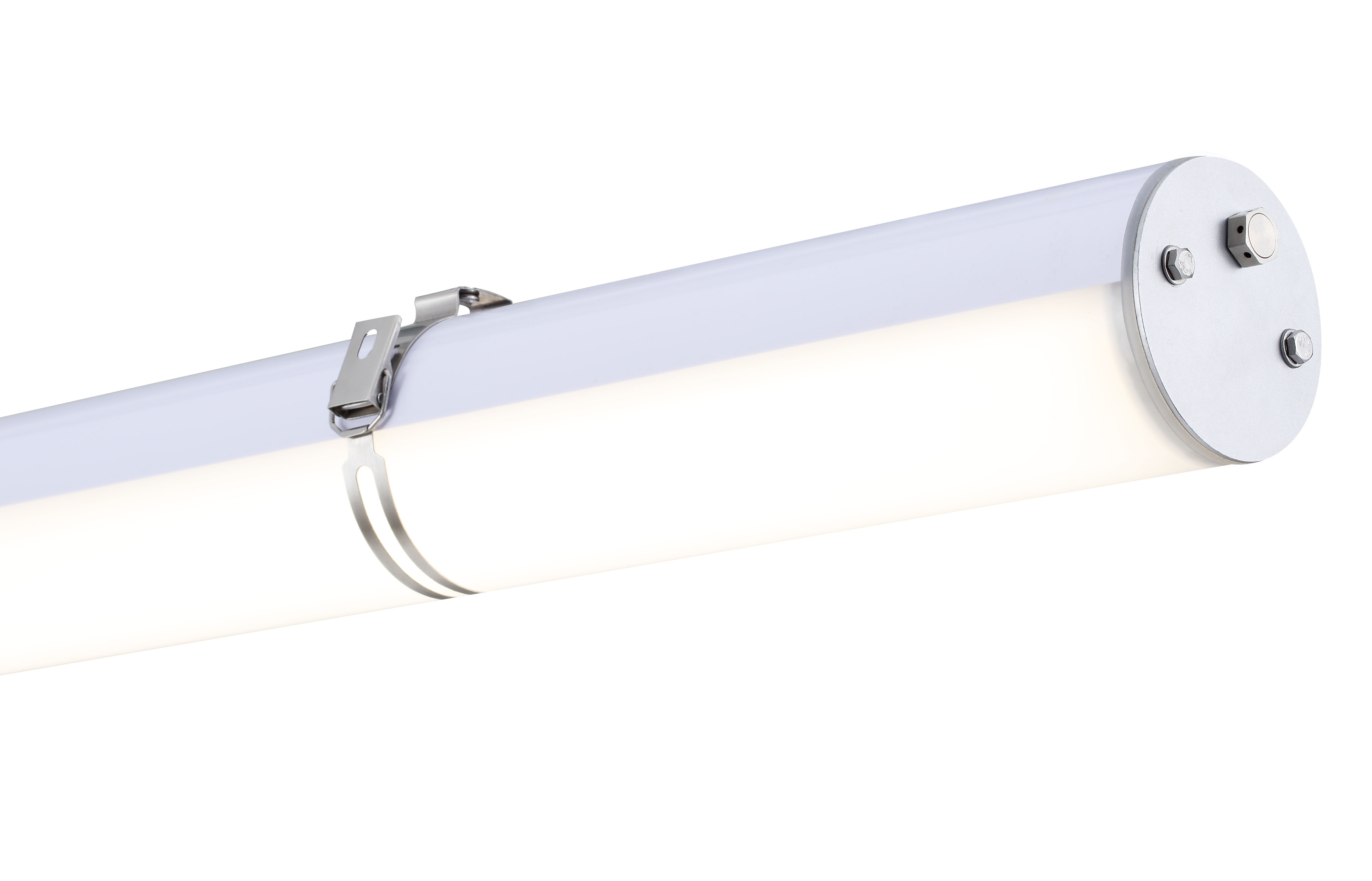

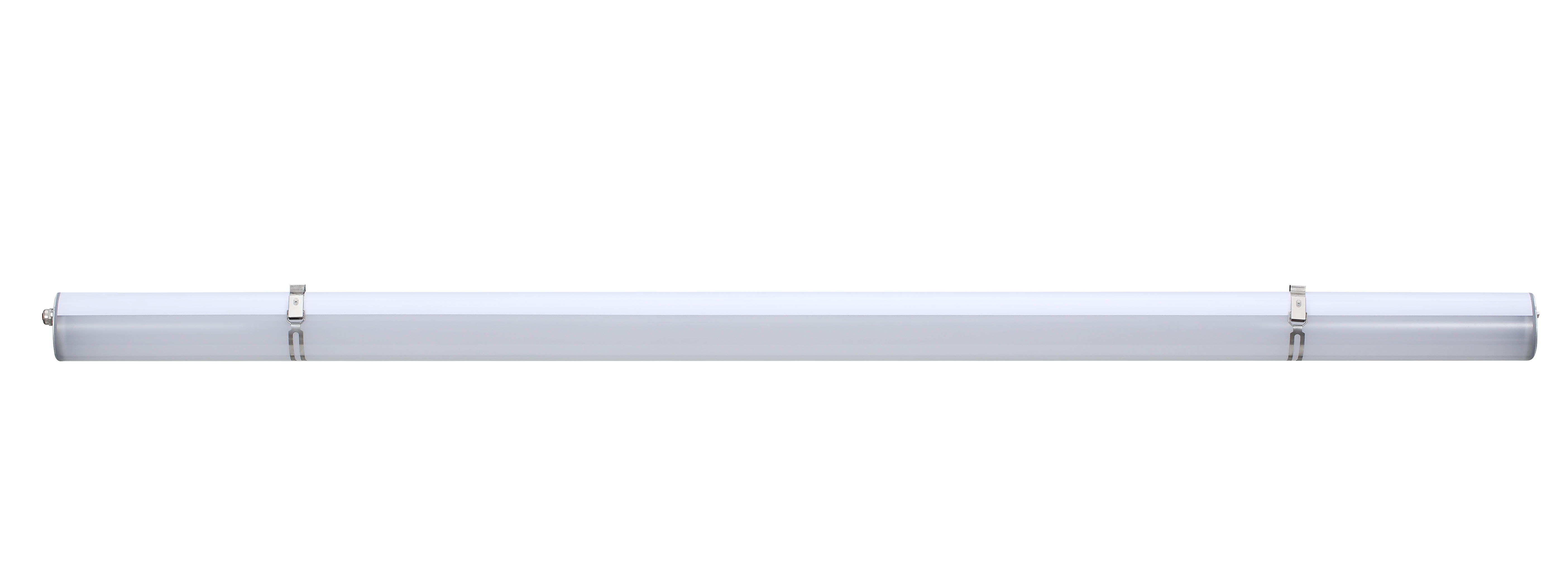

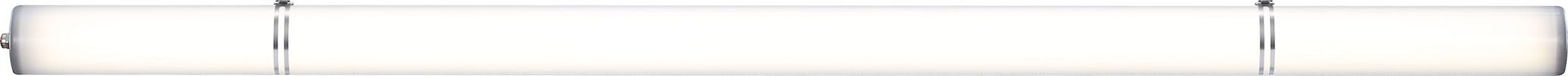

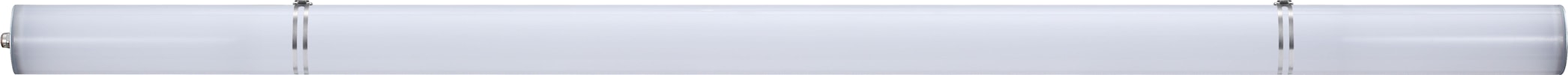

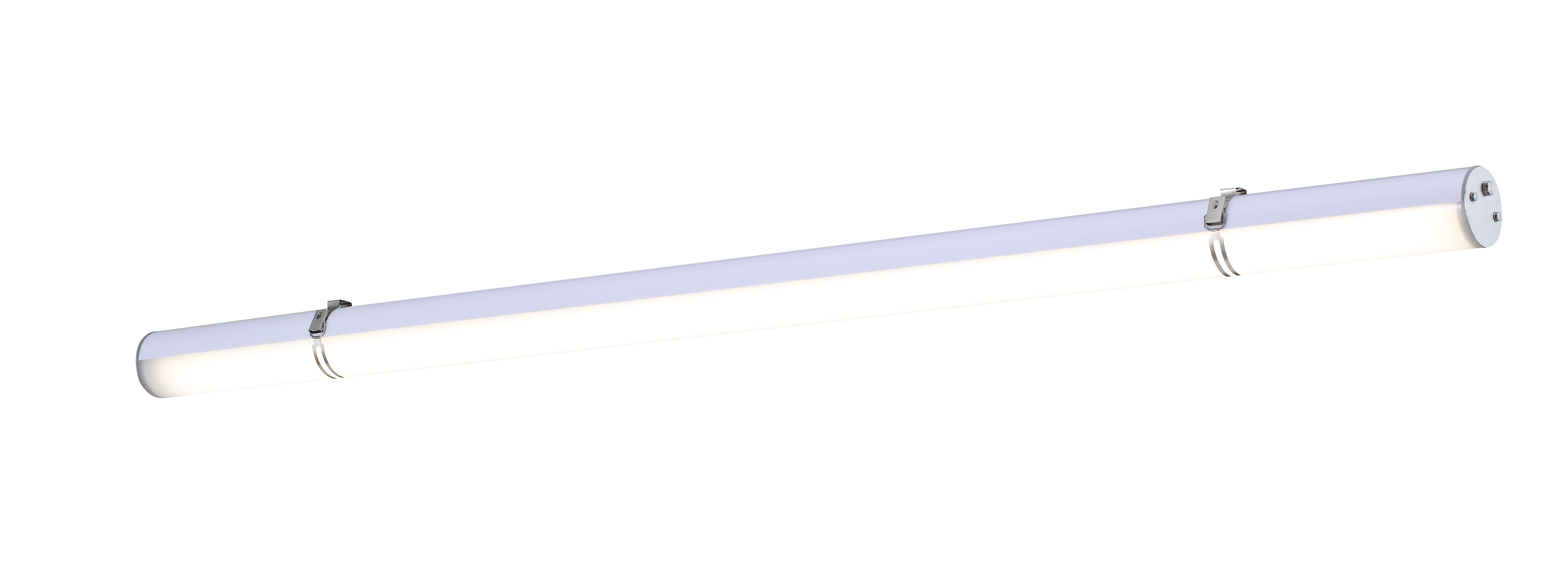

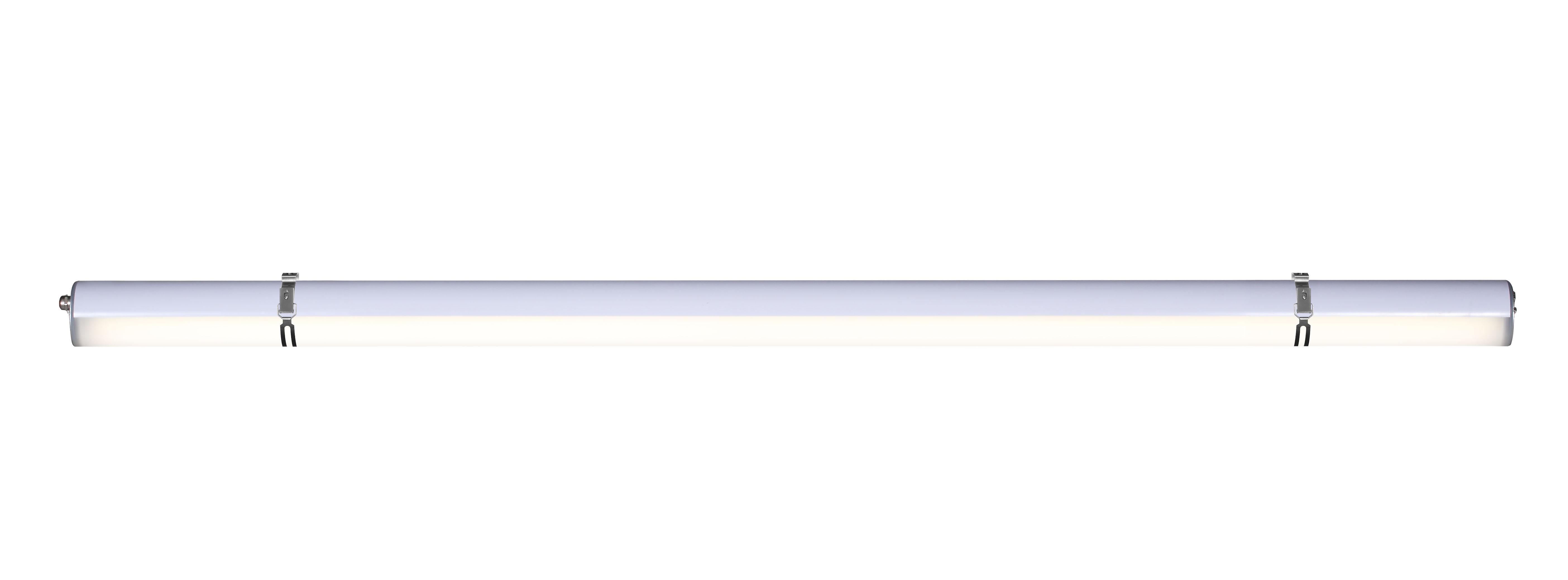

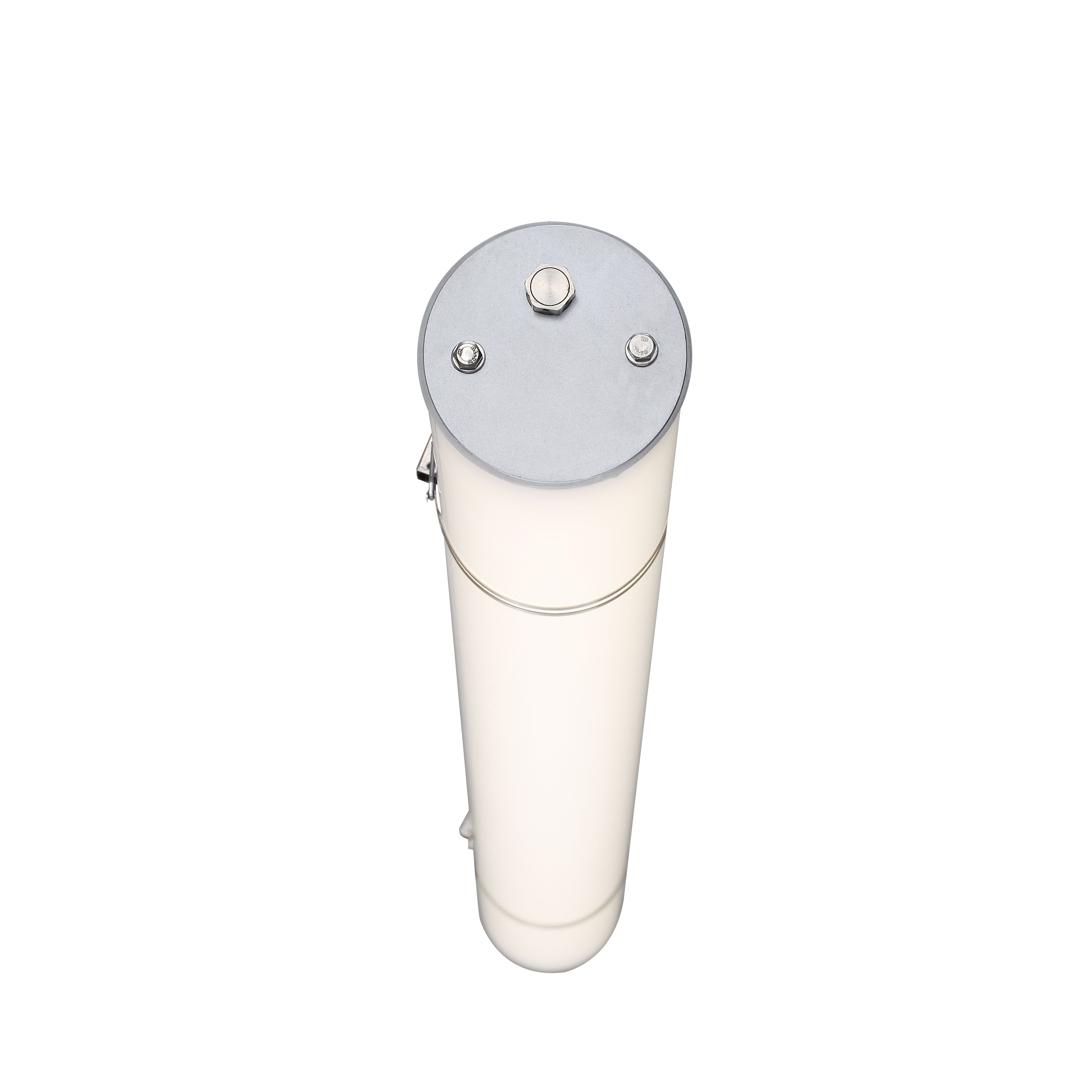

START Waterproof Tubular is an aesthetically attractive integrated LED fixture. Easy to install with 304 stainless steel fixing brackets for ceiling mounting. Polycarbonate housing; 4000K; 50W; 7400lm; High efficiency with 148lm/W and lumen maintenance L80:B50 of 54,000 hours lifetime. IP66; IK10; Class I; 1495mm x 70mm. Can be suspended with additional accessory (SKU 0046035).
Technical Assets
Dimensions (mm)

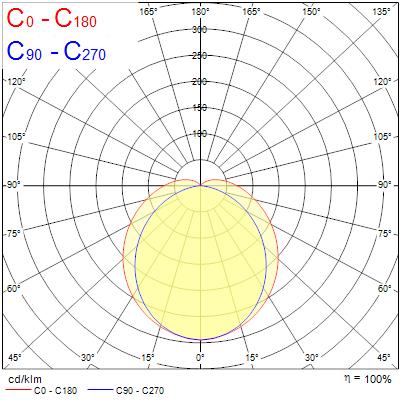

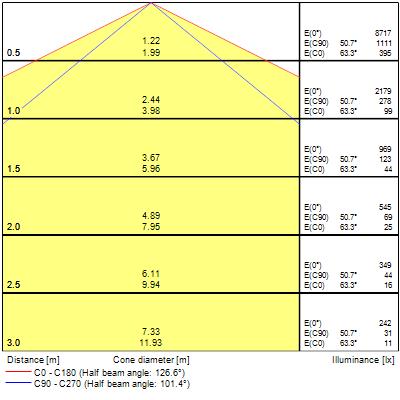

Photometrics
Product name
START Waterproof Tubular 1500 IP66 7400lm 840 PC
Technology
LED
General application
Logistics & Industry
Operating temperature range (°C)
-25°C...+50°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC000109
E-number FI
4309099
Warranty
5 years
Fixture luminous flux (lm)
7400
Luminaire efficacy (lm/W)
148
Correlated colour temperature (k)
4000
CRI (Ra)
80
Beam Angle (°)
120
Photobiological Risk Group
RG1
Total power consumption (W)
50
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
10
Electrical protection
Class I
Dimmable
No
Dimming method
N/A
Drive current (mA)
250
Inrush Current (A)
40
Inrush Duration (µs)
100
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
14
Max. products per 13A C Breaker
18
Max. products per 16A C Breaker
22
Max. products per 20A C Breaker
28
Max. products per 10A B Breaker
8
Max. products per 13A B Breaker
10
Max. products per 16A B Breaker
13
Max. products per 20A B Breaker
16
Lifespan L70 B50
90000
Lifespan L70 B20
90000
Lifespan L70 B10
90000
Lifespan L80 B50
90000
Lifespan L80 B20
85000
Lifespan L80 B10
78000
Lifespan L90 B50
48000
Lifespan L90 B20
41000
Lifespan L90 B10
37000
IP rating
IP66
IK rating
IK10
Nominal Product Length (mm)
1495
Nominal Product Width (mm)
70
Nominal Product Height (mm)
70
Weight (kg)
3.1
Product EAN number
5410288471815
Packaging single length / height (cm)
163.5
Packaging single width (cm)
10.5
Packaging single depth (cm)
10.5
DUN14 (inner)
15410288471812
Units per outer package
2
Packaging outer length / height (cm)
165.0
Packaging outer width (cm)
23.0
Packaging outer depth (cm)
23.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-25-50
