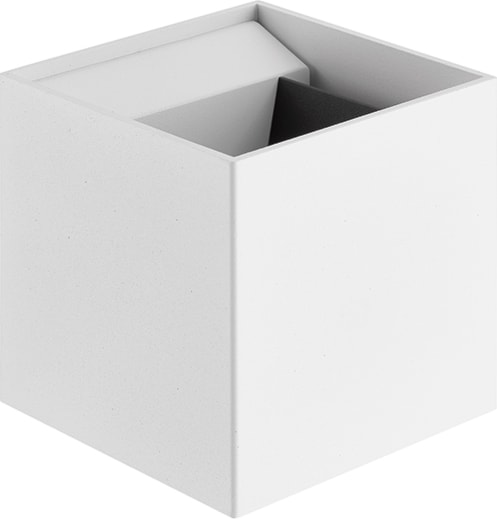

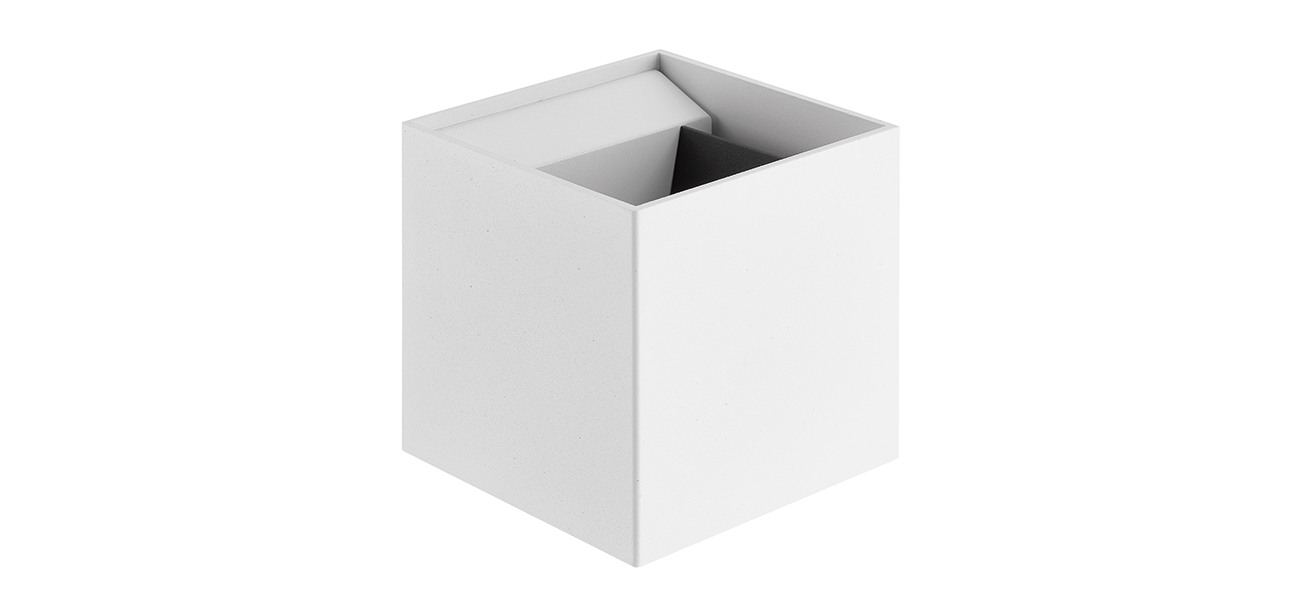

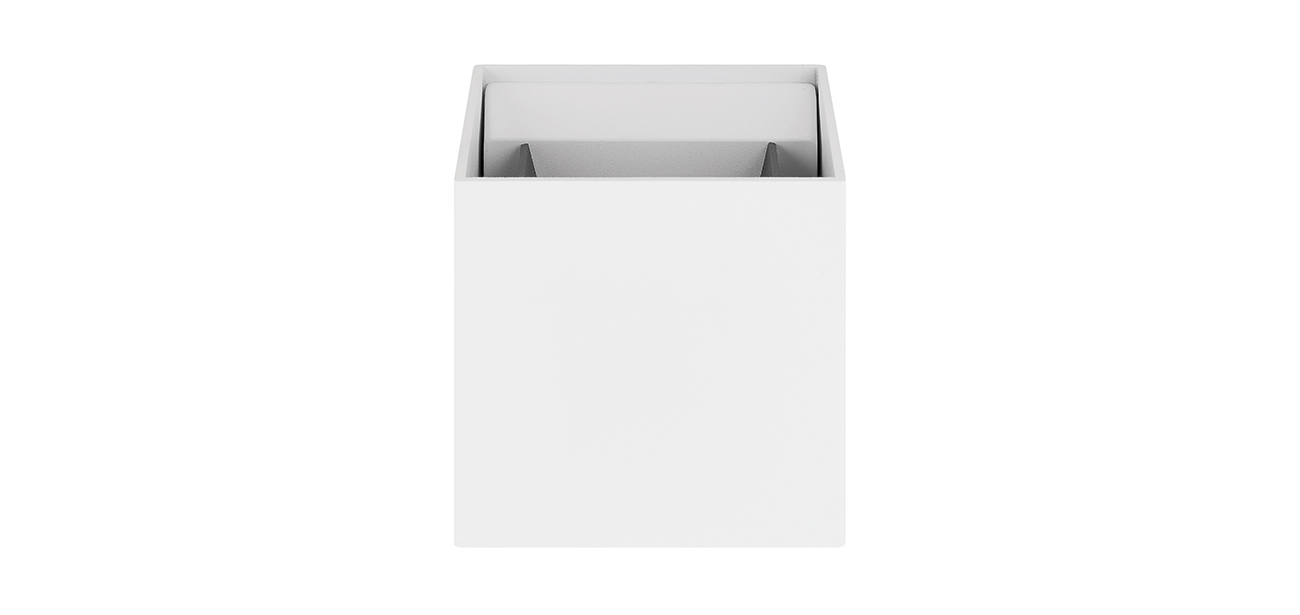

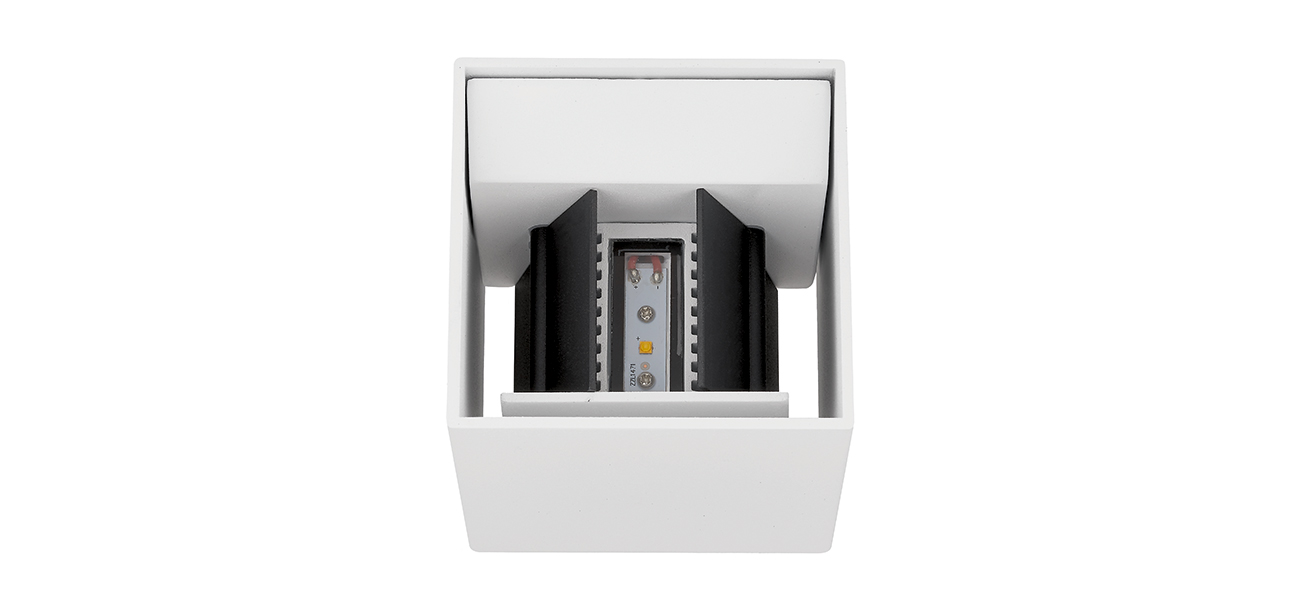

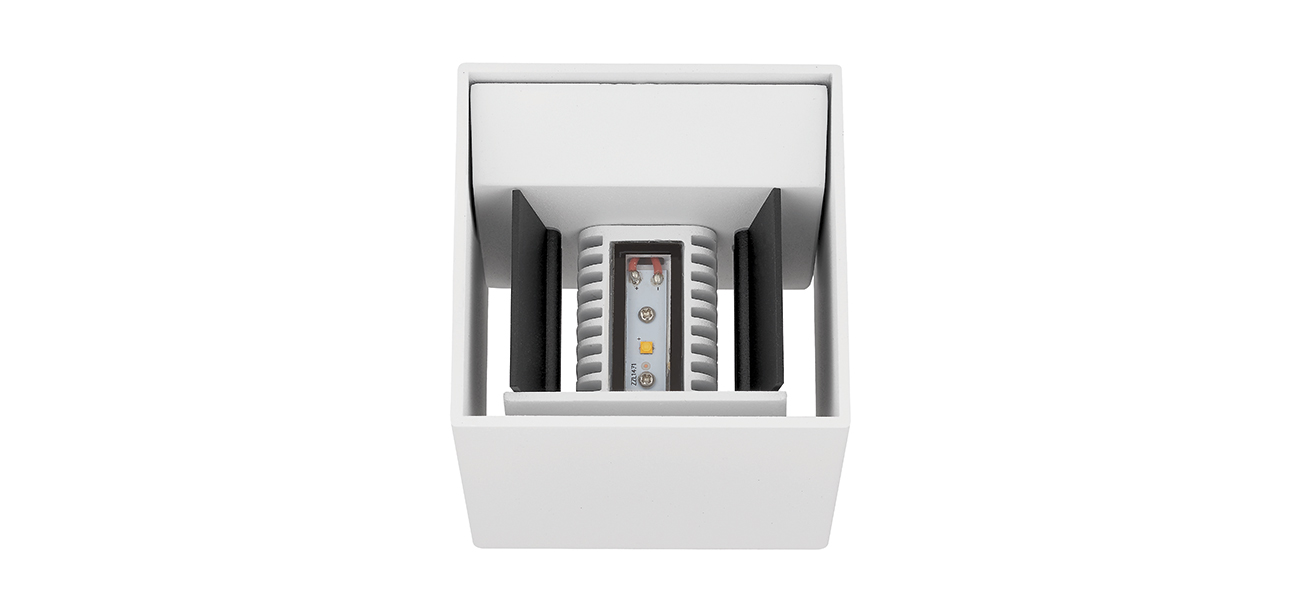

START eco Surface Wall Adjustable Up & Down IP54 2x150lm 830 WHT
Item No:
0047911
This product is no longer available
.png)
Exterior adjustable surface wall up and down light luminaire, white aluminium- RAL9016, 290lm, 5W, 58lm/W, 3000K, Driver Current: 700mA, CRI:80+, 220-240V, IP54, IK05, 30.000 hrs (L70), (HxWxD) 108x108x109mm, Class 1, energy class: A++, A+, A
Technical Assets

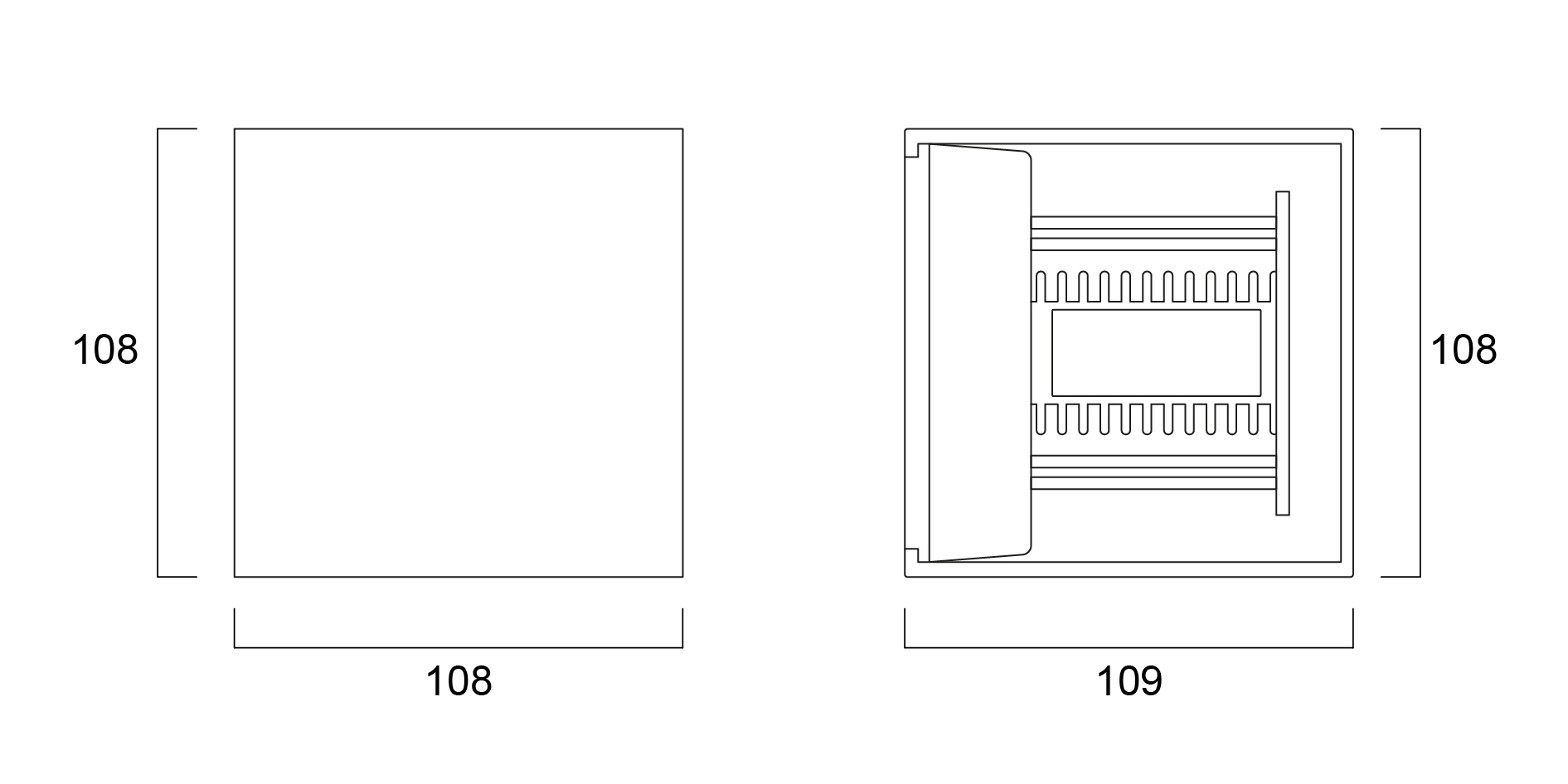

Dimensions (mm)

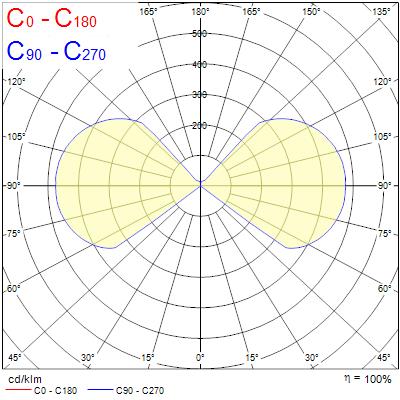

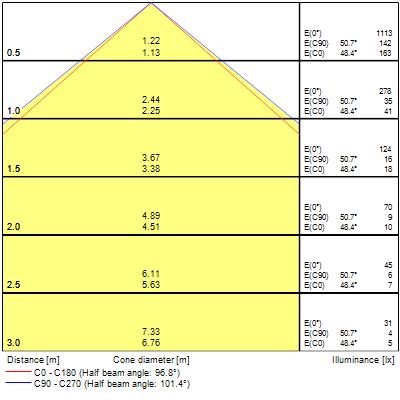

Photometrics
Product name
START eco Surface Wall Adjustable Up & Down IP54 2x150lm 830 WHT
Technology
LED
Housing
Aluminium
Mount
Wall surface mounted
Environment
External
General application
Residential & Consumer
Operating temperature range (°C)
-20°C...+45°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC002892
E-number FI
4579448
Warranty
3 years
Fixture luminous flux (lm)
2x150
Luminaire efficacy (lm/W)
58
LOR (%)
100
Correlated colour temperature (k)
3000
Colour Code
830
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Adjustable chromaticity
N
Beam Angle (°)
94
Photobiological Risk Group
RG1
Total power consumption (W)
5
Supply current (A)
0.03
Lamp power factor
1
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
120.0
Electrical protection
Class I
Control gear type
Electronic ballast
Dimmable
No
Drive current (mA)
700
Inrush Current (A)
10.3
Inrush Duration (µs)
300
Energy Efficiency Class (A->G) of contained light source
F
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Low (6% - 20%)
Max. products per 10A C Breaker
80
Max. products per 13A C Breaker
105
Max. products per 16A C Breaker
120
Max. products per 20A C Breaker
160
Lifespan L70 B50
30000
Housing colour
RAL 9016 - Traffic white / Bezel
IP rating
IP54
IK rating
IK05
Diffuser finish
Transparent
Diffuser material
Glass
Nominal Product Length (mm)
108
Nominal Product Width (mm)
108
Nominal Product Height (mm)
109
Weight (kg)
0.803
Product EAN number
5410288479118
Packaging single length / height (cm)
14.6
Packaging single width (cm)
14.6
Packaging single depth (cm)
14.6
DUN14 (inner)
15410288479115
Units per outer package
8
Packaging outer length / height (cm)
60.9
Packaging outer width (cm)
32.0
Packaging outer depth (cm)
16.9
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-20-45
