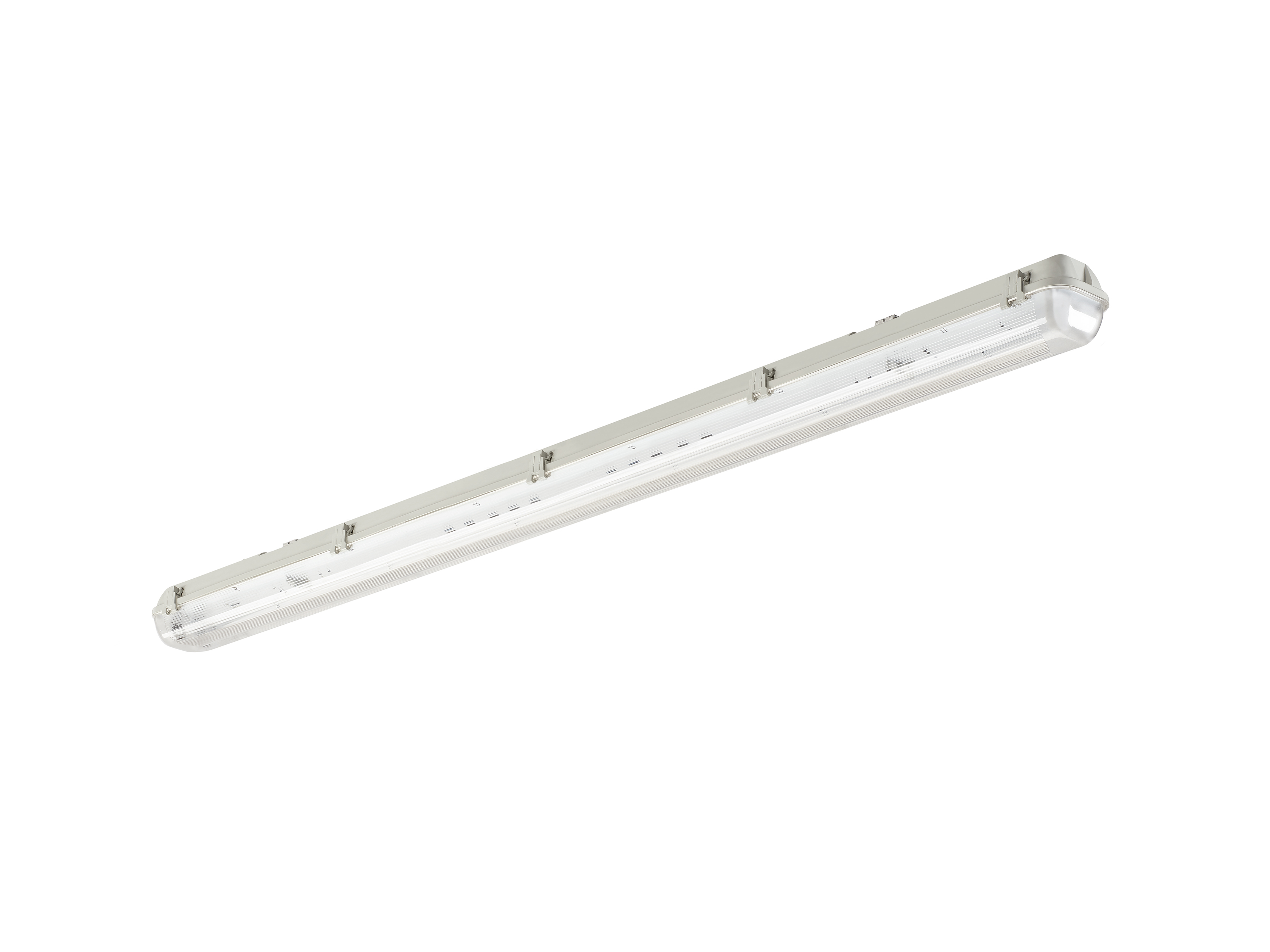

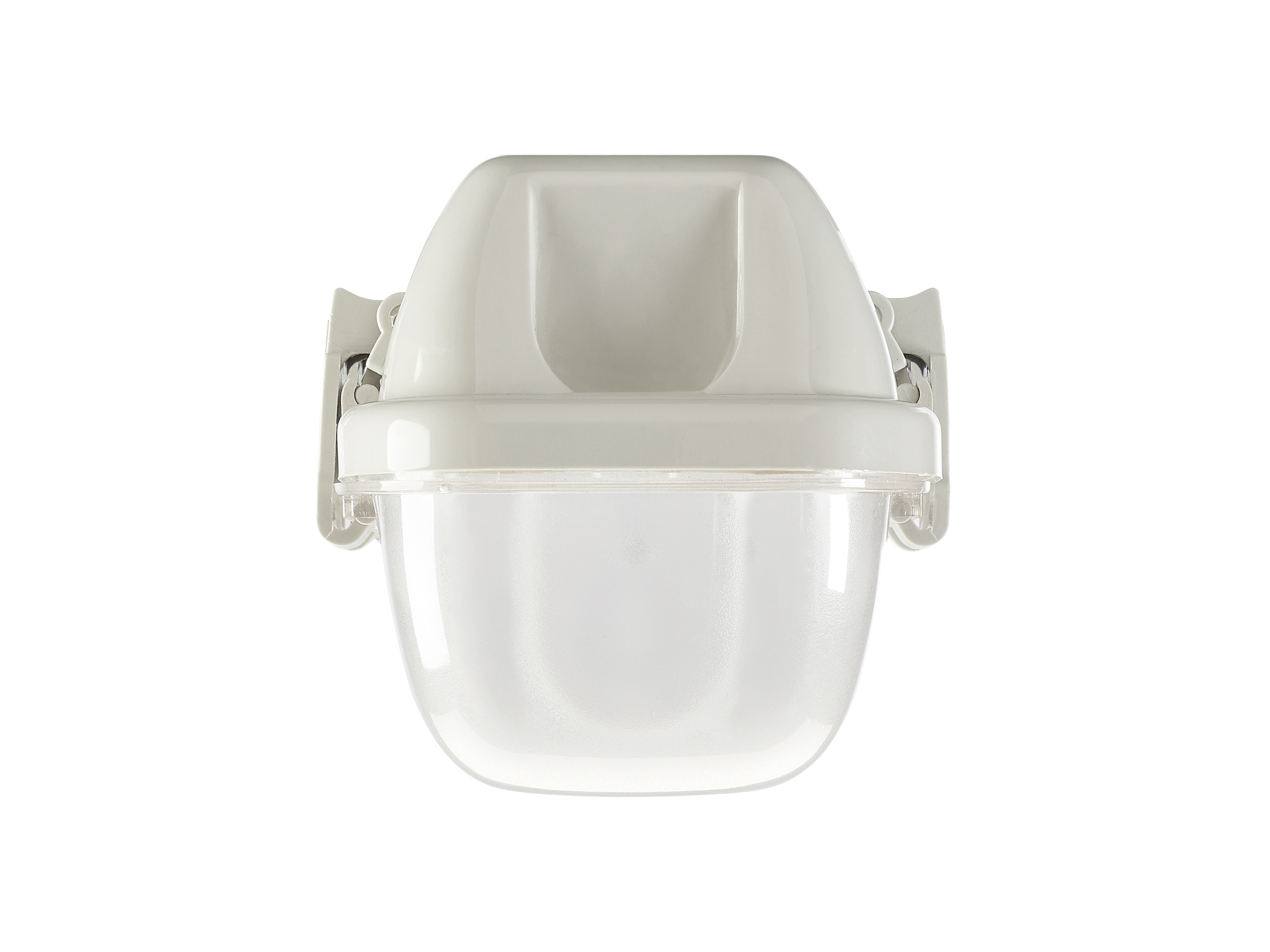

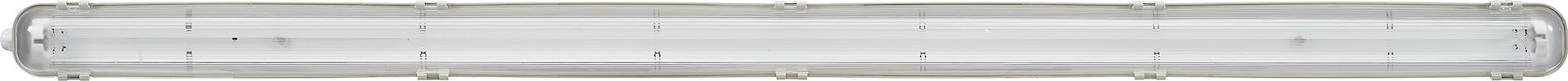

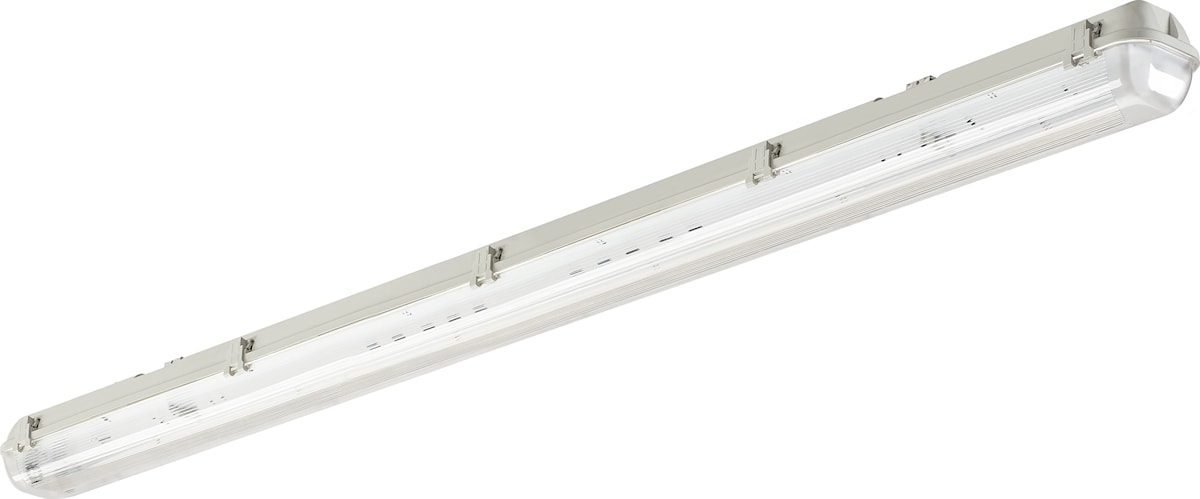

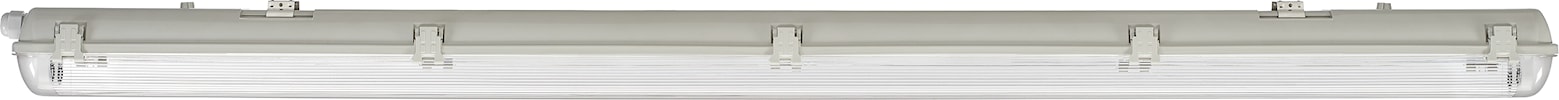

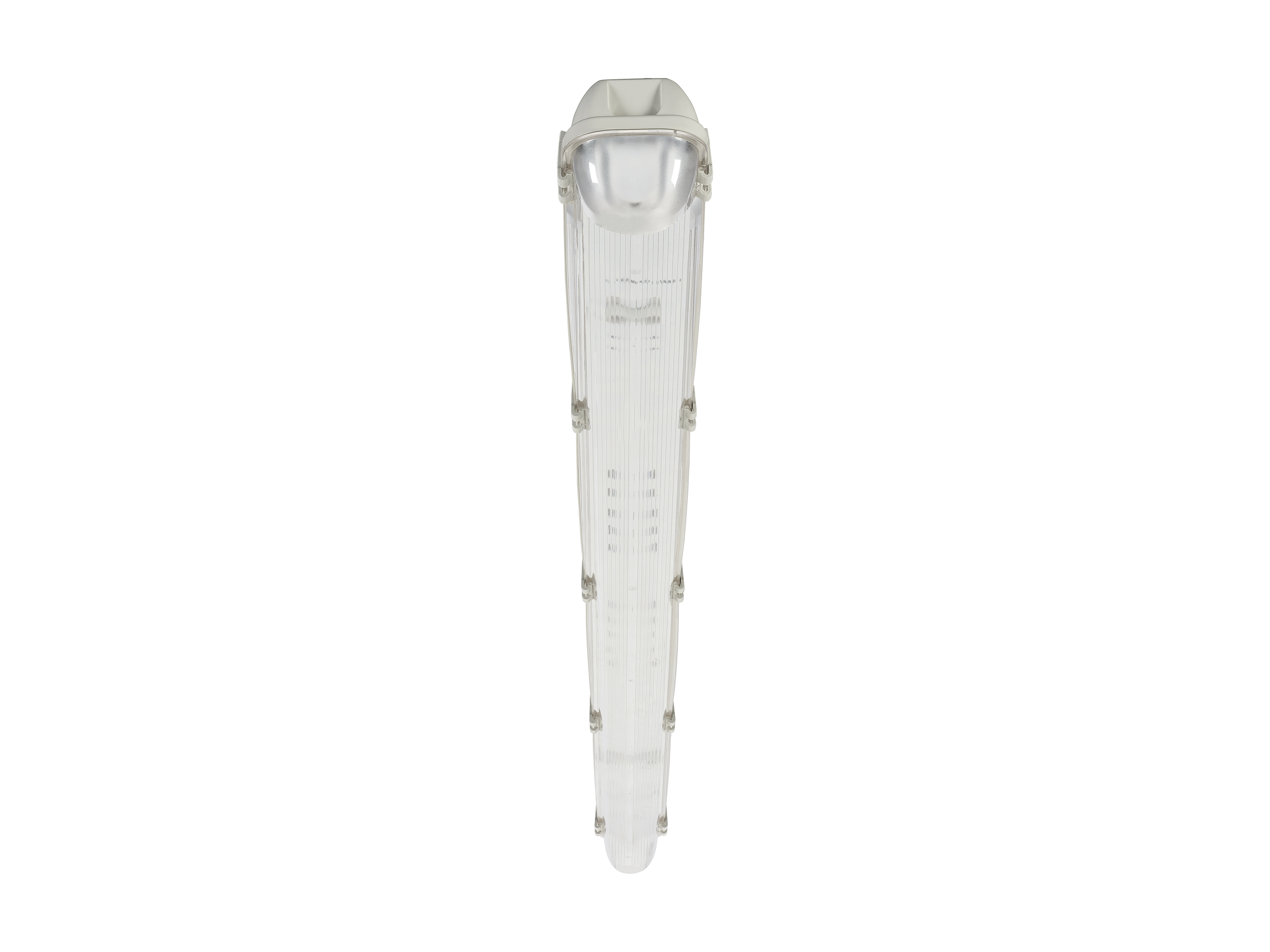

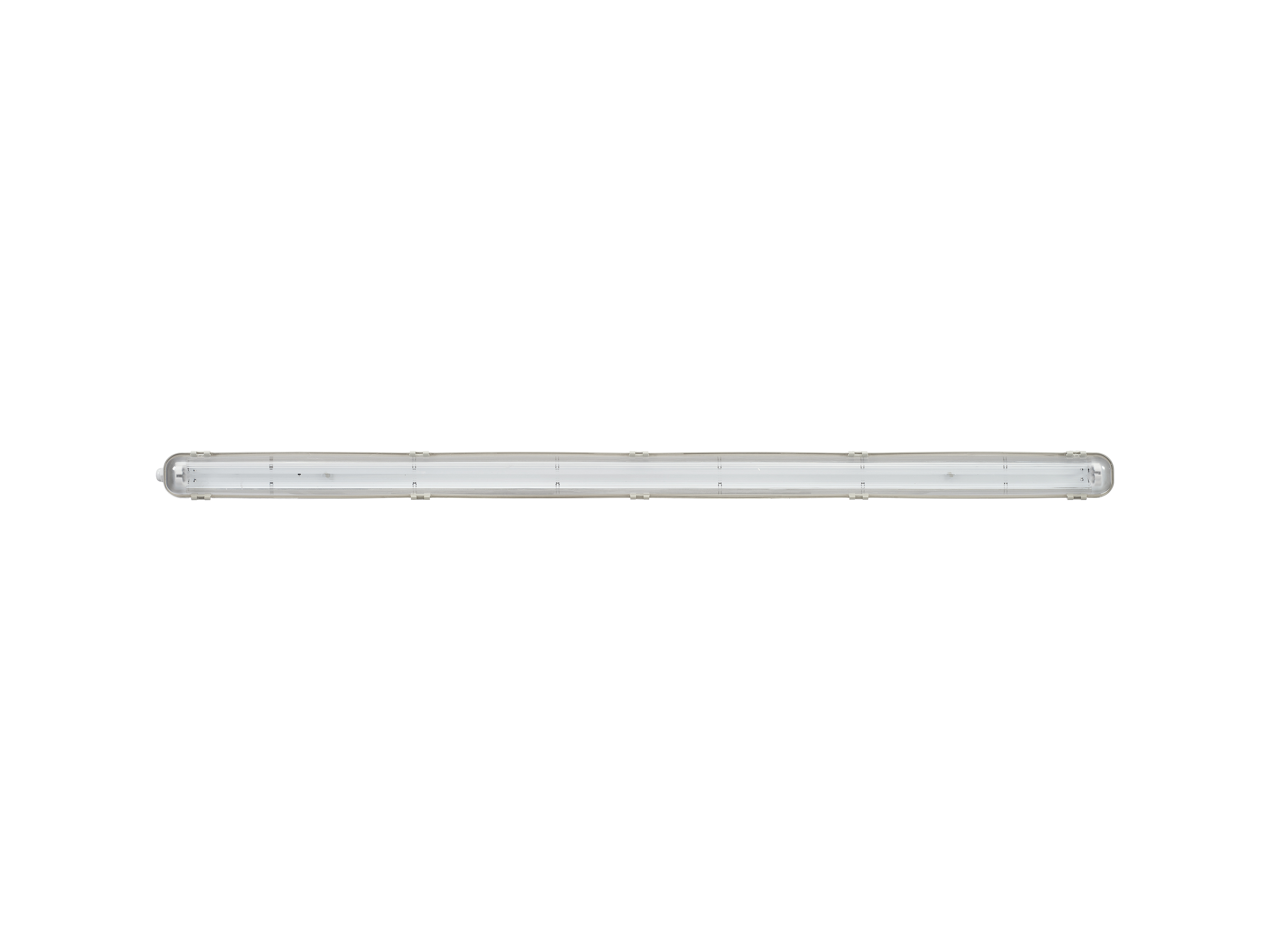

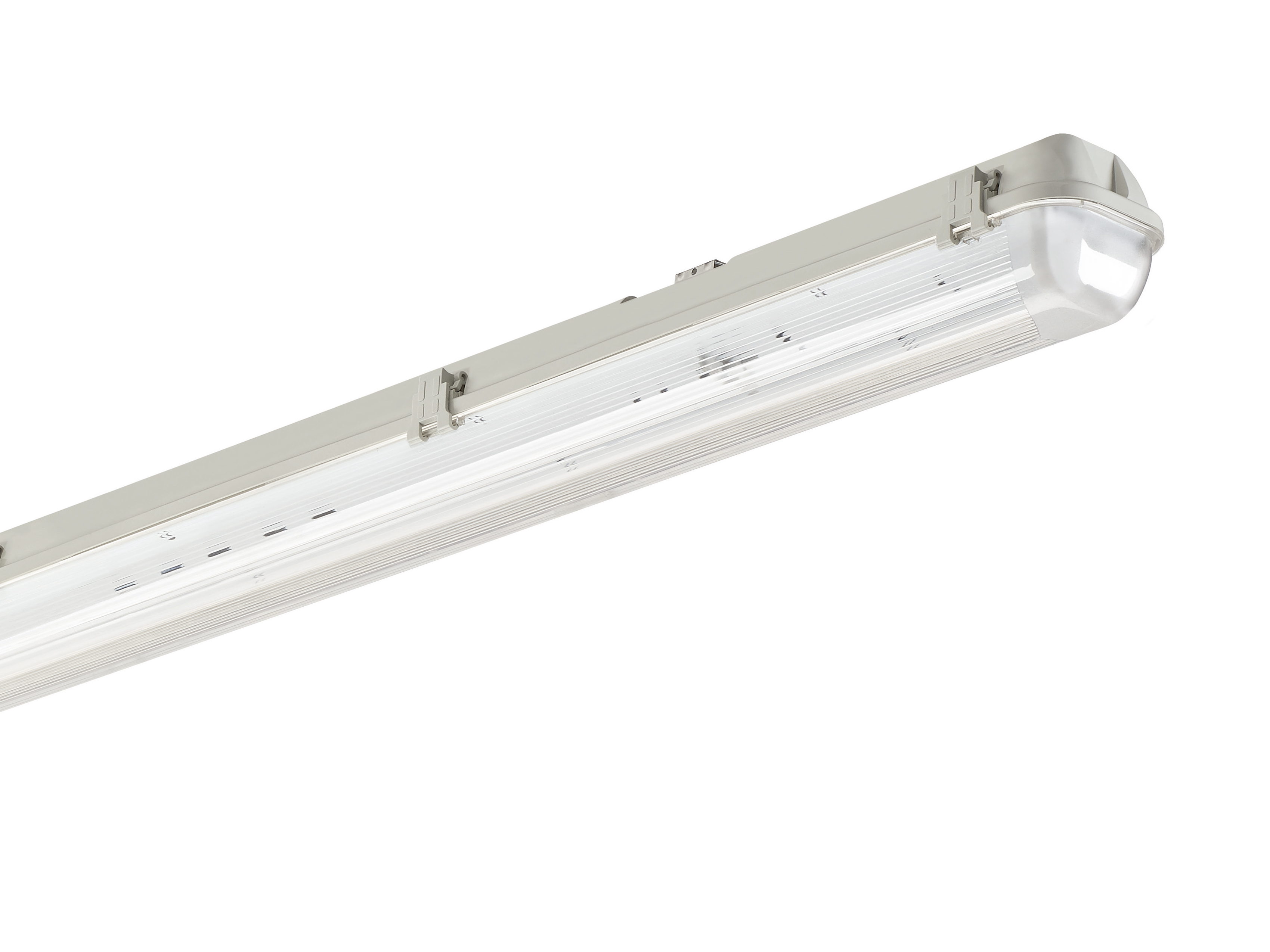

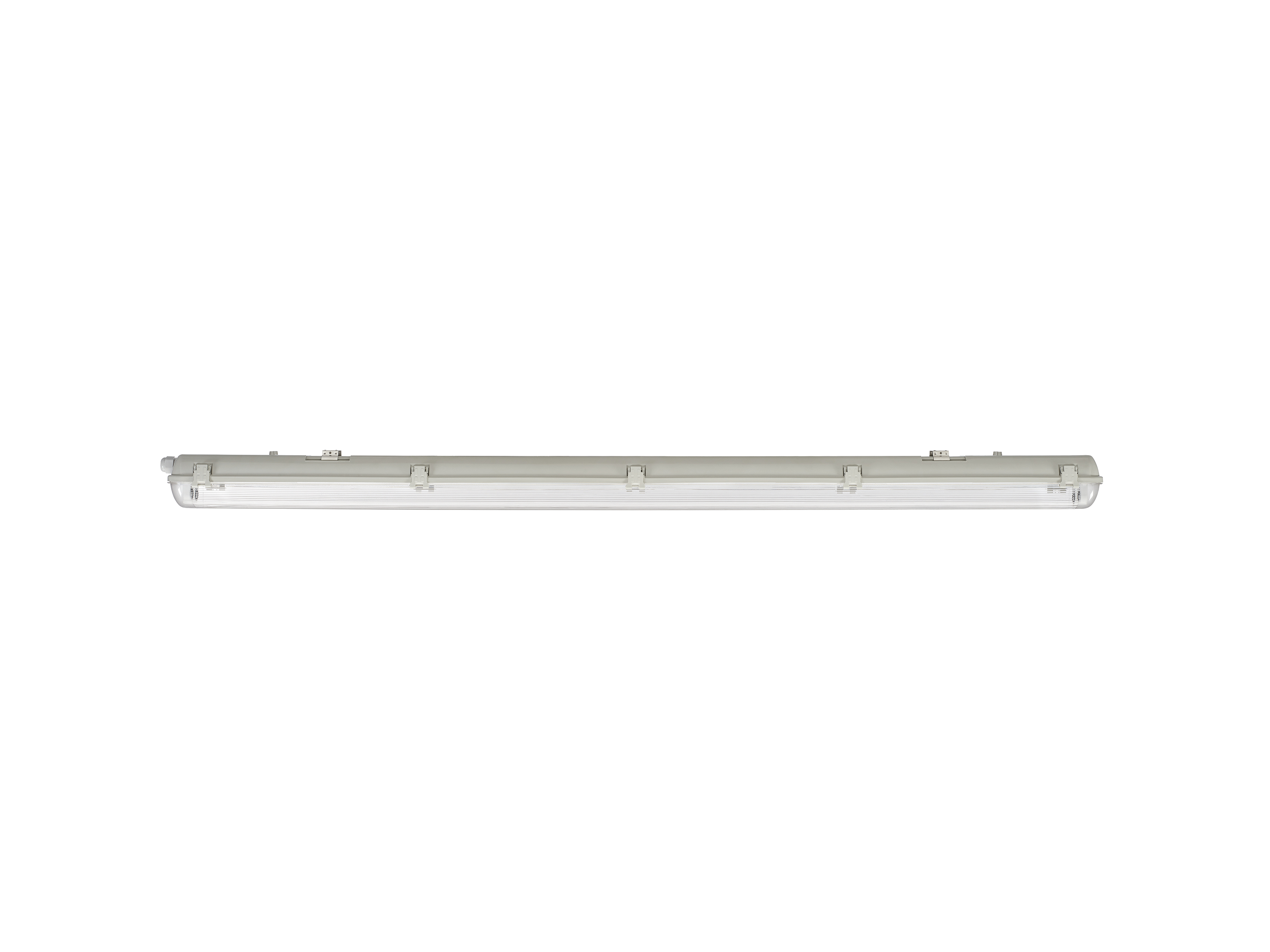

START WATERPROOF 1200 HOUSING 1X
Item No:
0047922
• Luminaire, polycarbonate housing • Single version, 1200mm • Protection type IP65 • Luminous flux and light colour vary depending on LED tubes used • To be used with T8 LED tubes • Easy to install with stainless steel fixing brackets included for ceiling mounting • Ideal for any industrial facilities, garages, car parks, workshops.
Technical Assets

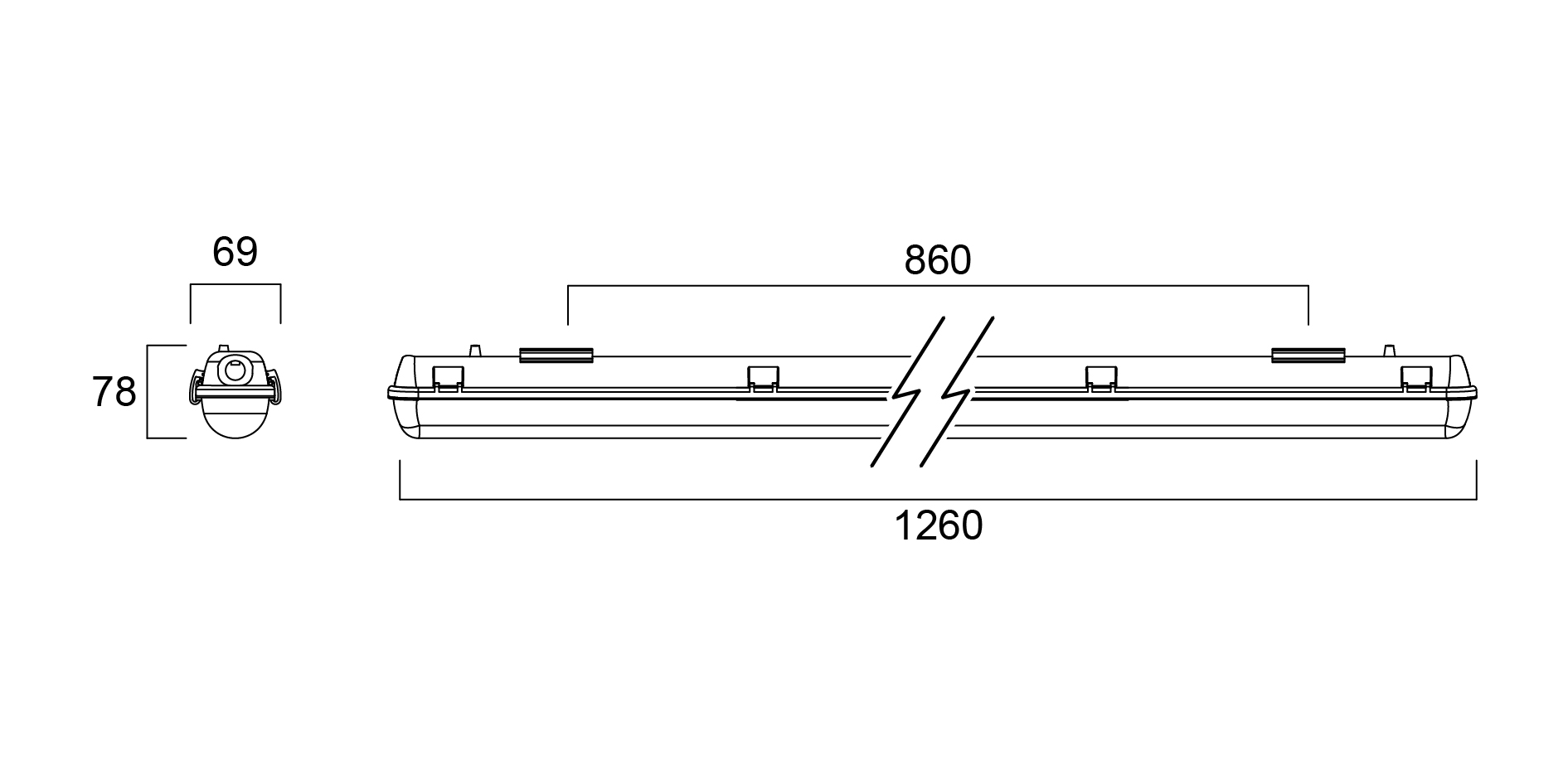

Dimensions (mm)
Photometrics
Product name
START WATERPROOF 1200 HOUSING 1X
Technology
Light Source Not Integrated
Cap/Base
G13
Housing
PC Polycarbonate
Mount
Ceiling surface mounting
Fixture rating
Enclosed
General application
Logistics & Industry
Operating temperature range (°C)
-20°C...+40°C
ETIM Class
EC002892
Warranty
3 years
LOR (%)
75
Light source included
Fixture without Lightsource
Electrical protection
Class I
Housing colour
Grey
IP rating
IP65
IK rating
IK08
Diffuser finish
Transparent
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
1260
Nominal Product Width (mm)
69
Nominal Product Height (mm)
78
Weight (kg)
0.81
Product EAN number
5410288479224
Packaging single length / height (cm)
128.0
Packaging single width (cm)
6.9
Packaging single depth (cm)
5.2
DUN14 (inner)
15410288479221
Units per outer package
1
Packaging outer length / height (cm)
128.0
Packaging outer width (cm)
6.9
Packaging outer depth (cm)
5.2
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
