Sylflat 205 IP44 1750lm 840 DIM
Item No:
0053955
This product is no longer available
.png)

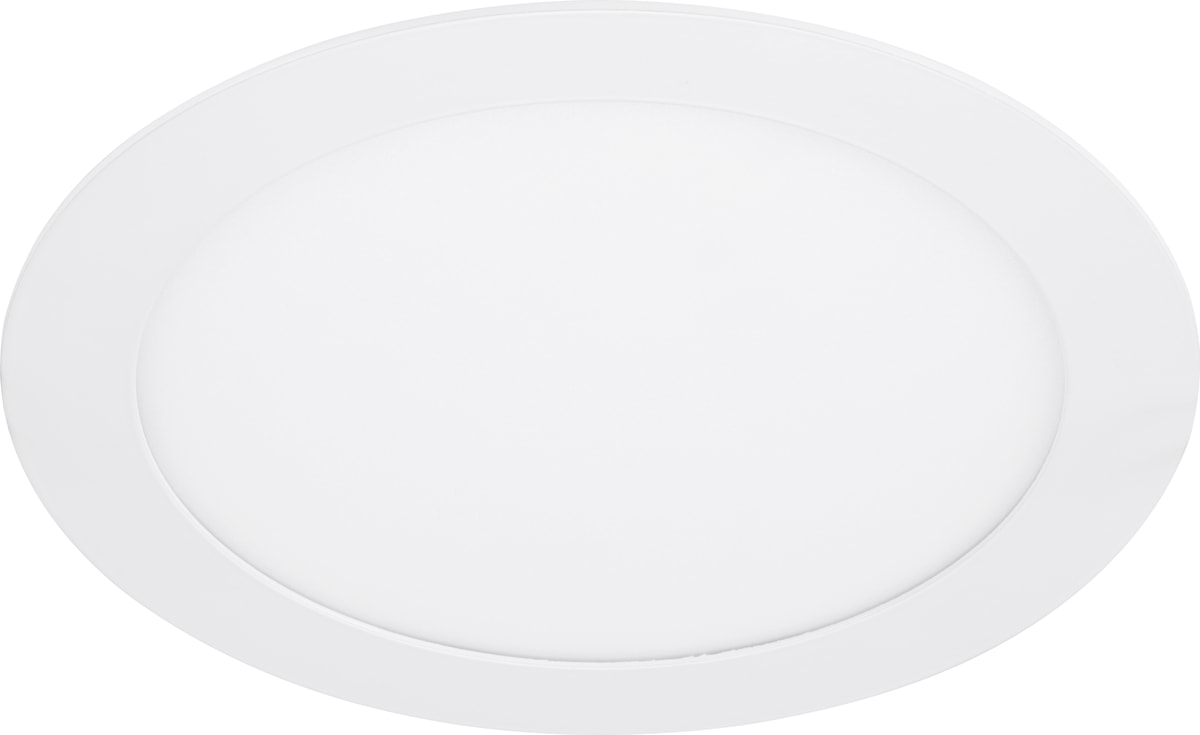

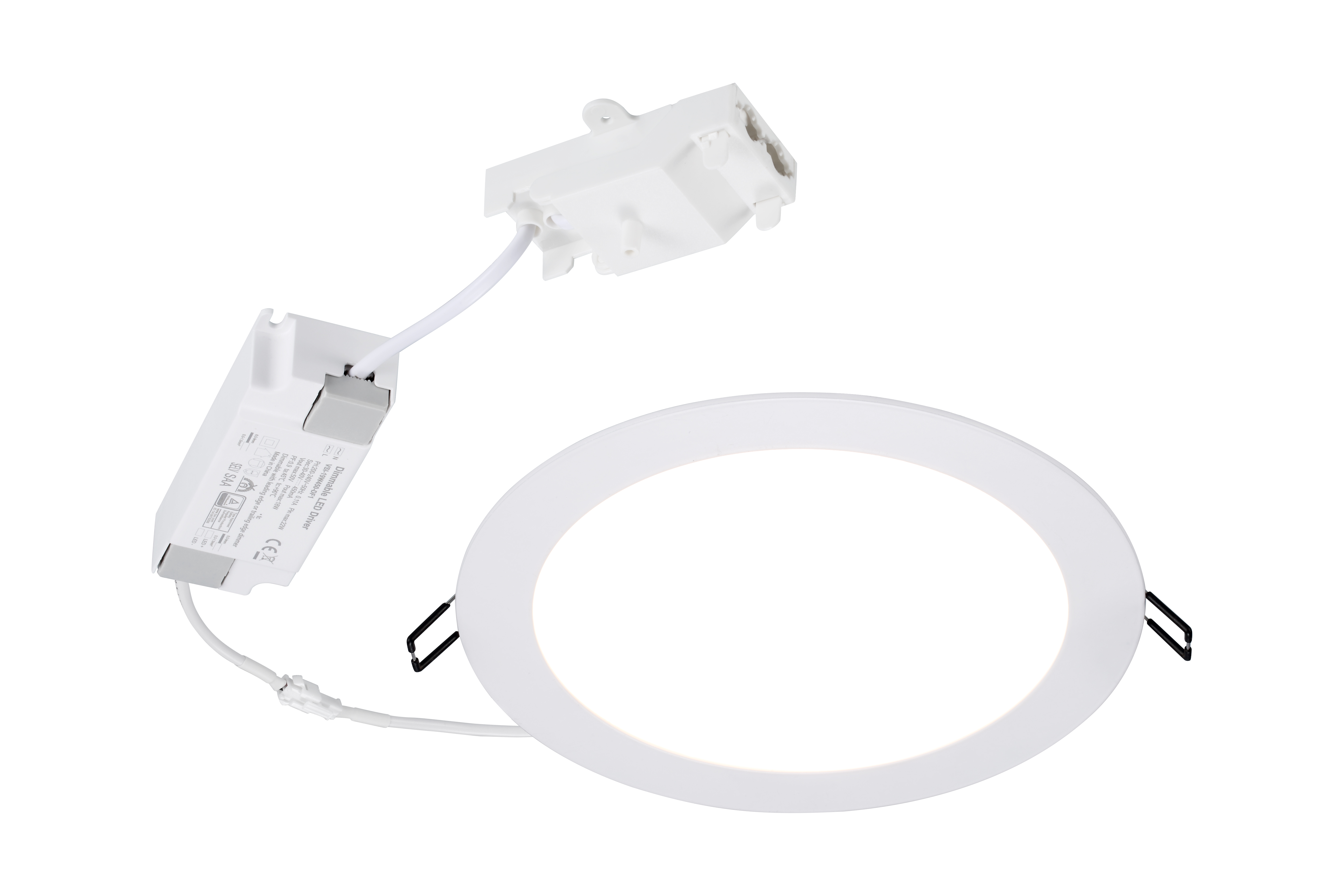

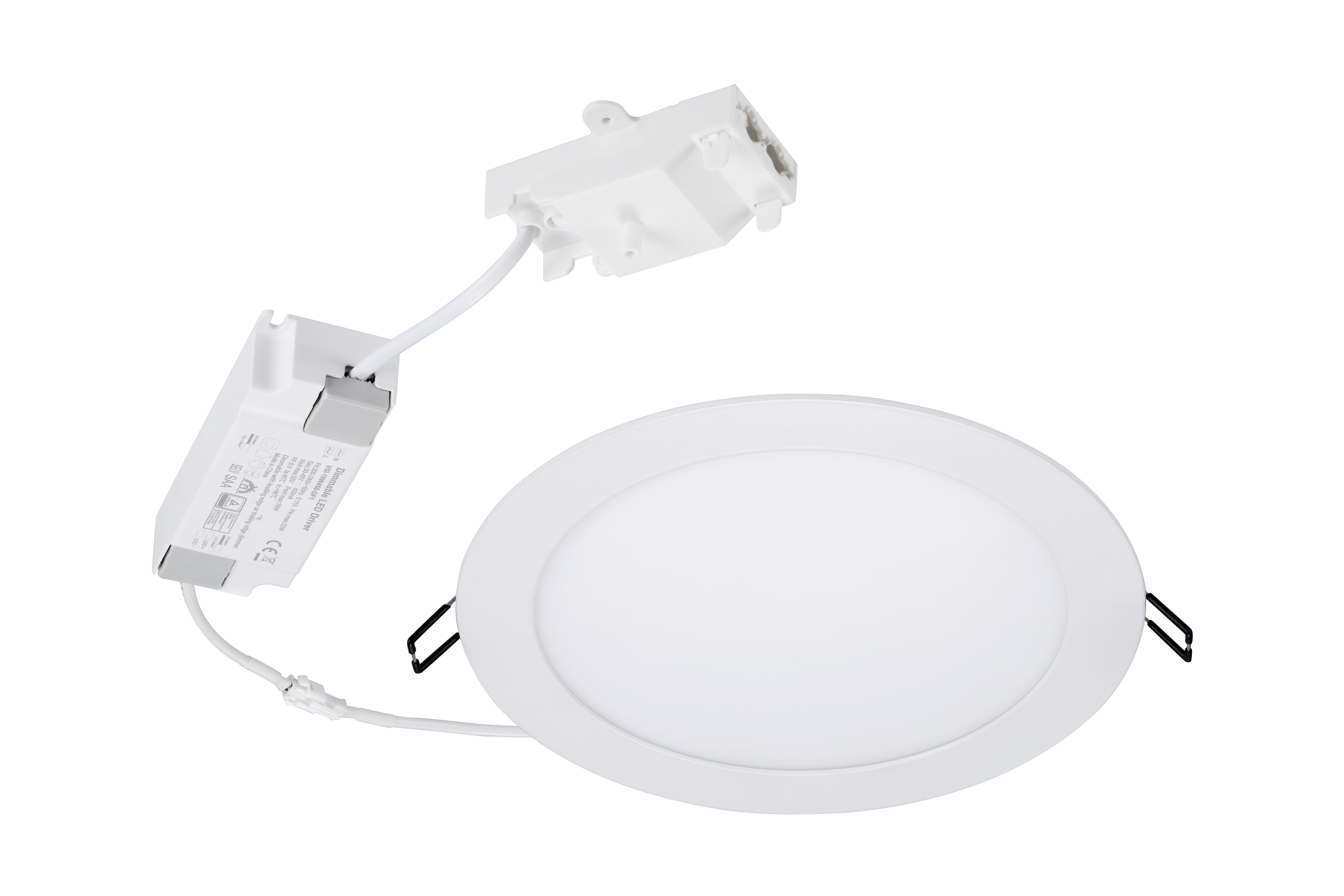

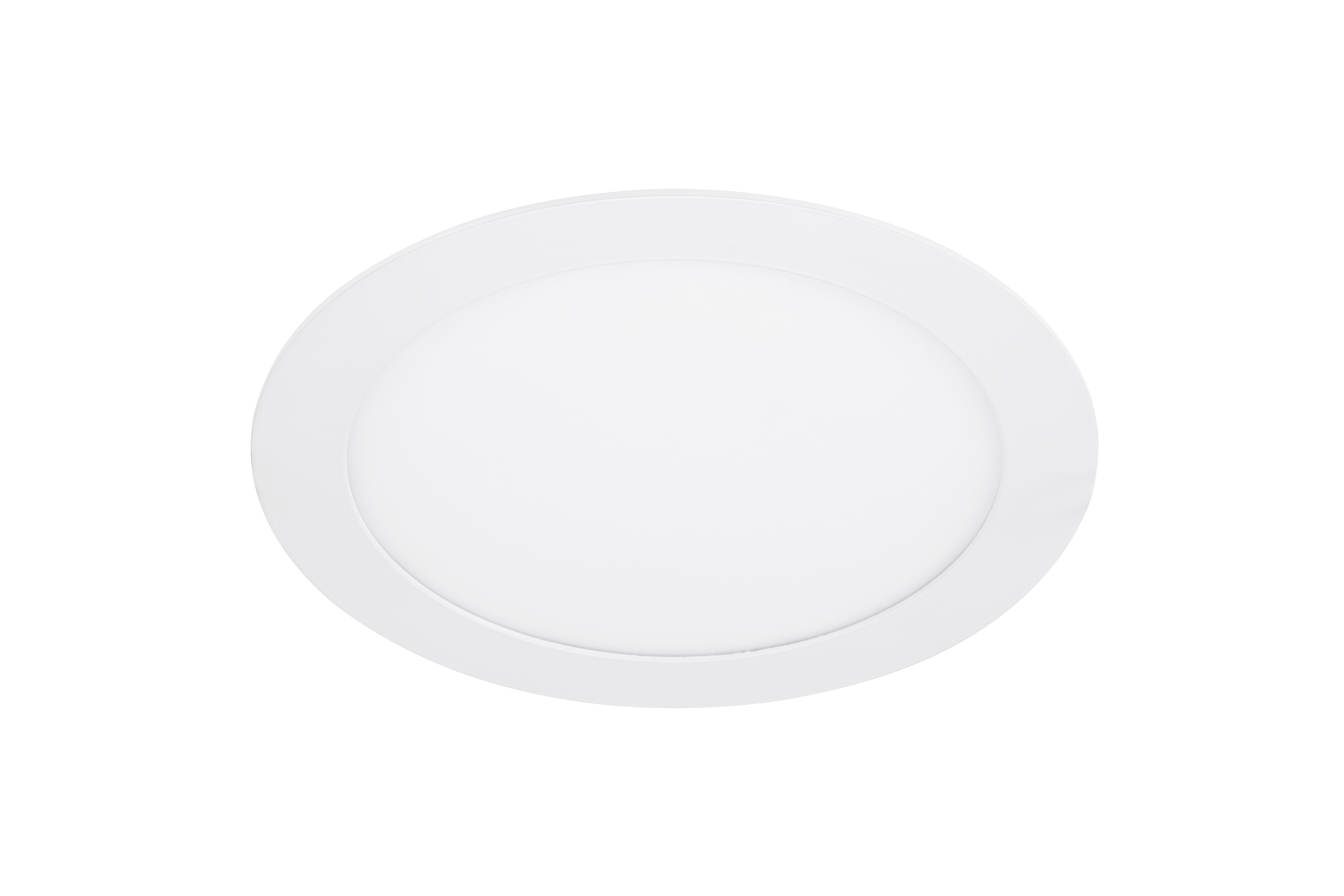

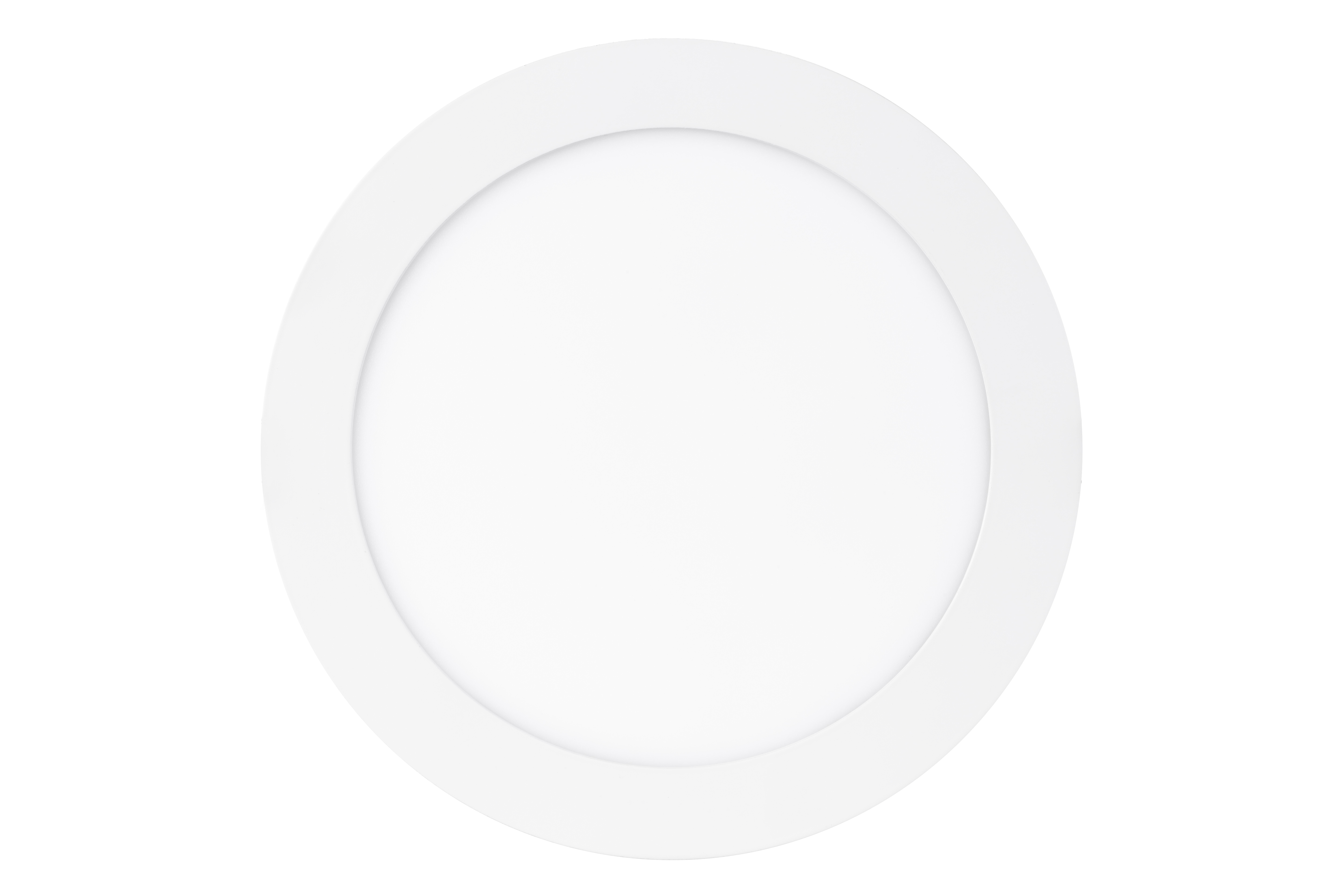

Sylflat DIM is an integrated LED recessed downlight with separated phase dimmable driver and loop in- out box, 17W; 1750Lm; 103Lm/W; 4000K; IP44 rated from the front; 50,000hrs (L70B50).
Technical Assets

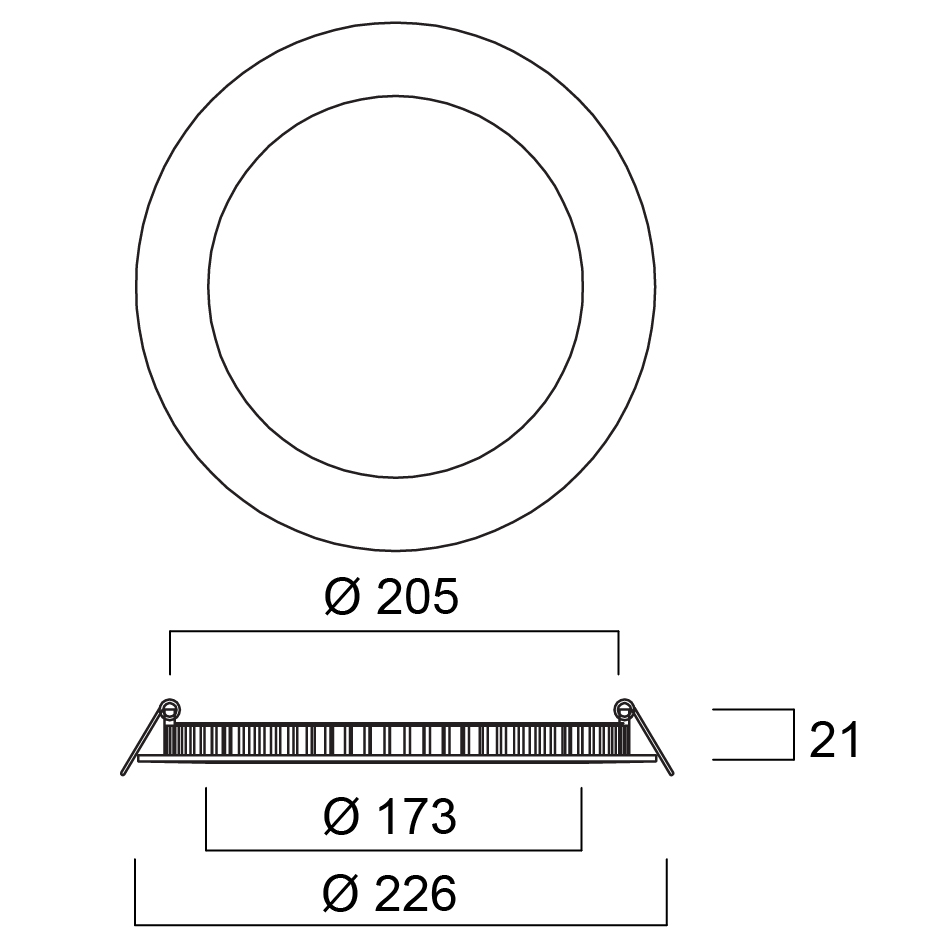

Dimensions (mm)

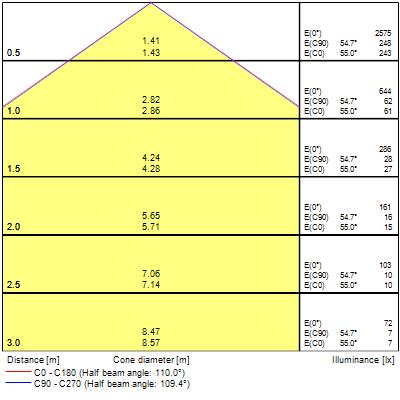

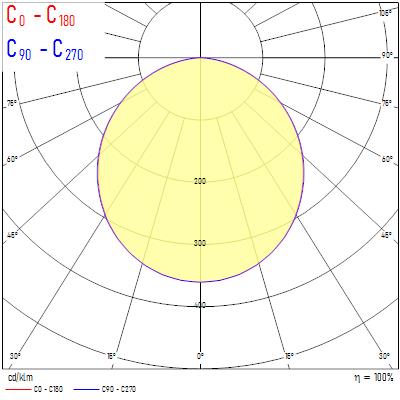

Photometrics
Product name
Sylflat 205 IP44 1750lm 840 DIM
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
General application
Hospitality
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4278189
Warranty
5 years
Fixture luminous flux (lm)
1750
Luminaire efficacy (lm/W)
103
Correlated colour temperature (k)
4000
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
120
Distribution type
Symmetric
Glare control
< 28
Photobiological Risk Group
RG0
Total power consumption (W)
17
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20.0
Electrical protection
Class II
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
Mains: leading / trailing edge
Drive current (mA)
450
Inrush Current (A)
4.16
Inrush Duration (µs)
112
Energy Efficiency Class (A->G) of contained light source
D
Nominal Frequency (Hz)
50Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
67
Max. products per 13A C Breaker
87
Max. products per 16A C Breaker
107
Max. products per 20A C Breaker
133
Max. products per 10A B Breaker
67
Max. products per 13A B Breaker
87
Max. products per 16A B Breaker
107
Max. products per 20A B Breaker
133
Lifespan L70 B50
60000
Lifespan L80 B50
50000
Lifespan L80 B10
42000
Lifespan L90 B50
28000
Lifespan L90 B10
23000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK06
Diffuser finish
Opal
Diffuser material
PS Polystyrene
Nominal Product Length (mm)
226
Nominal Product Width (mm)
226
Nominal Product Height (mm)
21
Nominal Product Diameter (mm)
226
Weight (kg)
0.457
Product EAN number
5410288539553
Packaging single length / height (cm)
27.5
Packaging single width (cm)
23.0
Packaging single depth (cm)
4.2
DUN14 (inner)
15410288539550
Units per outer package
10
Packaging outer length / height (cm)
47.5
Packaging outer width (cm)
23.0
Packaging outer depth (cm)
29.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
