START Waterproof Single 1500 IP65 EM 4000lm 840

Item No: 0067961
This product is no longer available

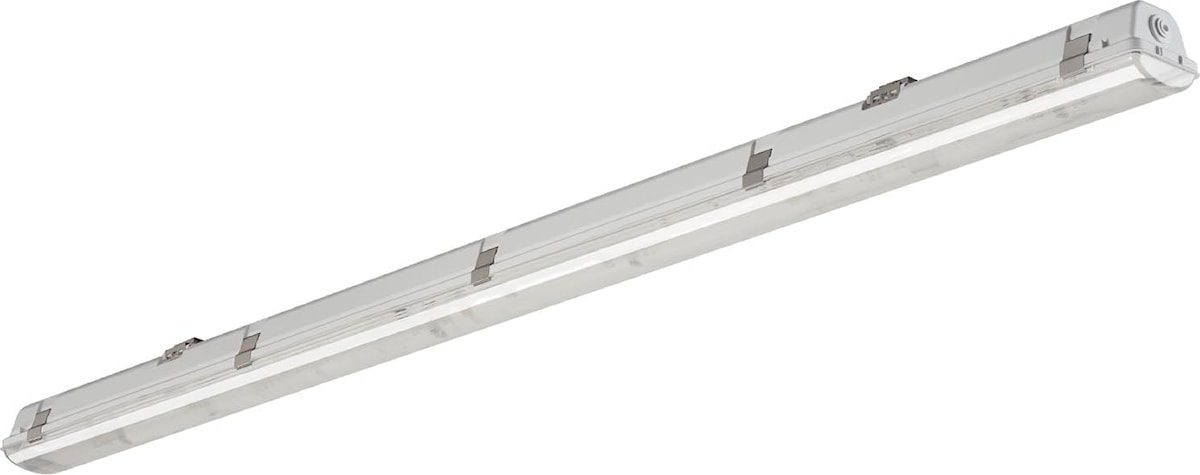

Start Waterproof, integrated LED weatherproof luminaire, with UV stabilized flat diffuser and linear prisms designed to achieve uniform lit appearance, optimise light output and to reduce glare, 301 stainless steel diffuser clips and fixing brackets for surface and wall mounting. Polycarbonate housing, Polycarbonate diffuser, 3950lm, 37 W, 107 lm/W, 4000 K, drive current 1050 mA, non dimmable, 3 hours emergency, CRI 80, IP65, IK08, Class I, nominal average life (h): 50000, 1578mm x 84mm x 75mm, energy class: A++ A+ A, D-mark

Technical Assets

Dimensions (mm)

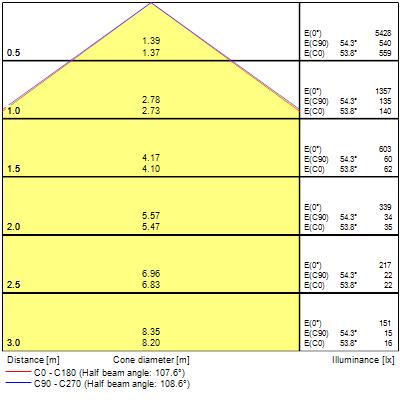

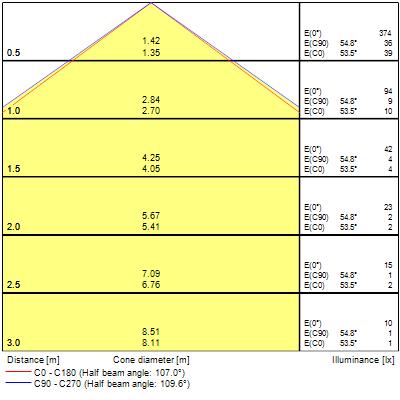

Photometrics

Product name
START Waterproof Single 1500 IP65 EM 4000lm 840
Technology
LED
Housing
PC Polycarbonate
Fixture rating
Enclosed
General application
Logistics & Industry
Operating temperature range (°C)
0°C...+30°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC002892
E-number FI
4309054
Warranty
5 years
Fixture luminous flux (lm)
3950
Luminaire efficacy (lm/W)
107
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Glare control
< 25
Photobiological Risk Group
RG0
Emergency duration (h)
3
Total power consumption (W)
37
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class I
Dimmable
No
Dimming method
N/A
Drive current (mA)
1050
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
20
Max. products per 13A C Breaker
30
Max. products per 16A C Breaker
40
Max. products per 20A C Breaker
50
Max. products per 10A B Breaker
16
Max. products per 13A B Breaker
24
Max. products per 16A B Breaker
32
Max. products per 20A B Breaker
40
Lifespan L70 B50
60000
Lifespan L70 B20
60000
Lifespan L70 B10
60000
Lifespan L80 B50
60000
Lifespan L80 B20
60000
Lifespan L80 B10
60000
Lifespan L90 B50
59000
Lifespan L90 B20
53000
Lifespan L90 B10
50000
Housing colour
Grey
IP rating
IP65
IK rating
IK08
Diffuser finish
Transparent
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
1578
Nominal Product Width (mm)
84
Nominal Product Height (mm)
75
Weight (kg)
2.26
Product EAN number
5410288679617
Packaging single length / height (cm)
167.2
Packaging single width (cm)
8.8
Packaging single depth (cm)
8.4
DUN14 (inner)
05410288679617
Units per outer package
1
Packaging outer length / height (cm)
167.2
Packaging outer width (cm)
8.8
Packaging outer depth (cm)
8.4
Glow Wire Test (°C)
850
Optimal operating condition (°C)
0-30
Dry applications use only
No
Certificate of Conformity EU
Datasheet
RFA

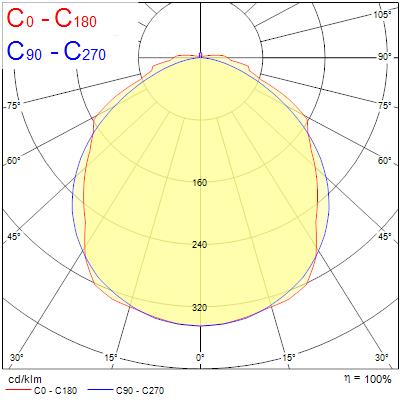

POLAR
POLAR
IES 1
IES 2
LDT 1
LDT 2
CONE
CONE
Technical Drawing
Safety Sheet 1
Safety Sheet 2
Instruction Sheet 1
Instruction Sheet 2



Accessories
