START Waterproof T 1500 HO IP65 8500lm 840

Item No: 0068084
This product is no longer available

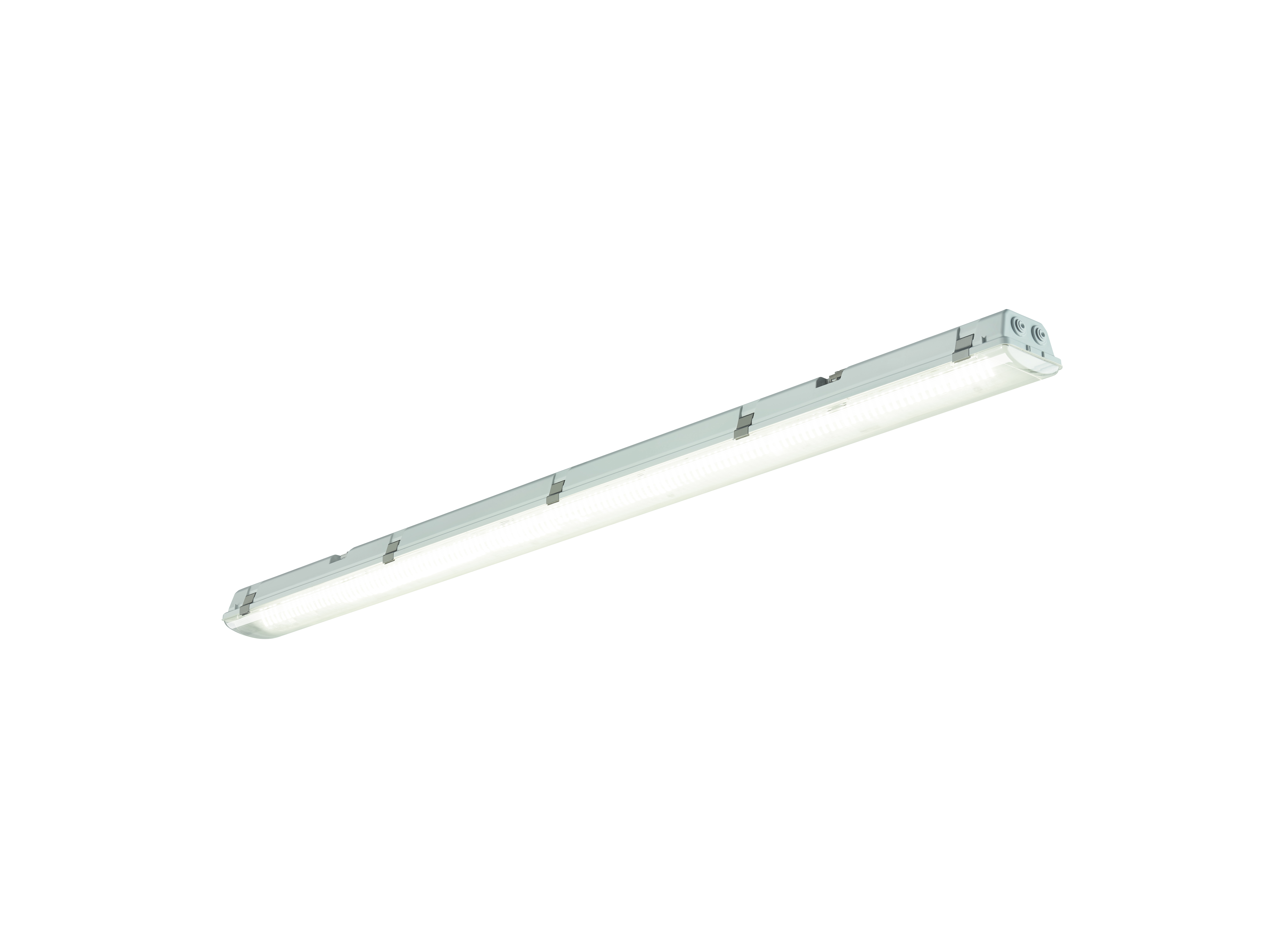

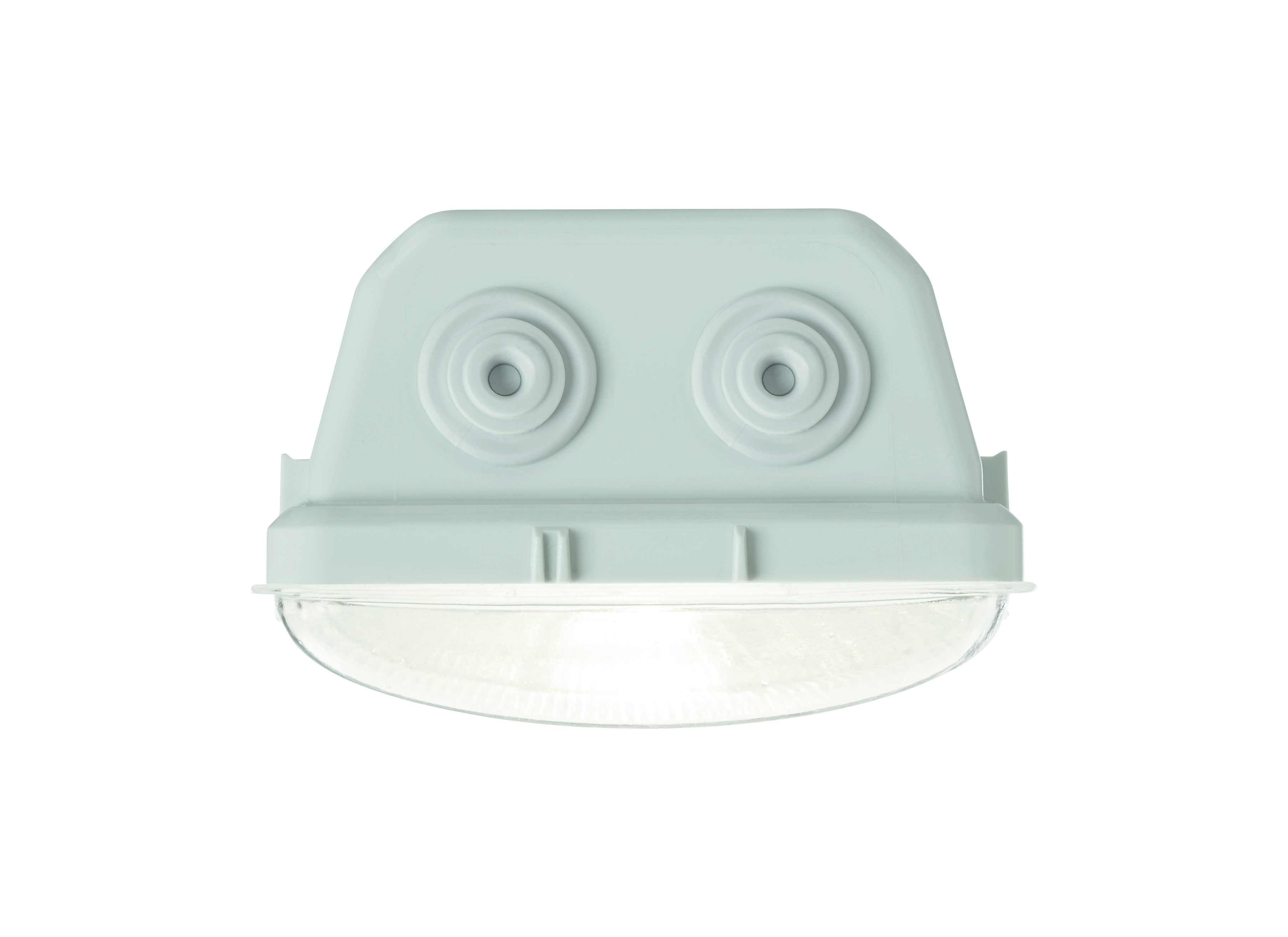

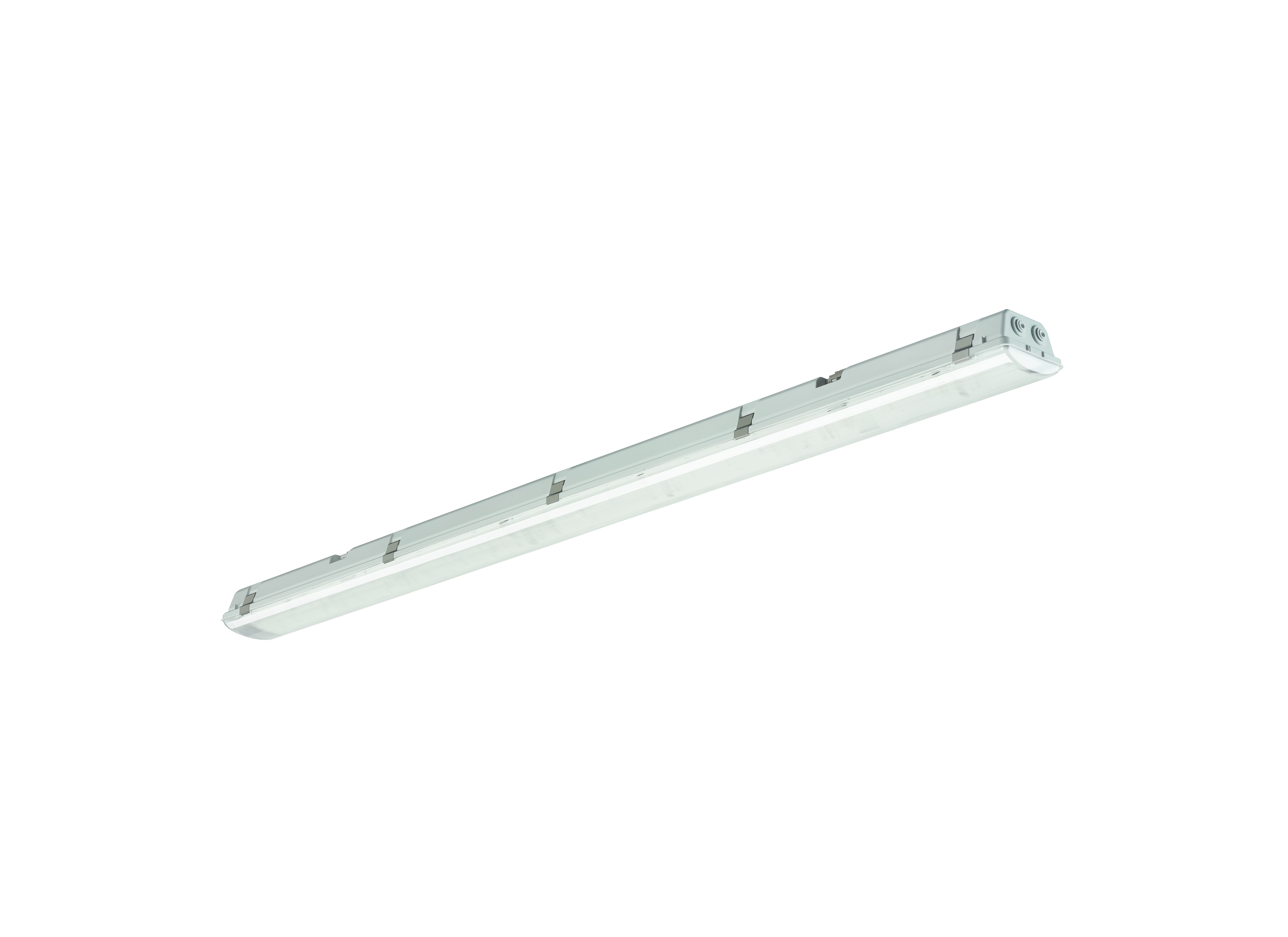

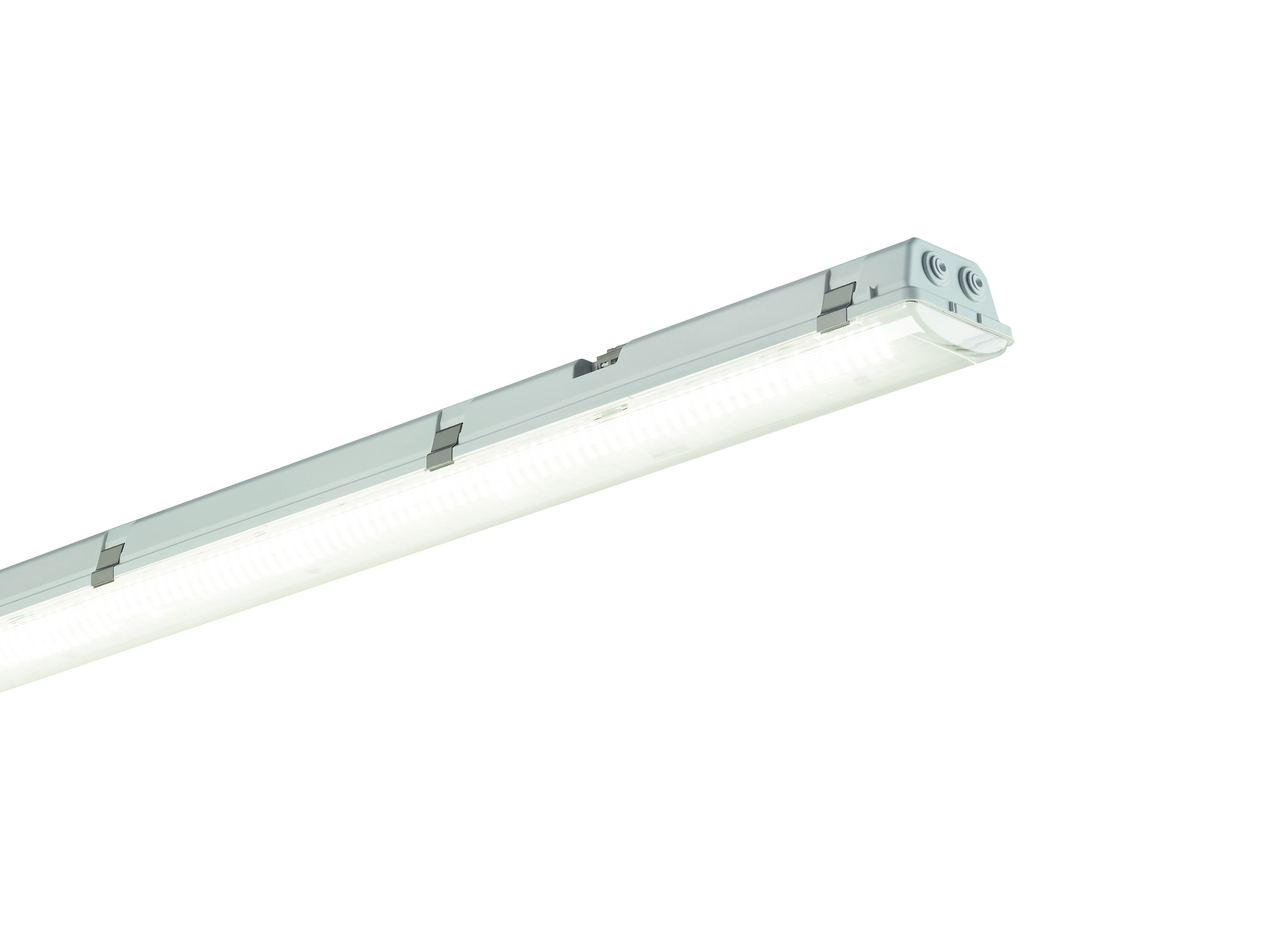

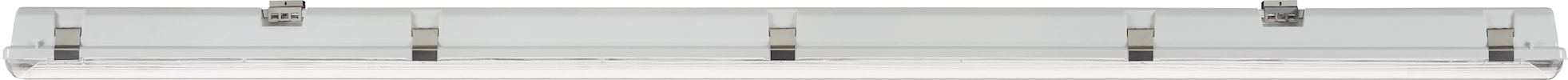

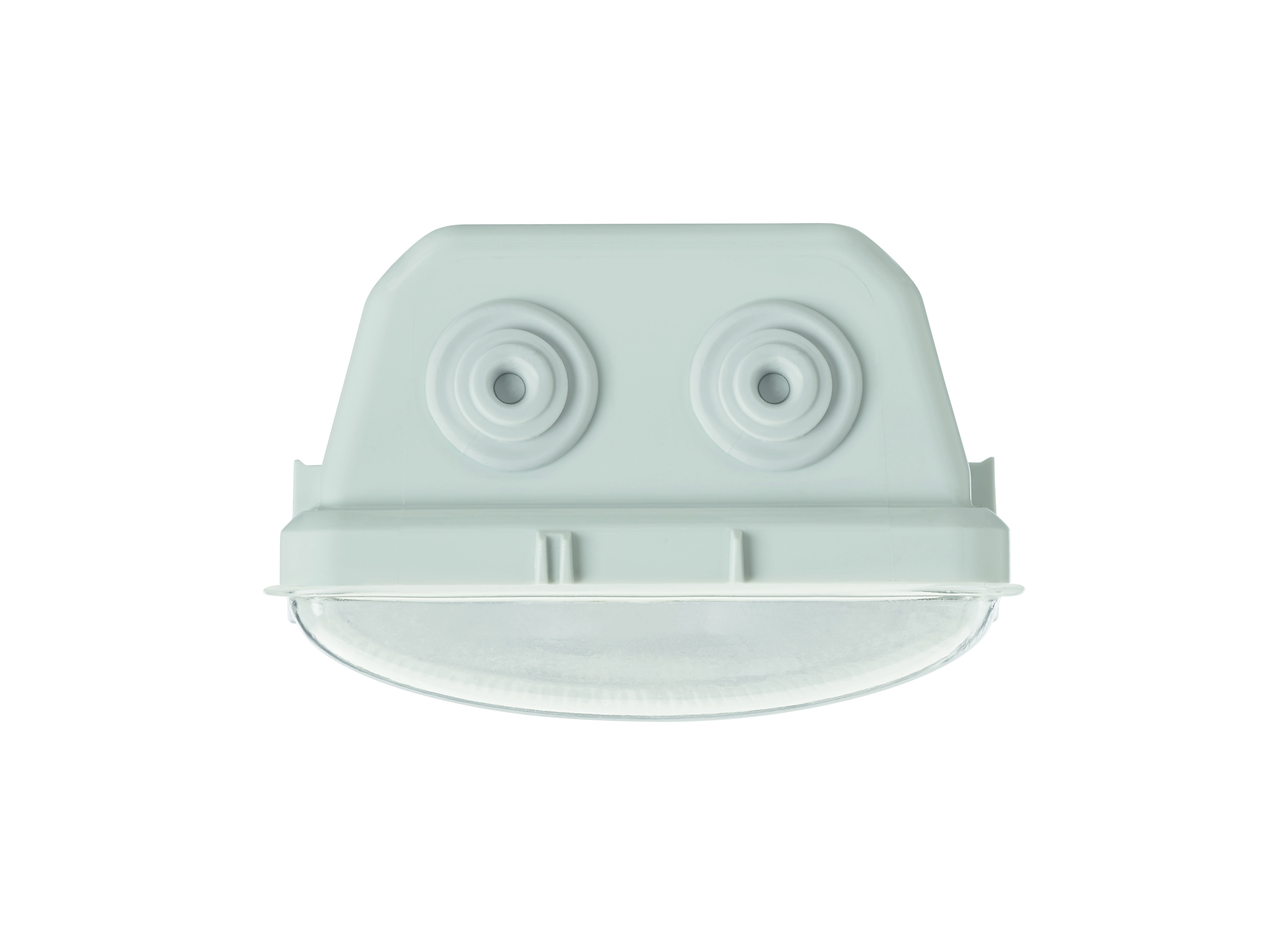

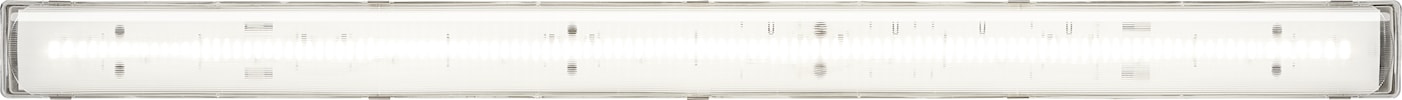

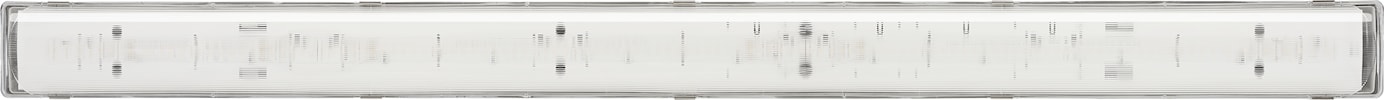

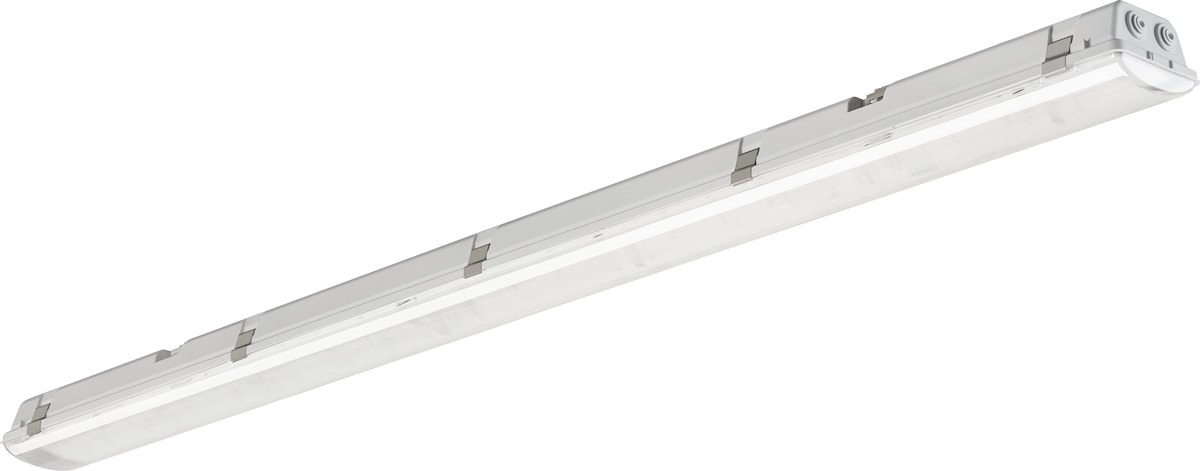

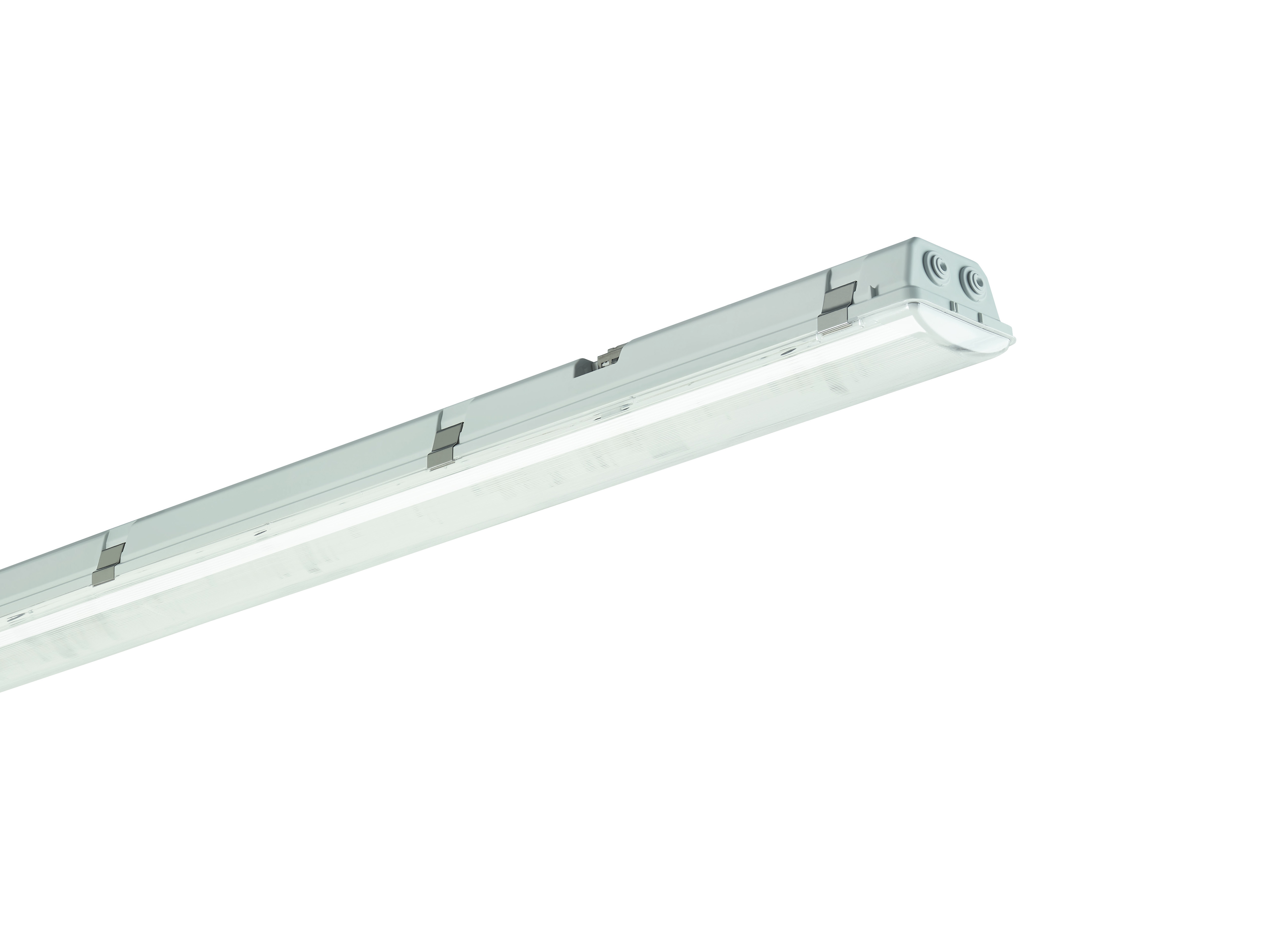

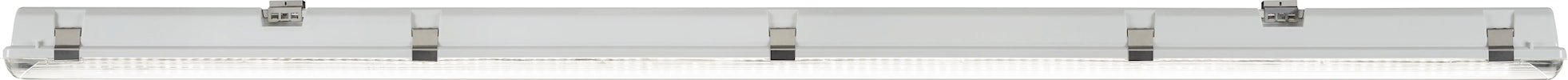

Start Waterproof, integrated LED weatherproof luminaire, with UV stabilized flat diffuser and linear prisms designed to achieve uniform lit appearance, optimise light output and to reduce glare, 301 stainless steel diffuser clips and fixing brackets for surface mounting. Polycarbonate housing, Polycarbonate diffuser, 8500 lm, 63 W, 135 lm/W, 4000 K, drive current 350 mA, Non dimmable, CRI80, IP65, IK08, Class I, nominal average life (h):50000, 1578 mm x 110 mm x 78 mm ,energy class: A++ A+ A, D-mark

Technical Assets

Dimensions (mm)

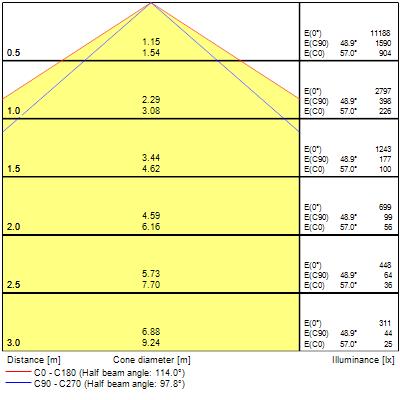

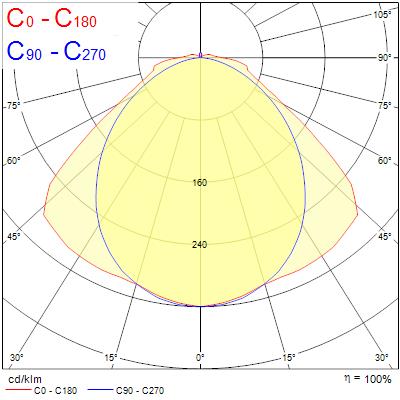

Photometrics

Product name
START Waterproof T 1500 HO IP65 8500lm 840
Technology
LED
Housing
PC Polycarbonate
General application
Logistics & Industry
Performance ambient temperature Tq (°C)
25
ETIM Class
EC000109
E-number FI
4357000
Warranty
5 years
Fixture luminous flux (lm)
8500
Luminaire efficacy (lm/W)
135
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
100
Photobiological Risk Group
RG1
Total power consumption (W)
67
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
1
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class I
Dimmable
No
Drive current (mA)
350
Inrush Current (A)
15
Inrush Duration (µs)
50
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
24
Max. products per 13A C Breaker
32
Max. products per 16A C Breaker
39
Max. products per 20A C Breaker
48
Max. products per 10A B Breaker
24
Max. products per 13A B Breaker
32
Max. products per 16A B Breaker
39
Max. products per 20A B Breaker
48
Lifespan L70 B50
60000
Lifespan L70 B20
60000
Lifespan L70 B10
60000
Lifespan L80 B50
60000
Lifespan L80 B20
60000
Lifespan L80 B10
60000
Lifespan L90 B50
51000
IP rating
IP65
IK rating
IK08
Diffuser material
UV stabilized PC Polycarbonate
Nominal Product Length (mm)
1578
Nominal Product Width (mm)
110
Nominal Product Height (mm)
78
Weight (kg)
2.49
Product EAN number
5410288680842
Packaging single length / height (cm)
167.2
Packaging single width (cm)
11.6
Packaging single depth (cm)
8.4
DUN14 (inner)
05410288680842
Units per outer package
1
Packaging outer length / height (cm)
167.2
Packaging outer width (cm)
11.6
Packaging outer depth (cm)
8.4
