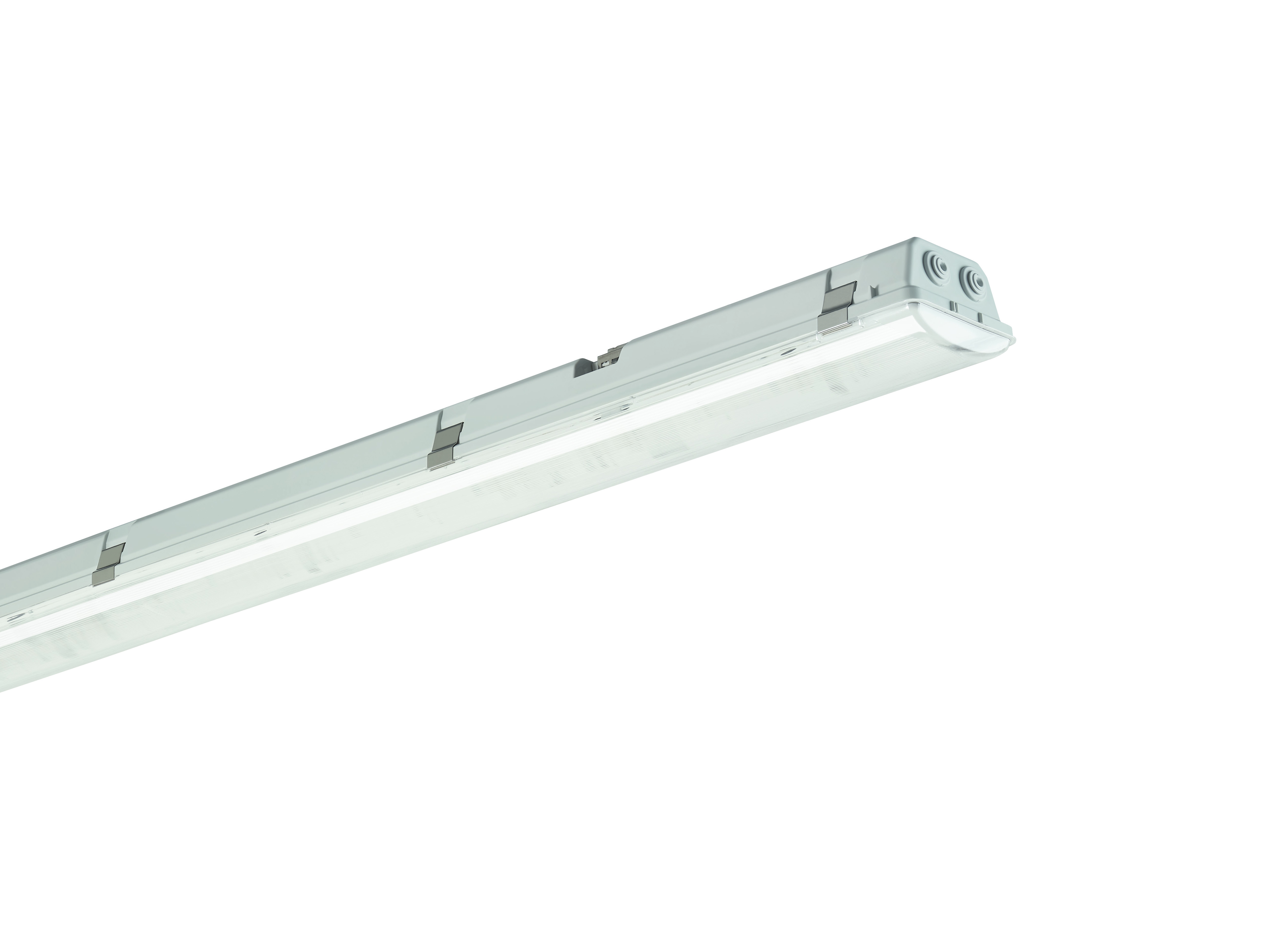

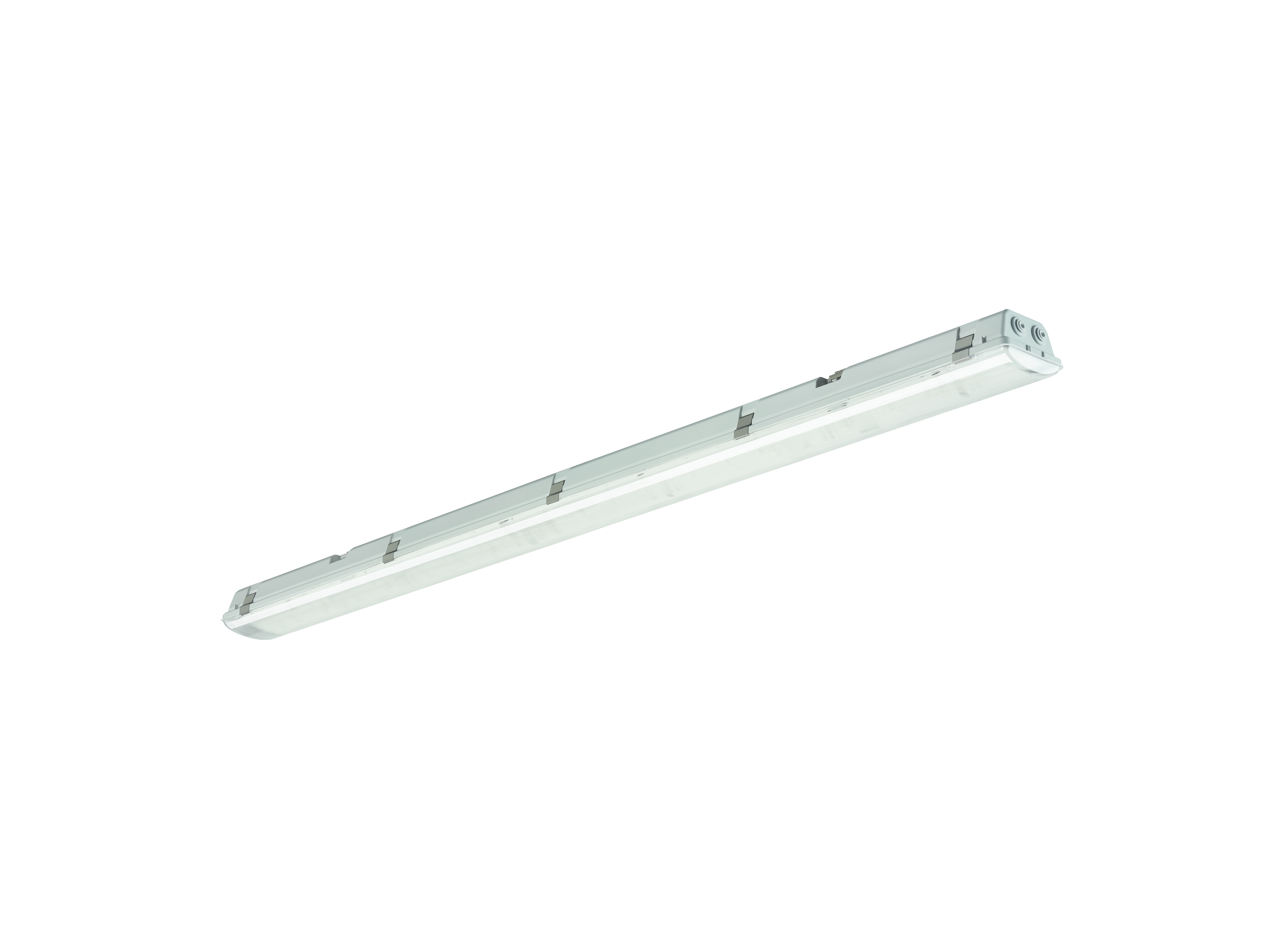

START Waterproof T 1500 HO IP65 8500lm 865

Item No: 0068087
This product is no longer available

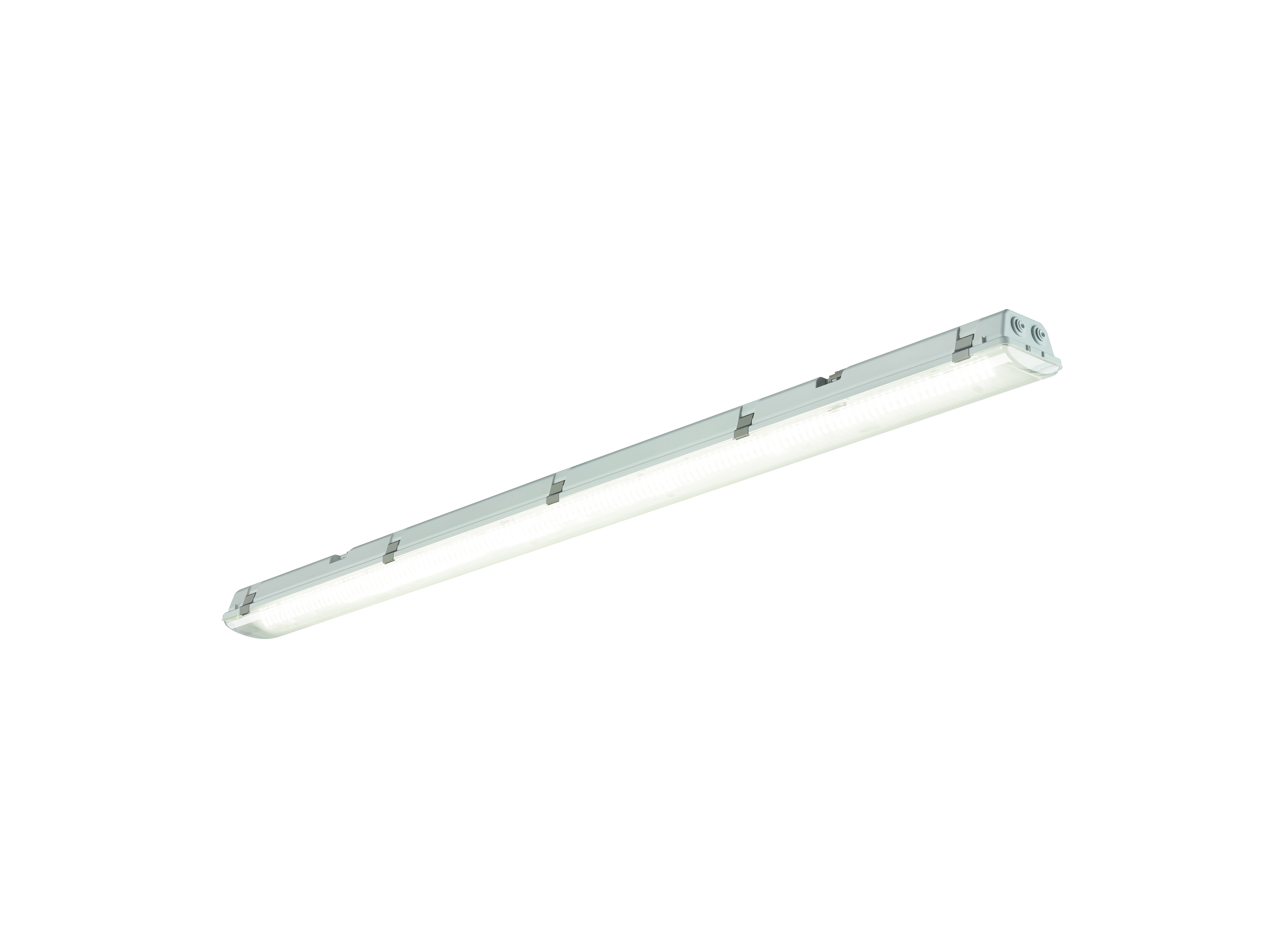

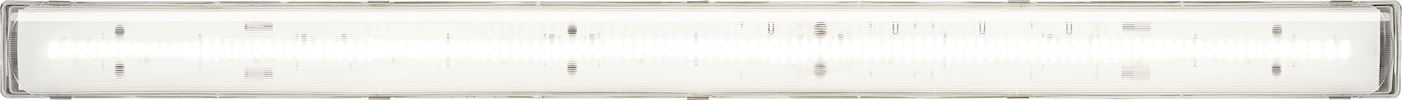

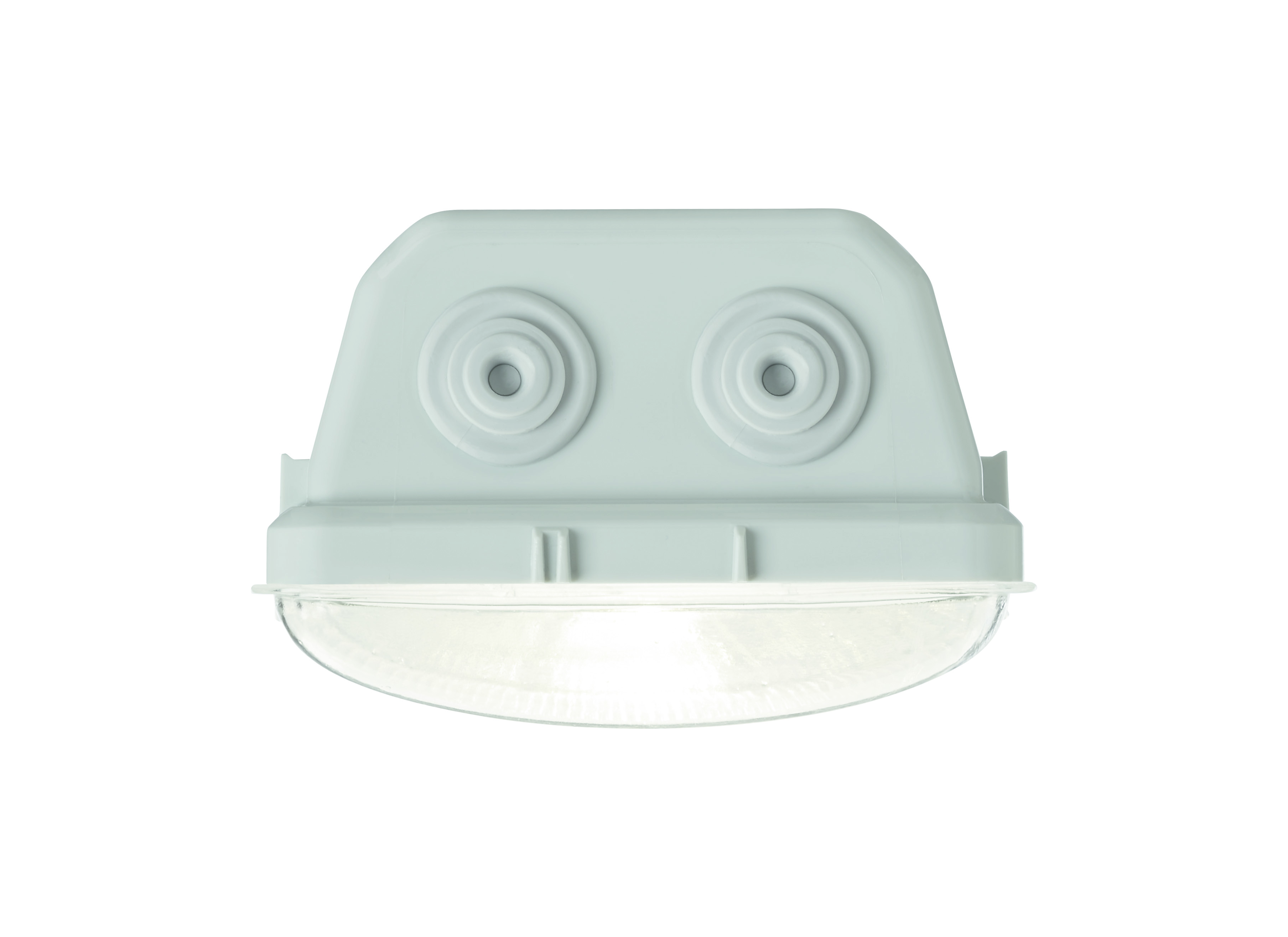

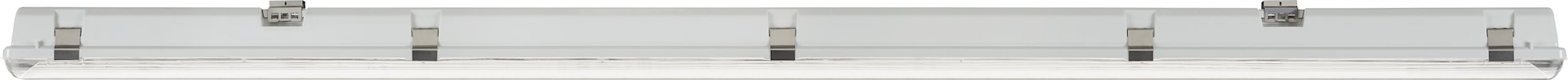

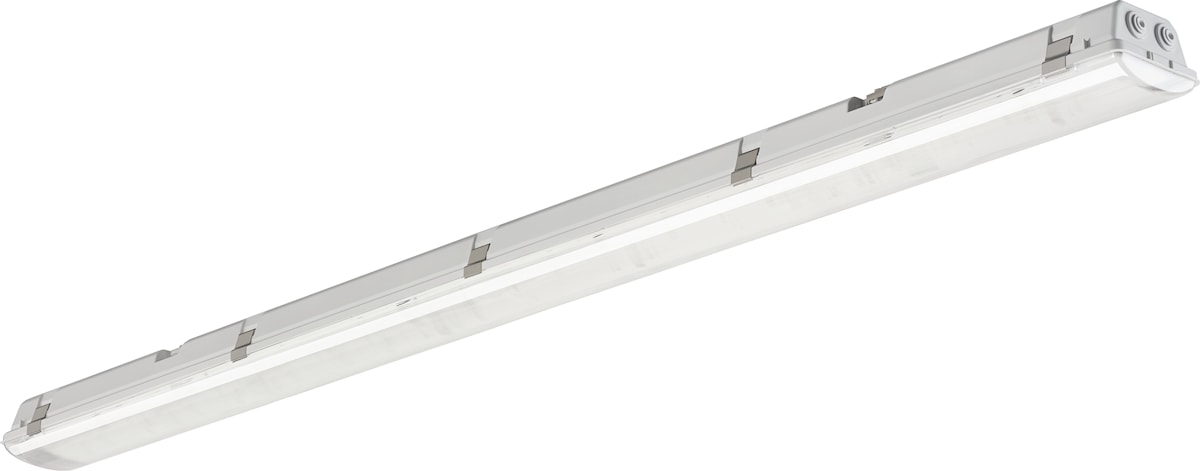

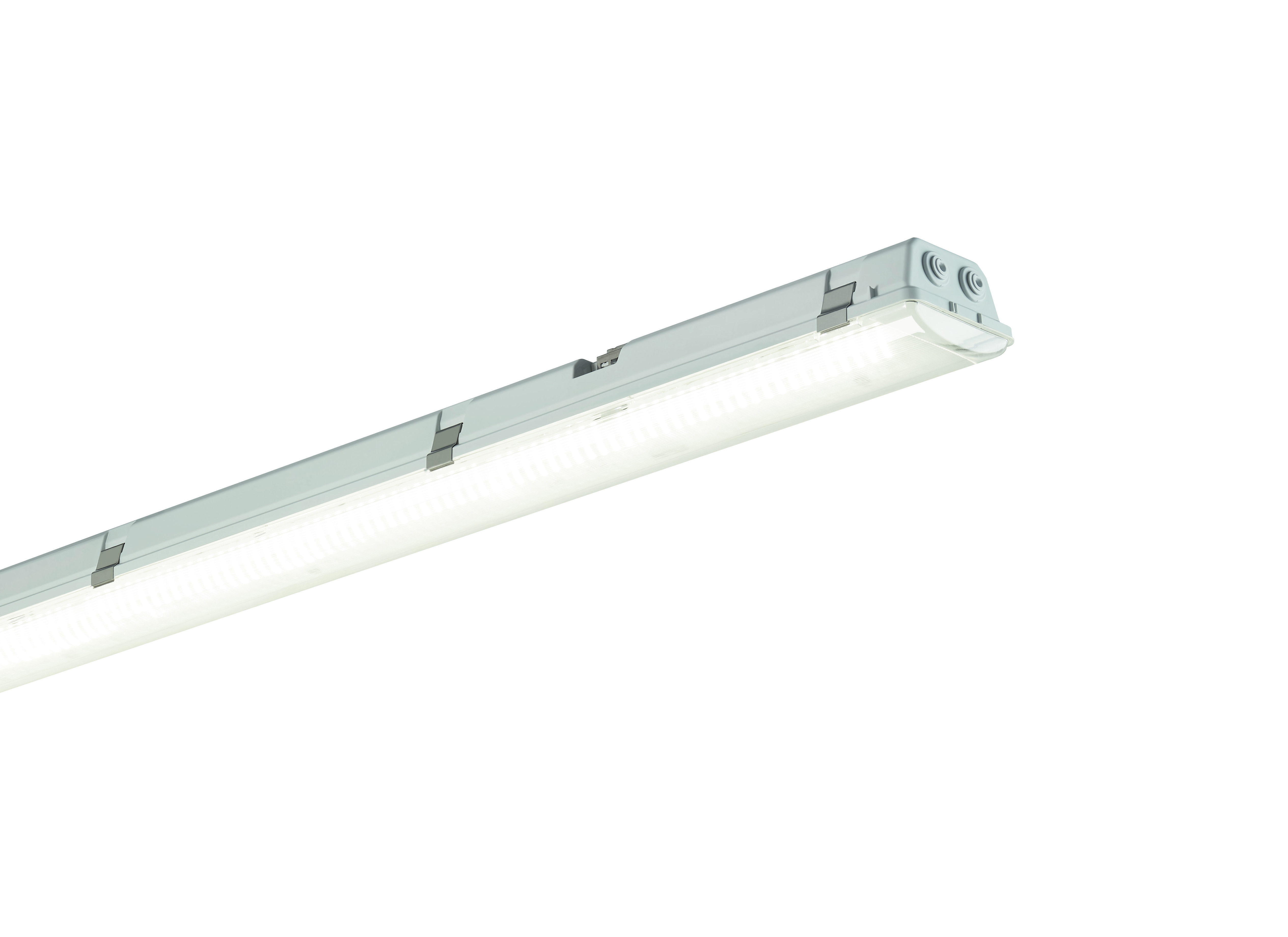

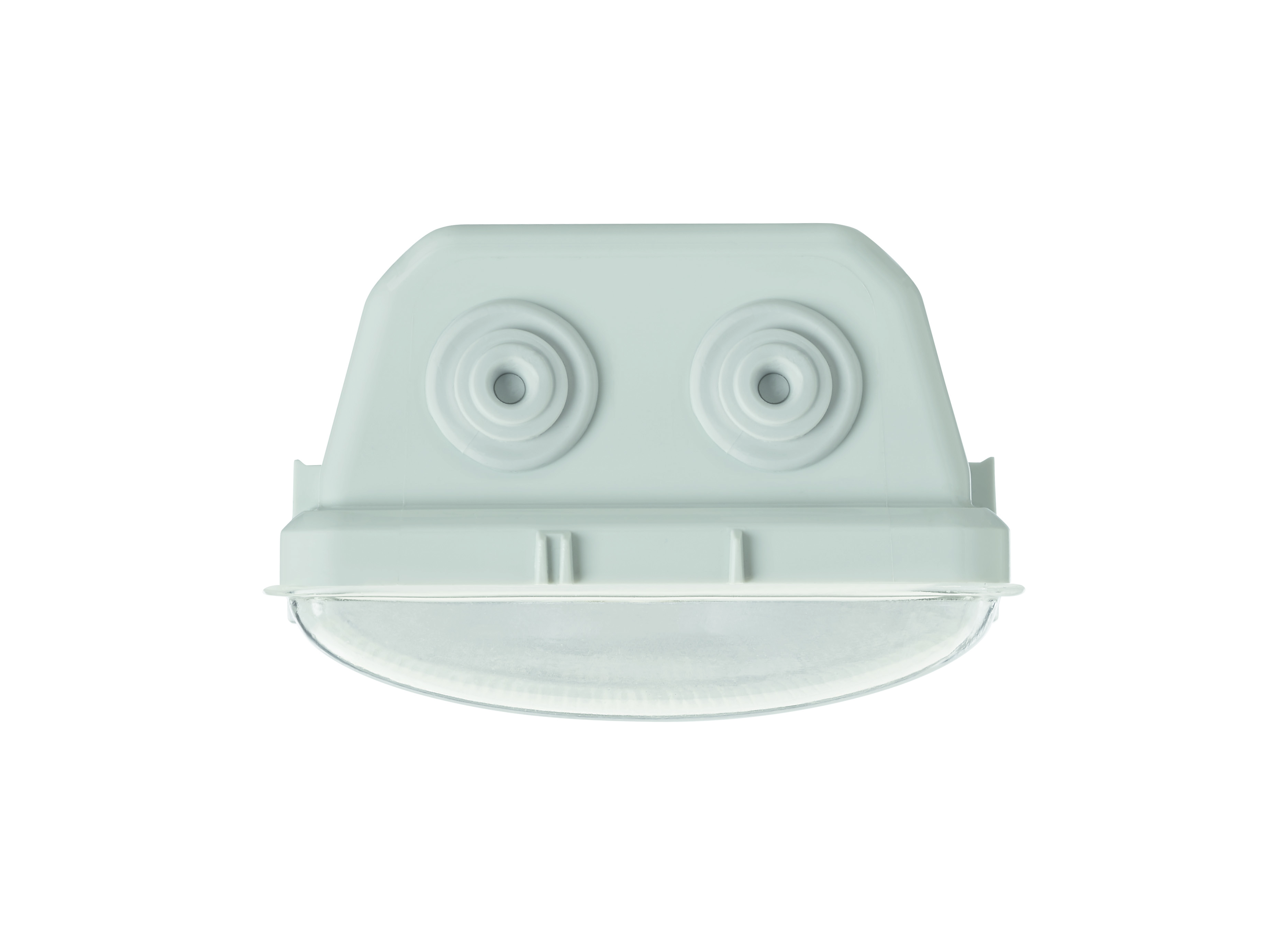

Start Waterproof, integrated LED weatherproof luminaire, with UV stabilized flat diffuser and linear prisms designed to achieve uniform lit appearance, optimise light output and to reduce glare, 301 stainless steel diffuser clips and fixing brackets for surface mounting. Polycarbonate housing, Polycarbonate diffuser, 8500 lm, 63 W, 135 lm/W, 6500 K, drive current 350 mA, Non dimmable, CRI80, IP65, IK08, Class I, nominal average life (h):50000, 1578 mm x 110 mm x 78 mm ,energy class: A++ A+ A, D-mark

Technical Assets

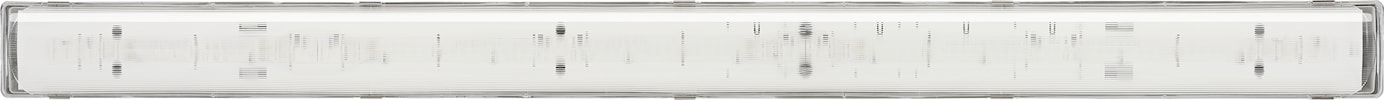

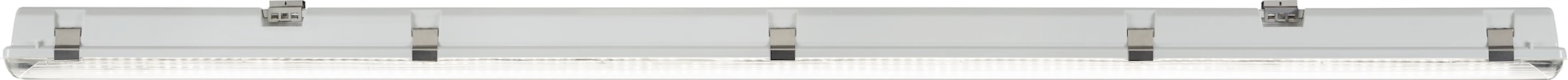

Dimensions (mm)

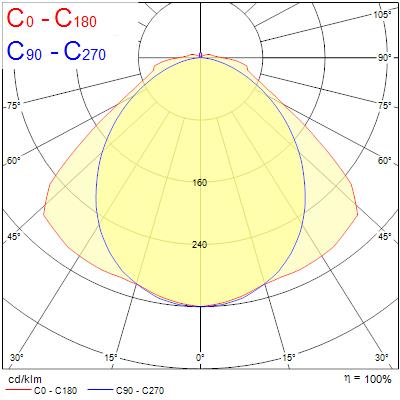

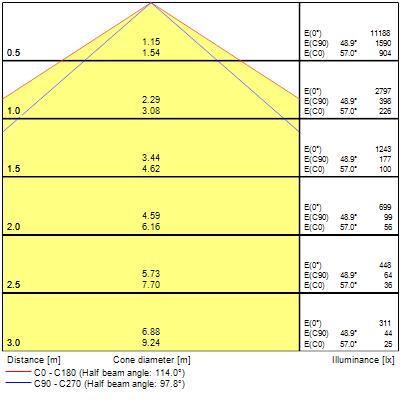

Photometrics

Product name
START Waterproof T 1500 HO IP65 8500lm 865
Technology
LED
General application
Logistics & Industry
Performance ambient temperature Tq (°C)
25
ETIM Class
EC000109
E-number FI
4357001
Warranty
5 years
Fixture luminous flux (lm)
8500
Luminaire efficacy (lm/W)
135
Correlated colour temperature (k)
6500
Light colour
Daylight
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
100
Photobiological Risk Group
RG1
Total power consumption (W)
67
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Electrical protection
Class I
Control gear required
No
Dimmable
No
Dimming method
N/A
Drive current (mA)
350
Nominal Frequency (Hz)
50/60Hz
Lifespan L70 B50
60000
Lifespan L70 B20
60000
Lifespan L70 B10
60000
Lifespan L80 B50
60000
Lifespan L80 B20
60000
Lifespan L80 B10
60000
Lifespan L90 B50
51000
IP rating
IP65
IK rating
IK08
Nominal Product Length (mm)
1578
Nominal Product Width (mm)
110
Nominal Product Height (mm)
78
Weight (kg)
2.49
Product EAN number
5410288680873
Packaging single length / height (cm)
167.2
Packaging single width (cm)
11.6
Packaging single depth (cm)
8.4
DUN14 (inner)
05410288680873
Units per outer package
1
Packaging outer length / height (cm)
167.2
Packaging outer width (cm)
11.6
Packaging outer depth (cm)
8.4
Dry applications use only
No
