ASCENT150 35W VHO 4K WHT DIM

Item No: 2056098
This product is not longer available.

Technical Assets

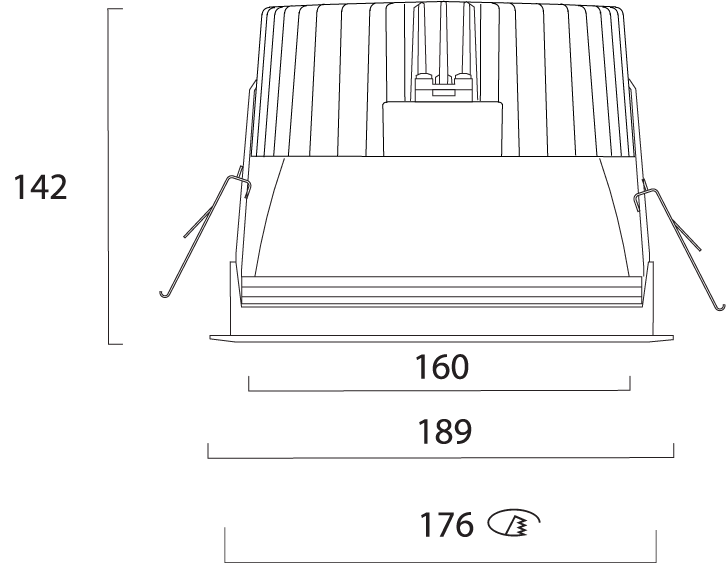

Dimensions (mm)

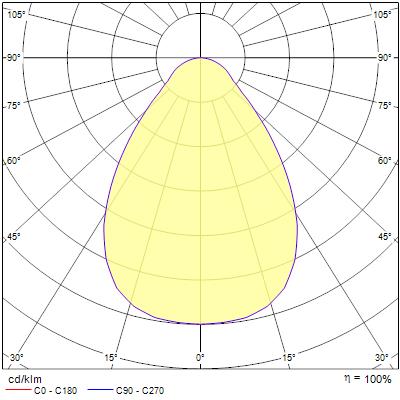

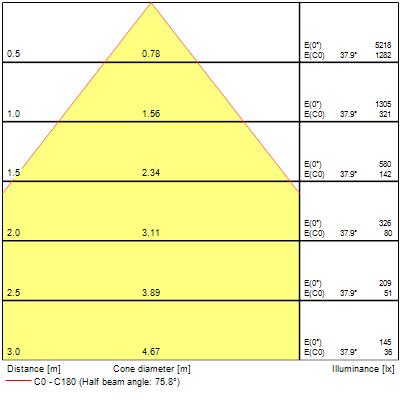

Photometrics

Product name
ASCENT150 35W VHO 4K WHT DIM
Technology
LED
Environment
Interior
General application
Education, Hospitality, Office, Retail
E-number FI
4276830
Useful luminous flux (Φuse)
2177
Fixture luminous flux (lm)
2177
Luminaire efficacy (lm/W)
62.2
LOR (%)
100
Correlated colour temperature (k)
4000
CRI (Ra)
80
Adjustable chromaticity
N
Beam Angle (°)
85
Total power consumption (W)
35
Dimmable
Yes
Dimming method
Mains: leading / trailing edge
Drive current (mA)
1000
Housing colour
White
IP rating
IP44
IK rating
IK02
Reflector finish
Not Applicable
Max. Lamp Diameter (mm) - D
189
Weight (kg)
1.7
Recessed Depth (mm)
142
Product EAN number
5025768560981
Packaging single length / height (cm)
25.0
Packaging single width (cm)
20.0
Packaging single depth (cm)
25.0
DUN14 (inner)
05025768560981
Units per outer package
1
Packaging outer length / height (cm)
25.0
Packaging outer width (cm)
20.0
Packaging outer depth (cm)
25.0
Datasheet
IES
LDT
cone
polar
Technical Drawing
Safety Sheet
Instruction Sheet
