MC2 D/I 1.2M 4K DALI WHT OPAL


Item No: 2059332
This product is no longer available

2059332 MC2 D/I 1.2M 4K DALI WHT OPAL Continuous lines of LED light, white RAL 9016, direct/indirect distribution (65/35), various accessories available, compact and minimalist design based on the Golden Mean, ideal for offices, meeting rooms, corridors, education facilities, museums and libraries, extruded aluminium body, diffuser: opal, colour temperature: 4000K neutral white, total system power: 32W, total fixture output: 4050lm, luminaire efficacy: 127lm/W, LOR: 100%, colour rendering: Ra >80, LED Chromacity: 3 step MacAdam ellipse, lifespan: 66,000 hours L90B10, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, drive current: (Direct) 800mA + (Indirect) 350mA, electronic driver, DALI dimmable, direct/indirect independently addressable, electrical protection: CLASS I, ingress protection rating: IP20, suitable for internal environment only.

Technical Assets


Dimensions (mm)

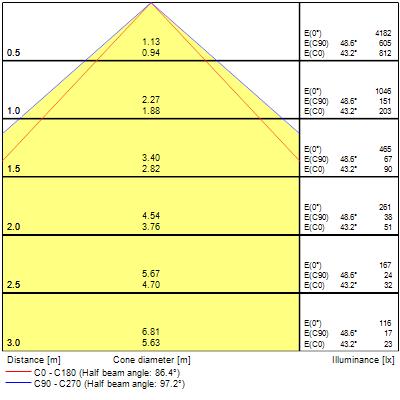

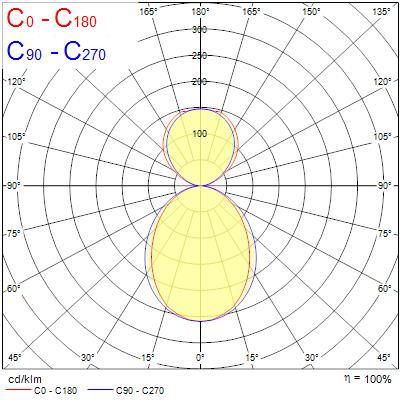

Photometrics

Product name
MC2 D/I 1.2M 4K DALI WHT OPAL
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Suspended
Environment
Internal
General application
Education, Hospitality, Office, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001743
E-number FI
4237828
Warranty
5 years
Fixture luminous flux (lm)
4050
Luminaire efficacy (lm/W)
127
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Glare control
< 21
Photobiological Risk Group
RG0
Total power consumption (W)
32
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.95
Electrical protection
Class I
Control gear type
Electronic ballast
Dimming method
DALI
Minimum dimming level (%)
1
Drive current (mA)
800
Inrush Current (A)
53
Inrush Duration (µs)
200
Energy Efficiency Class (A->G) of contained light source
C
Max. products per 16A C Breaker
48
Lifespan L70 B50
120000
Lifespan L70 B20
120000
Lifespan L80 B20
120000
Lifespan L90 B10
66000
Housing colour
White
IP rating
IP20
IK rating
IK02
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
1200
Nominal Product Width (mm)
54
Nominal Product Height (mm)
86
Weight (kg)
3.1
Product EAN number
5025768593323
Packaging single length / height (cm)
128.0
Packaging single width (cm)
15.0
Packaging single depth (cm)
15.0
DUN14 (inner)
05025768593323
Units per outer package
1
Packaging outer length / height (cm)
128.0
Packaging outer width (cm)
15.0
Packaging outer depth (cm)
15.0



Accessories
