MC2 TRIM 1.2M 4K DALI WHT OPAL

Item No: 2093127
This product is no longer available

2093127 MC2 TRIM 1.2M 4K DALI WHT OPAL Continuous lines of LED light, white RAL 9016, direct distribution, trim detail for plasterboard ceilings, suitable for recessed installation either horizontally or vertically, various accessories available, compact and minimalist design based on the Golden Mean, ideal for offices, meeting rooms, corridors, education facilities, museums and libraries, extruded aluminium body, diffuser: opal, colour temperature: 4000K neutral white, total system power: 21W, total fixture output: 2350lm, luminaire efficacy: 112lm/W, LOR: 100%, colour rendering: Ra >80, LED Chromacity: 3 step MacAdam ellipse, lifespan: 66,000 hours L90B10, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, drive current: 800mA, electronic driver, DALI dimmable, electrical protection: CLASS I, IP20, suitable for internal environment only.

Technical Assets

Dimensions (mm)

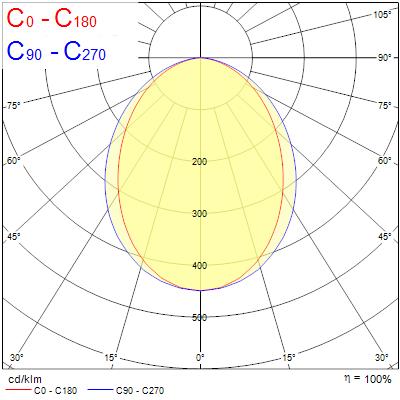

Photometrics

Product name
MC2 TRIM 1.2M 4K DALI WHT OPAL
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Internal
General application
Education, Hospitality, Office, Retail
Performance ambient temperature Tq (°C)
25
ETIM Class
EC002892
E-number FI
4237853
Warranty
5 years
Fixture luminous flux (lm)
2350
Luminaire efficacy (lm/W)
112
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Adjustable chromaticity
N
Glare control
< 17
Photobiological Risk Group
RG0
Total power consumption (W)
21
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Lamp power factor
0.98
Electrical protection
Class I
Control gear type
Electronic ballast
Dimming method
DALI
Minimum dimming level (%)
1
Drive current (mA)
800
Inrush Current (A)
40
Inrush Duration (µs)
178
Energy Efficiency Class (A->G) of contained light source
C
Max. products per 10A C Breaker
15
Max. products per 13A C Breaker
20
Max. products per 16A C Breaker
23
Max. products per 20A C Breaker
30
Max. products per 10A B Breaker
9
Max. products per 13A B Breaker
12
Max. products per 16A B Breaker
14
Max. products per 20A B Breaker
18
Lifespan L70 B50
120000
Lifespan L80 B20
120000
Lifespan L90 B10
66000
Housing colour
White
IP rating
IP20
IK rating
IK02
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
1200
Nominal Product Width (mm)
80
Nominal Product Height (mm)
86
Weight (kg)
2.8
Recessed Depth (mm)
136
Product EAN number
5025768931279
Packaging single length / height (cm)
125.0
Packaging single width (cm)
9.0
Packaging single depth (cm)
10.0
DUN14 (inner)
05025768931279
Units per outer package
1
Packaging outer length / height (cm)
125.0
Packaging outer width (cm)
9.0
Packaging outer depth (cm)
10.0
Certificate of Conformity EU
Datasheet
POLAR
LDT

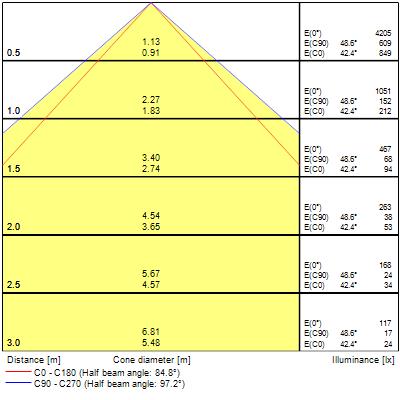

CONE
