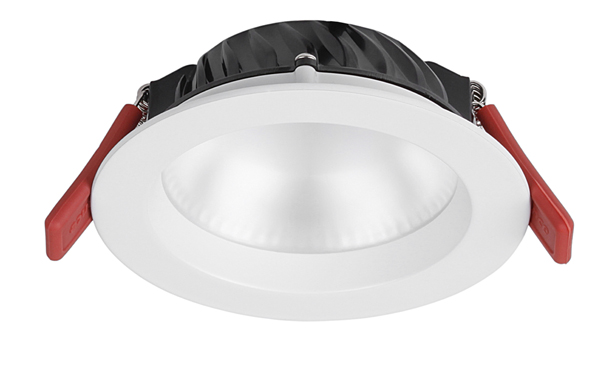

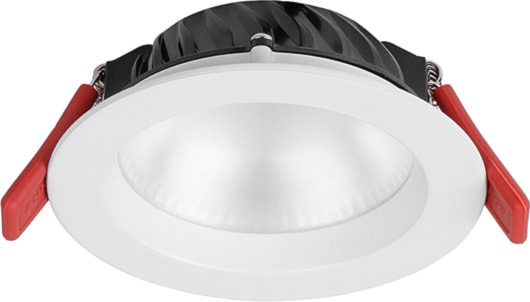

Syl-Lighter 110 LED 12W NW

Item No: 3031607
This product is no longer available

90mm cut out downlight with phase dim driver

Technical Assets

Dimensions (mm)

Photometrics

Product name
Syl-Lighter 110 LED 12W NW
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Interior
General application
Hospitality, Logistics & Industry, Office
ETIM Class
EC001744
E-number FI
4273883
E-number SE
7462414
Warranty
3 years
Fixture luminous flux (lm)
760
Luminaire efficacy (lm/W)
63
Correlated colour temperature (k)
4000
Light colour
Neutral White
Adjustable chromaticity
N
Beam Angle (°)
78
Photobiological Risk Group
RG0
Total power consumption (W)
12
Control gear type
Electronic ballast
Drive current (mA)
350
Energy Efficiency Class (A->G) of contained light source
E
Housing colour
White
IP rating
IP44/20
IK rating
IK02
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
110
Nominal Product Width (mm)
110
Nominal Product Height (mm)
35
Weight (kg)
0.367
Recessed Depth (mm)
35
Product EAN number
8711971316077
Packaging single length / height (cm)
11.6
Packaging single width (cm)
14.53
Packaging single depth (cm)
9.0
DUN14 (inner)
18711971316074
Units per outer package
20
Packaging outer length / height (cm)
48.0
Packaging outer width (cm)
31.8
Packaging outer depth (cm)
26.9
Glow Wire Test (°C)
650
Compatible dimmers
Leading / trailing edge
Datasheet
RFA

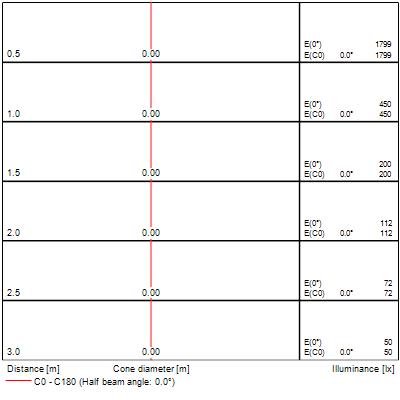

CONE
IES

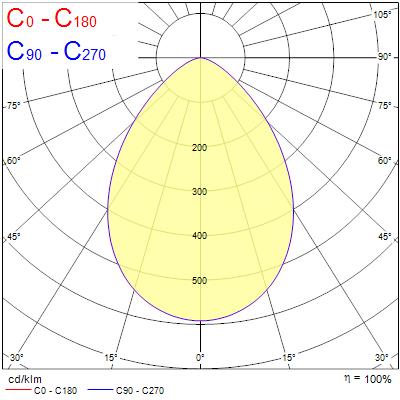

POLAR
LDT
Technical Drawing
Instruction Sheet
Safety Sheet 1
Safety Sheet 2



Accessories
