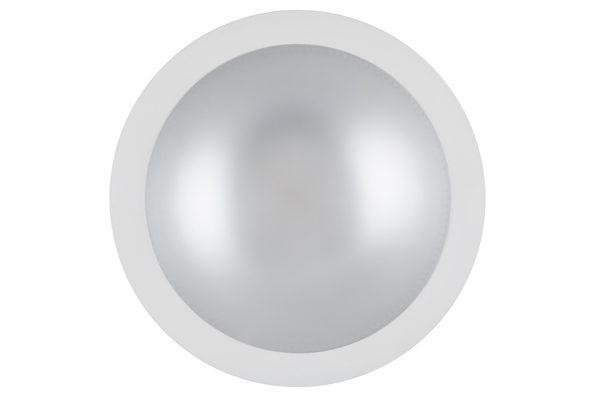

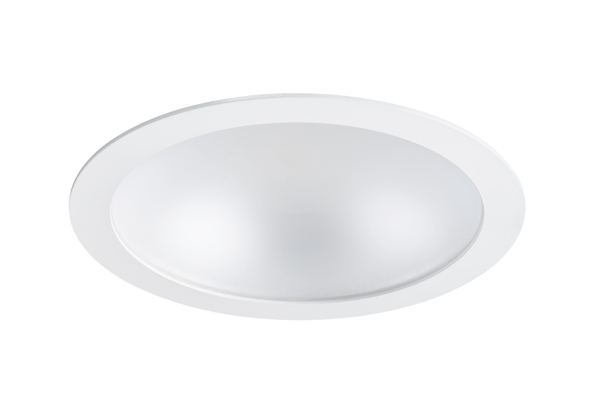

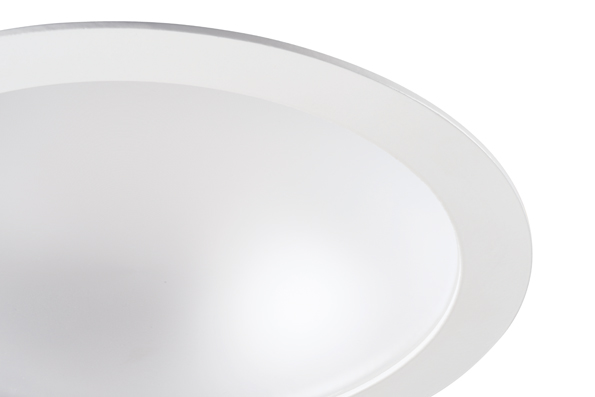

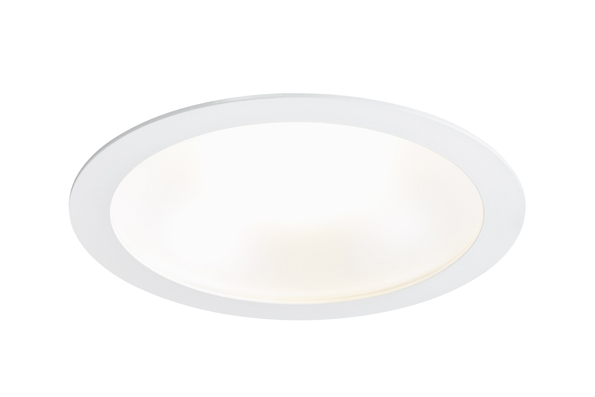

Syl-Lighter LED II 240 RO 25W NW
Item No:
3031825
This product is no longer available
.png)

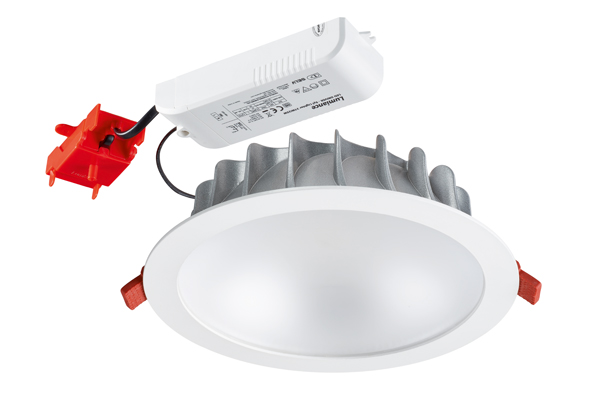

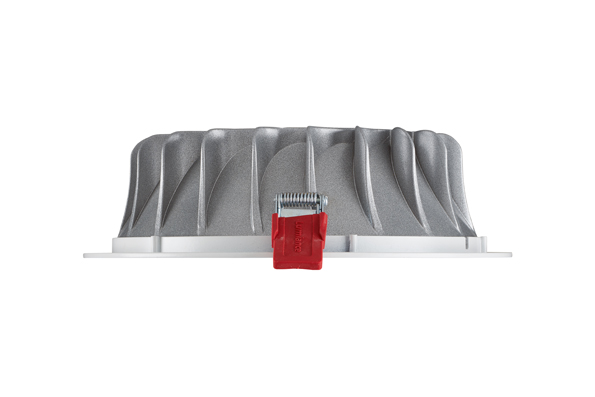

Ceiling recessed IP44 from the front LED downlight, perfect where limited ceiling void is available with only 65mm product depth and 225mm cutout. Ideal replacement for 2x26W CFL downlights. The polycarbonate diffuser allows for a wider light distribution and increased spacings between luminiares. Loop in loop out connector allows for quick installation. Die-cast aluminium body, 2289LM, 25W, 92lm/W, 4000K, Driver Current: 632mA, CRI80, 74° beam angle, Non-dimmable LED driver, IP44 from the front, IK07, (HxW) 65x225mm, 0.65kg, RAL9003, Class 2, 220-240V,
Technical Assets
Dimensions (mm)

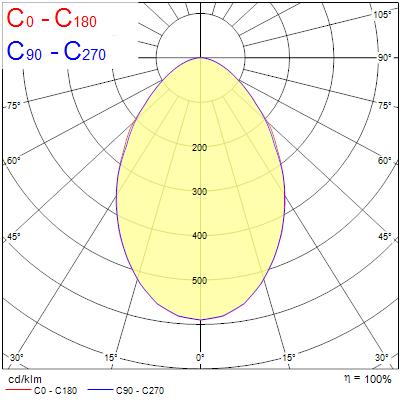

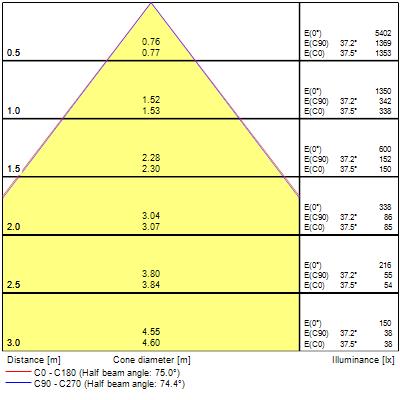

Photometrics
Product name
Syl-Lighter LED II 240 RO 25W NW
Technology
LED
Housing
Aluminium
Mount
Ceiling recessed mounting
Environment
Interior
General application
Hospitality
Operating temperature range (°C)
-10°C...+25°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4271267
E-number SE
7467176
Warranty
5 years
Fixture luminous flux (lm)
2289
Luminaire efficacy (lm/W)
92
LOR (%)
100
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM5
Adjustable chromaticity
N
Beam Angle (°)
74
Distribution type
Symmetric
Glare control
< 24
Photobiological Risk Group
RG0
Total power consumption (W)
25
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class II
Control gear type
LED driver constant current
Dimmable
No
Dimming method
N/A
Drive current (mA)
630
Inrush Current (A)
6.44
Inrush Duration (µs)
830
Energy Efficiency Class (A->G) of contained light source
E
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
9
Max. products per 13A C Breaker
11
Max. products per 16A C Breaker
13
Max. products per 20A C Breaker
17
Lifespan L70 B50
100000
Lifespan L80 B20
74000
Lifespan L90 B10
34000
Housing colour
RAL 9003 - Signal white
IP rating
IP44/20
IK rating
IK07
Diffuser finish
Opal
Diffuser material
PC Polycarbonate
Reflector finish
High-gloss
Nominal Product Height (mm)
65
Nominal Product Diameter (mm)
240
Weight (kg)
0.825
Recessed Depth (mm)
150
Product EAN number
8711971318255
Packaging single length / height (cm)
27.0
Packaging single width (cm)
27.0
Packaging single depth (cm)
8.0
DUN14 (inner)
18711971318252
Units per outer package
8
Packaging outer length / height (cm)
56.0
Packaging outer width (cm)
56.0
Packaging outer depth (cm)
19.5
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-10-25
