SYLSPOT KIT PLATINUM 360LM 830 IP20 BLACK 3-PACK
Item No:
0090105
.png)

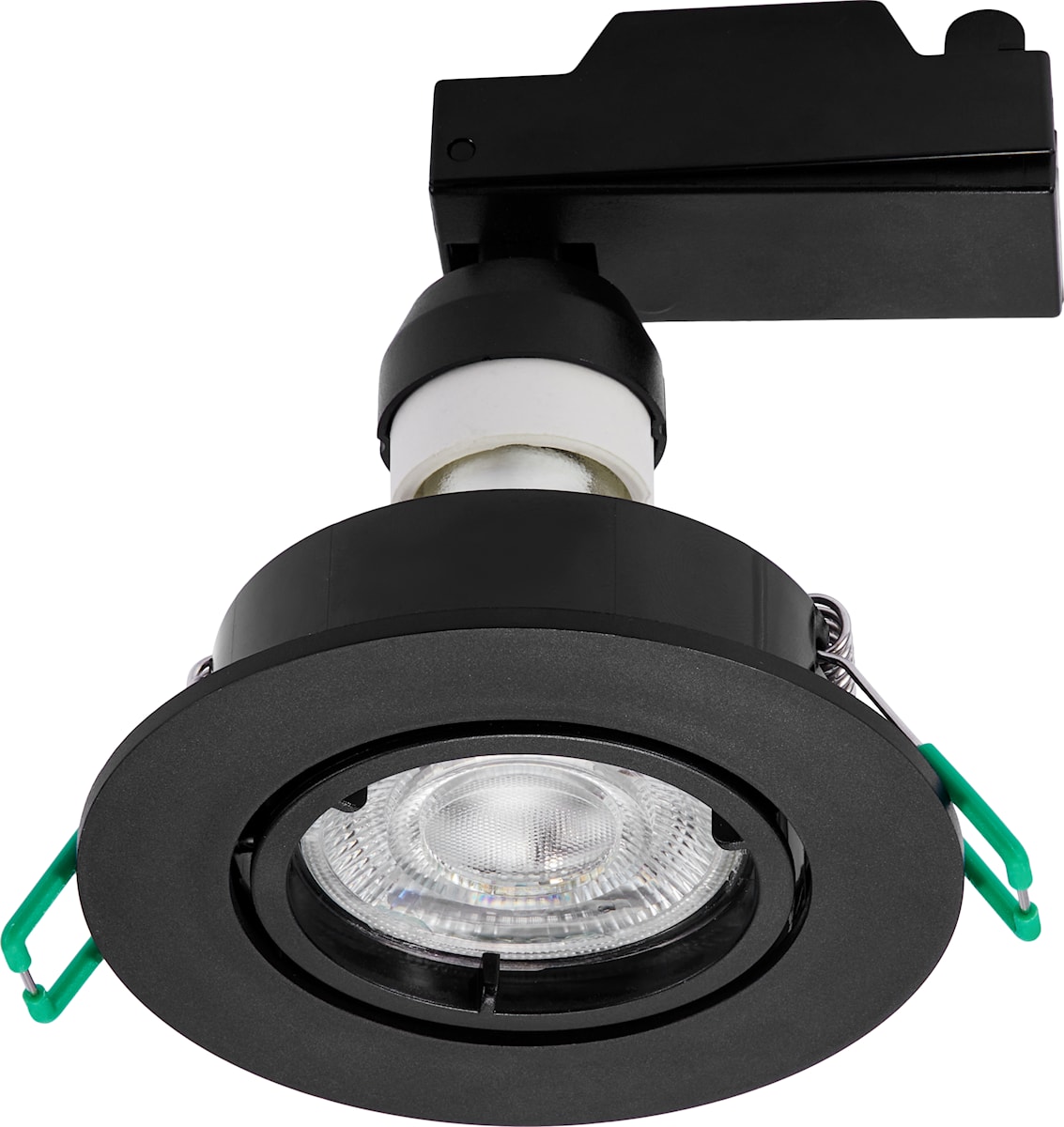

Energy efficient recessed spotlight Kit with A rated GU10 LED spotlight lamp. Polycarbonate body, round bezel ring in black colour finish, vertical tilt 30°, IP20 degree of protection, class II. Lumen output 360lm, CCT 3000K, Non Dim, beam angle 36°, CRI 80, power 2W, efficacy 211 lm/W, lifetime 30.000h. Ø90x103mm, cut-out Ø68-75mm. Suitable for internal environment only and for LED lamps only. Pack of 3 piece
Downloads
Technical Assets
Product name
SYLSPOT KIT PLATINUM 360LM 830 IP20 BLACK 3-PACK
Technology
LED
Cap/Base
GU10
Housing
PC Polycarbonate
Mount
Ceiling recessed mounting
Built in presence detector
NONE
Environment
Indoor
General application
Residential & Consumer
Operating temperature range (°C)
-20°C...+40°C
Virtual assistant compatibility
N/A
ETIM Class
EC001744
Warranty
3 years
Fixture luminous flux (lm)
360
Luminaire efficacy (lm/W)
184
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM6
Luminous Intensity (cd)
617
Beam Angle (°)
36
Distribution type
None
Photobiological Risk Group
RG1
Light source included
0090111
Emergency type
Total power consumption (W)
2
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.4
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
168
Electrical protection
Class II
Control gear type
Not required
Dimmable
No
Dimming method
N/A
Inrush Current (A)
4.9
Inrush Duration (µs)
108
Energy Efficiency Class (A->G) of contained light source
A
Nominal Frequency (Hz)
50/60Hz
Max. products per 16A C Breaker
195
Max. products per 16A B Breaker
153
Connectable conductor cross section - Min (mm²)
0.75
Connectable conductor cross section - Max (mm²)
1
Housing colour
Black
IP rating
IP20
IK rating
IK02
Diffuser finish
Other
Diffuser material
None
Reflector finish
Not Applicable
Nominal Product Length (mm)
103
Nominal Product Diameter (mm)
90
Built-in diameter (mm)
75
Weight (kg)
0.35
Product EAN number
5410288901053
Packaging single length / height (cm)
30.05
Packaging single width (cm)
9.0
Packaging single depth (cm)
7.5
DUN14 (inner)
15410288901050
Units per outer package
16
Packaging outer length / height (cm)
38.0
Packaging outer width (cm)
32.0
Packaging outer depth (cm)
32.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
