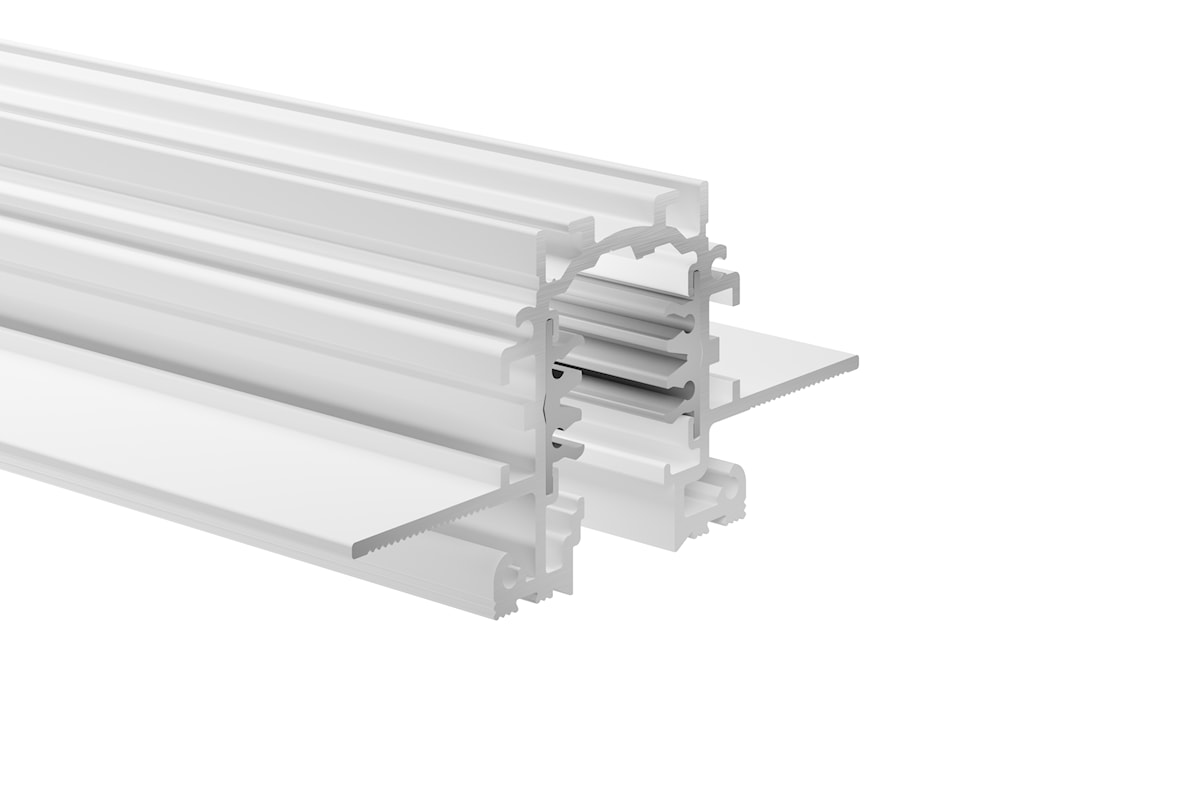

Lytespan Trimless Recessed 1m White 9000-1/w-tr
Item No:
2070246
Please check item availability with your sales contact.
Lytespan Trimless Recessed - 3 circuit track + 2 circuit control L1/L2/L3/Neutral/ground 16A/440V + D+/D- 2x1A/50V FELV AC, DALI, DMX, 1-10V etc. compatible, circuits can be controlled individually, aluminum body, suitable for trimless recessed installation, 1000 x 92 x 42.8 mm (L x W x H), white (RAL 9010). Please check compatible adaptor list.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
Lytespan Trimless Recessed 1m White 9000-1/w-tr
Technology
Non - Electrical Device
Accessory type
Electrical
Type of accessory
Track
Housing
Aluminium
Mount
Ceiling recessed mounting, Wall recessed
General application
Hospitality, Museums & Galleries, Office
ETIM Class
EC000101
Warranty
5 years
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Electrical protection
Class I
Housing colour
White
Nominal Product Length (mm)
1000
Nominal Product Width (mm)
92
Nominal Product Height (mm)
42.8
Weight (kg)
1.7
Product EAN number
5025768702466
Packaging single length / height (cm)
106.0
Packaging single width (cm)
6.2
Packaging single depth (cm)
6.2
DUN14 (inner)
05025768702466
Units per outer package
1
Packaging outer length / height (cm)
106.0
Packaging outer width (cm)
6.2
Packaging outer depth (cm)
6.2
Accessories
-
OneTrack 1m Protection Cover White s-9000/gp-wItem No: 9200889
-
Lytespan Trimless End Feed Cover White s-9001/tr-wItem No: 2070345
-
OneTrack Medium M13 Bracket White s-9000/322-M13wItem No: 9200800
-
Lytespan Cutting Tool Trimless Track s-9000/t-trItem No: 2070365
-
Lytespan Reinforcing Junction White s-9500/314-w2Item No: 2070359
-
Lytespan Trimless Endcap+Side Lock White 9004/tr-wItem No: 2070293
-
OneTrack L-Feed Connector In White 9011/wItem No: 9200727
-
OneTrack Straight Connector White 9003/wItem No: 9200719
.jpg?h=290&w=290)
-
OneTrack Live End Feed Right White 9001/wItem No: 9200709
-
OneTrack Clamp+M6 Gripper Alu s-9000-p2/117Item No: 9200769
-
OneTrack Live End Feed Left White 9002/wItem No: 9200711
-
Lytespan Trimless Cover Right+Left White s-9011/tr-wItem No: 2070347
-
OneTrack L-Feed Connector Out White 9012/wItem No: 9200729
-
OneTrack M13 S SuspensionBracket s-9000/312-M13-wItem No: 9200808
-
OneTrack Suspension Hook White s-9000/h-wItem No: 9200891
-
OneTrack M6 Medium Pen Bracket White s-9000/322-M6wItem No: 9200806
-
Lytespan Trimless End Lock+Screw White 9004/trl-wItem No: 2070291
