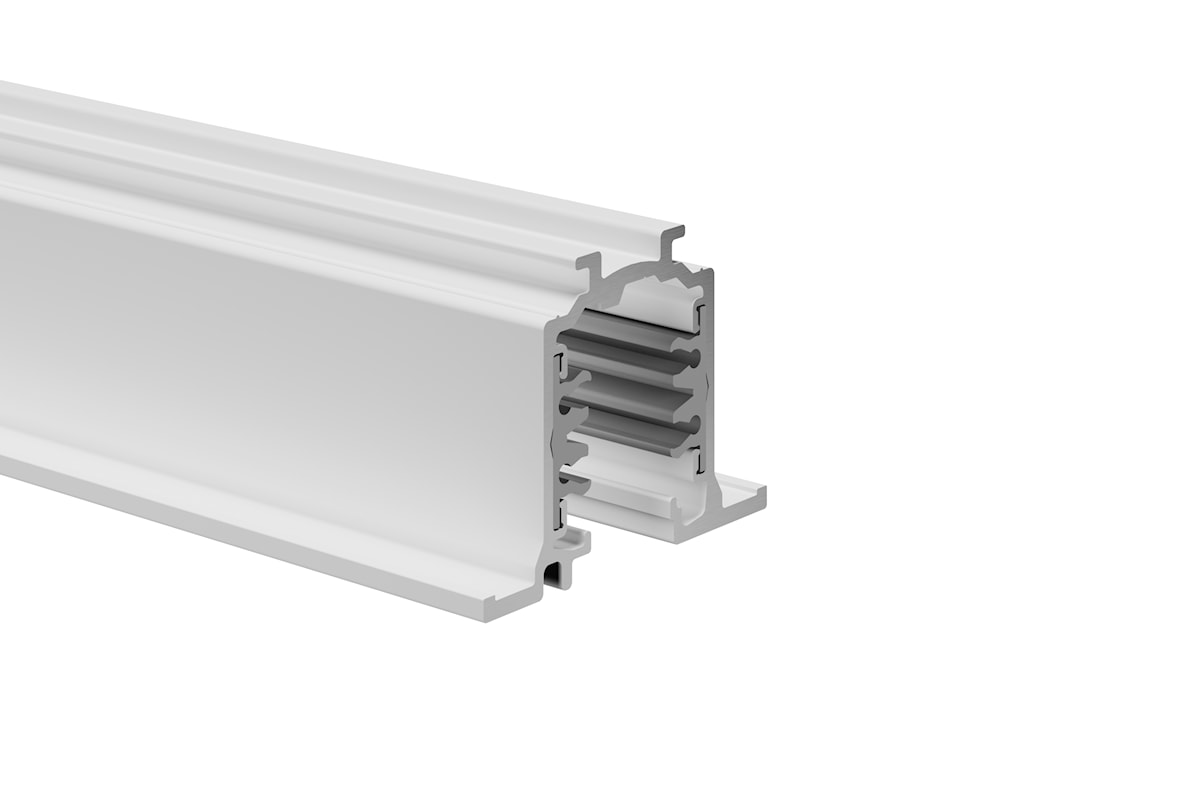

ONETRACK RECESS 4M WHITE CARTON TUBE 9000-4/W-R
Item No:
9200604
Please check item availability with your sales contact.
OneTrack Recessed - 3 circuit track + 2 circuit control L1/L2/L3/Neutral/ground 16A/440V + D+/D- 2x1A/50V FELV AC, DALI, DMX, 1-10V etc. compatible, circuits can be controlled individually, aluminum body, suitable for recessed mounting, 4000 x 30.7 x 37.8 mm (L x W x H), white (RAL 9010). Singular carton tube packaging.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
ONETRACK RECESS 4M WHITE CARTON TUBE 9000-4/W-R
Technology
Accessory
Accessory type
Electrical
Type of accessory
Track
Housing
Aluminium
Mount
Ceiling recessed mounting, Wall recessed
General application
Museums & Galleries, Office
ETIM Class
EC000101
Warranty
5 years
Primary Supply/Product voltage - min (V)
220
Primary Supply/Product voltage - max (V)
240
Electrical protection
Class I
Housing colour
White
Nominal Product Length (mm)
4000
Nominal Product Width (mm)
52
Nominal Product Height (mm)
37.8
Weight (kg)
4.55
Product EAN number
4012289006044
Packaging single length / height (cm)
406.0
Packaging single width (cm)
6.2
Packaging single depth (cm)
6.2
Units per outer package
1
Packaging outer length / height (cm)
406.0
Packaging outer width (cm)
5.4
Packaging outer depth (cm)
5.4
