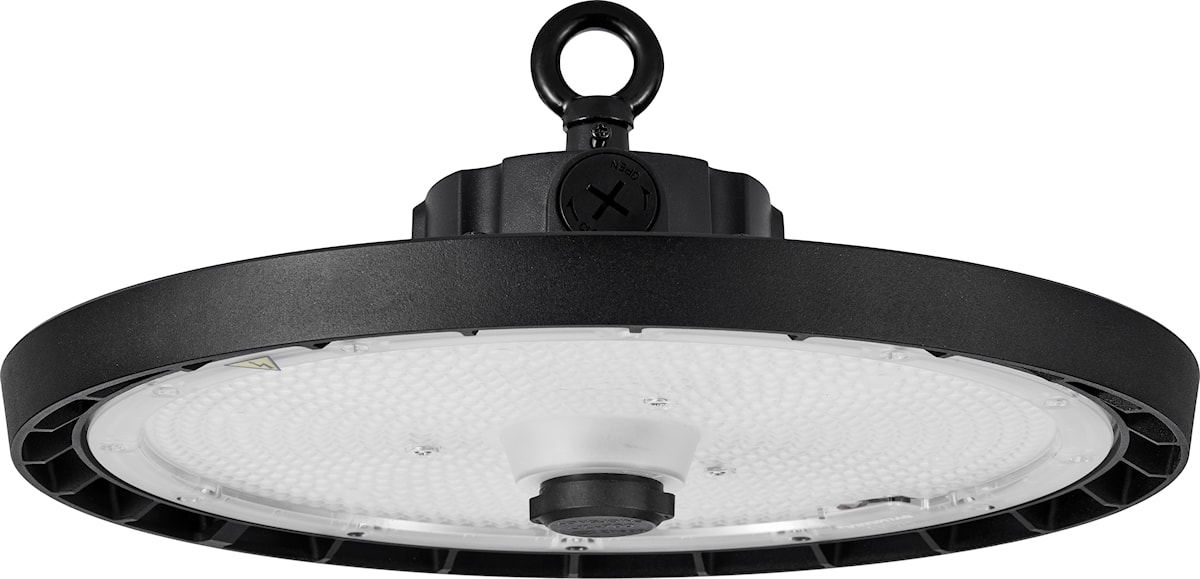

Sylvania Granit IP65 0-10V 20000-33000lm 840 WB Z18
Item No:
0039118
.png)
Interior LED Highbay, comes complete with 1500mm flying lead, hook for hanging and 1200mm chain with carabiners, Traffic black (RAL9017) aluminium housing with PC lens, IP65, IK08, Class I, 4000K, CRI80, 0-10V dimmable, 20,000 / 25,000 / 33,000lm (3 different steps selectable with DIP switches), 99 / 124 / 165W, 202 / 202 / 200lm/W depends on setting, Symmetrical Wide beam (85°), 105.000hrs L80B50 lifespan, 370 x 182mm (D x H) dimensions, 2.72kg weight, operating temperature range from -30 to +50°C, Zhagabook 18 socket in the center.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
Sylvania Granit IP65 0-10V 20000-33000lm 840 WB Z18
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Suspended
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
-30°C...+50°C
ETIM Class
EC001716
E-number FI
4357195
Warranty
5 years
Fixture luminous flux (lm)
33000
Luminaire efficacy (lm/W)
200
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
85
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
1200
Emergency type
Total power consumption (W)
165
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
15
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
0-10V
Inrush Current (A)
100
Inrush Duration (µs)
300
Energy Efficiency Class (A->G) of contained light source
B
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
8
Max. products per 13A C Breaker
11
Max. products per 16A C Breaker
13
Max. products per 20A C Breaker
17
Max. products per 10A B Breaker
6
Max. products per 13A B Breaker
8
Max. products per 16A B Breaker
10
Max. products per 20A B Breaker
12
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
120000
Lifespan L80 B50
105000
Lifespan L80 B20
91000
Housing colour
RAL 9017 - Traffic black
IP rating
IP65
IK rating
IK08
Diffuser material
PC Polycarbonate
Reflector finish
Matt
Nominal Product Height (mm)
182
Nominal Product Diameter (mm)
370
Weight (kg)
2.72
Product EAN number
5410288391182
Packaging single length / height (cm)
42.0
Packaging single width (cm)
40.1
Packaging single depth (cm)
16.0
DUN14 (inner)
05410288391182
Units per outer package
1
Packaging outer length / height (cm)
42.0
Packaging outer width (cm)
40.1
Packaging outer depth (cm)
16.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-30-50
