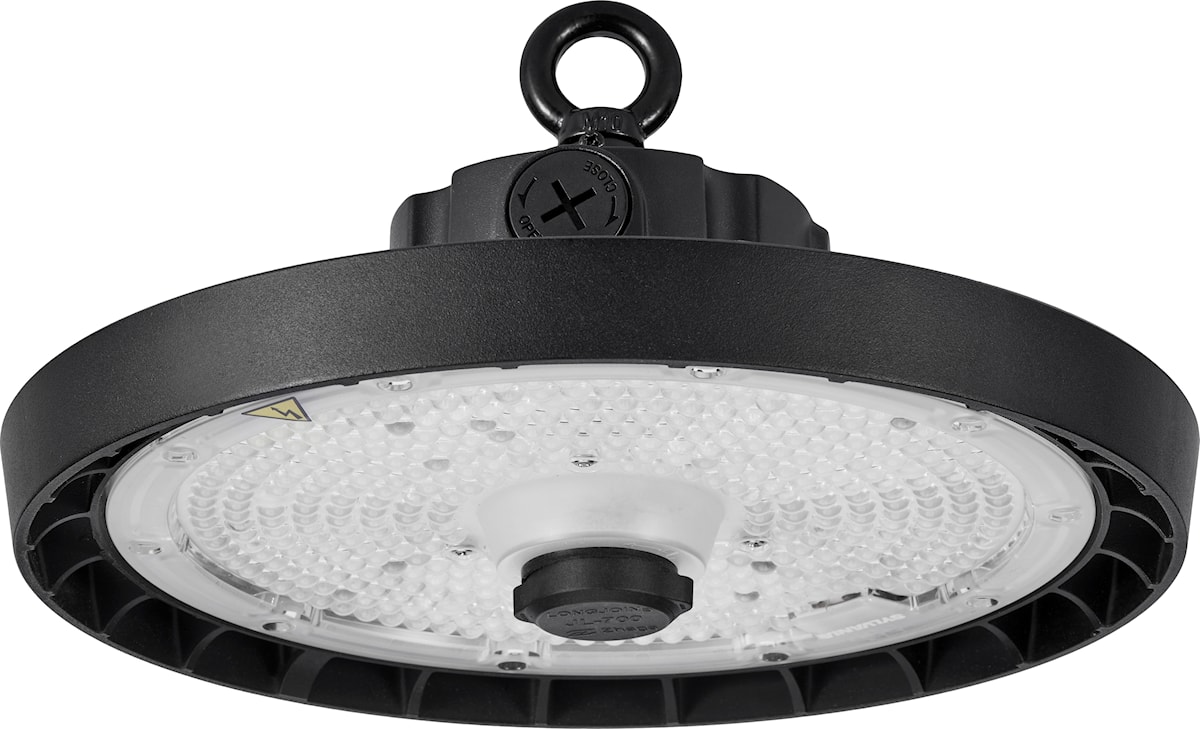

Sylvania Granit IP65 0-10V 12500-20600lm 865 WB Z18
Item No:
0039123
.png)
Interior LED Highbay, comes complete with 1500mm flying lead, hook for hanging and 1200mm chain with carabiners, Traffic black (RAL9017) aluminium housing with PC lens, IP65, IK08, Class I, 6500K, CRI80, 0-10V dimmable, 12,500 / 16,500 / 20,600lm (3 different steps selectable with DIP switches), 62 / 82 / 103W, 202 / 201 / 200lm/W depends on setting, Symmetrical Wide beam (85°), 105.000hrs L80B50 lifespan, 298 x 182mm (D x H) dimensions, 2.22kg weight, operating temperature range from -30 to +50°C, Zhagabook 18 socket in the center.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
Sylvania Granit IP65 0-10V 12500-20600lm 865 WB Z18
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Suspended
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
-30°C...+50°C
ETIM Class
EC001716
E-number FI
4357197
Warranty
5 years
Fixture luminous flux (lm)
20600
Luminaire efficacy (lm/W)
200
Correlated colour temperature (k)
6500
Light colour
Cool White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
85
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
1200
Emergency type
Total power consumption (W)
103
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
15
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
0-10V
Inrush Current (A)
90
Inrush Duration (µs)
300
Energy Efficiency Class (A->G) of contained light source
B
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
17
Max. products per 13A C Breaker
22
Max. products per 16A C Breaker
27
Max. products per 20A C Breaker
34
Max. products per 10A B Breaker
10
Max. products per 13A B Breaker
13
Max. products per 16A B Breaker
16
Max. products per 20A B Breaker
21
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
120000
Lifespan L80 B50
105000
Lifespan L80 B20
91000
Housing colour
RAL 9017 - Traffic black
IP rating
IP65
IK rating
IK08
Diffuser material
PC Polycarbonate
Reflector finish
Matt
Nominal Product Height (mm)
182
Nominal Product Diameter (mm)
298
Weight (kg)
2.22
Product EAN number
5410288391236
Packaging single length / height (cm)
34.5
Packaging single width (cm)
32.6
Packaging single depth (cm)
16.0
DUN14 (inner)
05410288391236
Units per outer package
1
Packaging outer length / height (cm)
34.5
Packaging outer width (cm)
32.6
Packaging outer depth (cm)
16.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-30-50
0039123.ldt
0039123_PC Shade.ldt
0039123_ALU Shade.ldt
0039123_11800lm_62W_ALU Shade.ldt
0039123_11800lm_62W_PC Shade.ldt
0039123_12500lm_62W.ldt
0039123_15500lm_82W_ALU Shade.ldt
0039123_15500lm_82W_PC Shade.ldt
0039123_16500lm_82W.ldt
0039123_19300lm_103W_ALU Shade.ldt
0039123_19300lm_103W_PC Shade.ldt
0039123_20600lm_103W.ldt
0039123_11800lm_62W_ALU Shade.ies
0039123_11800lm_62W_PC Shade.ies
0039123_12500lm_62W.ies
0039123_15500lm_82W_ALU Shade.ies
0039123_15500lm_82W_PC Shade.ies
0039123_16500lm_82W.ies
0039123_19300lm_103W_ALU Shade.ies
0039123_19300lm_103W_PC Shade.ies
0039123_20600lm_103W.ies
0039123_PC Shade.ldt
0039123_ALU Shade.ldt
0039123_11800lm_62W_ALU Shade.ldt
0039123_11800lm_62W_PC Shade.ldt
0039123_12500lm_62W.ldt
0039123_15500lm_82W_ALU Shade.ldt
0039123_15500lm_82W_PC Shade.ldt
0039123_16500lm_82W.ldt
0039123_19300lm_103W_ALU Shade.ldt
0039123_19300lm_103W_PC Shade.ldt
0039123_20600lm_103W.ldt
0039123_11800lm_62W_ALU Shade.ies
0039123_11800lm_62W_PC Shade.ies
0039123_12500lm_62W.ies
0039123_15500lm_82W_ALU Shade.ies
0039123_15500lm_82W_PC Shade.ies
0039123_16500lm_82W.ies
0039123_19300lm_103W_ALU Shade.ies
0039123_19300lm_103W_PC Shade.ies
0039123_20600lm_103W.ies
