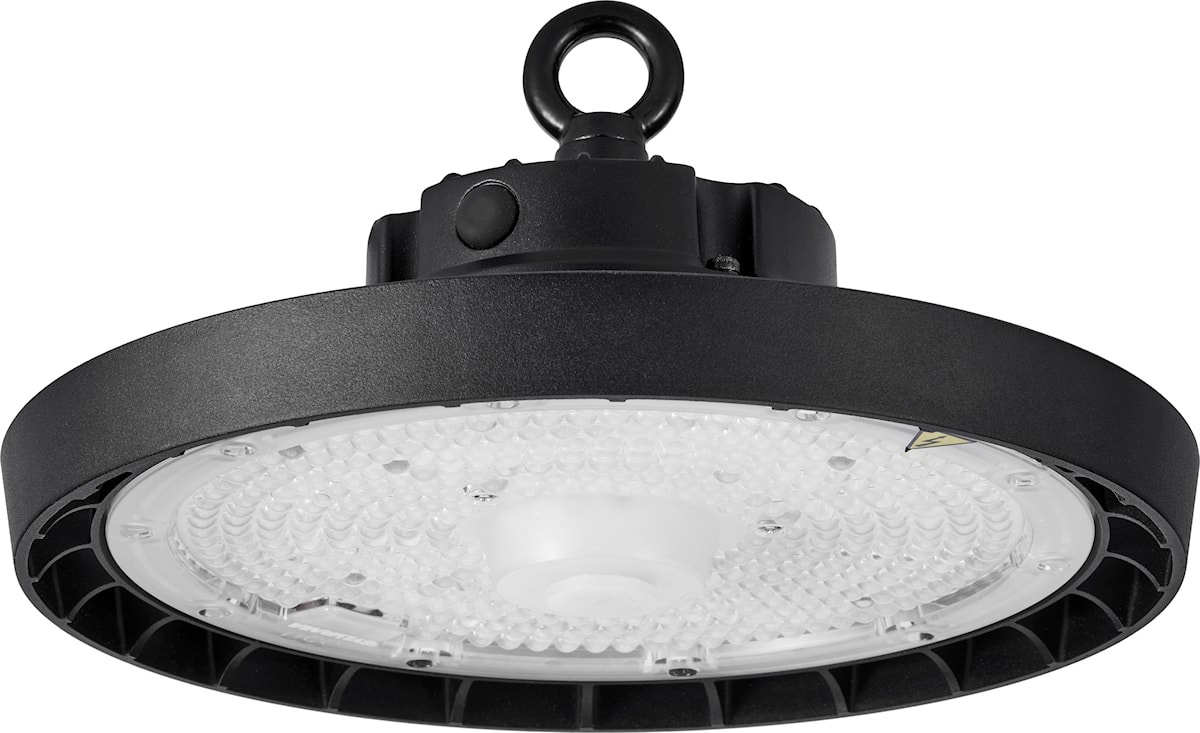

Sylvania Granit IP65 DALI 20600lm 840 WB
Item No:
0039133
.png)
Interior LED Highbay, comes complete with 1500mm flying lead, hook for hanging and 1200mm chain with carabiners, Traffic black (RAL9017) aluminium housing with PC lens, IP65, IK08, Class I, 4000K, CRI80, DALI dimmable, 20600lm, 103W, 200lm/W, Symmetrical Wide beam (85°), 105.000hrs L80B50 lifespan, 298 x 172mm (D x H) dimensions, 2.23kg weight, operating temperature range from -30 to +50°C.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
Sylvania Granit IP65 DALI 20600lm 840 WB
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Suspended
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
-30°C...+50°C
ETIM Class
EC001716
E-number FI
4357199
Warranty
5 years
Fixture luminous flux (lm)
20600
Luminaire efficacy (lm/W)
200
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
85
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
1200
Emergency type
Total power consumption (W)
103
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
12
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
DALI-2
Inrush Current (A)
80
Inrush Duration (µs)
350
Energy Efficiency Class (A->G) of contained light source
B
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
12
Max. products per 13A C Breaker
15
Max. products per 16A C Breaker
18
Max. products per 20A C Breaker
23
Max. products per 10A B Breaker
9
Max. products per 13A B Breaker
12
Max. products per 16A B Breaker
14
Max. products per 20A B Breaker
18
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
120000
Lifespan L80 B50
105000
Lifespan L80 B20
91000
Housing colour
RAL 9017 - Traffic black
IP rating
IP65
IK rating
IK08
Diffuser material
PC Polycarbonate
Reflector finish
Matt
Nominal Product Height (mm)
172
Nominal Product Diameter (mm)
298
Weight (kg)
2.23
Product EAN number
5410288391335
Packaging single length / height (cm)
34.5
Packaging single width (cm)
32.6
Packaging single depth (cm)
16.0
DUN14 (inner)
05410288391335
Units per outer package
1
Packaging outer length / height (cm)
34.5
Packaging outer width (cm)
32.6
Packaging outer depth (cm)
16.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-30-50
Accessories
-
Bracket and Arm for Small Sylvania GranitItem No: 0039604
-
Sylvania Granit Self Test EM KITItem No: 0039783
-
PC Lampshade Transparent for Small Sylvania GranitItem No: 0039744
-
Alu Shade Alu Color for Small Sylvania GranitItem No: 0039742
-
Alu Shade Black Color for Small Sylvania GranitItem No: 0039743
