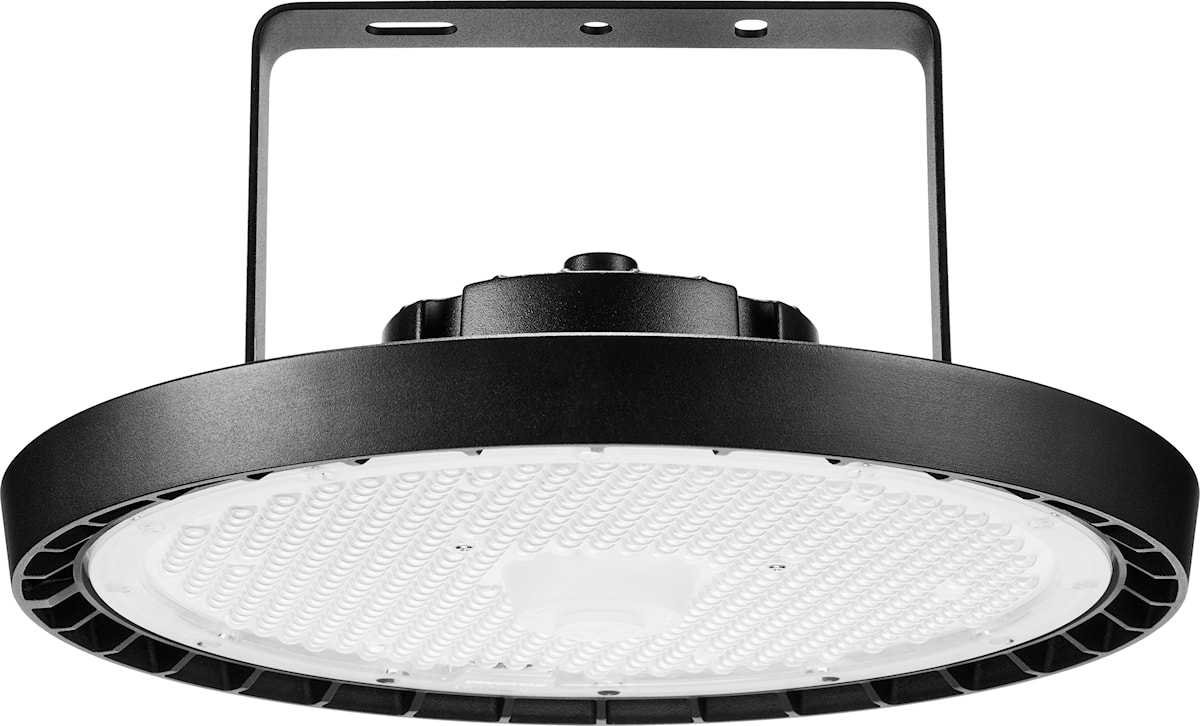

Sylvania Granit IP65 DALI 37200LM 840 Aisle
Item No:
0039138
.png)
Interior LED Highbay, comes complete with 1500mm flying lead, mounting bracket for surface mounting, Traffic black (RAL9017) aluminium housing with PC lens, IP65, IK08, Class I, 4000K, CRI80, DALI dimmable, 37200lm, 218W, 171lm/W, Aisle optic (30 x 70°), 105.000hrs L80B50 lifespan, 370 x 202mm (D x H) dimensions, 3.2kg weight, operating temperature range from -30 to +50°C.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
Sylvania Granit IP65 DALI 37200LM 840 Aisle
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Ceiling surface mounting
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
-30°C...+50°C
ETIM Class
EC001716
E-number FI
4357202
Warranty
5 years
Fixture luminous flux (lm)
37200
Luminaire efficacy (lm/W)
171
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
70*30
Distribution type
Asymmetric
Glare control
< 25
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
1200
Emergency type
Total power consumption (W)
218
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
15
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
DALI-2
Inrush Current (A)
80
Inrush Duration (µs)
350
Energy Efficiency Class (A->G) of contained light source
B
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
6
Max. products per 13A C Breaker
7
Max. products per 16A C Breaker
9
Max. products per 20A C Breaker
12
Max. products per 10A B Breaker
5
Max. products per 13A B Breaker
7
Max. products per 16A B Breaker
8
Max. products per 20A B Breaker
10
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
120000
Lifespan L70 B20
120000
Lifespan L70 B10
120000
Lifespan L80 B50
105000
Lifespan L80 B20
91000
Lifespan L80 B10
84000
Lifespan L90 B50
51000
Lifespan L90 B20
44000
Lifespan L90 B10
41000
Housing colour
RAL 9017 - Traffic black
IP rating
IP65
IK rating
IK08
Diffuser material
PC Polycarbonate
Reflector finish
Matt
Nominal Product Height (mm)
202
Nominal Product Diameter (mm)
370
Weight (kg)
3.23
Product EAN number
5410288391380
Packaging single length / height (cm)
42.0
Packaging single width (cm)
40.1
Packaging single depth (cm)
16.0
DUN14 (inner)
05410288391380
Units per outer package
1
Packaging outer length / height (cm)
42.0
Packaging outer width (cm)
40.1
Packaging outer depth (cm)
16.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-30-50
