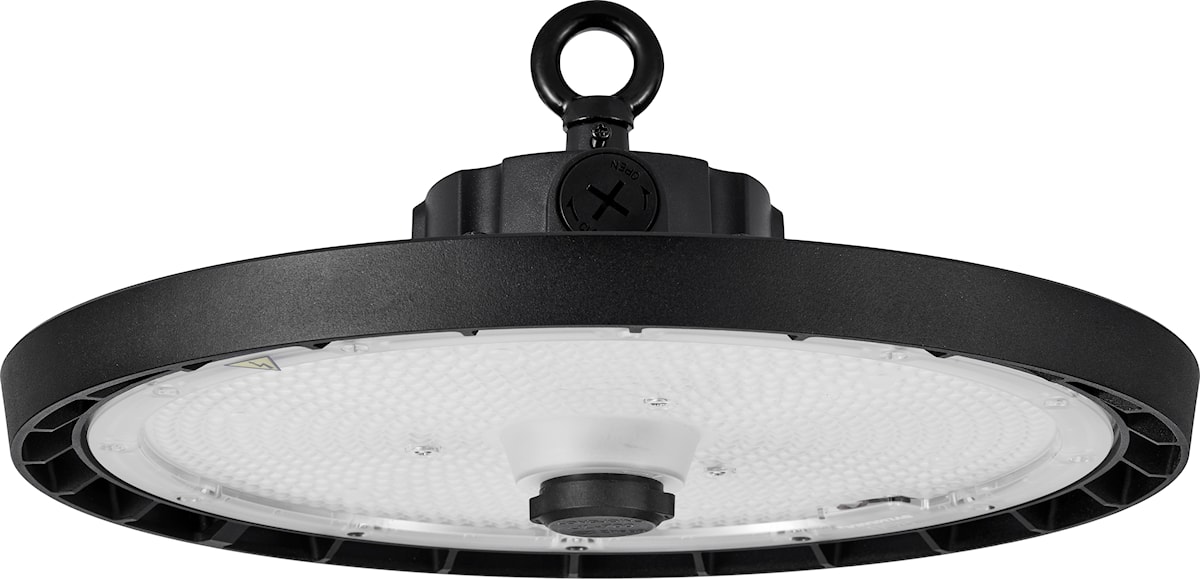

Sylvania Granit IP65 D4i 33000lm 840 WB Z18
Item No:
0039152
.png)
Interior LED Highbay, comes complete with 1500mm flying lead, hook for hanging and 1200mm chain with carabiners, Traffic black (RAL9017) aluminium housing with PC lens, IP65, IK08, Class I, 4000K, CRI80, D4i driver included, 33000lm, 165W, 200lm/W, Symmetrical Wide beam (85°), 105.000hrs L80B50 lifespan, 370 x 182mm (D x H) dimensions, 2.55kg weight, operating temperature range from -30 to +50°C, Zhagabook 18 socket in the center.
Downloads
Technical Assets
Dimensions (mm)
Photometrics
Product name
Sylvania Granit IP65 D4i 33000lm 840 WB Z18
Technology
LED
Cap/Base
N/A
Housing
Aluminium
Mount
Suspended
Built in presence detector
NONE
General application
Logistics & Industry
Operating temperature range (°C)
-30°C...+50°C
ETIM Class
EC001716
E-number FI
4357204
Warranty
5 years
Fixture luminous flux (lm)
33000
Luminaire efficacy (lm/W)
200
Correlated colour temperature (k)
4000
Light colour
Neutral White
CRI (Ra)
80
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
85
Distribution type
Symmetric
Glare control
< 25
Photobiological Risk Group
RG1
Luminous flux (emergency) (lm)
1200
Emergency type
Total power consumption (W)
165
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
10
Electrical protection
Class I
Control gear required
No
Control gear type
LED driver constant current
Dimmable
Yes
Dimming method
D4i
Inrush Current (A)
100
Inrush Duration (µs)
350
Energy Efficiency Class (A->G) of contained light source
B
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
8
Max. products per 13A C Breaker
10
Max. products per 16A C Breaker
13
Max. products per 20A C Breaker
16
Max. products per 10A B Breaker
5
Max. products per 13A B Breaker
6
Max. products per 16A B Breaker
8
Max. products per 20A B Breaker
10
Connectable conductor cross section - Min (mm²)
1
Connectable conductor cross section - Max (mm²)
1.5
Lifespan L70 B50
120000
Lifespan L80 B50
105000
Lifespan L80 B20
91000
Housing colour
RAL 9017 - Traffic black
IP rating
IP65
IK rating
IK08
Diffuser material
PC Polycarbonate
Reflector finish
Matt
Nominal Product Height (mm)
182
Nominal Product Diameter (mm)
370
Weight (kg)
2.55
Product EAN number
5410288391526
Packaging single length / height (cm)
42.0
Packaging single width (cm)
40.1
Packaging single depth (cm)
16.0
DUN14 (inner)
05410288391526
Units per outer package
1
Packaging outer length / height (cm)
42.0
Packaging outer width (cm)
40.1
Packaging outer depth (cm)
16.0
Glow Wire Test (°C)
850
Optimal operating condition (°C)
-30-50
