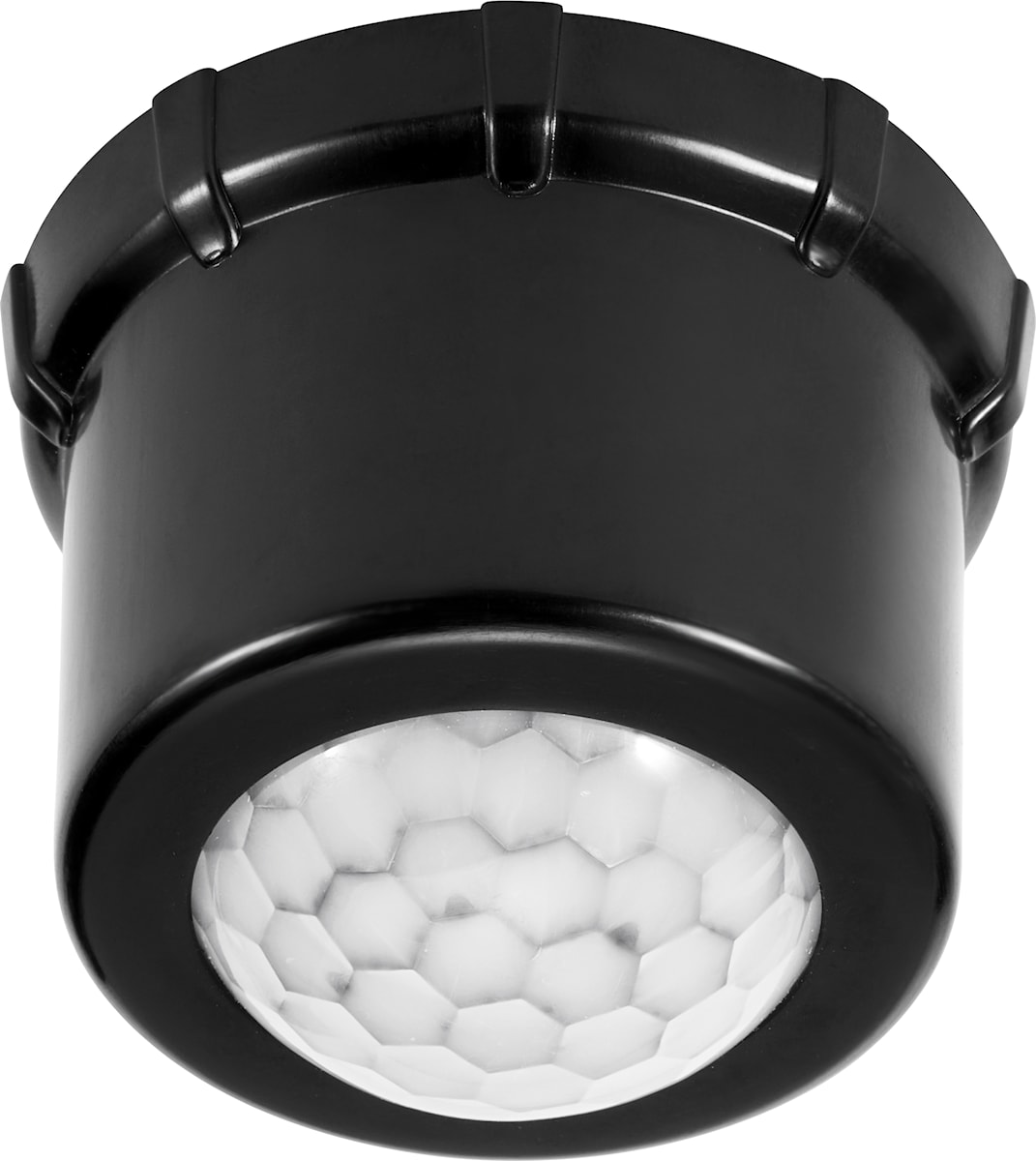

Sylvania Granit PIR sensor 0-10V Z18
Item No:
0039161
PIR sensor suitable for Granit 0-10V types with Zhagabook 18 in the center (SKUs 0039110 - 0039126). Detection up to 16m diameter at 15m mounting height (for detecting Forklift, detecting humans up to 12m mounting height). Daylight and movement sensing. Programmable via remote control SKU 9048800. Weight: 0.038kg.
Downloads
Technical Assets
Photometrics
Product name
Sylvania Granit PIR sensor 0-10V Z18
Technology
Sensor
Built in presence detector
PIR
General application
Logistics & Industry
Operating temperature range (°C)
-25°C...+50°C
ETIM Class
EC000533
E-number FI
4357205
Warranty
5 years
Emergency type
IP rating
IP65
Nominal Product Height (mm)
48
Nominal Product Diameter (mm)
50
Weight (kg)
0.038
Product EAN number
5410288391618
Packaging single length / height (cm)
8.0
Packaging single width (cm)
8.0
Packaging single depth (cm)
6.0
DUN14 (inner)
15410288391615
Units per outer package
60
Packaging outer length / height (cm)
34.5
Packaging outer width (cm)
26.0
Packaging outer depth (cm)
33.0
Optimal operating condition (°C)
-25-50
