Panel IP66 Cleanroom

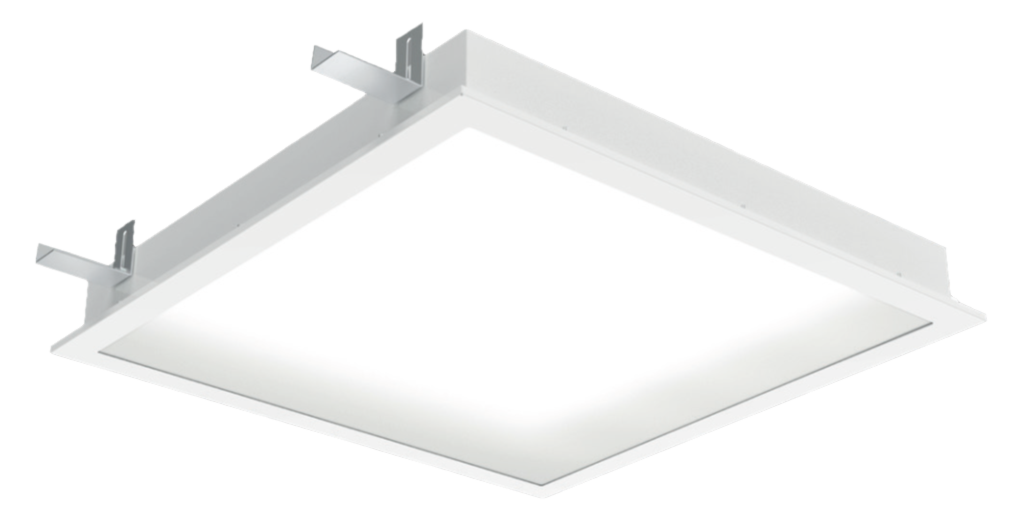

Operating theatres, Intensive Care Units, ambulances, surgery rooms, laboratories, microelectronics production or food industry? The new Panel IP66 CR (cleanroom) designed for clean areas in compliance with ISO 14644-1. This recessed luminaire is ideal for hygienic applications such as hospitals, laboratories or clinics. The luminaires are suitable for use in cleanrooms fulfilling the specification of air cleanliness ISO Class 2-9. It is the perfect solution for customers who require easy-toclean luminaires with a high protection class: dual IP rated along with rigid steel construction and tamper proof secure diffuser. The range is available with a robust matt tempered safety glass or a clear tempered safety glass diffuser with micro-prismatic plexiglass for reduced glare (UGR<19). The square and rectangular luminaire are compatible with modular metallic ceilings. The ENEC certified luminaire has high efficacy of up to 145lm/W, impressive lifespan over 70,000 hours at L80B10 at Ta 30°C.

Downloads

Panel IP66 Cleanroom Selling Sheet.pdf

Application Images

Panel IP66 Cleanroom Products

Item No:	Product name	Total power consumption (W)	Fixture luminous flux (lm)	Luminaire efficacy (lm/W)	CRI (Ra)	Glare control	Dimming method


Item No:	Product name	Total power consumption (W)	Fixture luminous flux (lm)	Luminaire efficacy (lm/W)	CRI (Ra)	Glare control	Dimming method
0042760	PANEL IP66 CR R 598S MSG L3 5360LM 840	37	5360	145	80	< 22	N/A
0042764	PANEL IP66 CR R 598S MSG L3 5360LM 840 DALI	37	5360	145	80	< 22	DALI-2
0042776	PANEL IP66 CR R 598S MSG L3 5360LM 840 DALI EM	37	5360	145	80	< 25	DALI-2
0042762	PANEL IP66 CR R 598R MSG L3 4990LM 840	37	4990	135	80	< 22	N/A
0042766	PANEL IP66 CR R 598R MSG L3 4990LM 840 DALI	37	4990	135	80	< 22	DALI-2
0042777	PANEL IP66 CR R 598R MSG L3 4990LM 840 DALI EM	37	4990	135	80	< 25	DALI-2
0042761	PANEL IP66 CR R 623S MSG L3 5360LM 840	37	5360	145	80	< 22	N/A
0042765	PANEL IP66 CR R 623S MSG L3 5360LM 840 DALI	37	5360	145	80	< 22	DALI-2
0042763	PANEL IP66 CR R 623R MSG L3 4990LM 840	37	4990	135	80	< 22	N/A
0042767	PANEL IP66 CR R 623R MSG L3 4990LM 840 DALI	37	4990	135	80	< 22	DALI-2
0042768	PANEL IP66 CR R 598S CMPG L3 4670LM 840	37	4670	126	80	< 19	N/A
0042772	PANEL IP66 CR R 598S CMPG L3 4670LM 840 DALI	37	4670	126	80	< 19	DALI-2
0042778	PANEL IP66 CR R 598S CMPG L3 4670LM 840 DALI EM	37	4670	126	80	< 19	DALI-2
0042770	PANEL IP66 CR R 598R CMPG L3 4290LM 840	37	4290	116	80	< 19	N/A
0042774	PANEL IP66 CR R 598R CMPG L3 4290LM 840 DALI	37	4290	116	80	< 19	DALI-2
0042779	PANEL IP66 CR R 598R CMPG L3 4290LM 840 DALI EM	37	4290	116	80	< 19	DALI-2
0042769	PANEL IP66 CR R 623S CMPG L3 4670LM 840	37	4670	126	80	< 19	N/A
0042773	PANEL IP66 CR R 623S CMPG L3 4670LM 840 DALI	37	4670	126	80	< 19	DALI-2
0042771	PANEL IP66 CR R 623R CMPG L3 4290LM 840	37	4290	116	80	< 19	N/A
0042775	PANEL IP66 CR R 623R CMPG L3 4290LM 840 DALI	37	4290	116	80	< 19	DALI-2
0042010	PANEL IP66 CR R 598S CMPG L3 4000LM 940	37	4000	108	90	< 19	N/A
0042014	PANEL IP66 CR R 598S CMPG L3 4000LM 940 DALI	37	4000	108	90	< 19	DALI-2
0042018	PANEL IP66 CR R 598S CMPG L3 4000LM 940 DALI EM	37	4000	108	90	< 19	DALI-2
0042012	PANEL IP66 CR R 598R CMPG L3 3750LM 940	37	3750	101	90	< 19	N/A
0042016	PANEL IP66 CR R 598R CMPG L3 3750LM 940 DALI	37	3750	101	90	< 19	DALI-2
0042019	PANEL IP66 CR R 598R CMPG L3 3750LM 940 DALI EM	37	3750	101	90	< 19	DALI-2
0042011	PANEL IP66 CR R 623S CMPG L3 4000LM 940	37	4000	108	90	< 19	N/A
0042015	PANEL IP66 CR R 623S CMPG L3 4000LM 940 DALI	37	4000	108	90	< 19	DALI-2
0042013	PANEL IP66 CR R 623R CMPG L3 3750LM 940	37	3750	101	90	< 19	N/A
0042017	PANEL IP66 CR R 623R CMPG L3 3750LM 940 DALI	37	3750	101	90	< 19	DALI-2
0042020	PANEL IP66 C R SAFETY CABLE	-	-	-	-	-	-

Panel IP66 Cleanroom

Cleanroom certified

Class 2–9 (ISO 14644‑1:2015)

Wide operating temperature

-20 to + 60°C

Durable

IP66 & IK08
