START Track Spot Integral 1500lm 940 MB WB BLK

Item No: 0005429
This product is no longer available

Integrated LED spotlight, Textured Black - RAL9005, simple and slick integral design with no driver box and without any visible screws, ideal for retail applications, die-cast aluminium body, passive cooling heatsink. Beam angle: 36°, additional lens 64° beam angle included, color temperature: 4000k , total system power: 17W, total fixture output: 1500 lm, LOR: 100%, colour rendering: Ra: 90 typical, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, drive current: 410mA, electronic driver, non-dimmable, ultra low LED flickering rate (5% or less), power factor: >0.90, electrical protection: Class I, Global Track 3 Circuit GA69 adapter suitable for Global trac 3-circuit tracks, ingress protection rating: IP20, suitable for internal environment only, horizontal rotation: 345°, vertical tilt: 90°, dimensions: Ø60x117x248, weight: 0.486kg.

Technical Assets

Dimensions (mm)

Photometrics

Product name
START Track Spot Integral 1500lm 940 MB WB BLK
Technology
LED
Housing
Aluminium
Mount
Track mounting
Environment
Indoor
General application
Retail
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4276972
Warranty
5 years
Fixture luminous flux (lm)
1500
Luminaire efficacy (lm/W)
88
Correlated colour temperature (k)
4000
Colour Code
940
Light colour
Neutral White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
36
Photobiological Risk Group
RG1
Total power consumption (W)
17
Supply current (A)
0.077
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class I
Dimmable
No
Drive current (mA)
410
Inrush Current (A)
7.4
Inrush Duration (µs)
300
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
64
Max. products per 13A C Breaker
84
Max. products per 16A C Breaker
103
Max. products per 20A C Breaker
129
Max. products per 10A B Breaker
38
Max. products per 13A B Breaker
50
Max. products per 16A B Breaker
62
Max. products per 20A B Breaker
77
Lifespan L70 B50
50000
Lifespan L80 B50
48100
Lifespan L80 B20
41000
Lifespan L80 B10
37700
Lifespan L90 B50
19500
Lifespan L90 B20
17000
Lifespan L90 B10
15900
Housing colour
RAL 9005 - Jet black
IP rating
IP20
IK rating
IK03
Diffuser finish
Transparent
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
248
Nominal Product Width (mm)
117
Nominal Product Height (mm)
60
Weight (kg)
0.486
Product EAN number
5410288054292
Packaging single length / height (cm)
8.5
Packaging single width (cm)
8.5
Packaging single depth (cm)
25.5
DUN14 (inner)
15410288054299
Units per outer package
12
Packaging outer length / height (cm)
36.5
Packaging outer width (cm)
27.5
Packaging outer depth (cm)
27.5
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
Certificate of Conformity EU
Datasheet

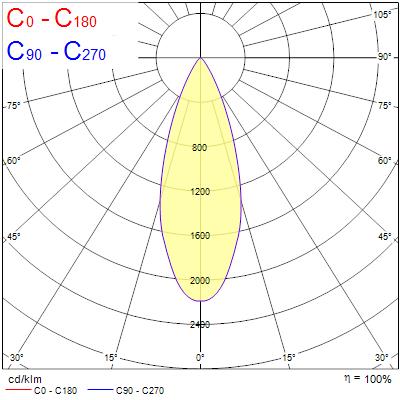

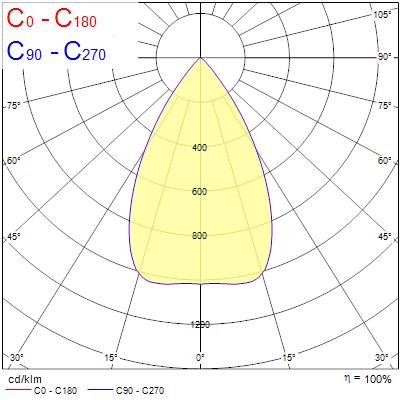

POLAR
POLAR
IES 1
IES 2
LDT 1
LDT 2

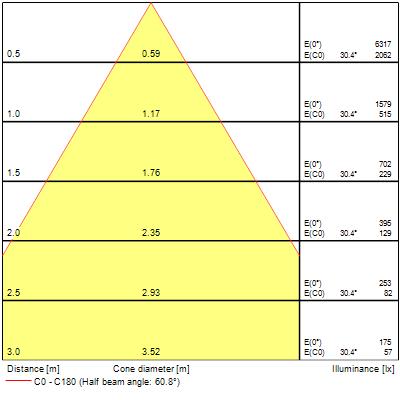

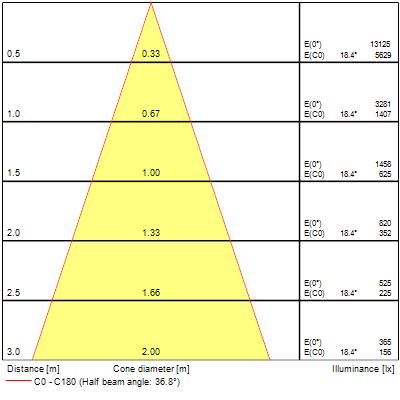

CONE
