START Track Spot Integral 5000lm 940 MB WB WHT

Item No: 0005432
This product is no longer available

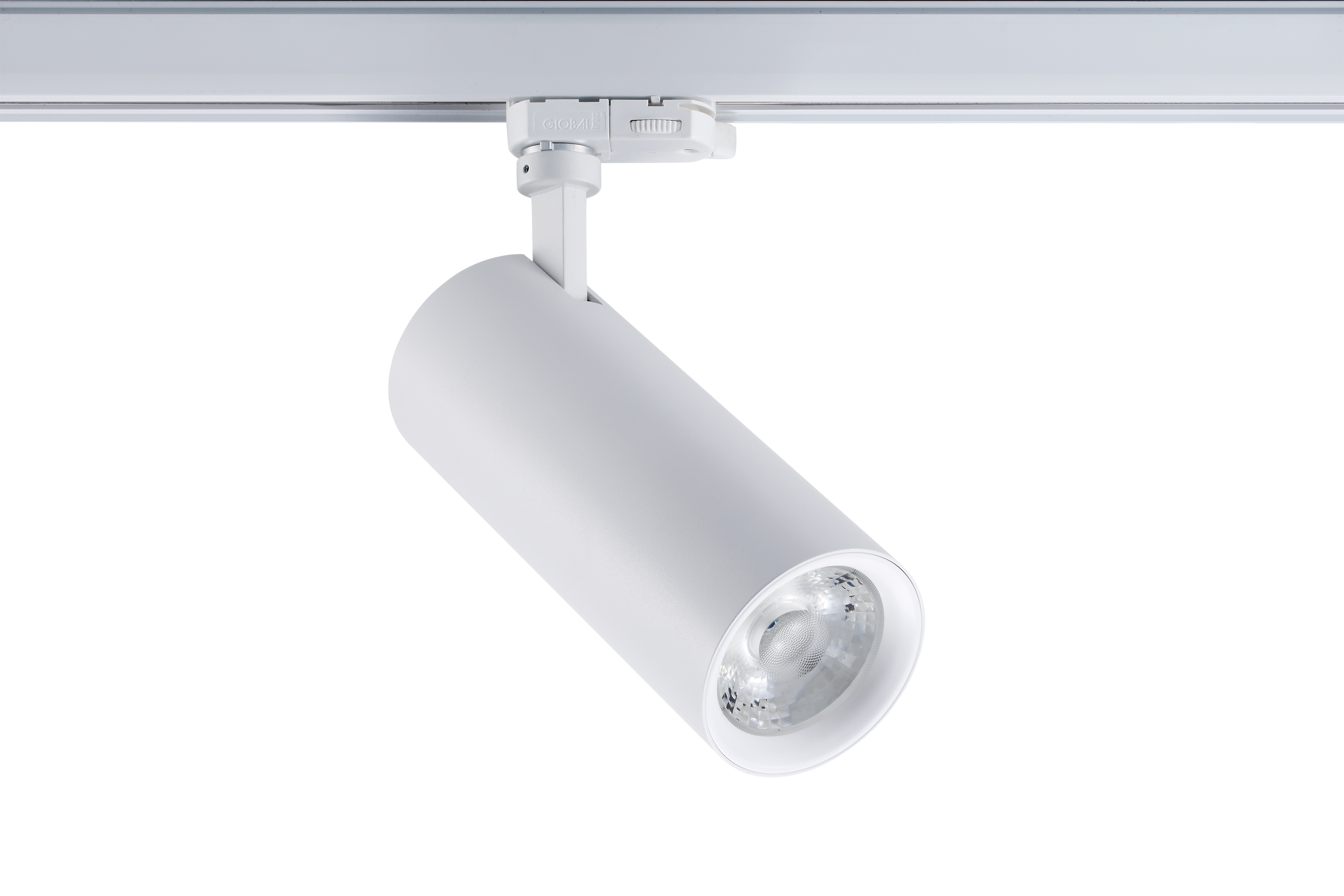

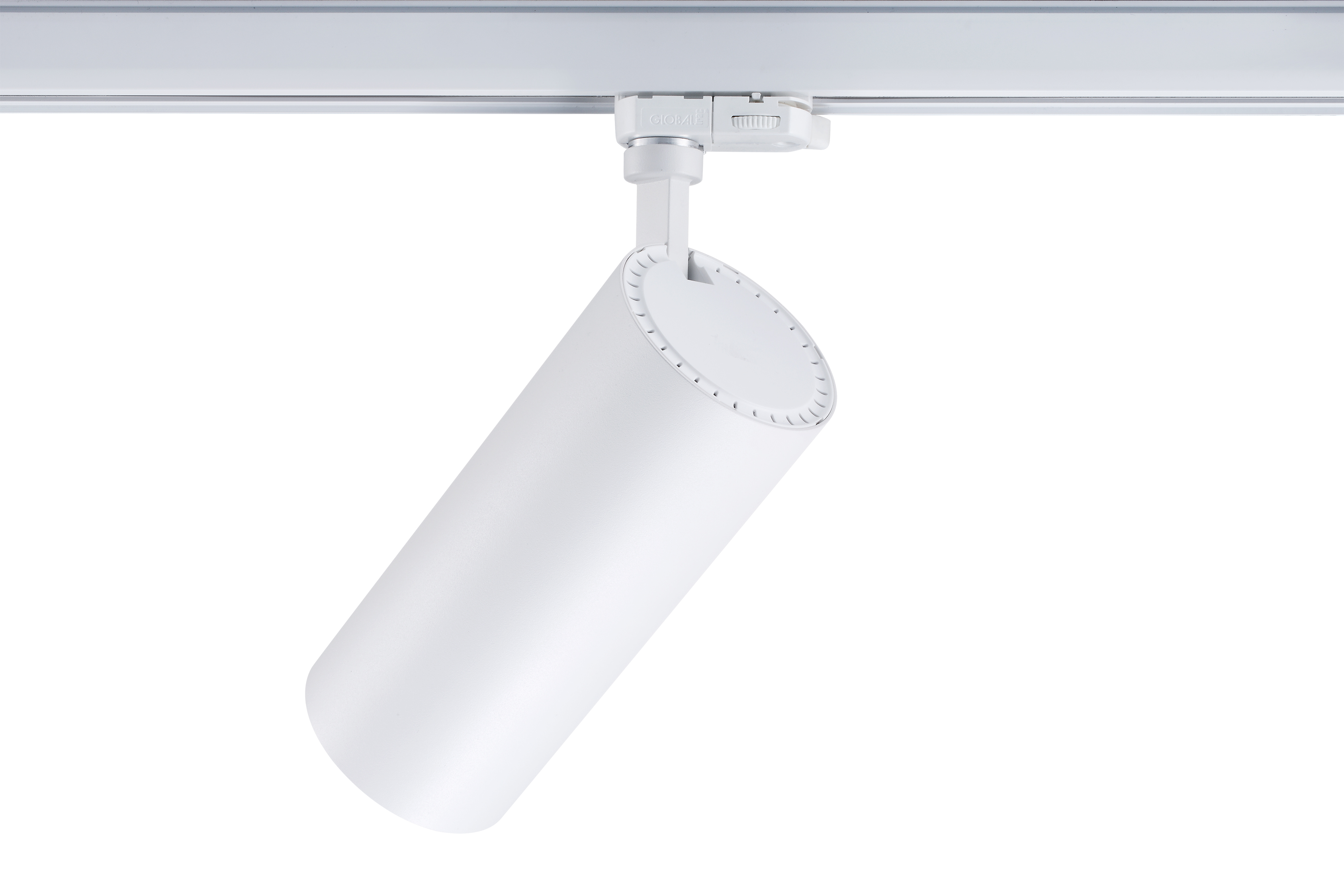

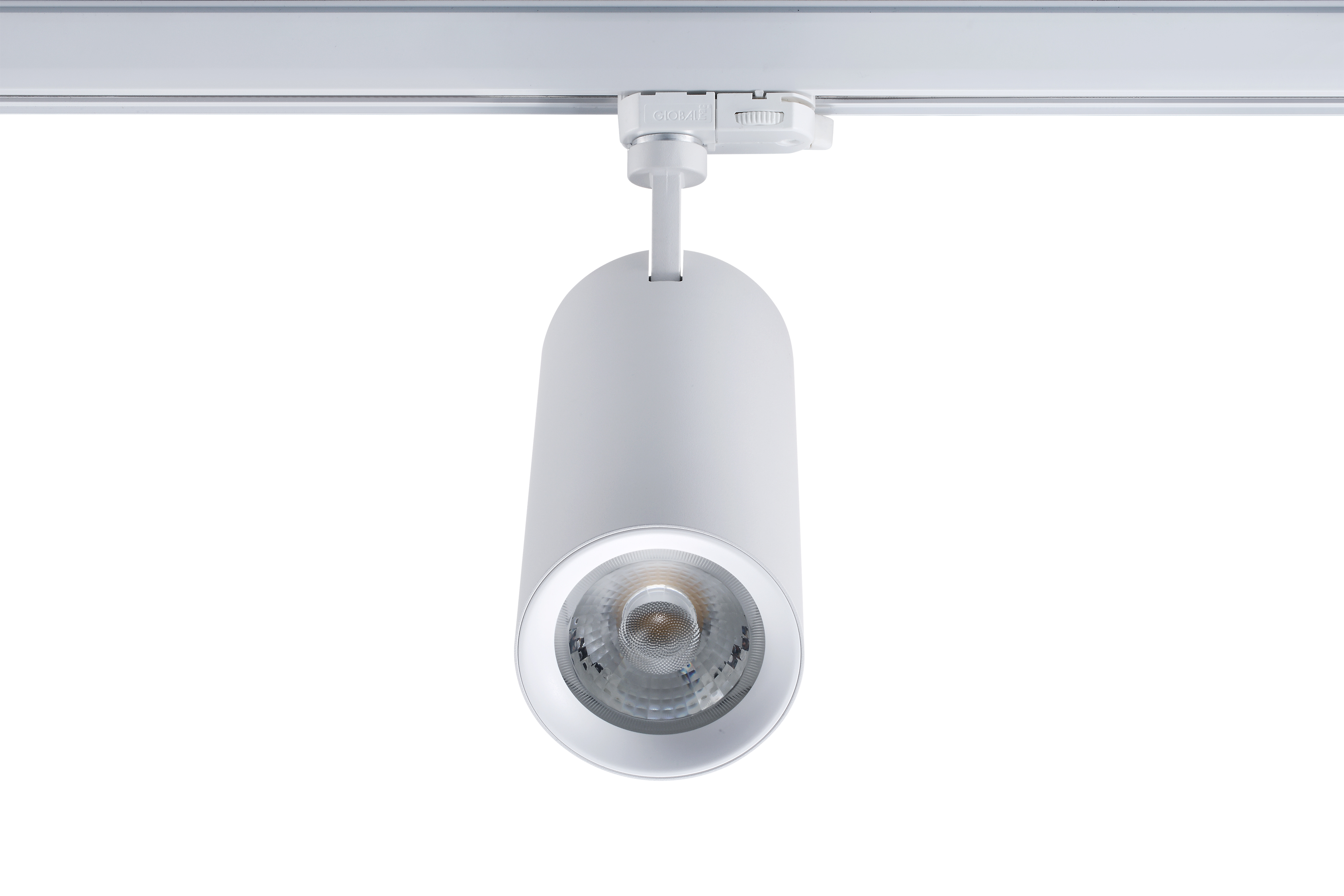

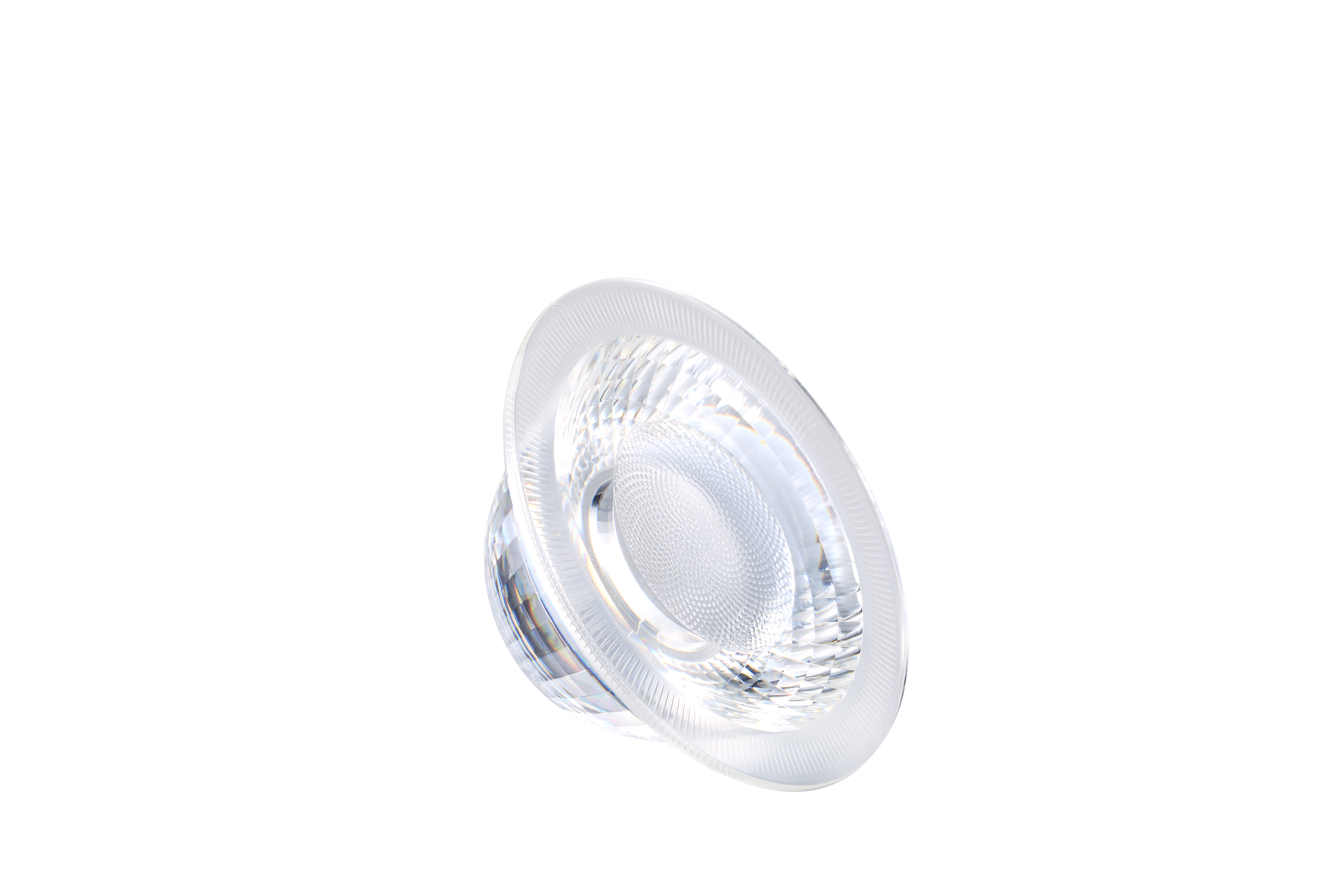

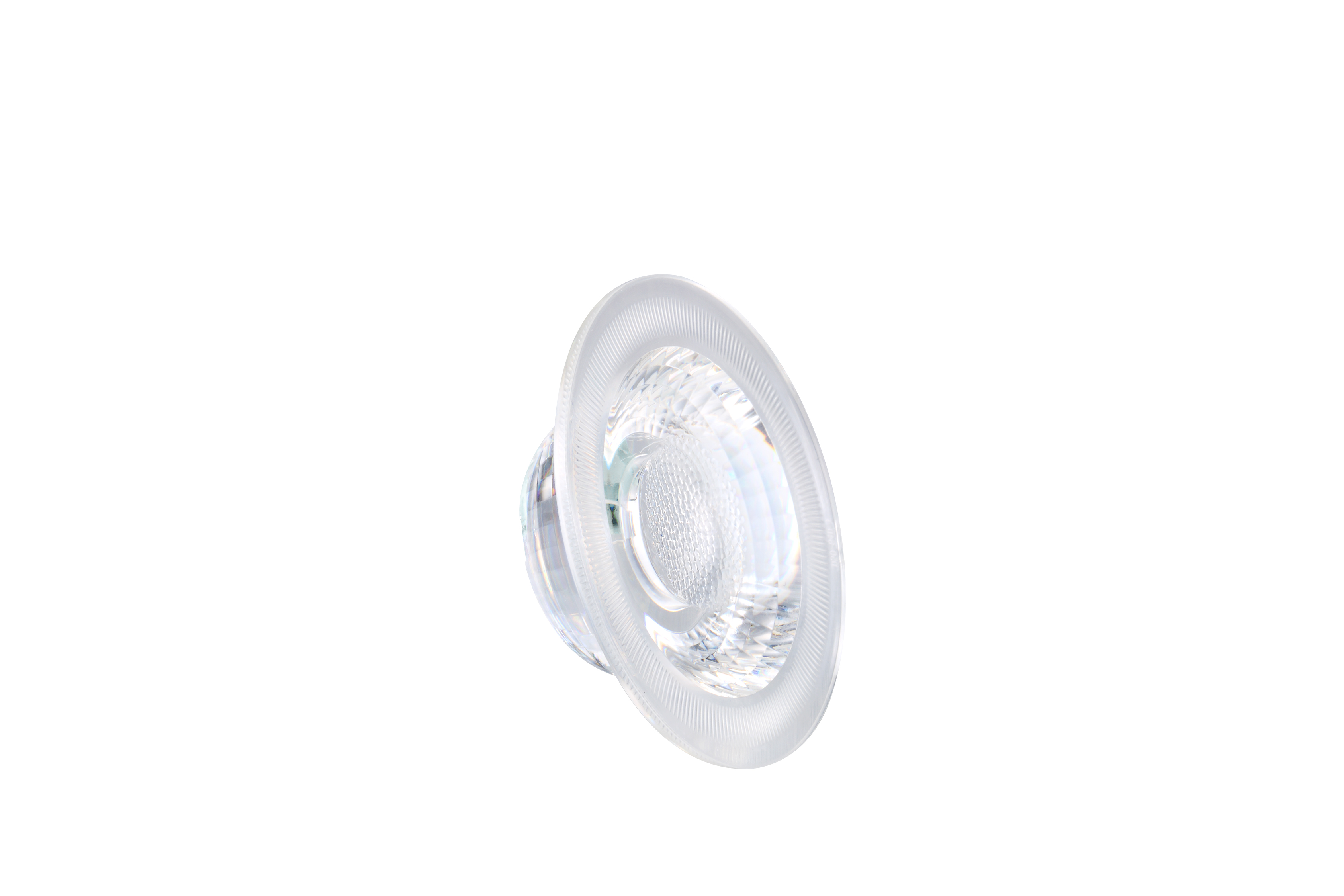

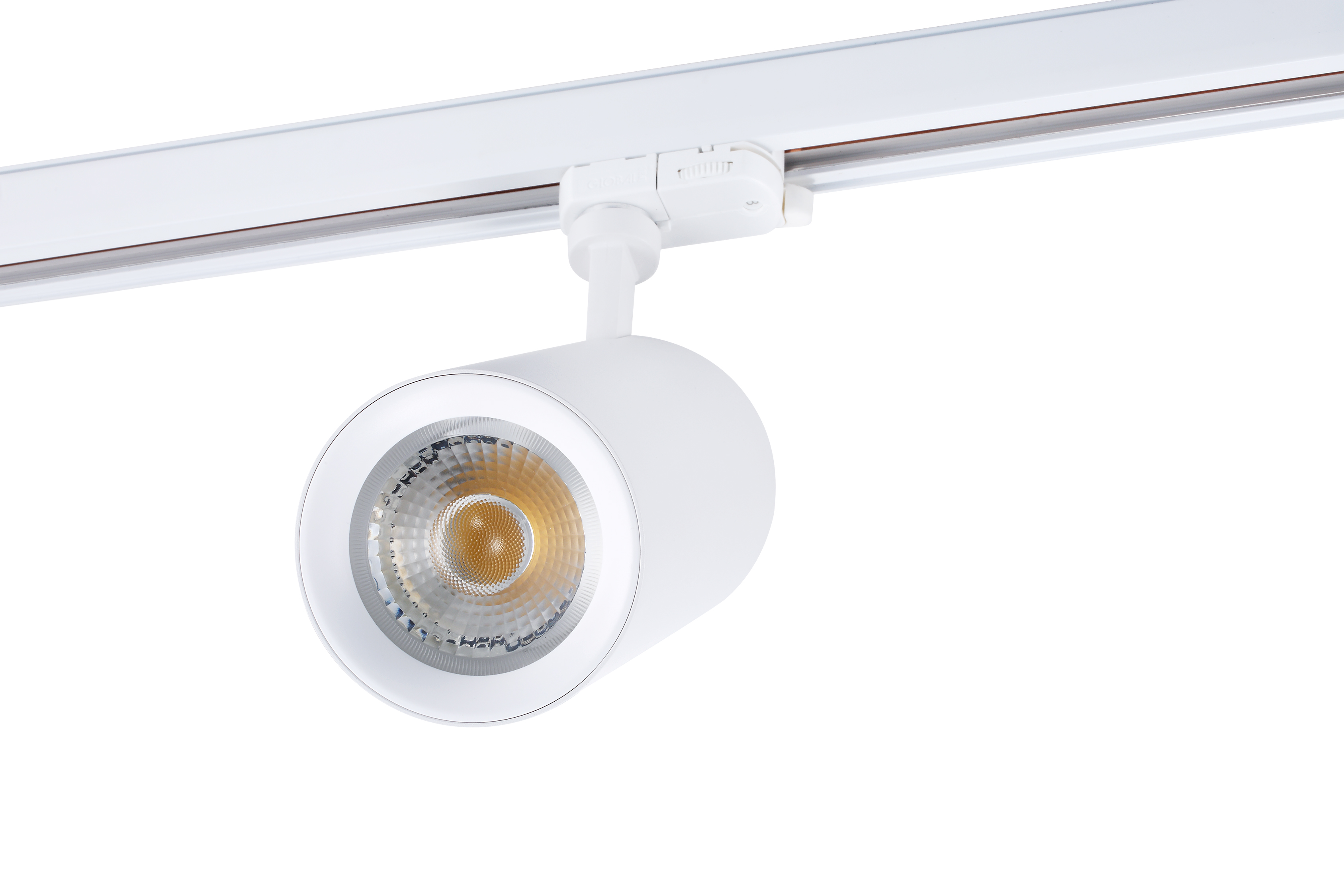

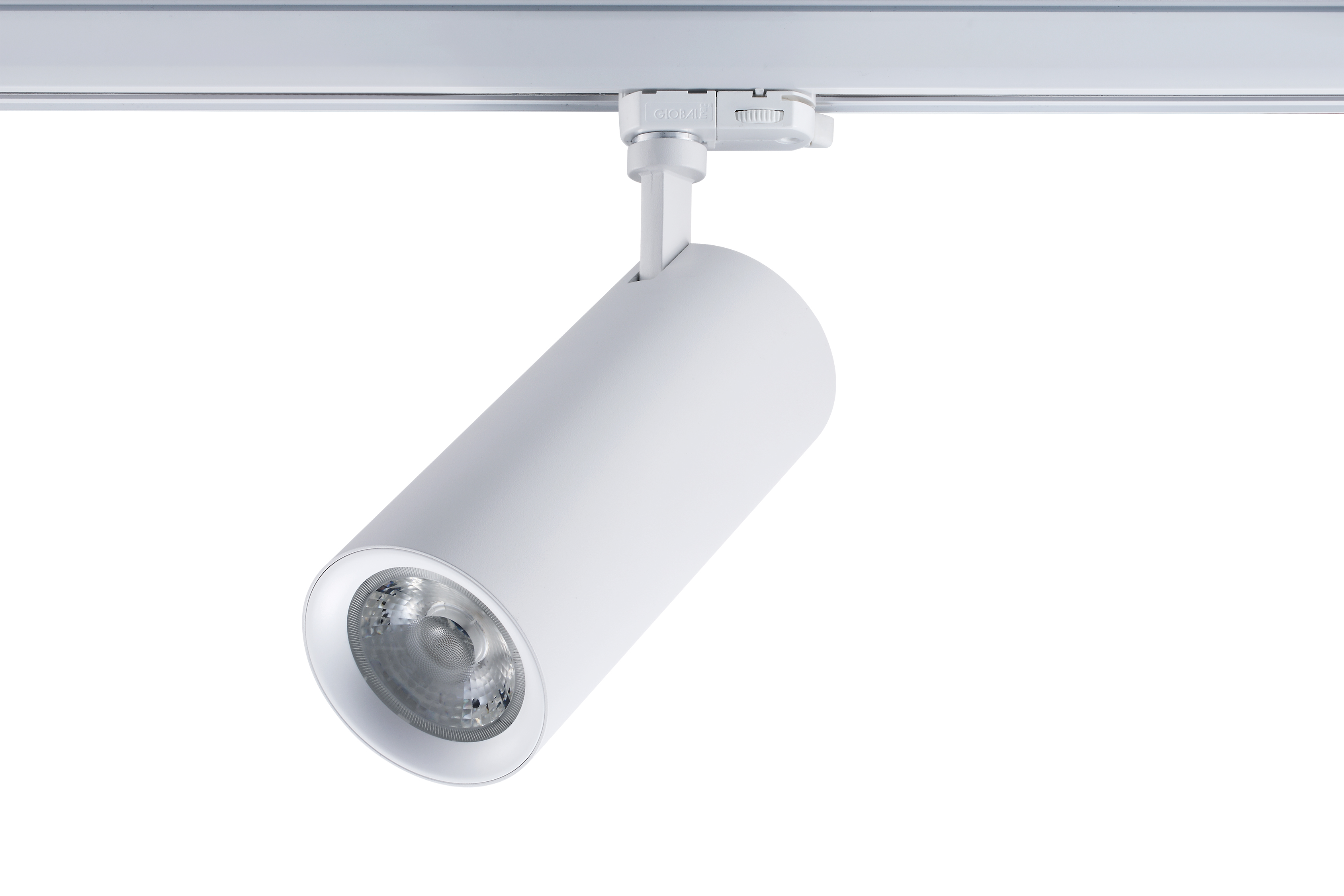

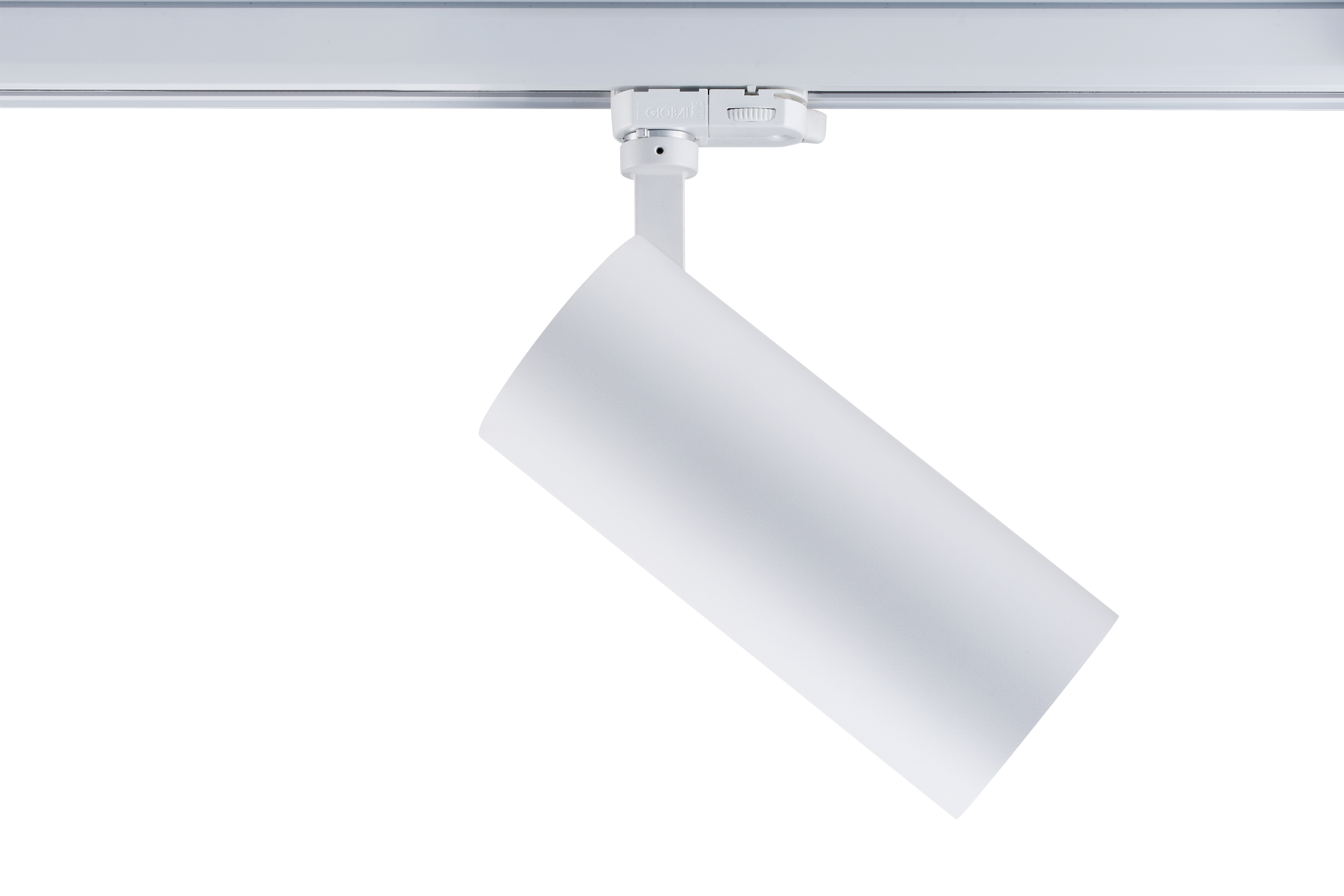

Integrated LED spotlight, Textured White - RAL9016, simple and slick integral design with no driver box and without any visible screws, ideal for retail applications, die-cast aluminium body, passive cooling heatsink. Beam angle: 36°, additional lens 64° beam angle included, color temperature: 4000k , total system power: 54W, total fixture output: 5000 lm, LOR: 100%, colour rendering: Ra: 90 typical, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, drive current: 1400mA, electronic driver, non-dimmable, ultra low LED flickering rate (5% or less), power factor: >0.90, electrical protection: Class I, Global Track 3 Circuit GA69 adapter suitable for Global trac 3-circuit tracks, ingress protection rating: IP20, suitable for internal environment only, horizontal rotation: 345°, vertical tilt: 90°, dimensions: Ø91x148x303, weight: 1,265kg.

Technical Assets

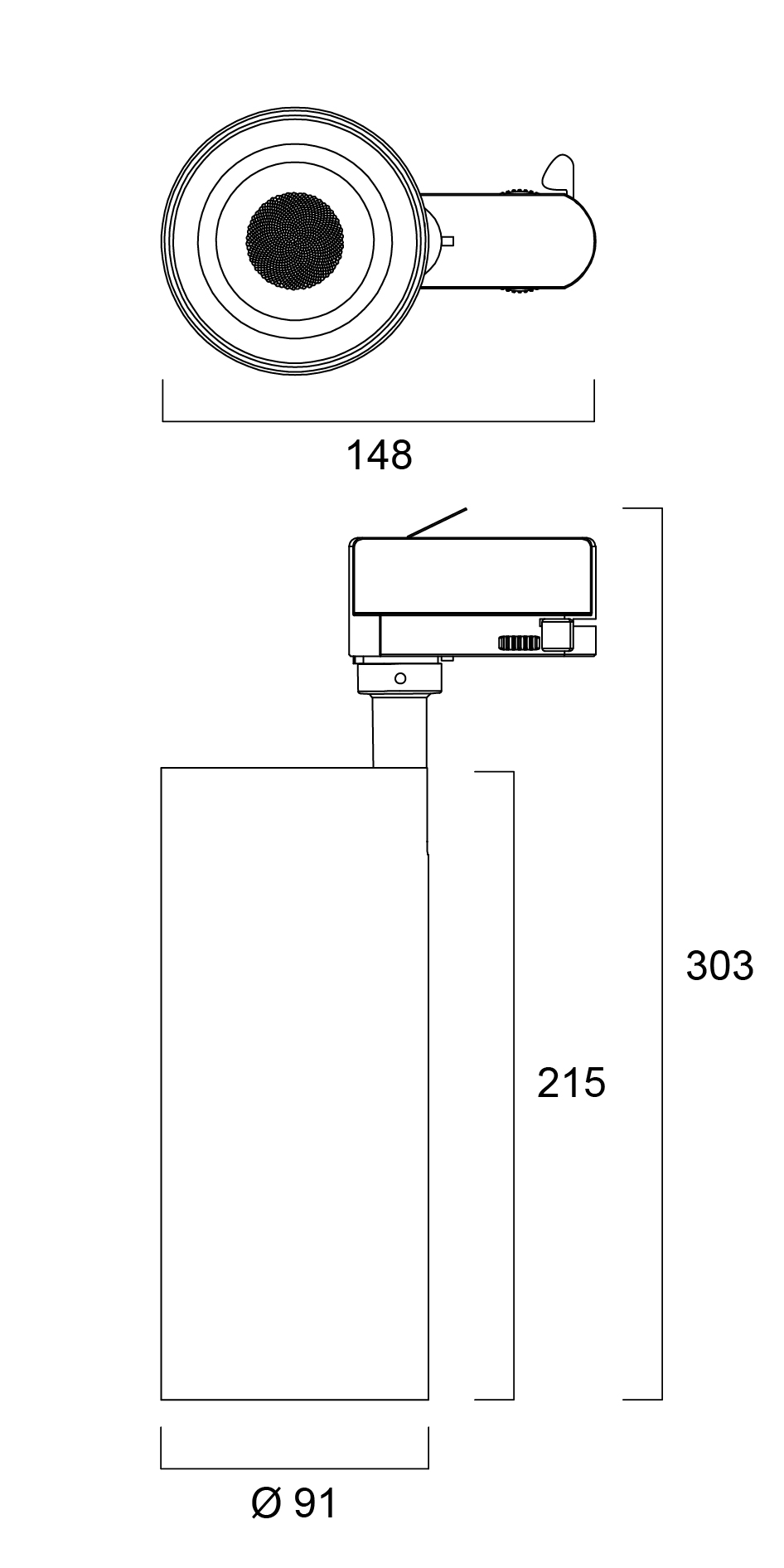

Dimensions (mm)

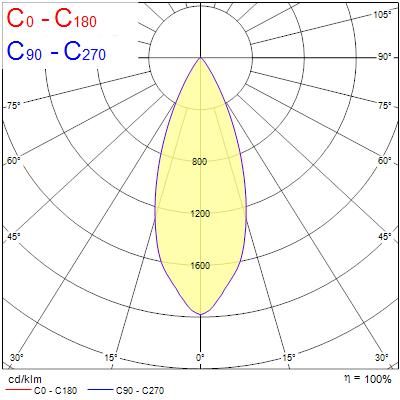

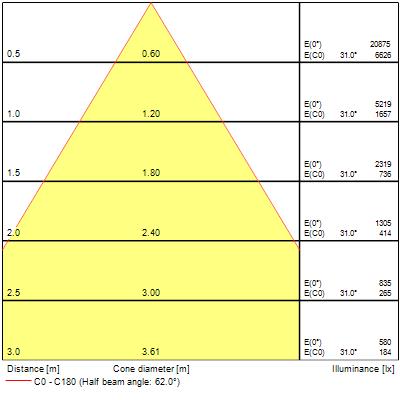

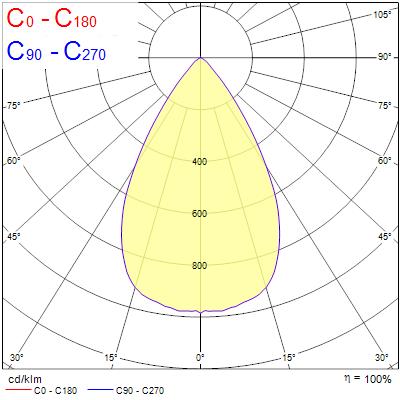

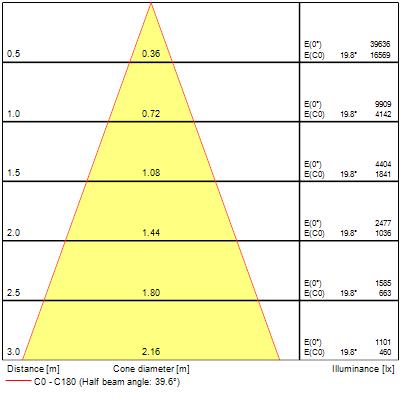

Photometrics

Product name
START Track Spot Integral 5000lm 940 MB WB WHT
Technology
LED
Housing
Aluminium
Mount
Track mounting
Environment
Indoor
General application
Retail
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
E-number FI
4276975
Warranty
5 years
Fixture luminous flux (lm)
5000
Luminaire efficacy (lm/W)
93
Correlated colour temperature (k)
4000
Colour Code
940
Light colour
Neutral White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM3
Beam Angle (°)
36
Photobiological Risk Group
RG1
Total power consumption (W)
54
Supply current (A)
0.24
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
20
Electrical protection
Class I
Dimmable
No
Drive current (mA)
1400
Inrush Current (A)
8.3
Inrush Duration (µs)
320
Nominal Frequency (Hz)
50/60Hz
LED Flickering Rate
Ultra low (5% or less)
Max. products per 10A C Breaker
20
Max. products per 13A C Breaker
27
Max. products per 16A C Breaker
33
Max. products per 20A C Breaker
41
Max. products per 10A B Breaker
12
Max. products per 13A B Breaker
16
Max. products per 16A B Breaker
20
Max. products per 20A B Breaker
25
Lifespan L70 B50
50000
Lifespan L80 B50
48100
Lifespan L80 B20
41000
Lifespan L80 B10
37700
Lifespan L90 B50
19500
Lifespan L90 B20
17000
Lifespan L90 B10
15900
Housing colour
RAL 9016 - Traffic white / Bezel
IP rating
IP20
IK rating
IK03
Diffuser finish
Transparent
Diffuser material
PC Polycarbonate
Nominal Product Length (mm)
303
Nominal Product Width (mm)
148
Nominal Product Height (mm)
91
Weight (kg)
1.265
Product EAN number
5410288054322
Packaging single length / height (cm)
9.5
Packaging single width (cm)
9.5
Packaging single depth (cm)
31.0
DUN14 (inner)
15410288054329
Units per outer package
6
Packaging outer length / height (cm)
30.5
Packaging outer width (cm)
20.5
Packaging outer depth (cm)
33.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
