Pixo Small 1490lm 930 NB MB WB BLK

Item No: 0005441

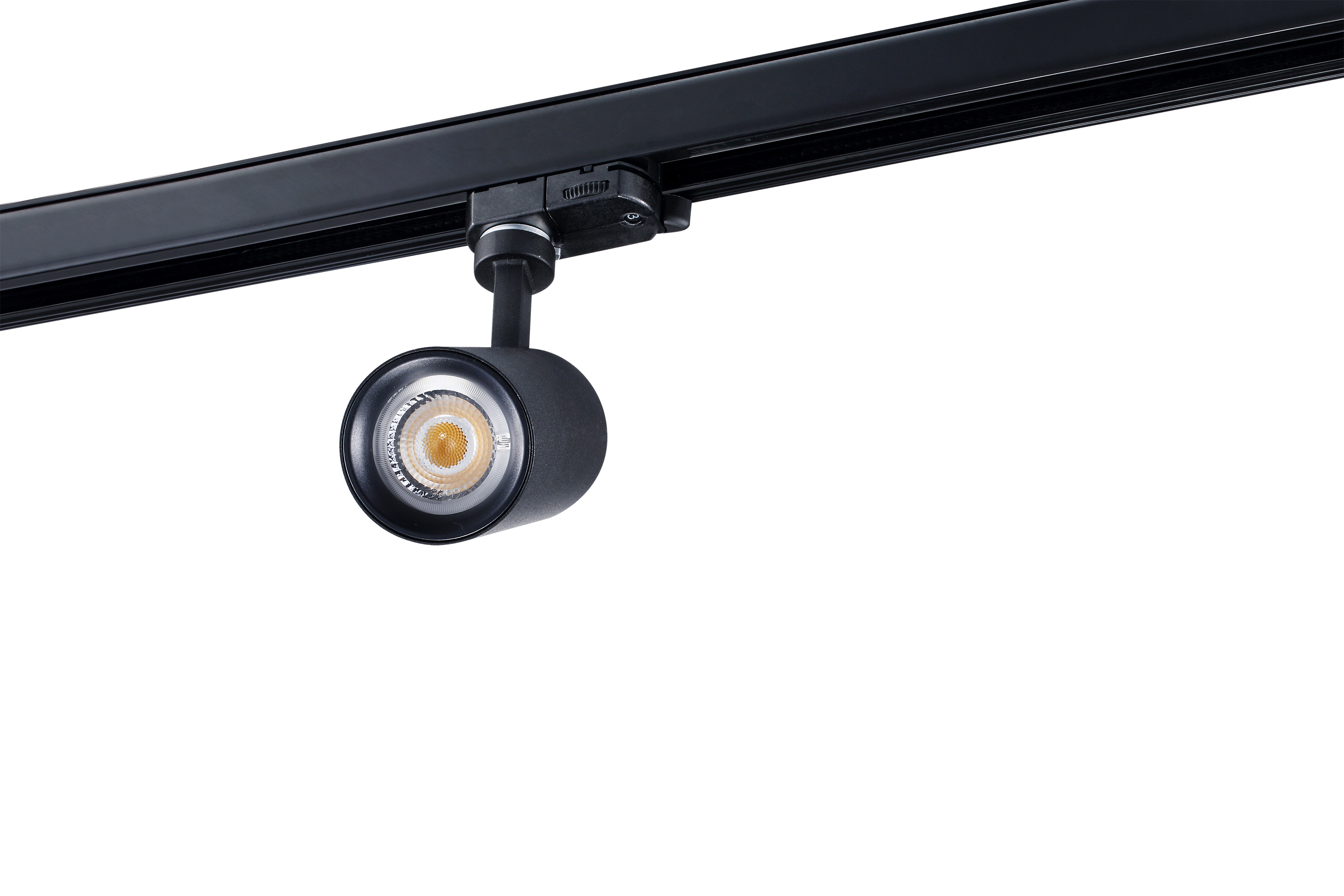

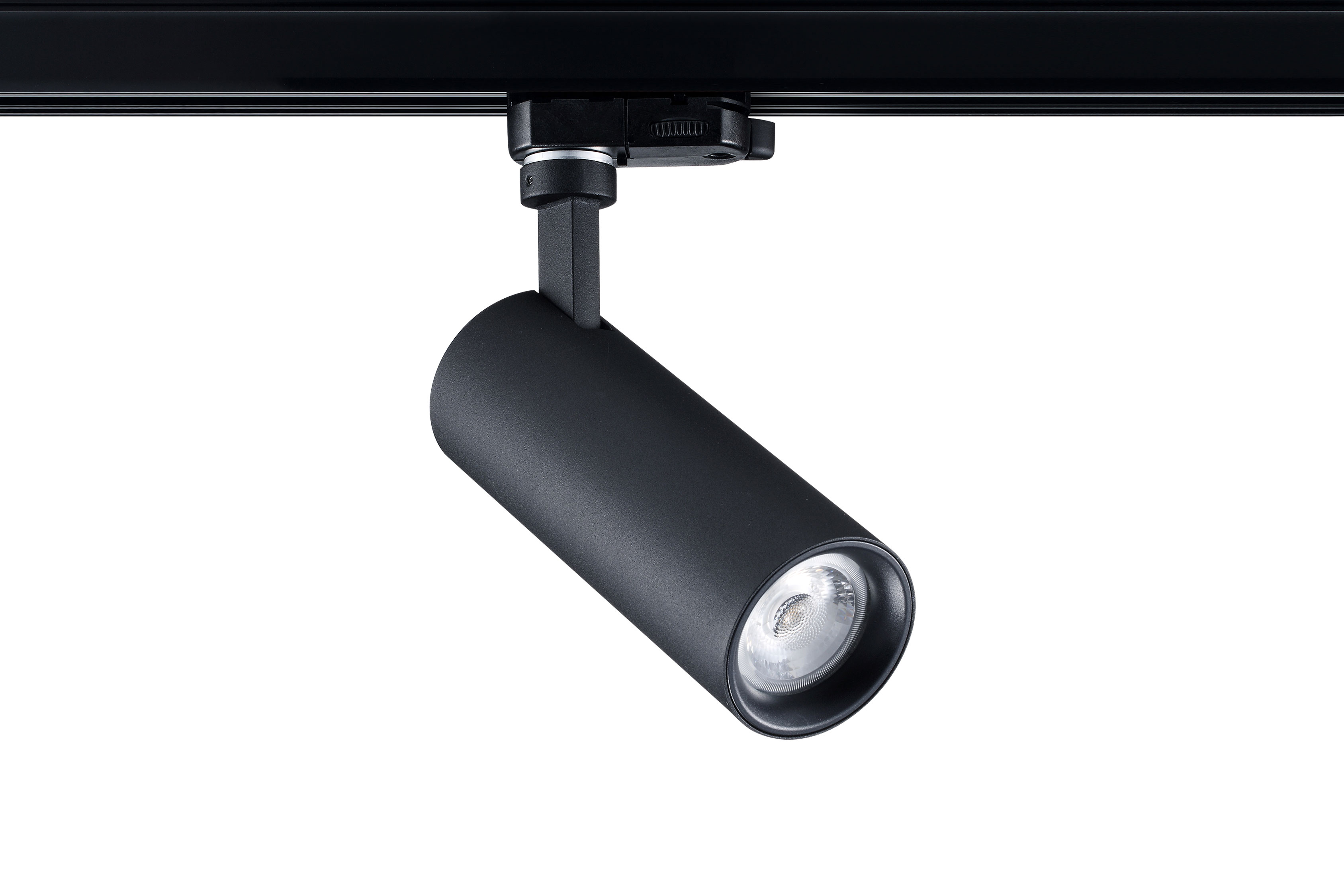

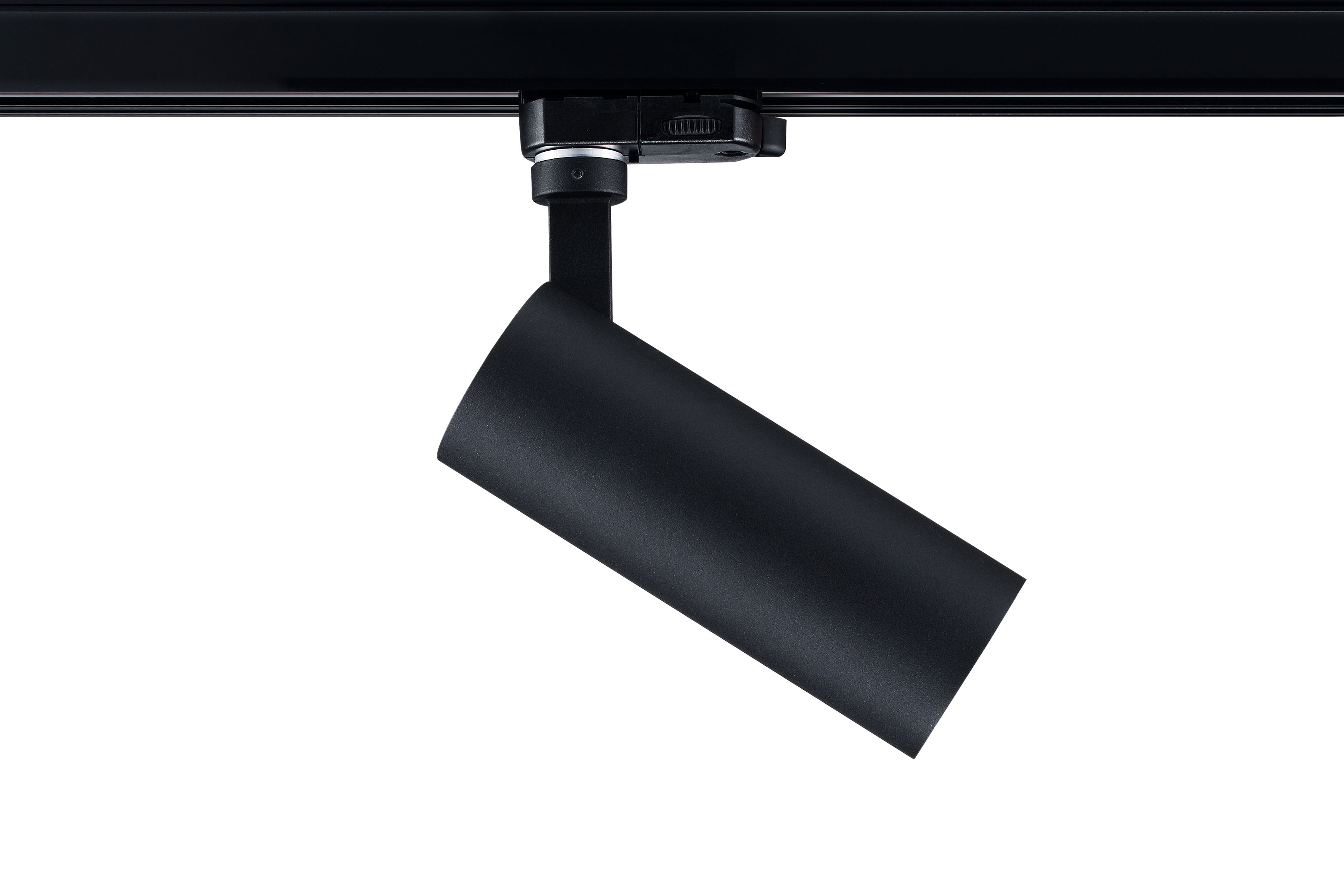

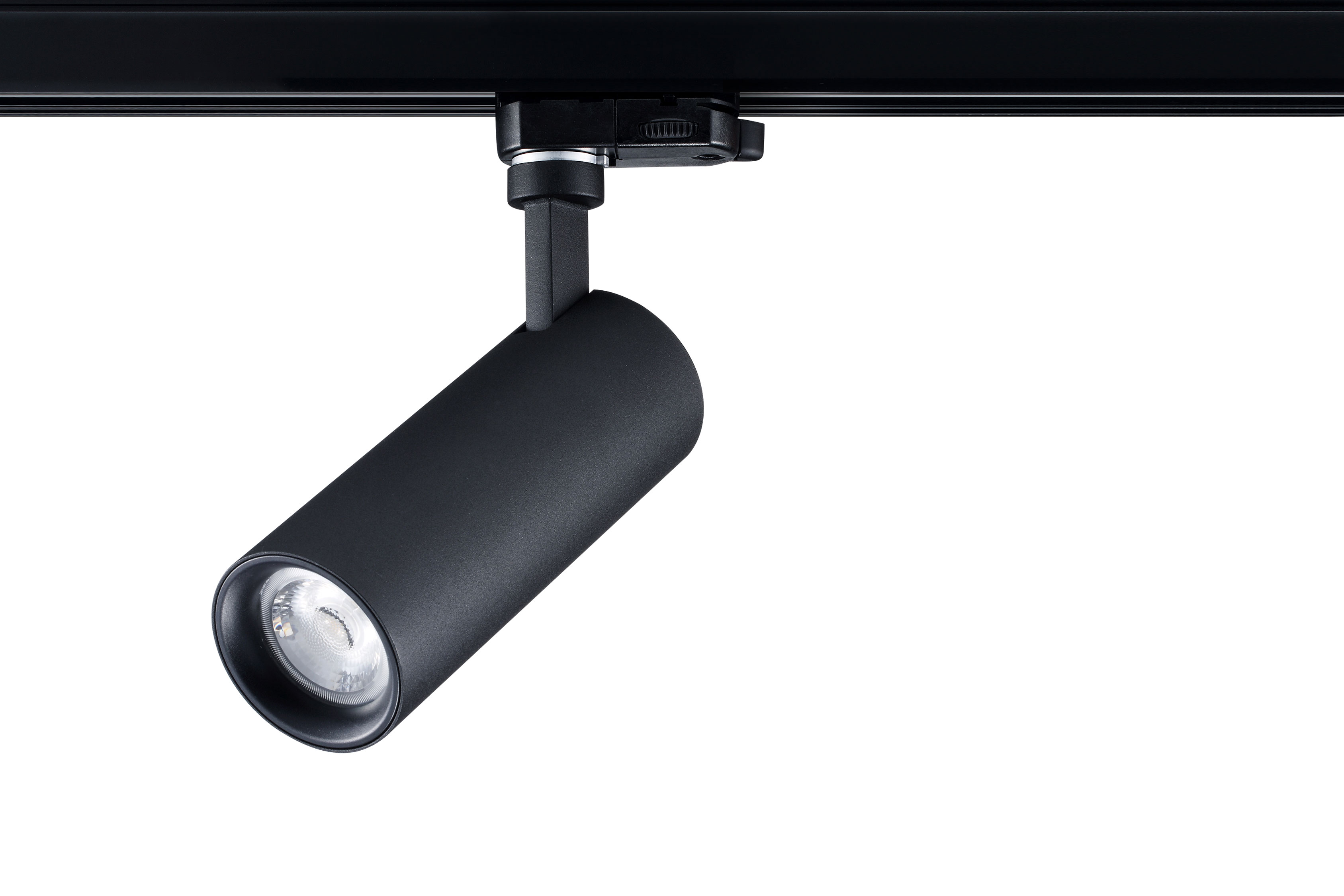

Integrated LED spotlight, Textured Black - RAL9005, simple and slick integral design with no driver box and without any visible screws, ideal for retail applications, die-cast aluminium body, passive cooling heatsink. Beam angle: 36°, additional lenses 24°and 54° beam angle included, color temperature: 3000K , total system power: 15W, total fixture output: 1496 lm, LOR: 100%, colour rendering: Ra: 90 typical, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, electronic driver, non-dimmable, ultra low LED flickering rate (5% or less), power factor: >0.90, electrical protection: Class I, Powergear 3-circuit adapter suitable for 3-circuit tracks, ingress protection rating: IP20, suitable for internal environment only, horizontal rotation: 345°, vertical tilt: 90°, dimensions: Ø60x70x245, weight: 0.517kg. Compatible with OneTrack.

Technical Assets

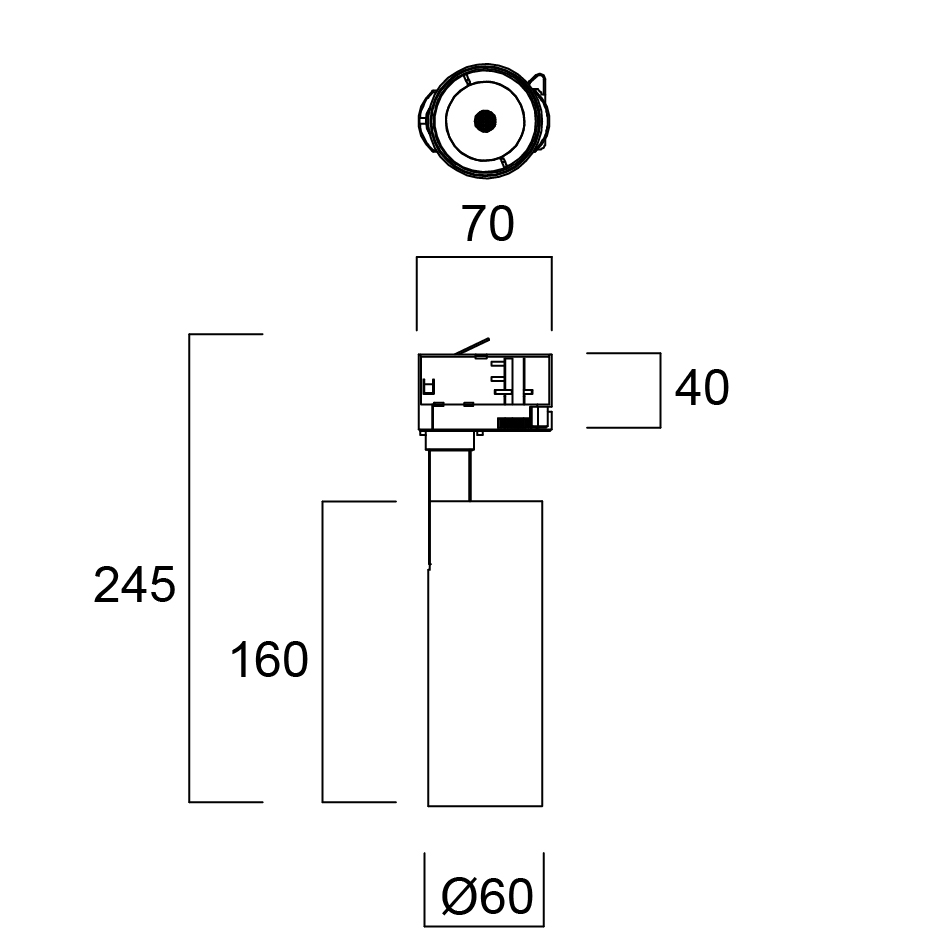

Dimensions (mm)

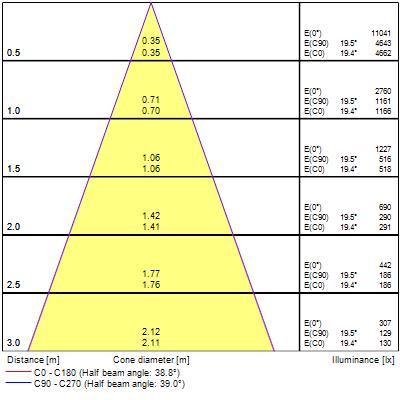

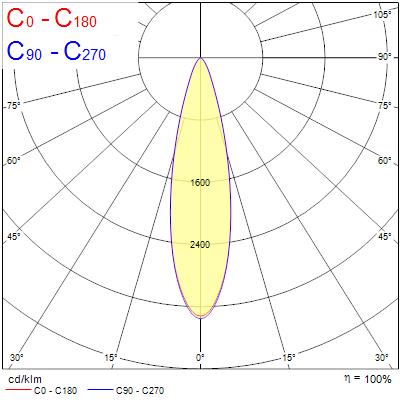

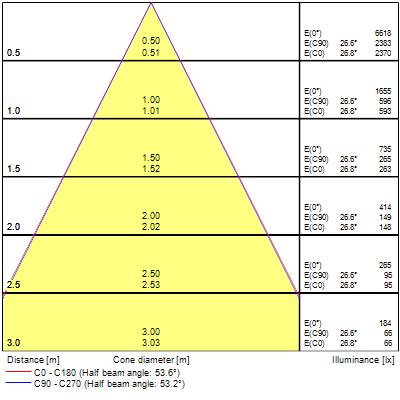

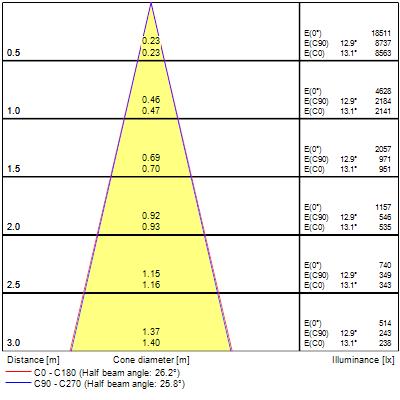

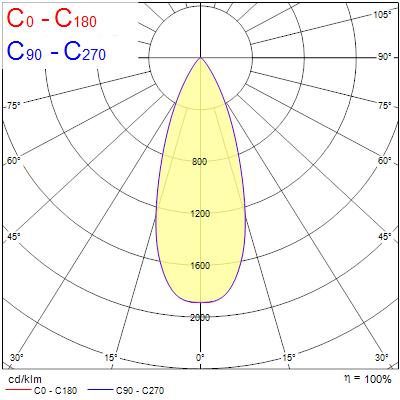

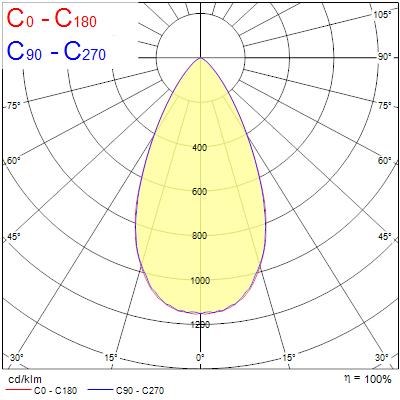

Photometrics

Product name
Pixo Small 1490lm 930 NB MB WB BLK
Technology
LED
Cap/Base
N/A
Mount
Track mounting
Environment
Indoor
General application
Museums & Galleries, Residential & Consumer, Retail
Operating temperature range (°C)
-20°C...+40°C
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001744
Warranty
5 years
Fixture luminous flux (lm)
1496
Luminaire efficacy (lm/W)
100
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
90
Colour Variation Initial (SDCM)
SDCM5
Beam Angle (°)
36
Photobiological Risk Group
RG1
Total power consumption (W)
15
Primary Supply/Product voltage - min (V)
220.0
Primary Supply/Product voltage - max (V)
240.0
Lamp power factor
0.9
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x %
10
Electrical protection
Class I
No. Of switching cycles before premature failures
>100000
Dimmable
No
Dimming method
N/A
Drive current (mA)
400
Inrush Current (A)
12
Inrush Duration (µs)
33
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
68
Max. products per 13A C Breaker
88
Max. products per 16A C Breaker
108
Max. products per 20A C Breaker
135
Max. products per 10A B Breaker
68
Max. products per 13A B Breaker
88
Max. products per 16A B Breaker
108
Max. products per 20A B Breaker
135
Lifespan L70 B50
100000
Lifespan L80 B20
100000
Lifespan L90 B50
56000
Lifespan L90 B10
41000
Housing colour
Black
IP rating
IP20
IK rating
IK03
Nominal Product Length (mm)
70
Nominal Product Width (mm)
60
Nominal Product Height (mm)
245
Weight (kg)
0.517
Product EAN number
5410288054414
Packaging single length / height (cm)
8.5
Packaging single width (cm)
8.5
Packaging single depth (cm)
26.0
DUN14 (inner)
15410288054411
Units per outer package
12
Packaging outer length / height (cm)
35.5
Packaging outer width (cm)
27.0
Packaging outer depth (cm)
28.0
Glow Wire Test (°C)
650
Optimal operating condition (°C)
-20-40
