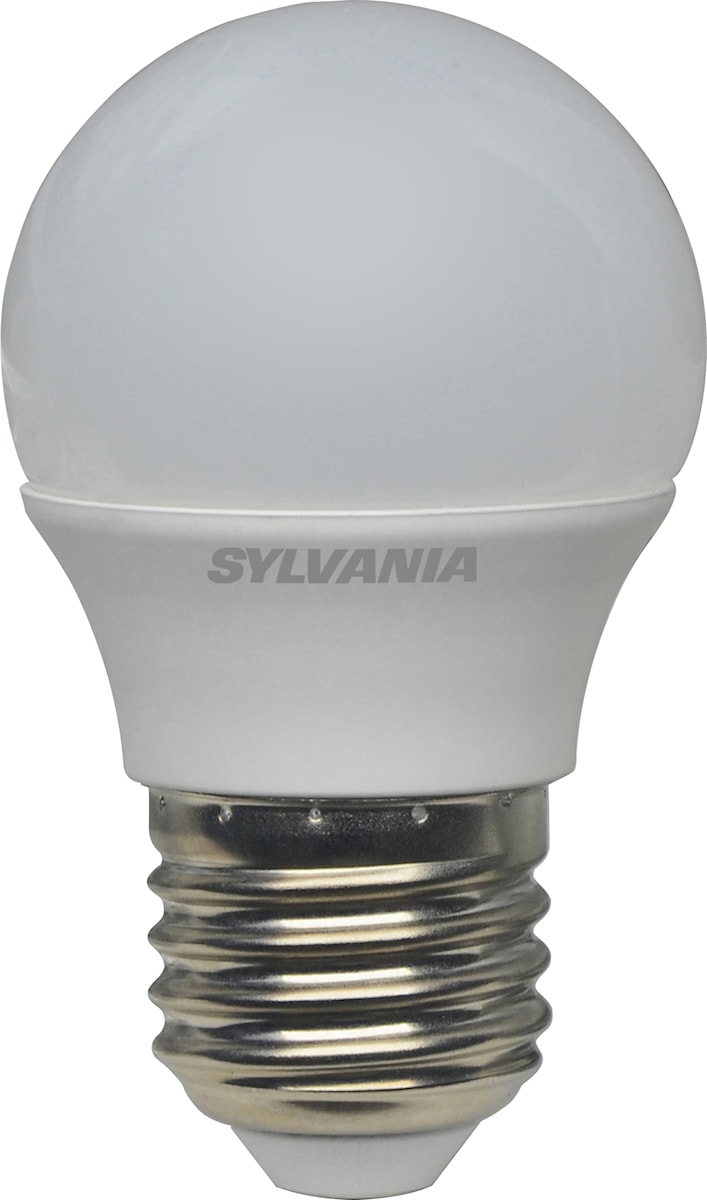

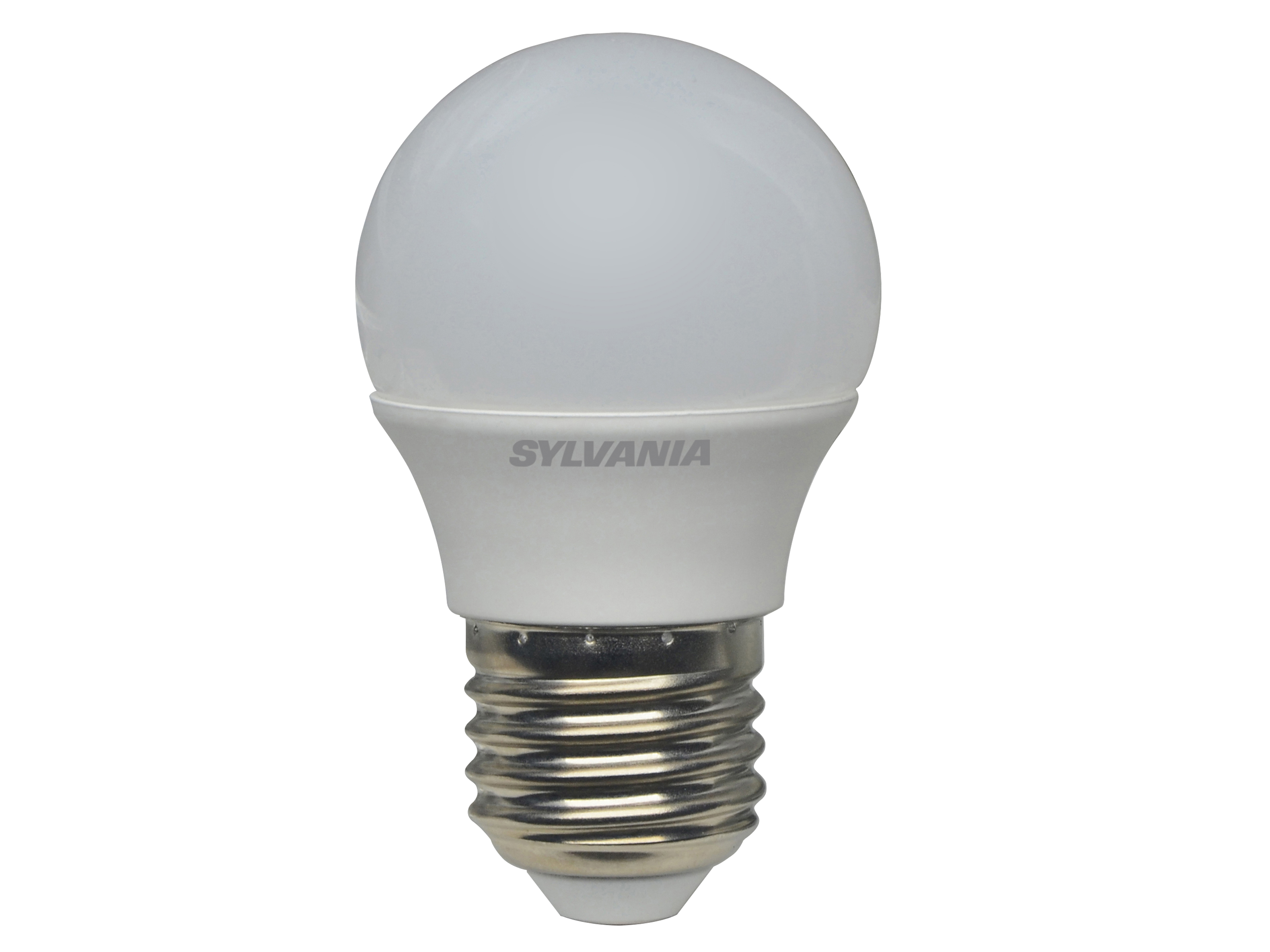

ToLEDo BALL V6 470LM 827 E27 SL
Item No:
0026948
This product is no longer available
• Compact and elegant design • Suitable replacement for halogen, incandescent and compact fluorescent ball lamps • Instant light at the flick of a switch • Uniform light distribution • Good colour rendering (CRI 80) • Perfect for hotels, restaurants, lobbies, corridors, stairwells, reception areas • Lower maintenance costs • A+ energy rating
Technical Assets
Dimensions (mm)
Photometrics
Product name
ToLEDo BALL V6 470LM 827 E27 SL
Technology
LED
Watt (Rated) (W)
5
Cap/Base
E27
Fixture rating
Open
General application
Hospitality, Residential & Consumer
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740205
Warranty
3 years
Useful luminous flux (Φuse)
470
Luminous flux (Rated) (lm)
470
Correlated colour temperature (k)
2700
Light colour
Homelight
CRI (Ra)
80
Beam Angle (°)
150
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
5
Wattage (W)
5
Starting time (max) (s)
0.5
Warm-up time to 60% of full light (max) (s)
1
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Inrush Current (A)
3
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
138
Max. products per 16A C Breaker
222
Max. products per 20A C Breaker
278
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
77
Nominal Product Diameter (mm)
45
Weight (kg)
0.041
Product EAN number
5410288269481
Packaging single length / height (cm)
9.3
Packaging single width (cm)
4.9
Packaging single depth (cm)
4.9
DUN14 (inner)
15410288269488
Units per inner package
6
Packaging inner length / height (cm)
15.3
Packaging inner width (cm)
11.2
Packaging inner depth (cm)
10.6
DUN14 (outer)
25410288269485
Units per outer package
60
Packaging outer length / height (cm)
55.3
Packaging outer width (cm)
13.3
Packaging outer depth (cm)
33.6
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
