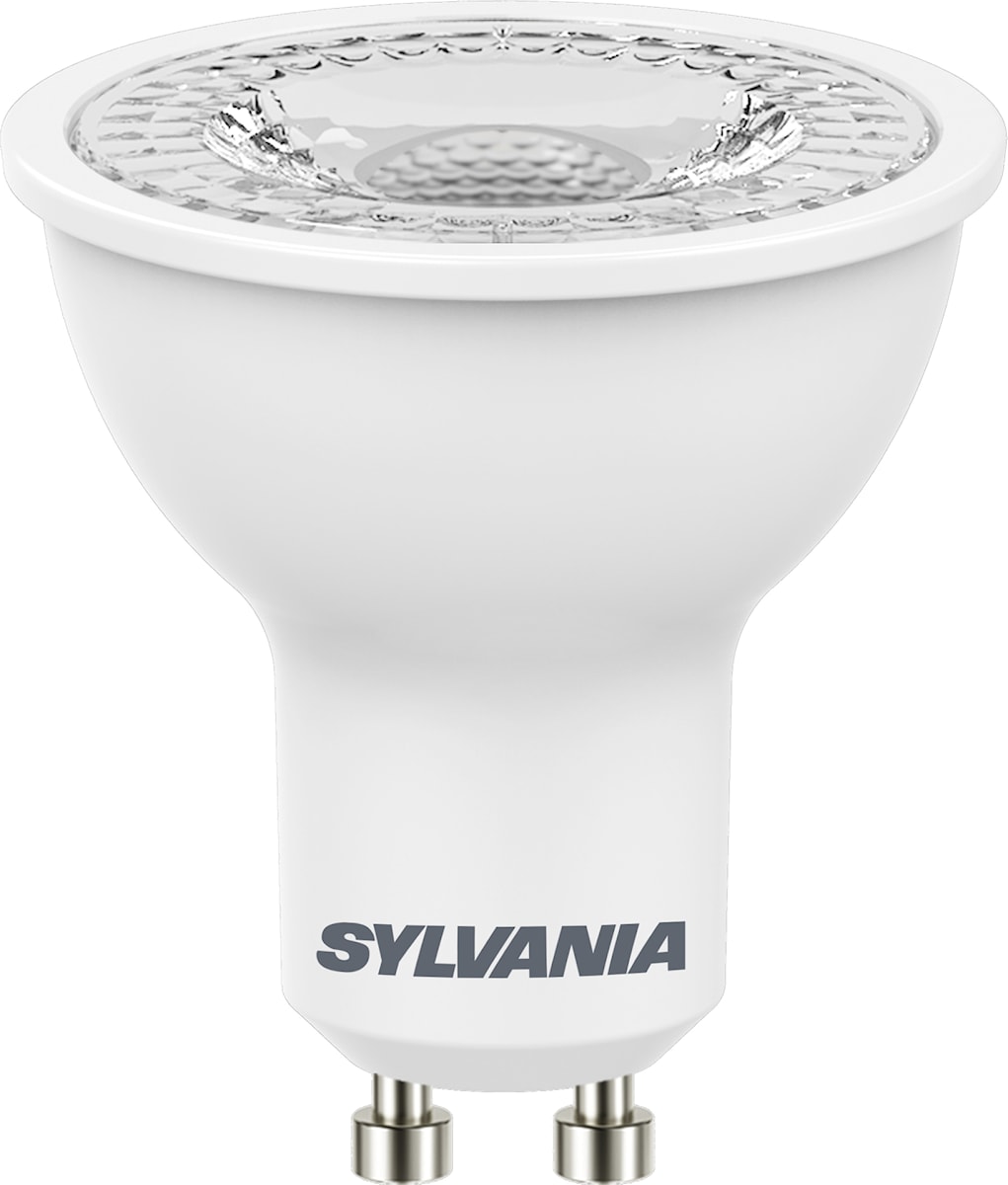

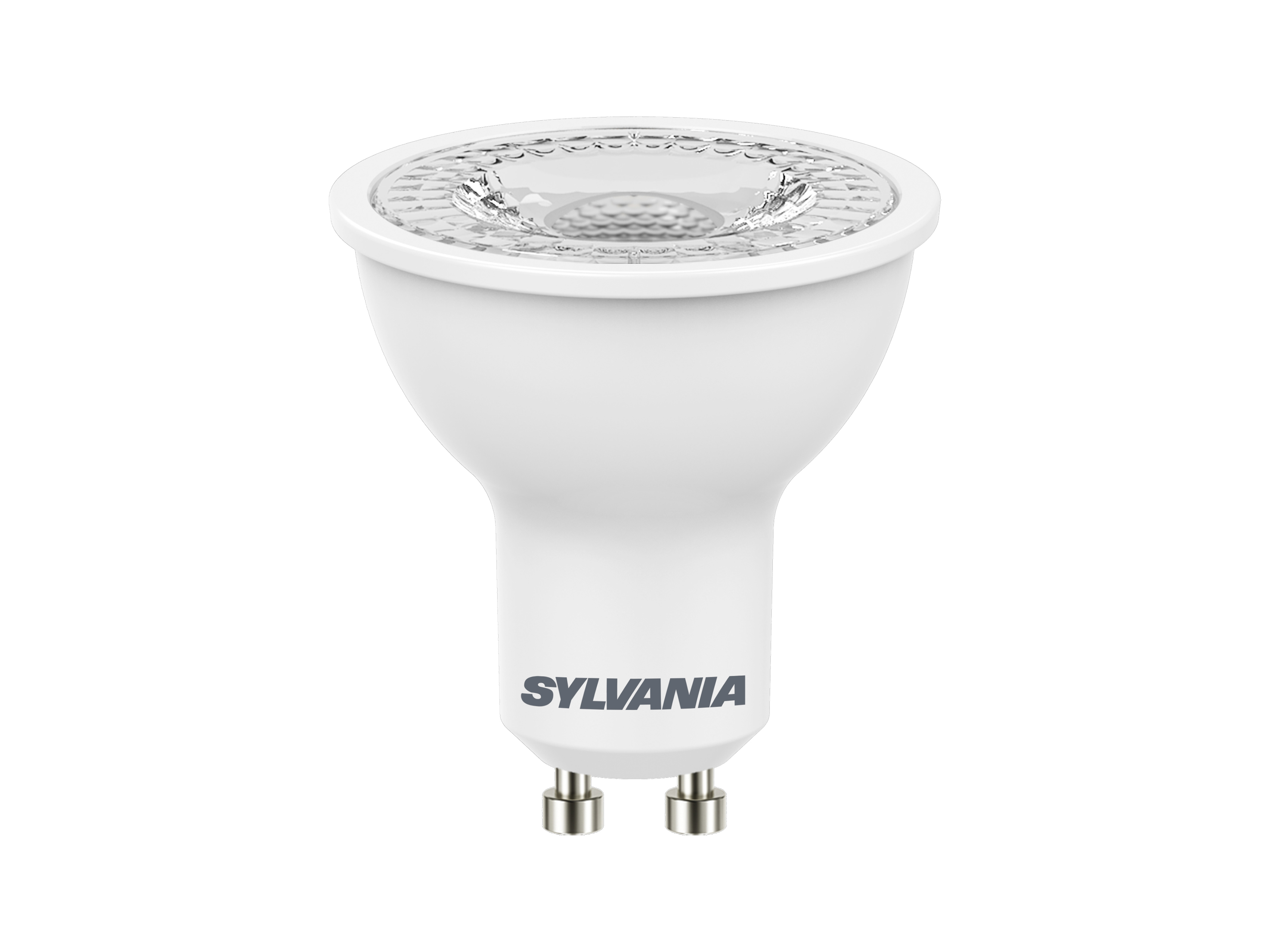

RefLED ES50 V5 425lm 830 36° SL
Item No:
0027447
This product is no longer available
• Compact, energy efficient and exceptional value for money product. • Same shape and size as halogen GU10 lamp • Compact Cluster SMD technology enabling high efficiency with halogen look • Reduced visible heat sink from the front • Available in 36 degree • High lumen efficacy • 15,000 hours average rated life • 3 years warranty
Technical Assets
Dimensions (mm)
Photometrics
Product name
RefLED ES50 V5 425lm 830 36° SL
Technology
LED
Watt (Rated) (W)
6.2
Cap/Base
GU10
Fixture rating
Open
General application
Office, Hospitality, Retail, Education, Residential & Consumer, Museums & Galleries
Performance ambient temperature Tq (°C)
25
ETIM Class
EC001959
E-number FI
4740469
E-number SE
8292499
Warranty
3 years
Useful luminous flux (Φuse)
425
Correlated colour temperature (k)
3000
Light colour
Warm White
CRI (Ra)
80
Colour Consistency (SDCM)
6
Colour Variation Initial (SDCM)
SDCM6
Luminous Intensity (cd)
960
Beam Angle (°)
36
Lumen maintenance at end of nominal life (%)
70
Power consumption (W)
6.2
Wattage (W)
6.2
Starting time (max) (s)
＜0.5
Warm-up time to 60% of full light (max) (s)
＜1.0
Lamp power factor
0.5
No. Of switching cycles before premature failures
>50000
Inrush Current (A)
3.65
Nominal Frequency (Hz)
50/60Hz
Max. products per 10A C Breaker
16
Max. products per 16A C Breaker
26
Max. products per 20A C Breaker
33
Average life (Nominal) (h)
15000
Average life (Rated) (h)
15000
Nominal Product Length (mm)
54
Nominal Product Diameter (mm)
50
Weight (kg)
0.038
Product EAN number
5410288274478
Packaging single length / height (cm)
6.1
Packaging single width (cm)
5.2
Packaging single depth (cm)
5.2
DUN14 (inner)
15410288274475
Units per inner package
6
Packaging inner length / height (cm)
16.7
Packaging inner width (cm)
11.6
Packaging inner depth (cm)
7.5
DUN14 (outer)
25410288274472
Units per outer package
60
Packaging outer length / height (cm)
59.8
Packaging outer width (cm)
18.7
Packaging outer depth (cm)
17.1
Breakage cleaning instructions
Not applicable
Special purpose lamp
No
Dry applications use only
Yes
Suitable for household illumination
Yes
Safety message
Not Suitable for totally enclosed fixtures
